• Product description

  • Intermediate (cross) switch = for controlling corridors and staircases, allowing switching on or off from a third location.
  • For correct operation, always use together with series 6 switches.

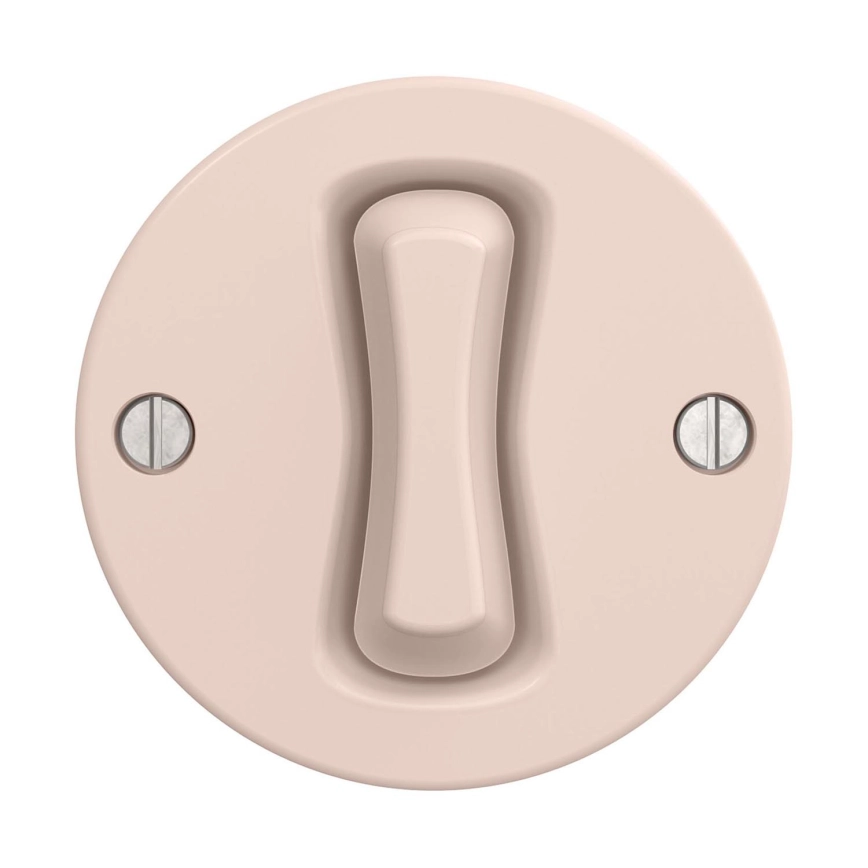

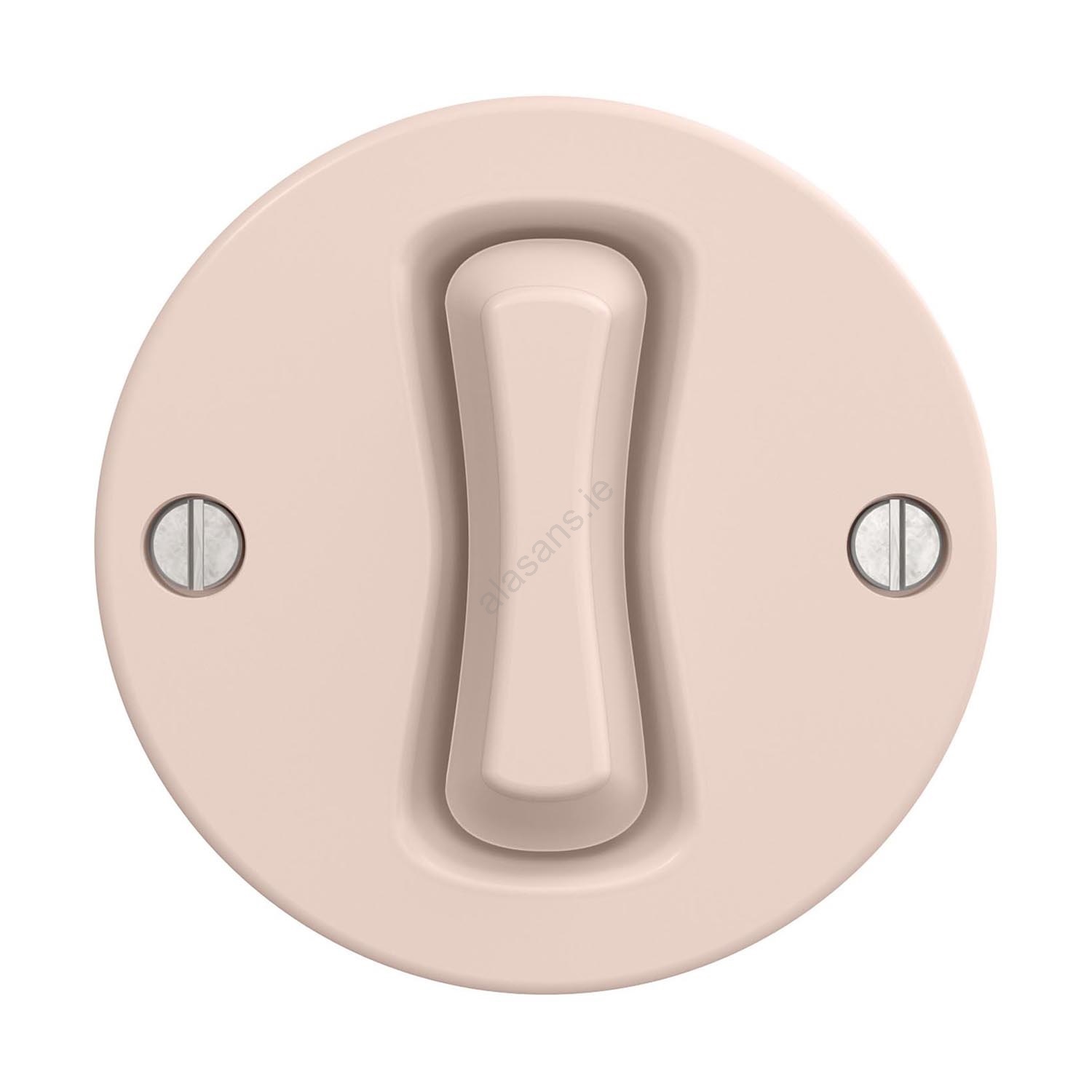

  • Round switch in an old-rose shade.
  • Its retro appearance makes an immediate impression.
  • Using rotatable frames, you can easily assemble double, triple and multiple product configurations.
  • You can combine sockets and switches or use a series of identical modules.
  • Choose an end frame with a one-sided cut that can be rotated as needed, plus a middle frame to attach modules on both sides, creating a continuous series with an unlimited number of elements.
  • Install them horizontally or vertically, according to your needs.
  • Connection type: screw terminal.
  • Control type: rocker.
  • Mounting method: flush wall mounting - suitable for electrical installation boxes with 71 mm spacing (e.g., KP68 or KU68).
  • Material: heat-resistant plastic.
  • Rated current: 10 A.
  • Rated voltage: 230 V.
  • Frequency: 50 Hz.
  • Ingress protection (IP): IP20.
  • Device width: 70.5 mm.
  • Device height: 70.5 mm.
  • Device depth: 30 mm.
  • Always use round electrical installation boxes.
  • Also allow for round cut-outs in tiles.
  • Frame not included.
  • Made in the EU.

  Brand

  Reblig



  This product is listed in the following categories

  Brands, Electrical equipment, Reblig, Switches, Switches, dimmers and frames, Vintage switches and sockets

• Parameters

• Documents for download

• Ratings and reviews0

• Questions about the product0

Buy

Product code: RG0117
