• Product description

  • Intermediate switch — for controlling corridors and staircases with the ability to switch off or on from a third location.
  • For correct operation, always use together with switches of series 6.

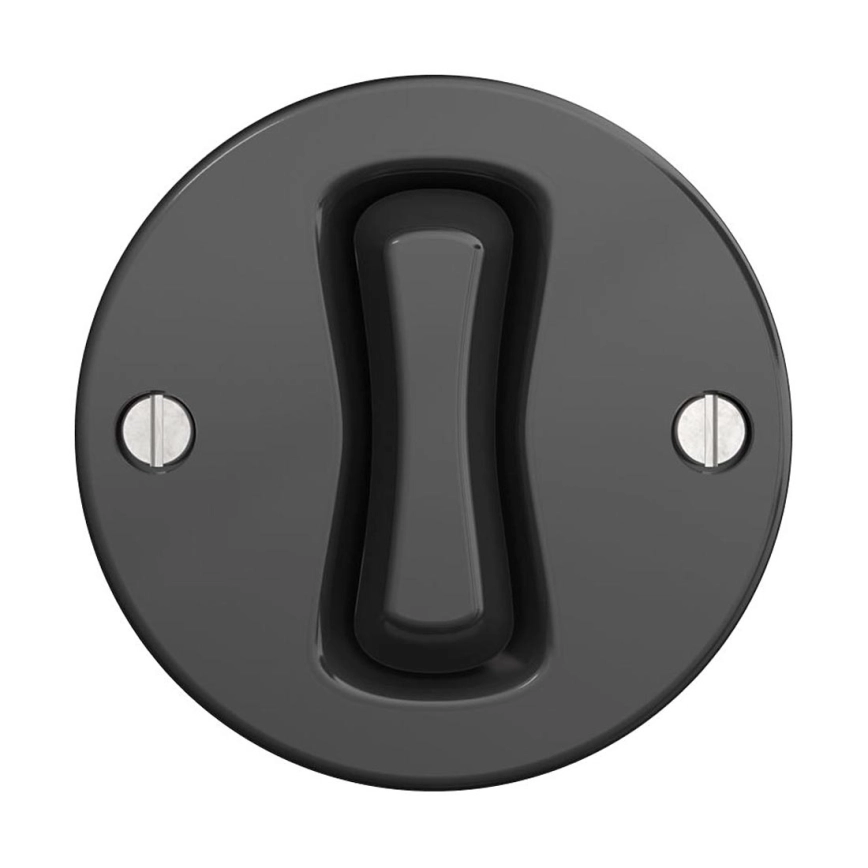

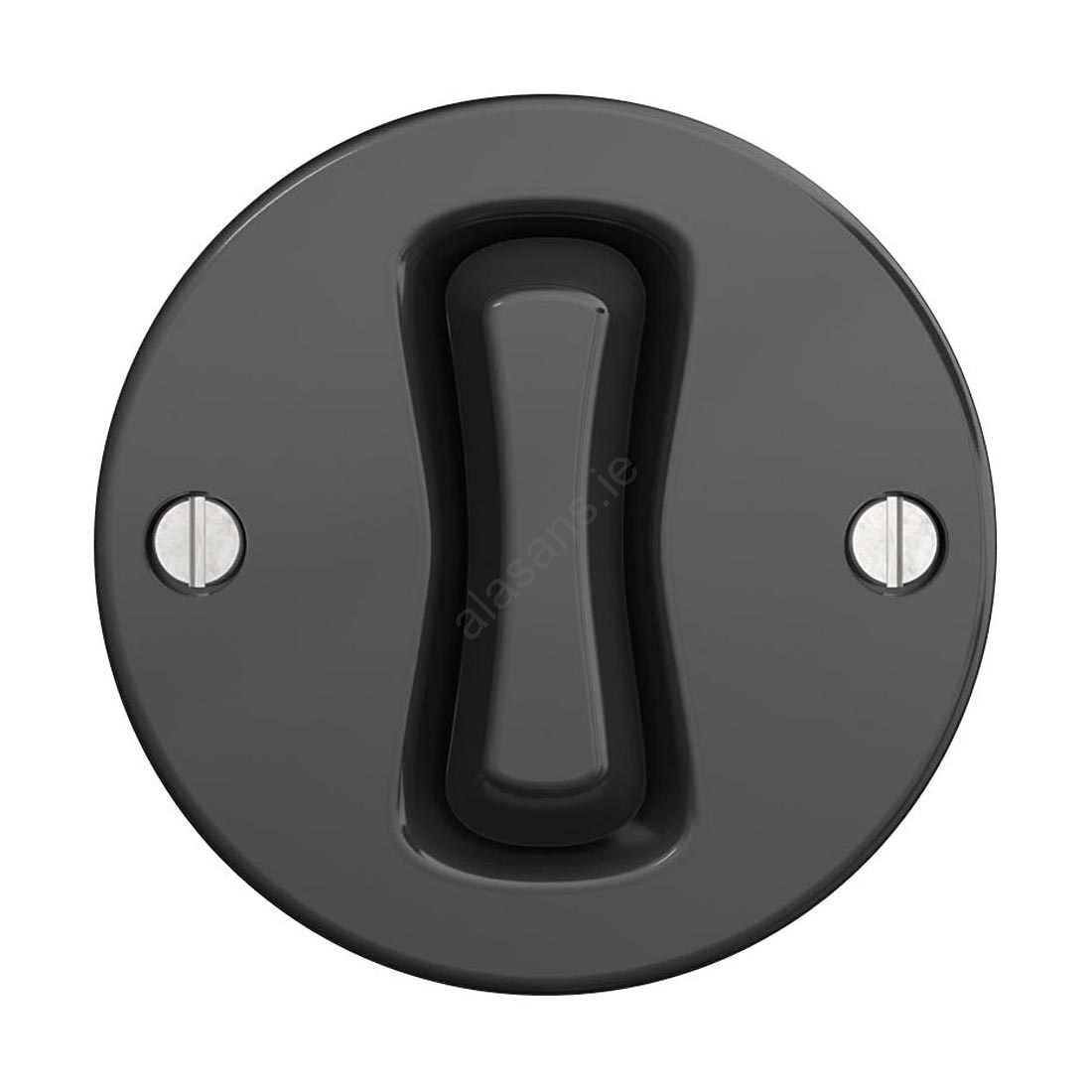

  • Round switch in an anthracite finish.
  • Its retro design makes an immediate impression.
  • With rotating frames you can easily assemble double, triple or multi-gang product configurations.
  • You can combine sockets and switches or use a series of identical modules.
  • Choose an end frame with a one-sided cut that can be rotated all the way around as needed, and a central frame to connect modules on both sides, creating a complete series with an unlimited number of elements.
  • Install them horizontally or vertically, according to your requirements.
  • Connection type: screw terminal.
  • Control type: rocker.
  • Mounting method: flush wall installation - suitable for electrical installation boxes with 71 mm spacing (e.g. KP68, or KU68).
  • Material type: heat-resistant plastic.
  • Rated current: 10 A.
  • Rated voltage: 230 V.
  • Frequency: 50 Hz.
  • Suitable for protection rating (IP): IP20.
  • Device width: 70,5 mm.
  • Device height: 70,5 mm.
  • Device depth: 30 mm.
  • Always use only round electrical installation boxes.
  • Also allow for round cut-outs in tiling.
  • Frame not included in the package.
  • Made in the Czech Republic.
