• Product description

  • Intermediate (cross) switch — for controlling corridors and staircases, enabling switching from a third location.
  • For proper operation, always use in conjunction with switches from series 6.

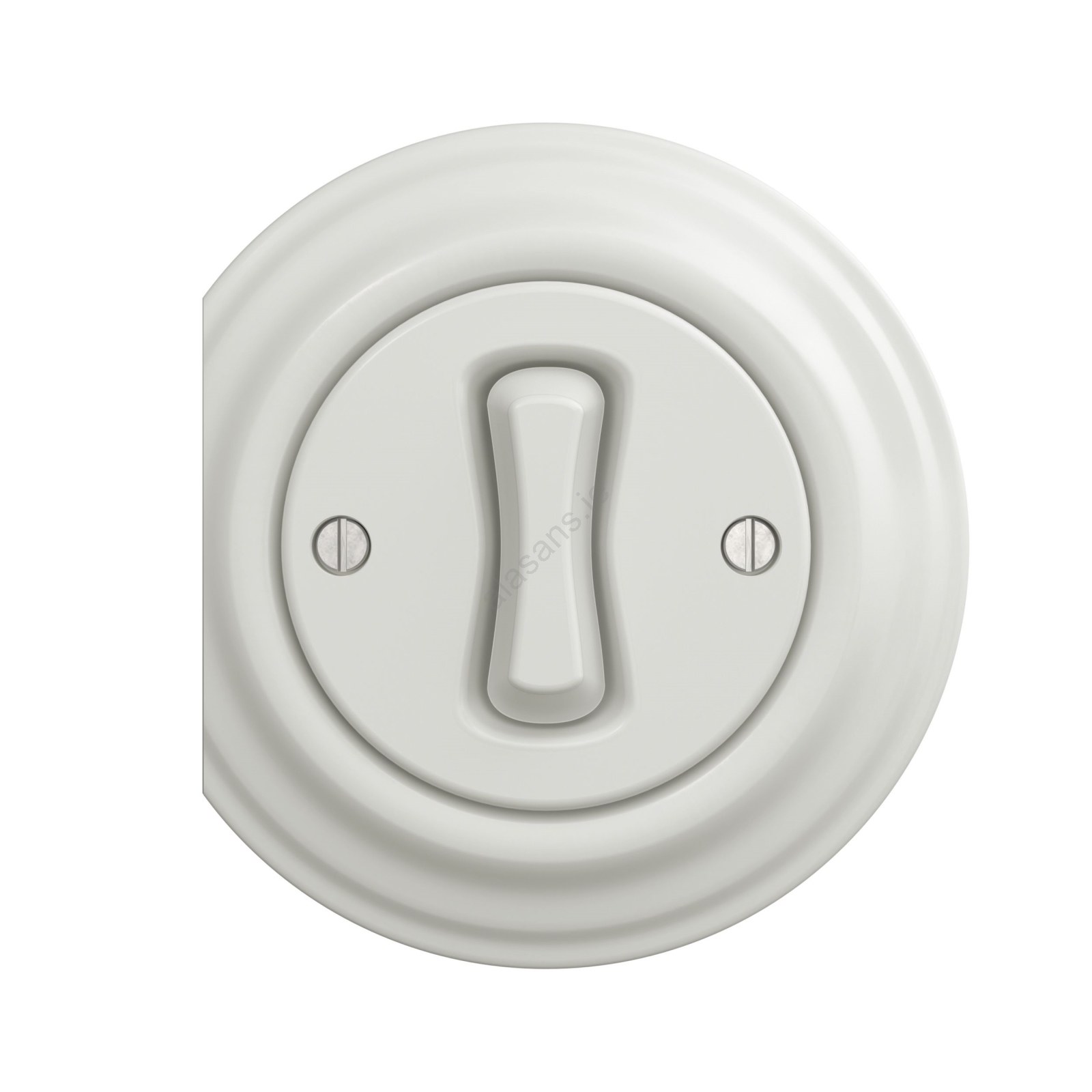

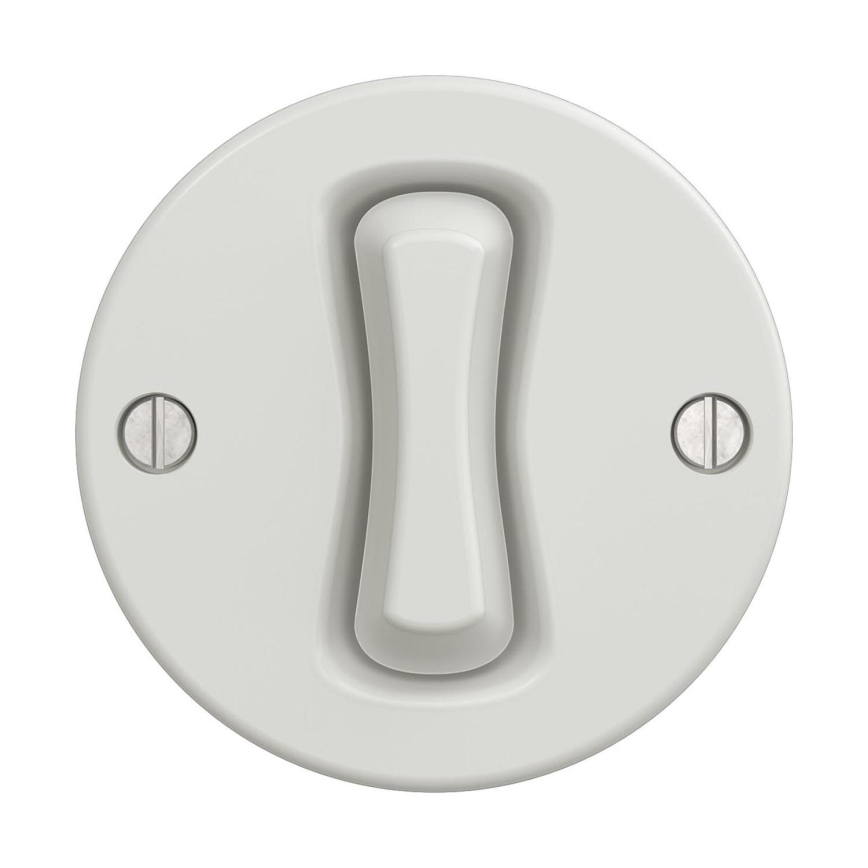

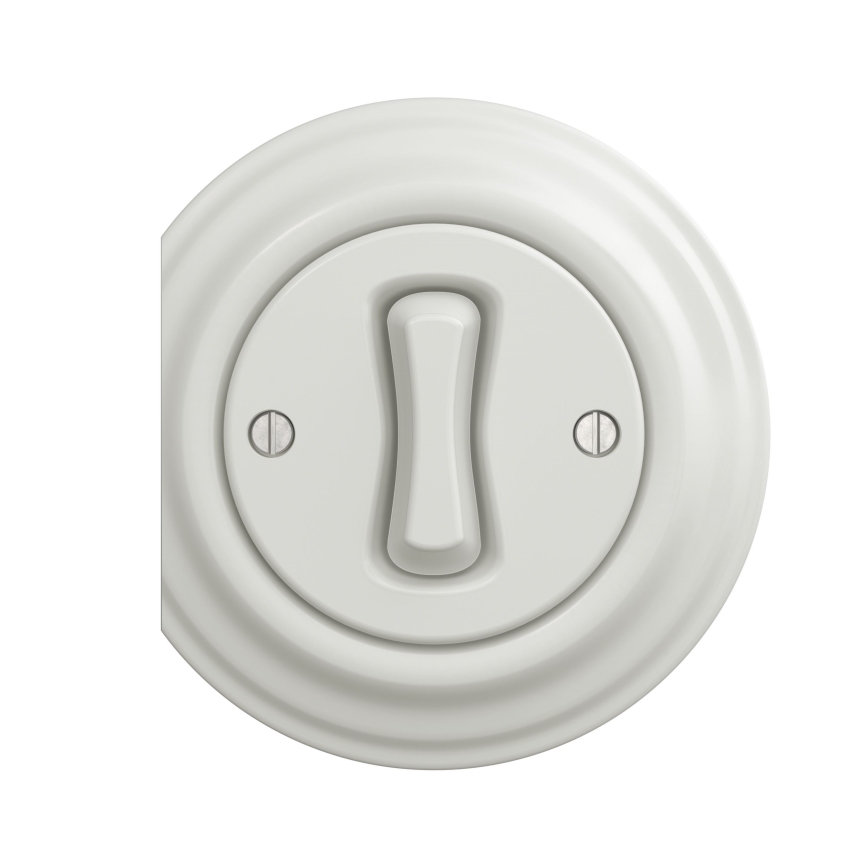

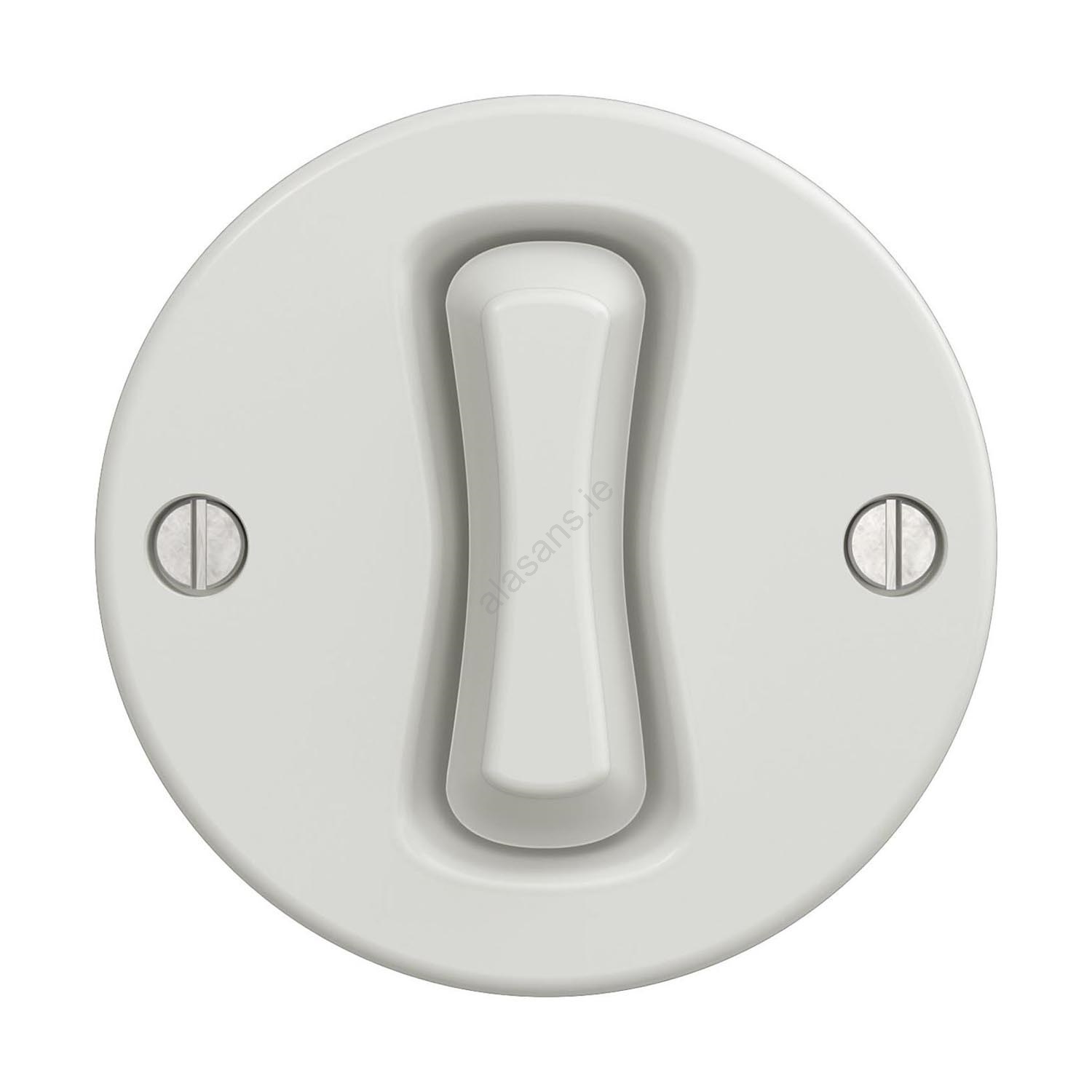

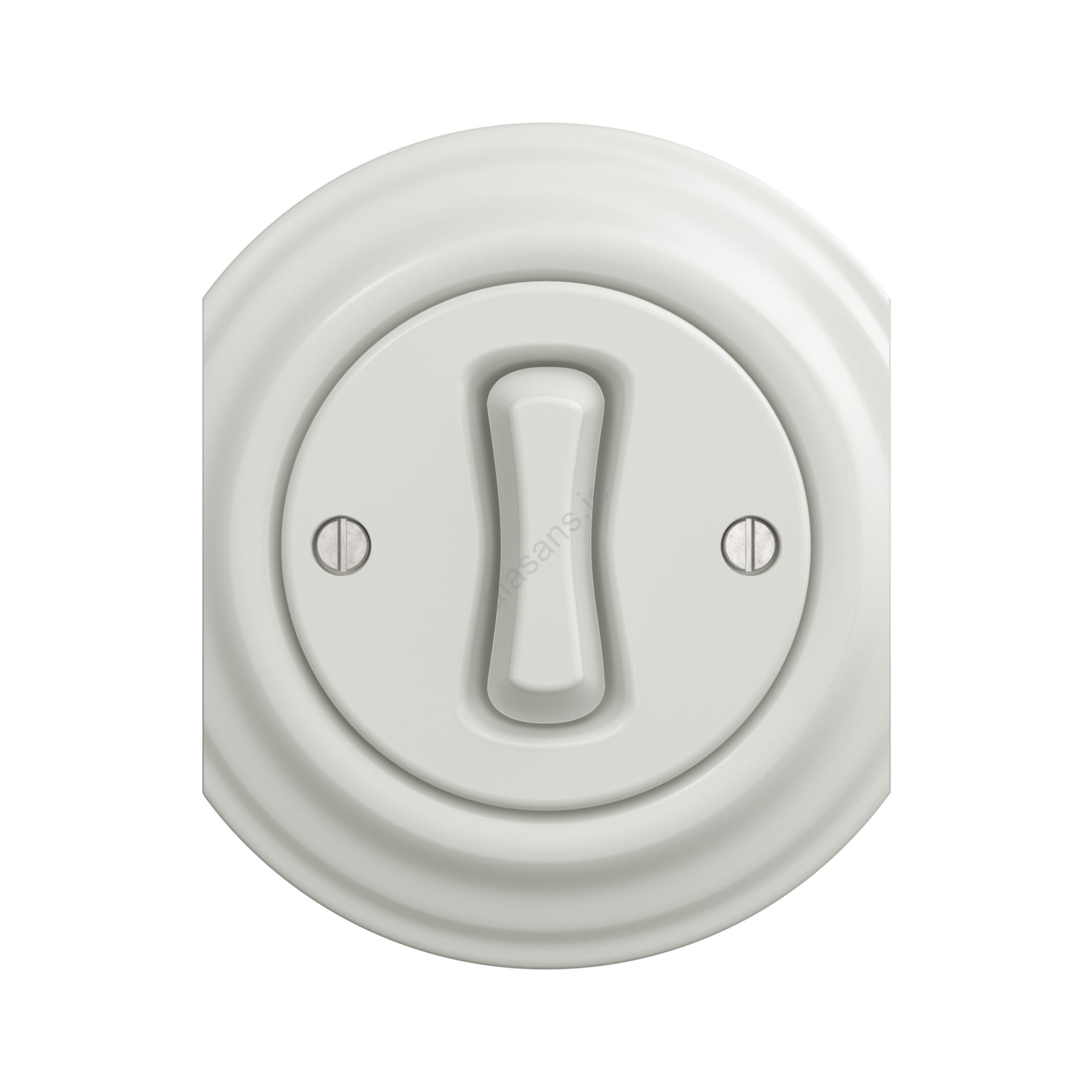

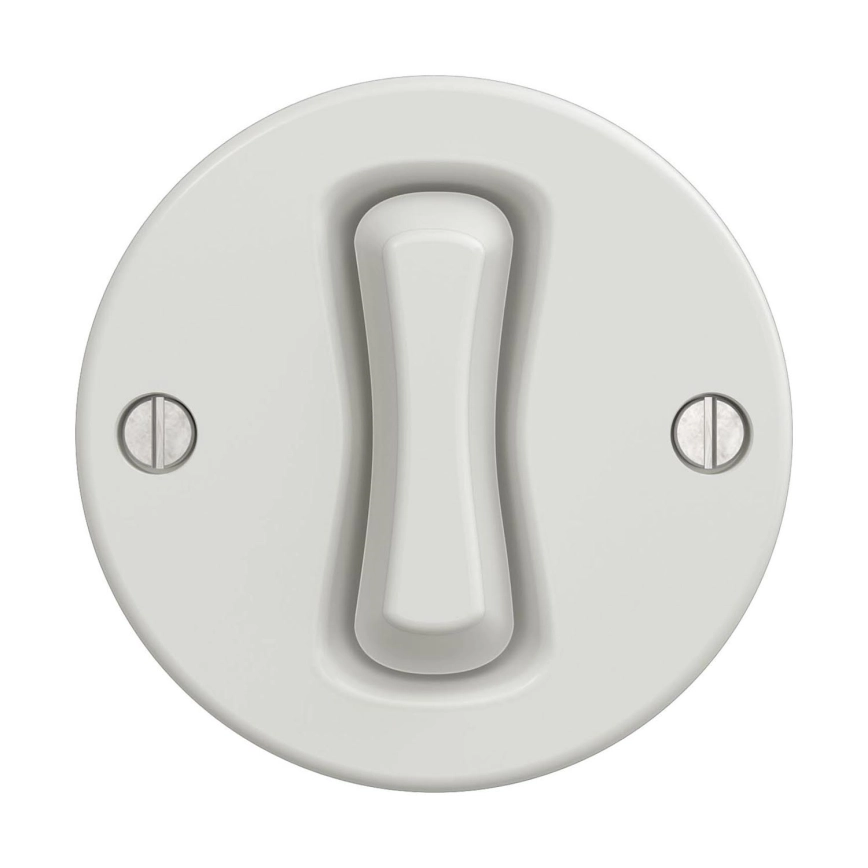

  • Round switch in a ceramic white finish.
  • Its retro styling makes an immediate impression.
  • With rotatable frames you can easily create double, triple and multi-gang configurations.
  • You can combine sockets and switches or assemble a run of identical modules.
  • Choose an end frame with a one-sided cut that can be rotated as needed, then use the central frame, which connects on both sides, to build a complete series with an unlimited number of modules.
  • Mount them horizontally or vertically, according to your needs.
  • Connection type: screw terminal.
  • Control type: rocker.
  • Mounting method: flush wall mounting - suitable for electrical installation boxes with 71 mm spacing (e.g. KP68 or KU68).
  • Material: heat-resistant plastic.
  • Rated current: 10 A.
  • Rated voltage: 230 V.
  • Frequency: 50 Hz.
  • Protection rating (IP): IP20.
  • Device width: 70.5 mm.
  • Device height: 70.5 mm.
  • Device depth: 30 mm.
  • Always use only round electrical installation boxes.
  • Also allow for round cut-outs in tiles.
  • Frame not included.
  • Made in the Czech Republic.

  Brand

  Reblig



  This product is listed in the following categories

  Brands, Electrical equipment, Reblig, Switches, Switches, dimmers and frames, Vintage switches and sockets

• Parameters

• Documents for download

• Ratings and reviews0

• Questions about the product0

Buy

Product code: RG0005
