• Product description

  • Two-way staircase switch = controls a lighting circuit from two locations (hallway, staircase).
  • For proper operation, use another switch of the same type, or extend the circuit with a switch from series 7 or 6+6.
  • Its retro appearance makes a striking first impression.
  • Use rotatable frames to easily configure double, triple or multi-gang combinations.

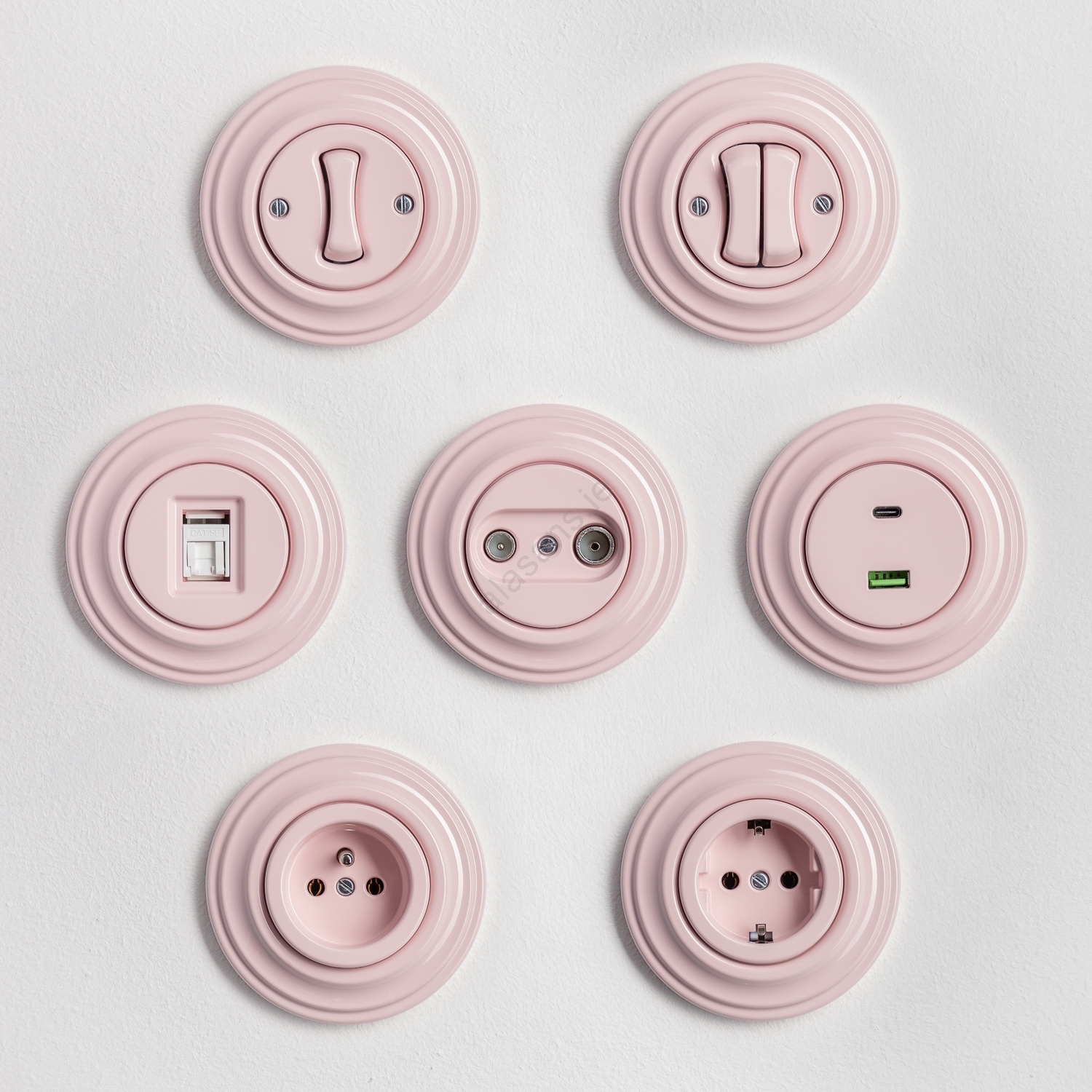

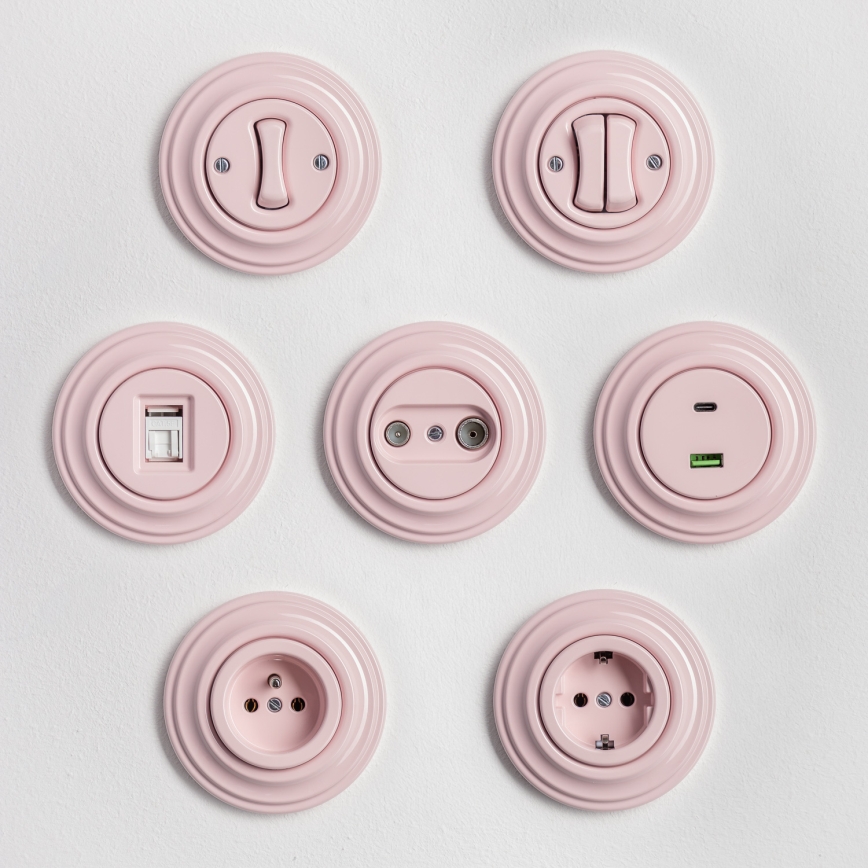

  • Mix sockets and switches or assemble a run of identical modules.
  • Choose an end frame with a one-sided cutout that can be rotated to suit your needs, plus a middle frame which you attach on both sides to build a continuous series with an unlimited number of elements.
  • Arrange them horizontally or vertically to suit your layout.

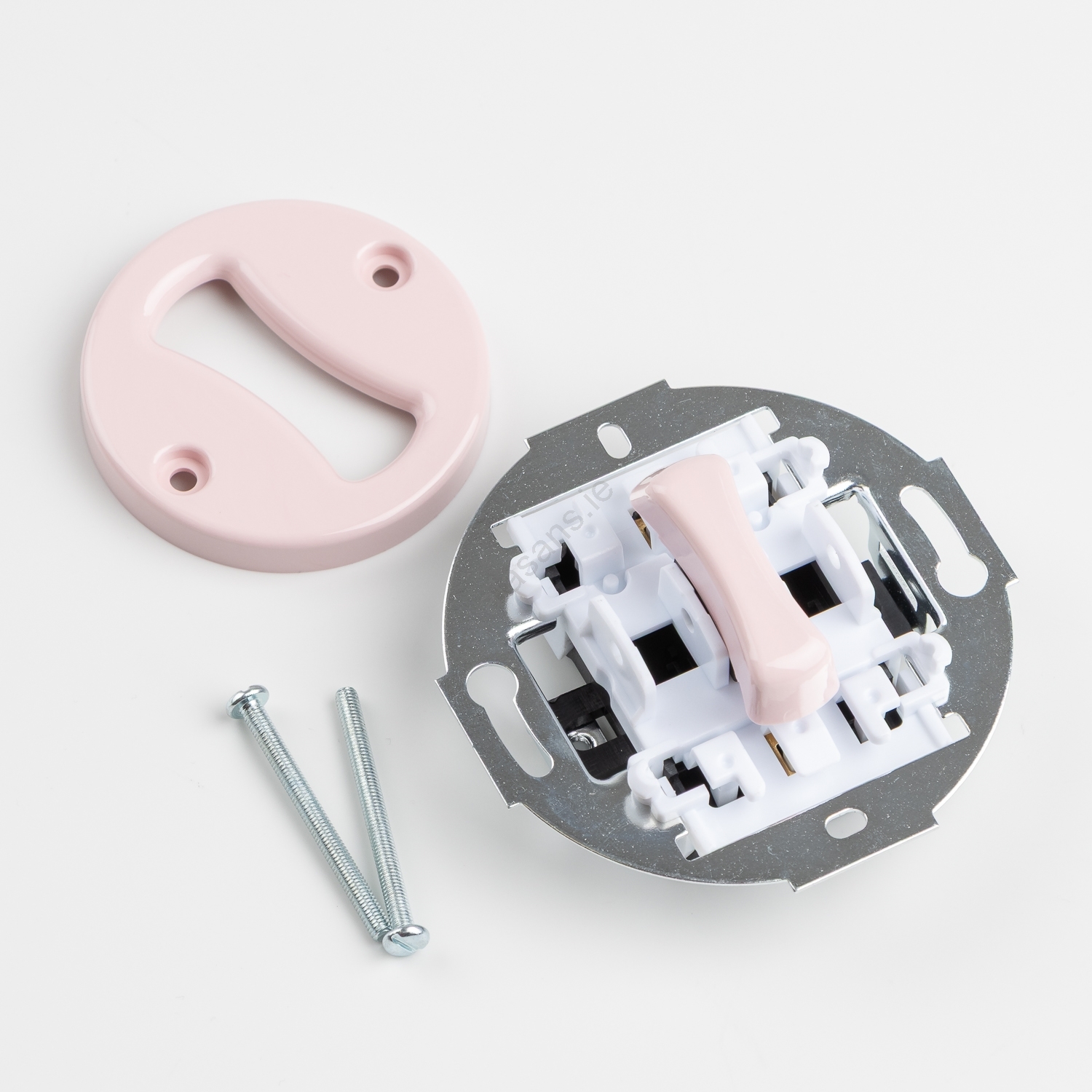

  • Connection type: screw terminal.
  • Control type: rocker.
  • Mounting method: flush wall mounting - suitable for electrical installation boxes with 71 mm centers (e.g. KP68 or KU68).
  • Material: heat-resistant plastic.
  • Rated current: 10 A.
  • Rated voltage: 230 V.
  • Frequency: 50 Hz.
  • Ingress protection (IP): IP20.
  • Device width: 70.5 mm.
  • Device height: 70.5 mm.
  • Device depth: 30 mm.
  • Use only round electrical installation boxes.
  • Also allow for round cut-outs in tiling.
  • Made in the EU.

  Brand

  Reblig



  This product is listed in the following categories

  Brands, Electrical equipment, Reblig, Switches, Switches, dimmers and frames, Vintage switches and sockets

• Parameters

• Documents for download

• Ratings and reviews0

• Questions about the product0

Buy

Product code: RG0119C
