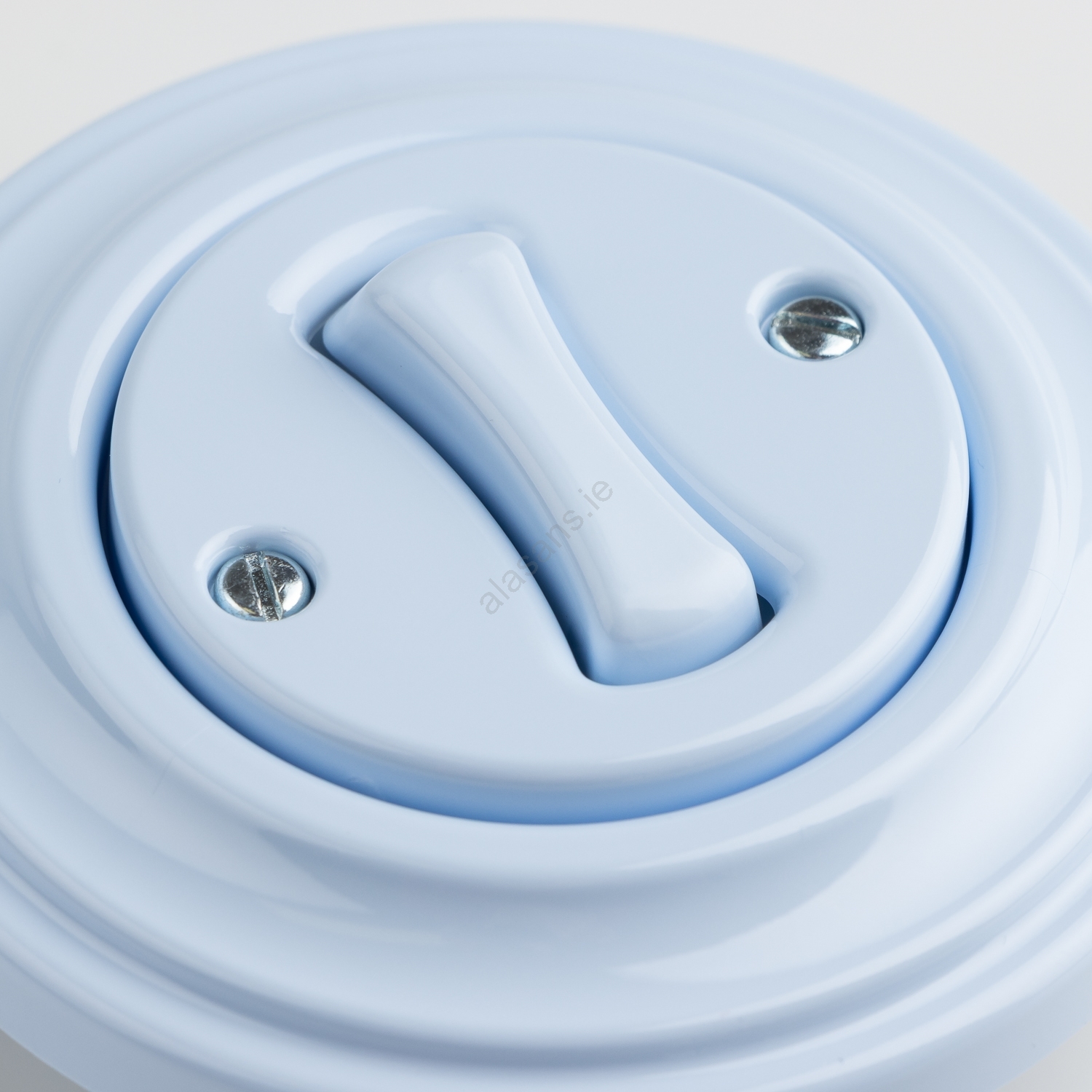

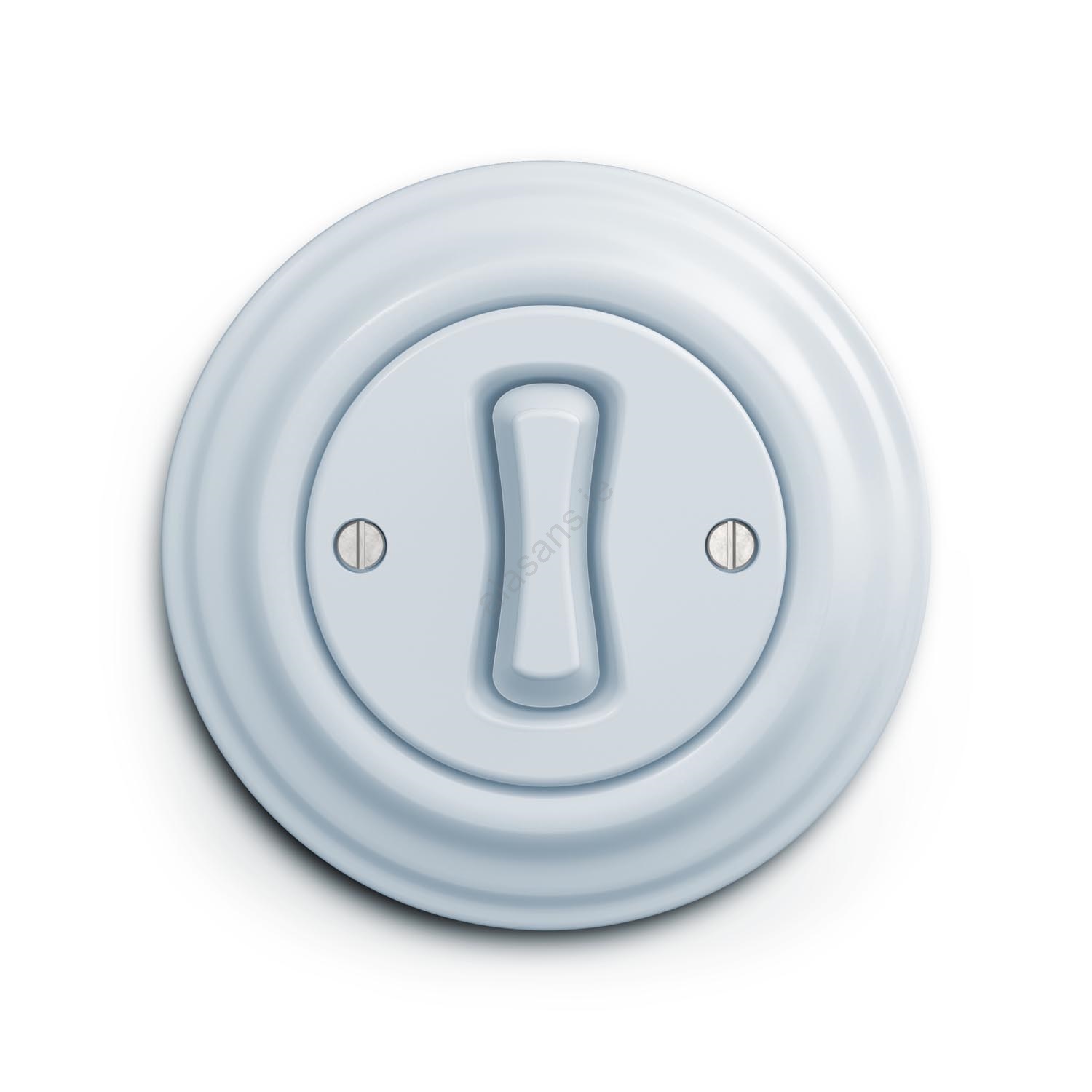

• Product description

  • Staircase switch = switching a lighting circuit from two locations (hallway, stairwell).
  • For correct operation, use another switch of the same type, or extend the circuit with a No. 7 or 6+6 switch.
  • Its retro look makes a striking first impression.
  • With rotatable frames you can easily compose double, triple or multi-gang configurations.

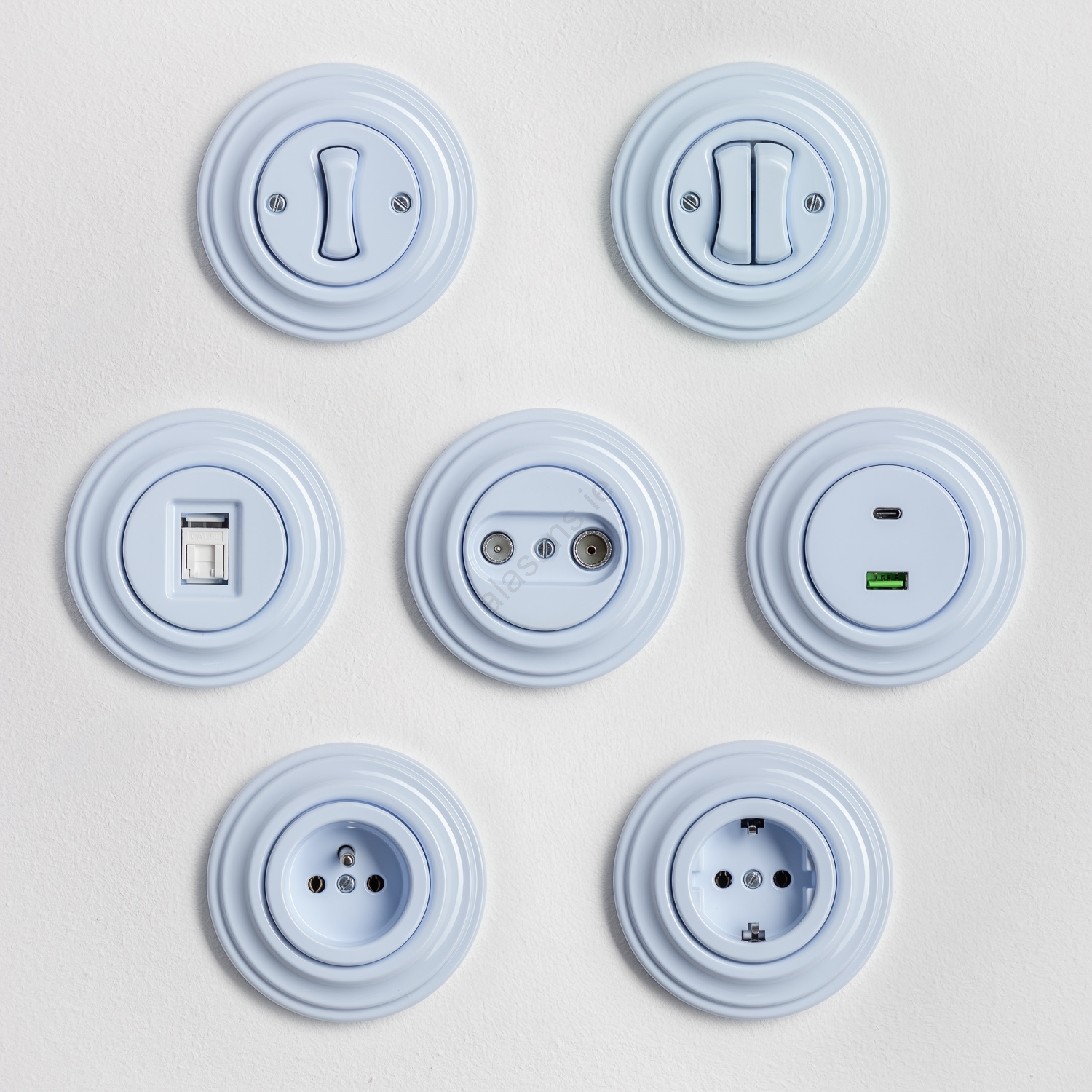

  • You can mix sockets and switches or use a row of identical modules.
  • Choose an end frame with a single-sided trim that can be rotated as needed, plus a central frame to connect elements on both sides — allowing you to build a continuous series with an unlimited number of modules.
  • Install them horizontally or vertically, according to your needs.
  • Connection type: screw terminal.
  • Control type: rocker.
  • Mounting method: flush wall mounting — suitable for electrical installation boxes with a 71 mm center distance (e.g., KP68 or KU68).
  • Material: heat-resistant plastic.
  • Rated current: 10 A.
  • Rated voltage: 230 V.
  • Frequency: 50 Hz.
  • Ingress protection (IP): IP20.
  • Device width: 70.5 mm.
  • Device height: 70.5 mm.
  • Device depth: 30 mm.
  • Use only round electrical installation boxes.
  • Also allow for round cut-outs in wall coverings.
  • Made in the EU.

  Brand

  Reblig



  This product is listed in the following categories

  Brands, Electrical equipment, Reblig, Switches, Switches, dimmers and frames, Vintage switches and sockets

• Parameters

• Documents for download

• Ratings and reviews0

• Questions about the product0

Buy

Product code: RG0025C
