• Product description

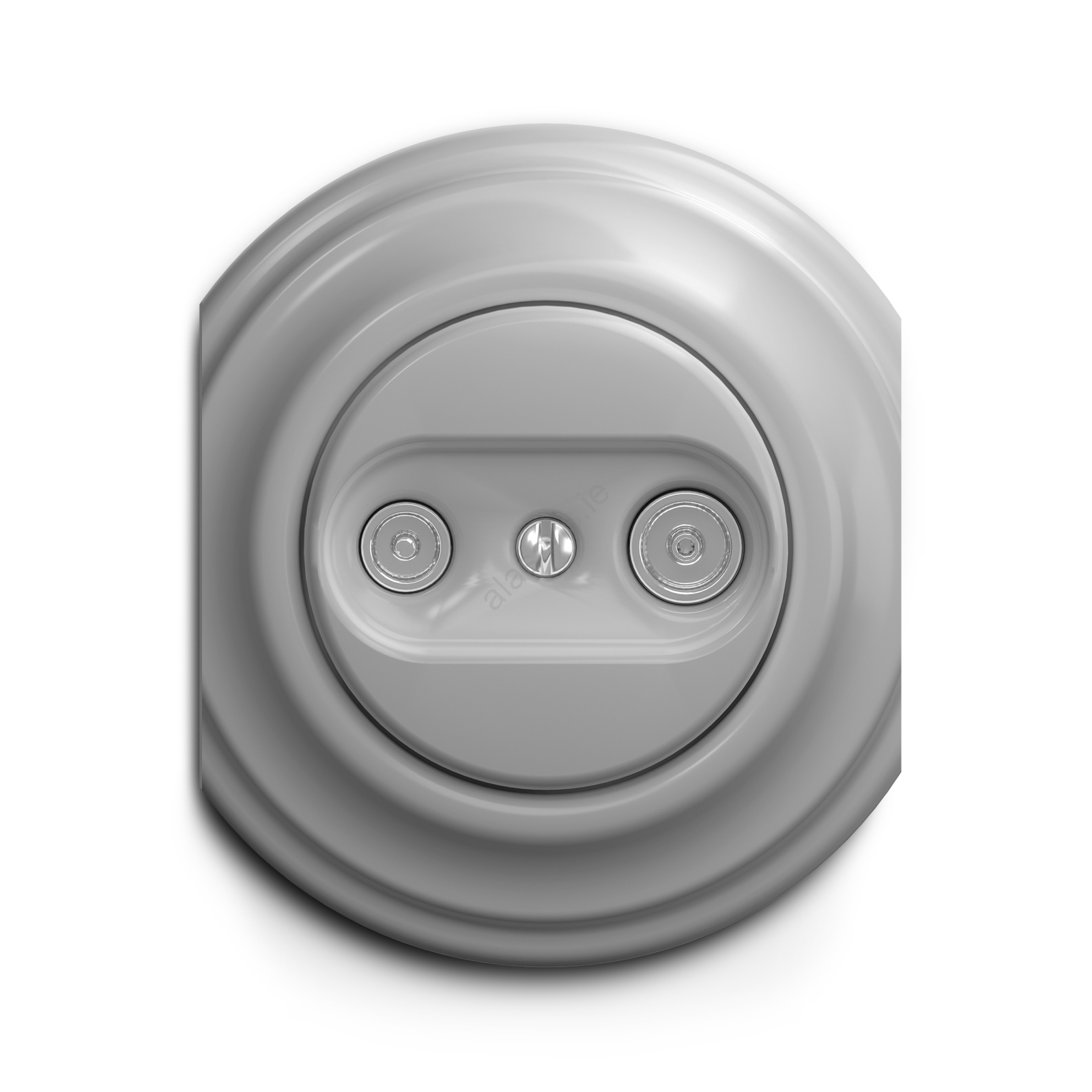

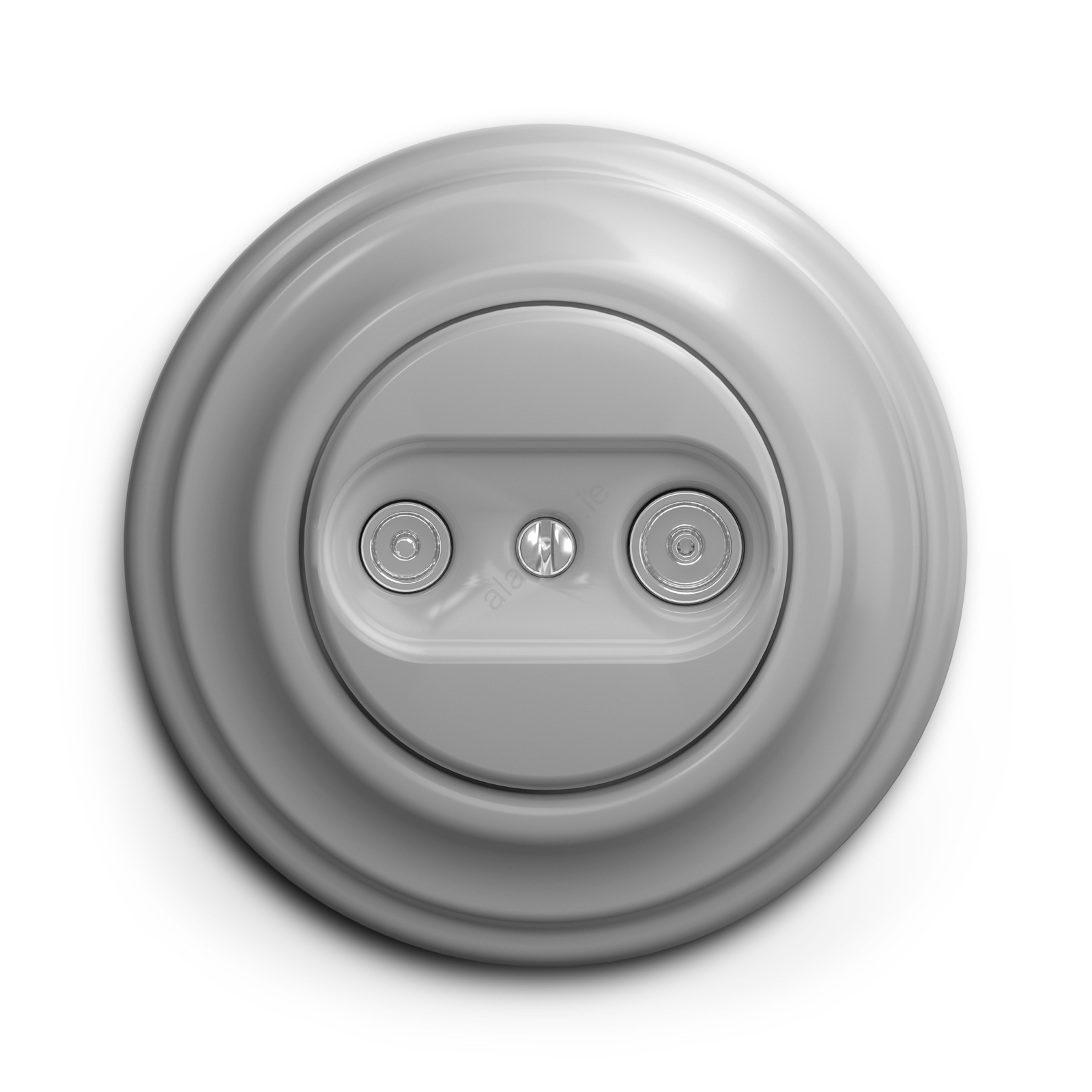

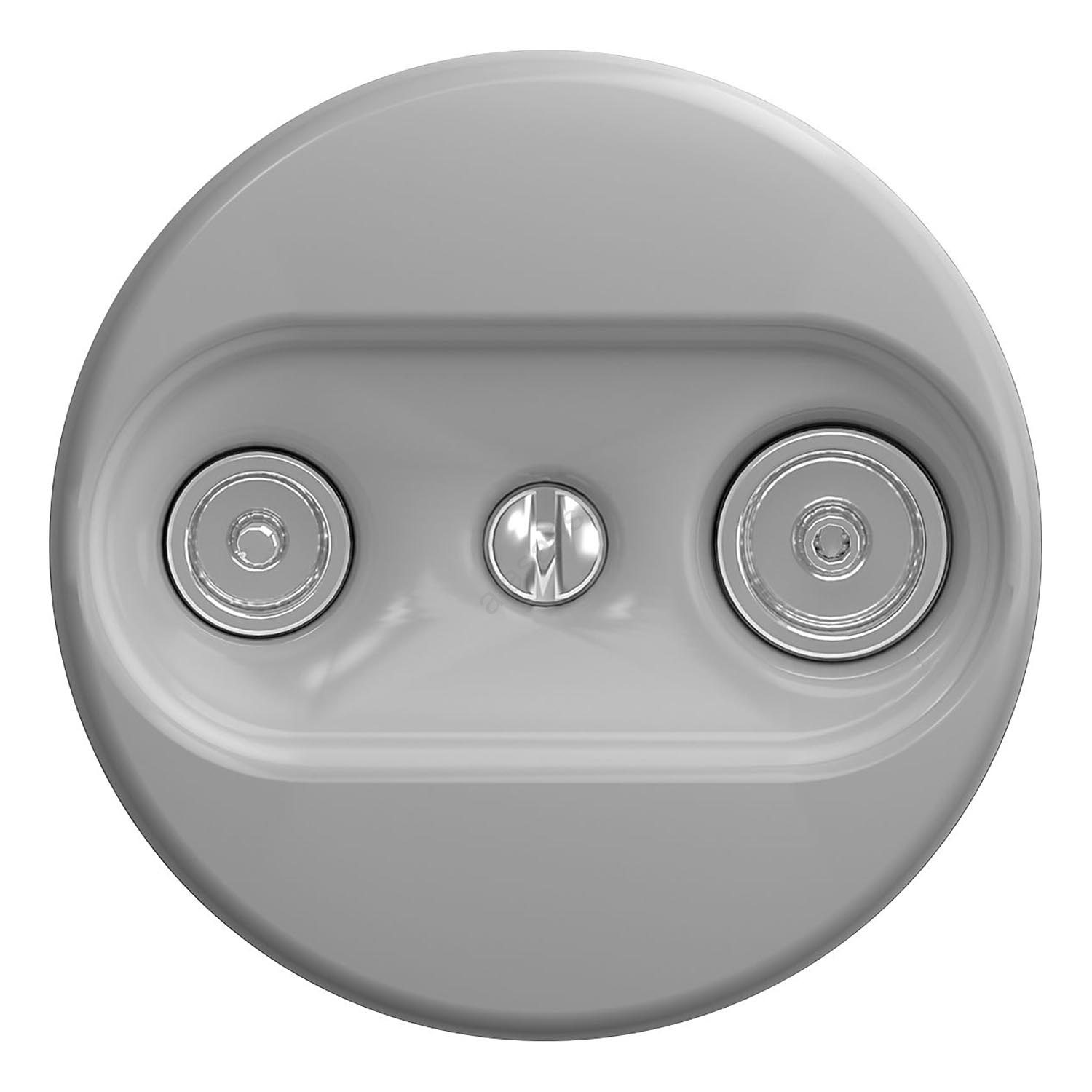

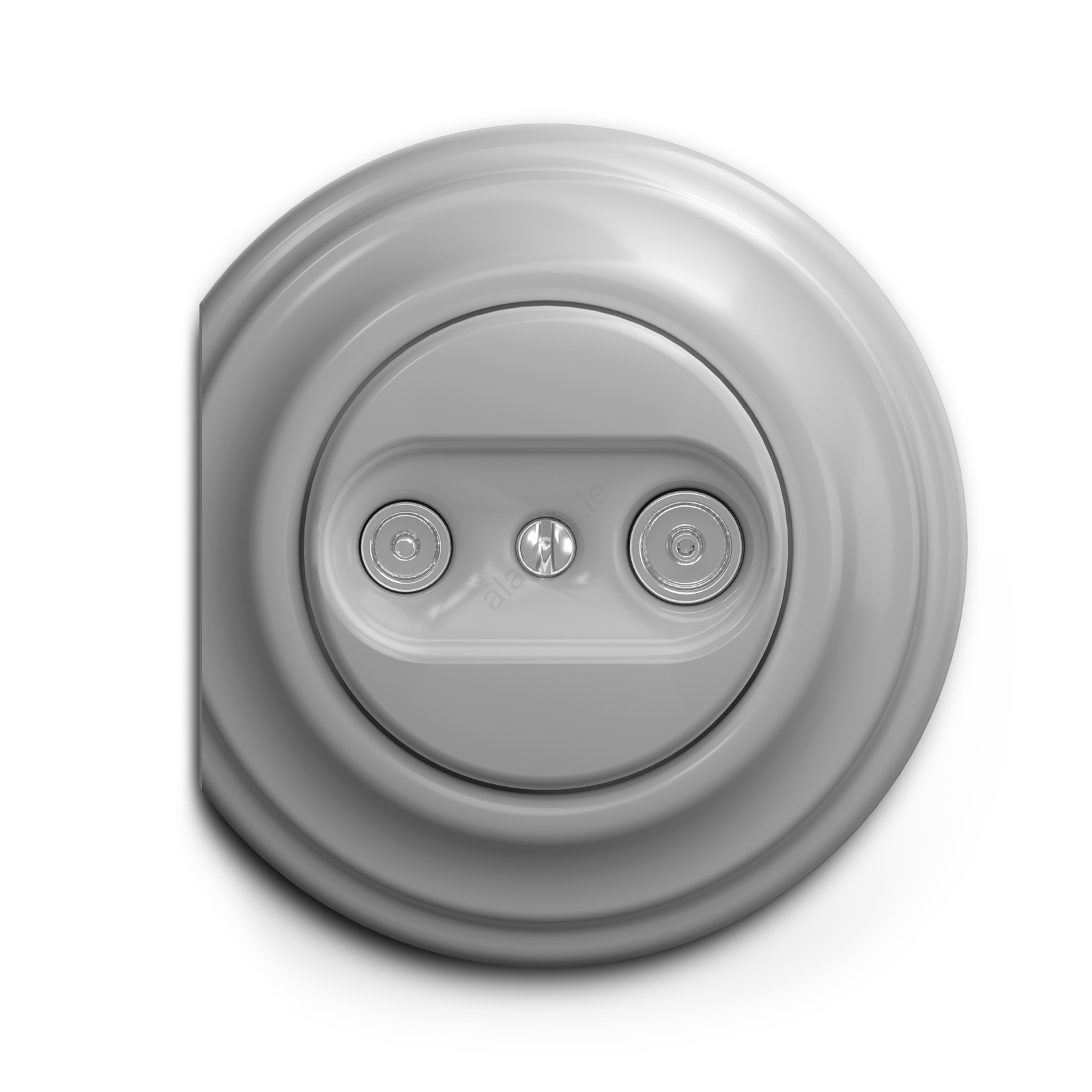

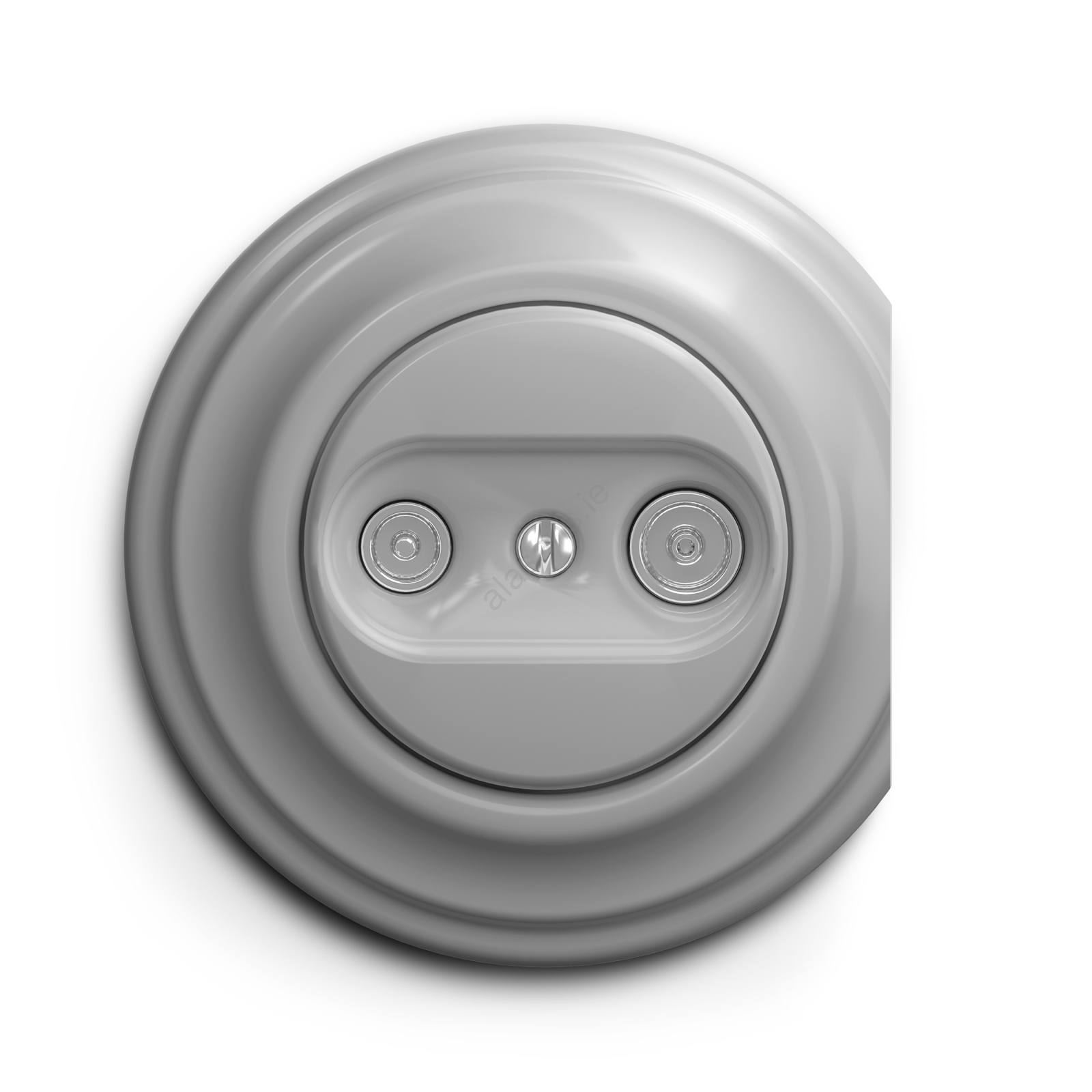

  • TV+R pass-through outlet (pass-through).
  • Its retro look makes a striking first impression.
  • Rotating frames let you easily create double, triple or multi-module assemblies.

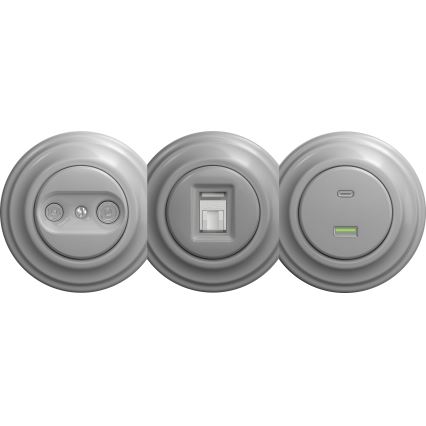

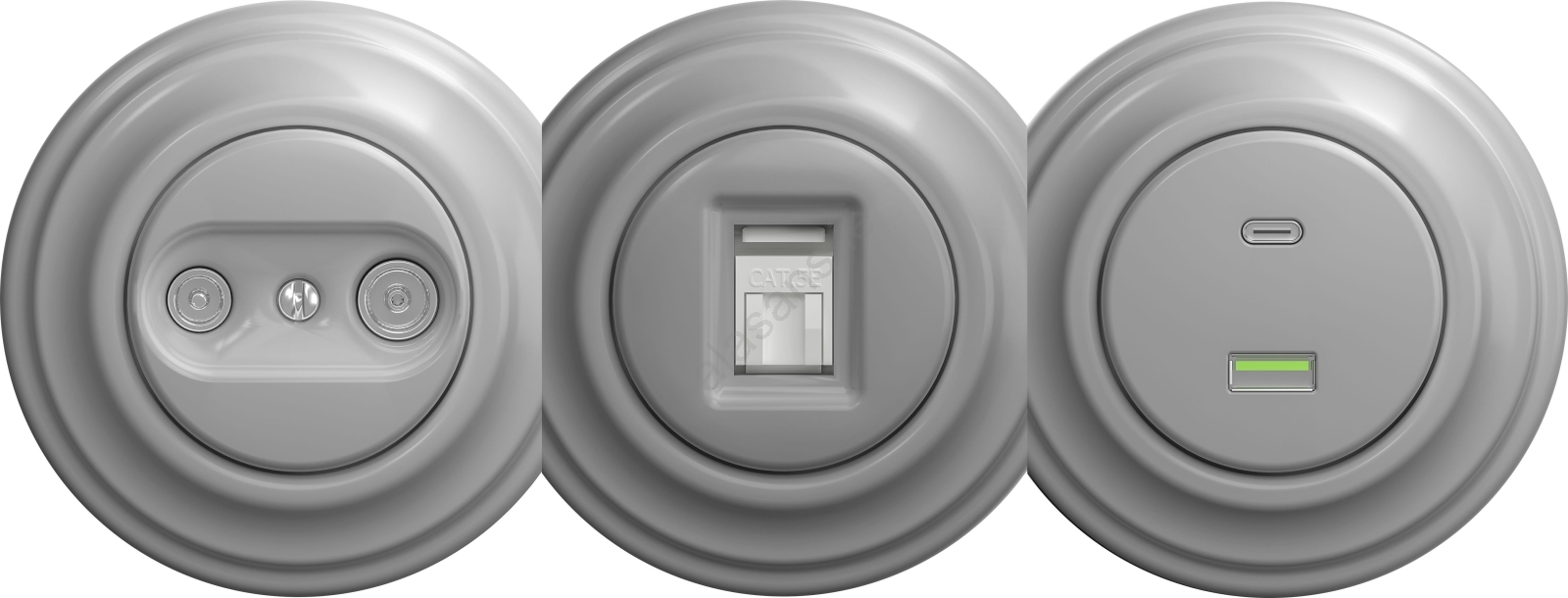

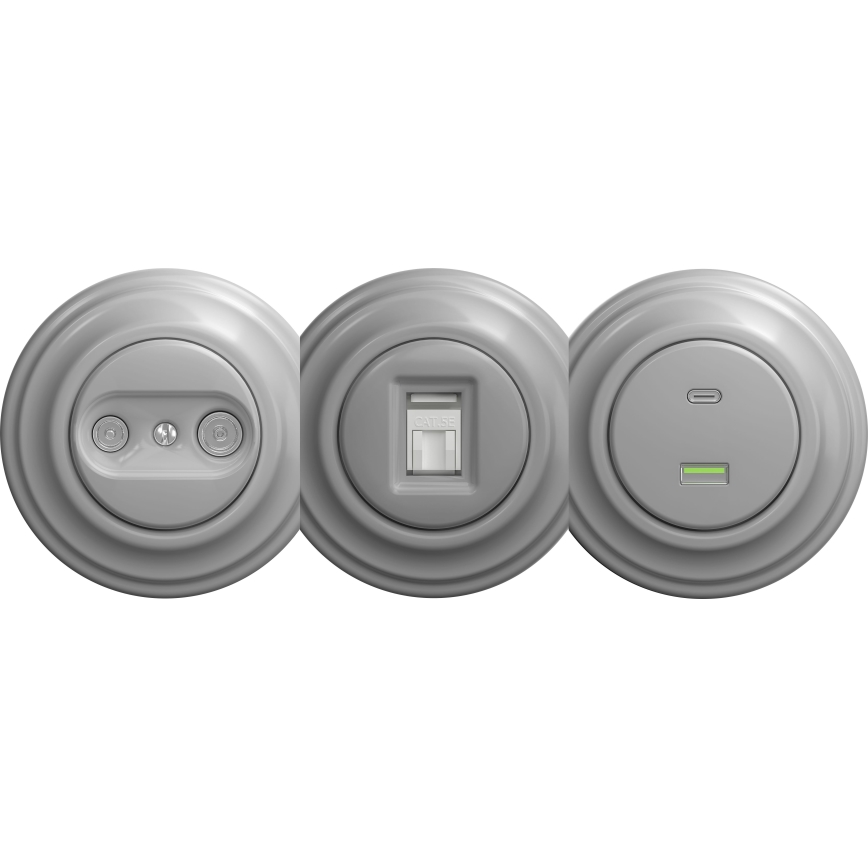

  • Mix sockets and switches or use a continuous row of identical modules.
  • Select an end frame with a one-sided cut that can be rotated as needed, plus a middle frame that you connect on both sides to build a complete series with unlimited modules.
  • Install them horizontally or vertically to suit your layout.
  • Connection type: screw terminal.
  • Mounting method: flush wall mounting - suitable for electrical installation boxes with a 71 mm spacing (e.g. KP68 or KU68).
  • Material type: heat-resistant plastic.
  • Termination attenuation: 7 dB.
  • Pass-through attenuation: 3 dB.
  • Connector type: IEC.
  • Label: TV + R.
  • Device width: 70,5 mm.
  • Device height: 70,5 mm.
  • Device depth: 20 mm.
  • Always use only round electrical installation boxes.
  • Also allow for round cut-outs in wall finishes.
  • Frame is not included.
  • Made in the Czech Republic.
