• Product description

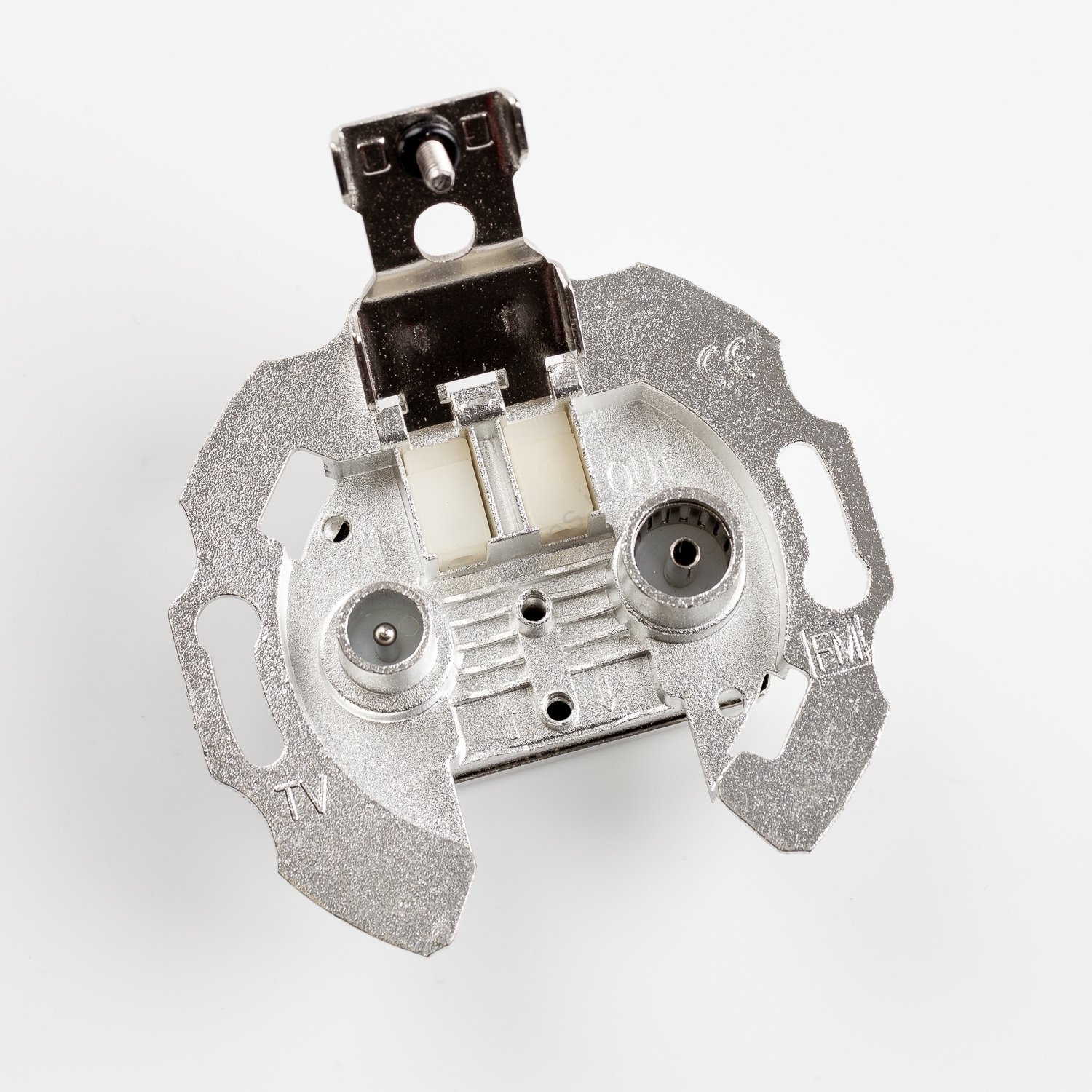

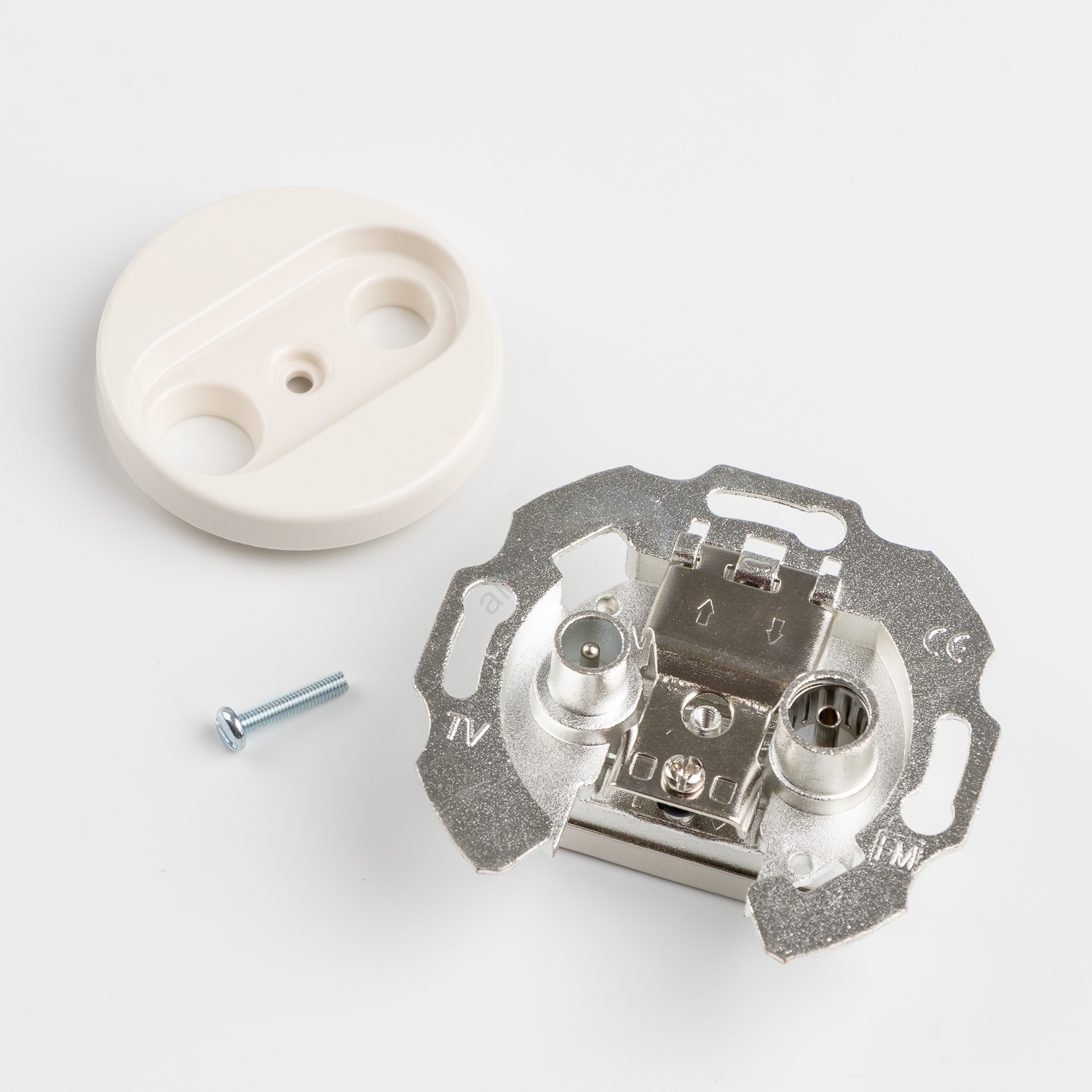

  • Subscriber TV+R pass-through socket (loop-through).
  • Its retro design makes a striking first impression.
  • Rotatable frames let you effortlessly assemble double, triple or multi-gang configurations.
  • Mix sockets and switches or create a continuous row of identical modules.
  • Choose an end frame with a one-sided cut that can be rotated as needed, plus a middle frame that connects on both sides to form a complete series with unlimited modules.
  • Install them horizontally or vertically to suit your layout.
  • Connection type: screw terminal.
  • Installation method: flush wall mounting - suitable for electrical back boxes with a 71 mm centre distance (e.g., KP68 or KU68).
  • Material: heat-resistant plastic.
  • End attenuation: 7 dB.
  • Through attenuation: 3 dB.
  • Connector type: IEC.
  • Designation: TV + R.
  • Device width: 70.5 mm.
  • Device height: 70.5 mm.
  • Device depth: 20 mm.
  • Always use round electrical back boxes only.
  • Allow for round cut-outs in tiles.
  • Frame not included.
  • Made in the EU.
