• Product description

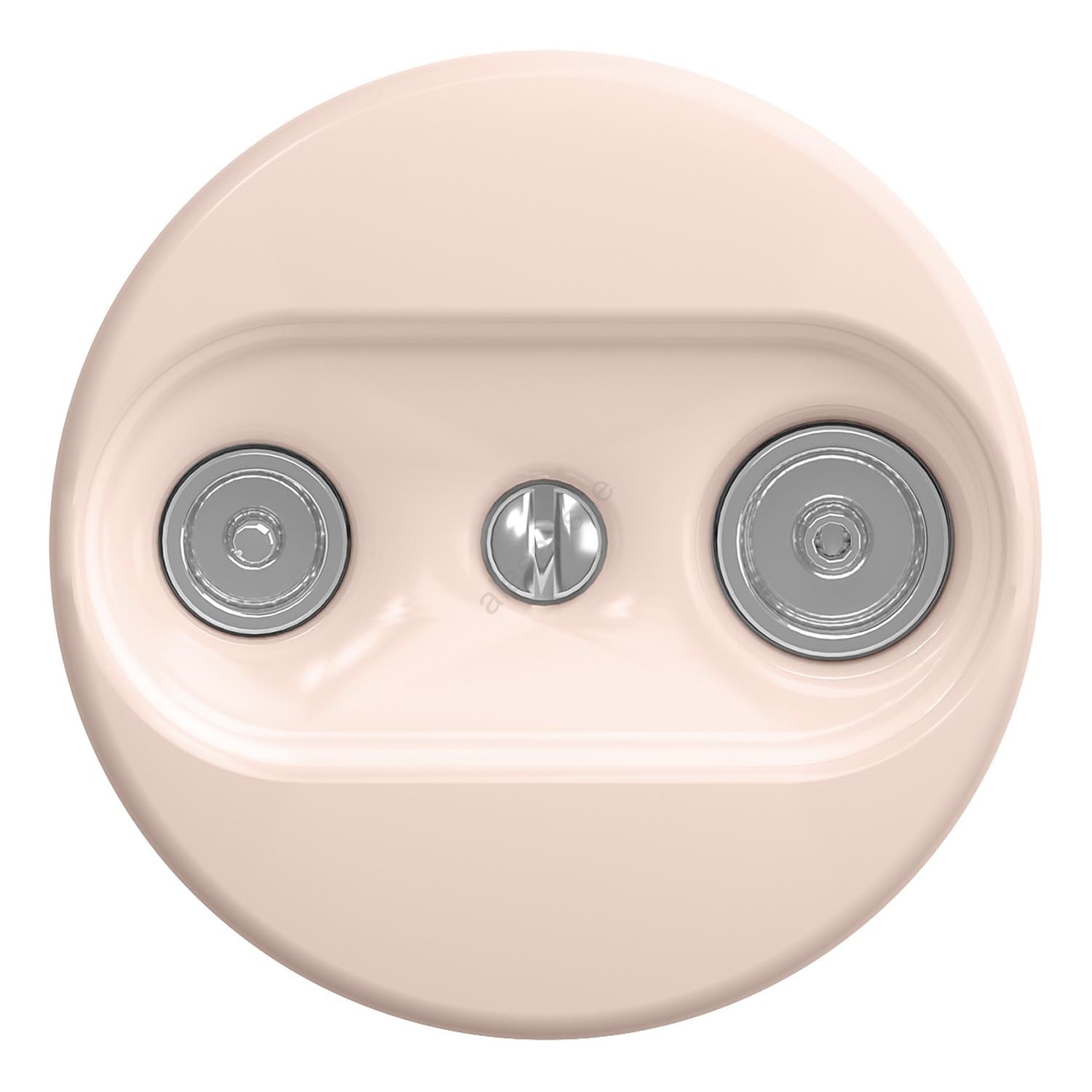

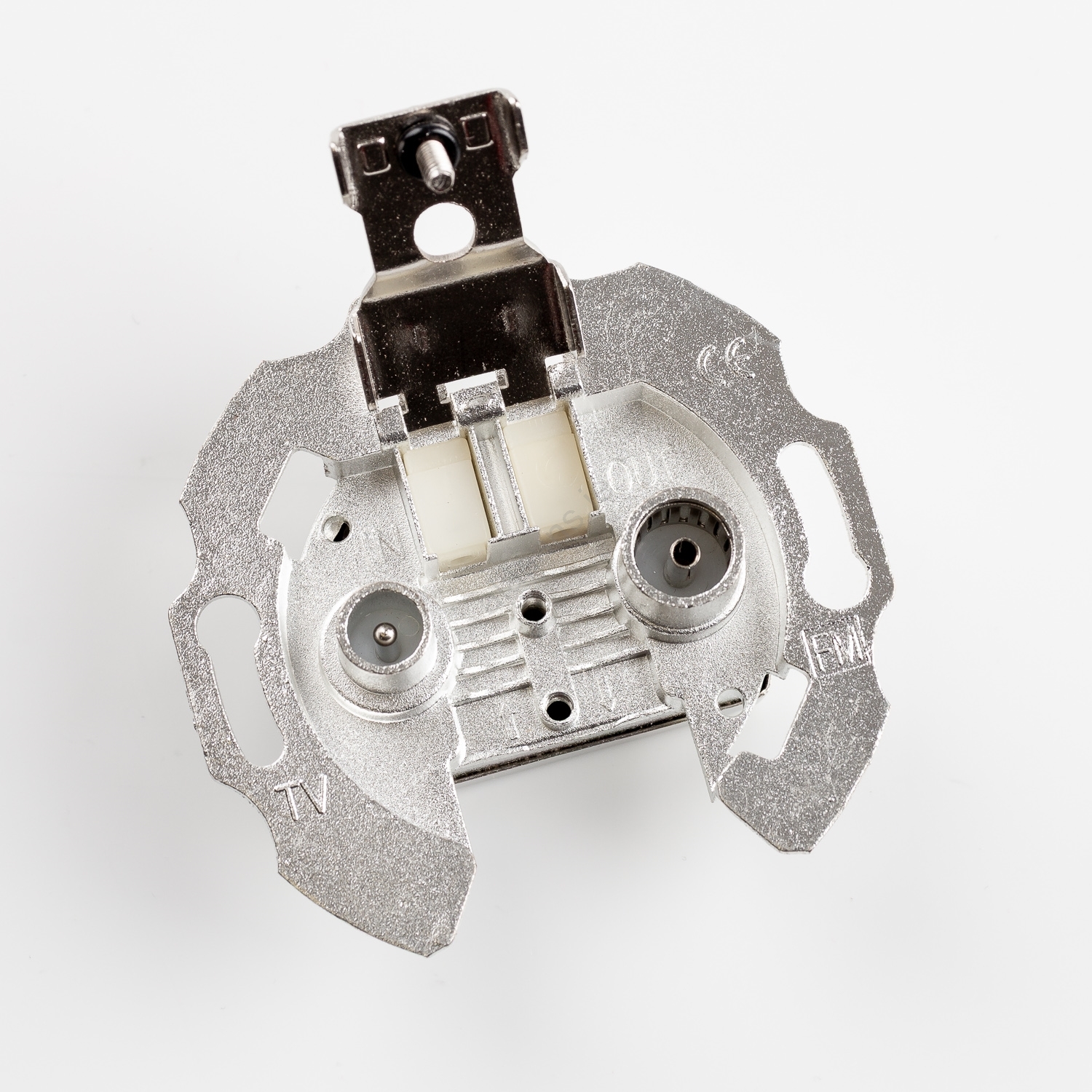

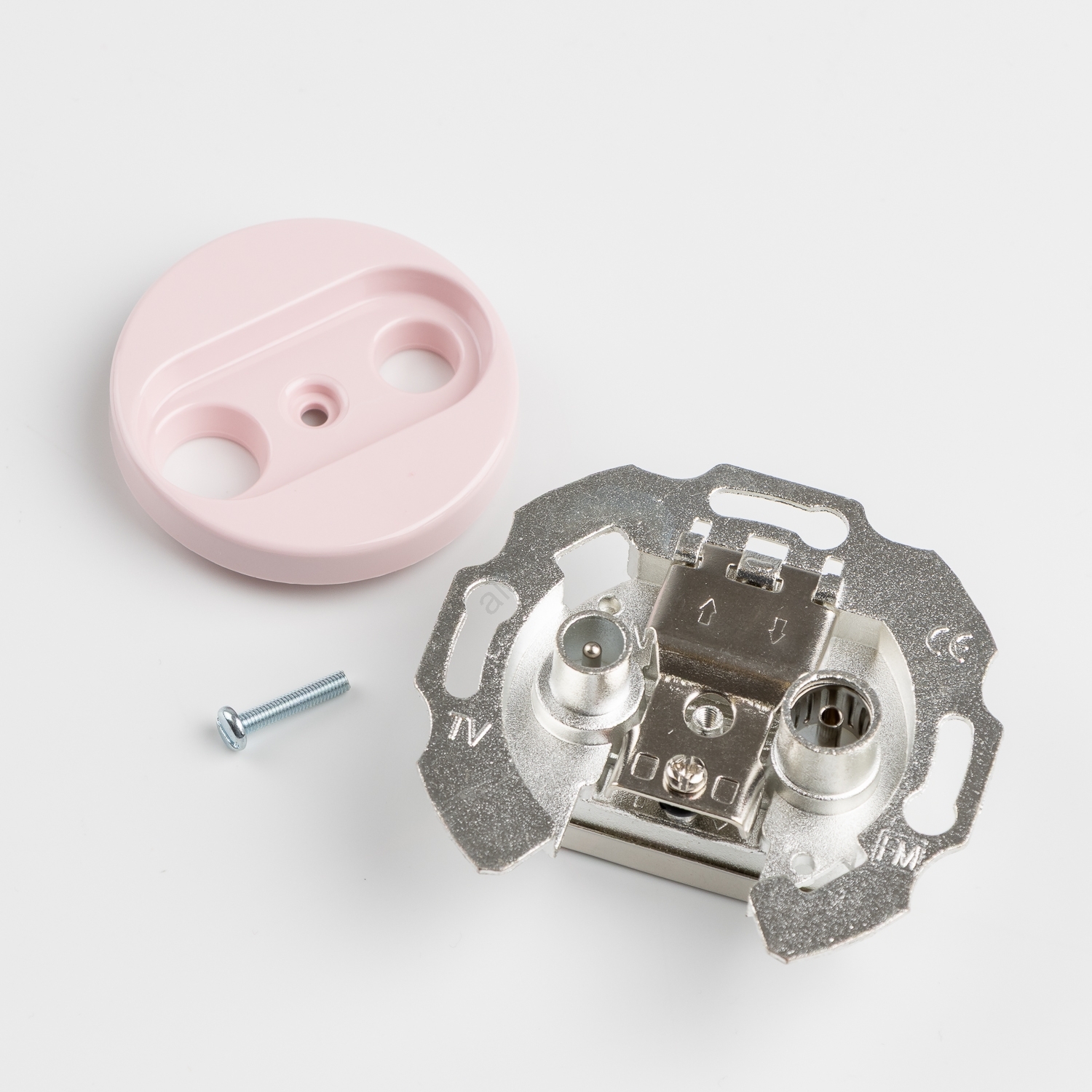

  • Pass-through TV+R outlet (loop-through).
  • Its striking retro design makes an immediate impression.
  • With rotatable frames you can easily configure double, triple or multi-gang assemblies.
  • Combine sockets and switches or use a run of identical modules.
  • Choose the end frame with a one-sided cut that can be rotated as needed, and a middle frame that connects on both sides to create a continuous series with an unlimited number of elements.
  • Install horizontally or vertically to suit your layout.
  • Connection type: screw terminal.
  • Mounting: wall installation - suitable for electrical installation boxes with 71 mm spacing (e.g., KP68, or KU68).
  • Material: heat-resistant plastic.
  • Terminal attenuation: 7 dB.
  • Pass-through attenuation: 3 dB.
  • Connector type: IEC.
  • Label: TV + R.
  • Device width: 70.5 mm.
  • Device height: 70.5 mm.
  • Device depth: 20 mm.
  • Always use round electrical installation boxes.
  • Also allow for round cut-outs in wall coverings.
  • Frame not included.
  • Made in the EU.

  Brand

  Kliklap
