• Product description

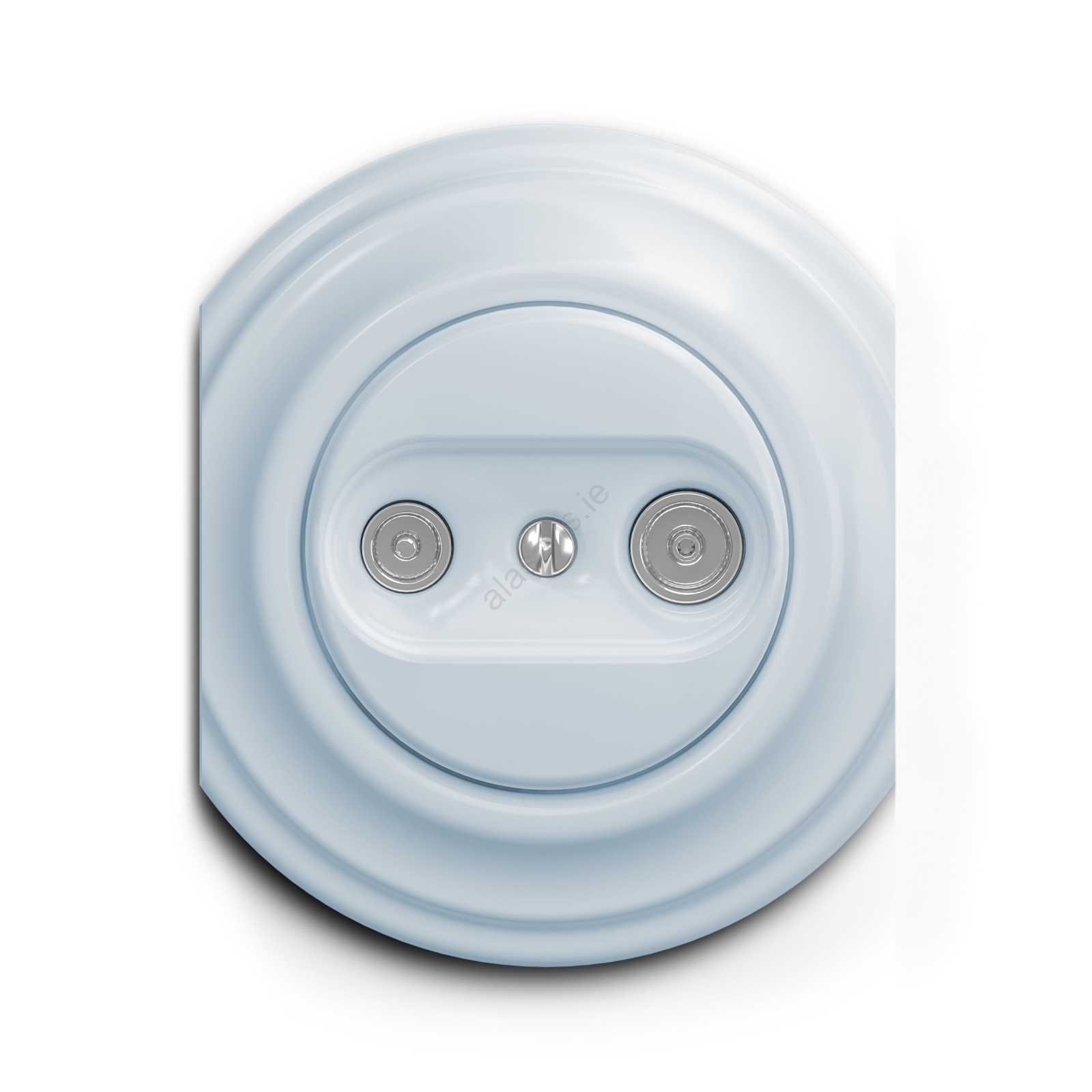

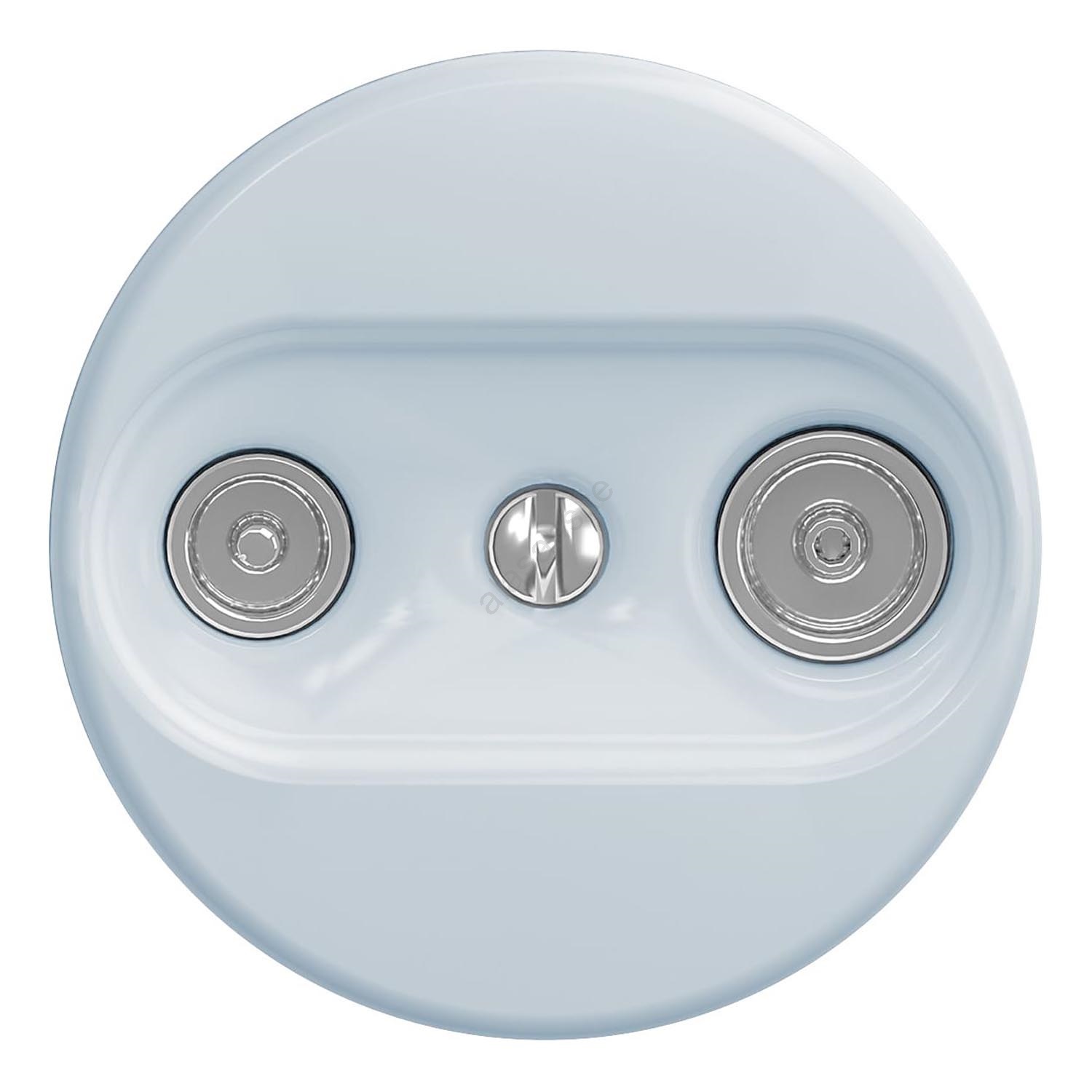

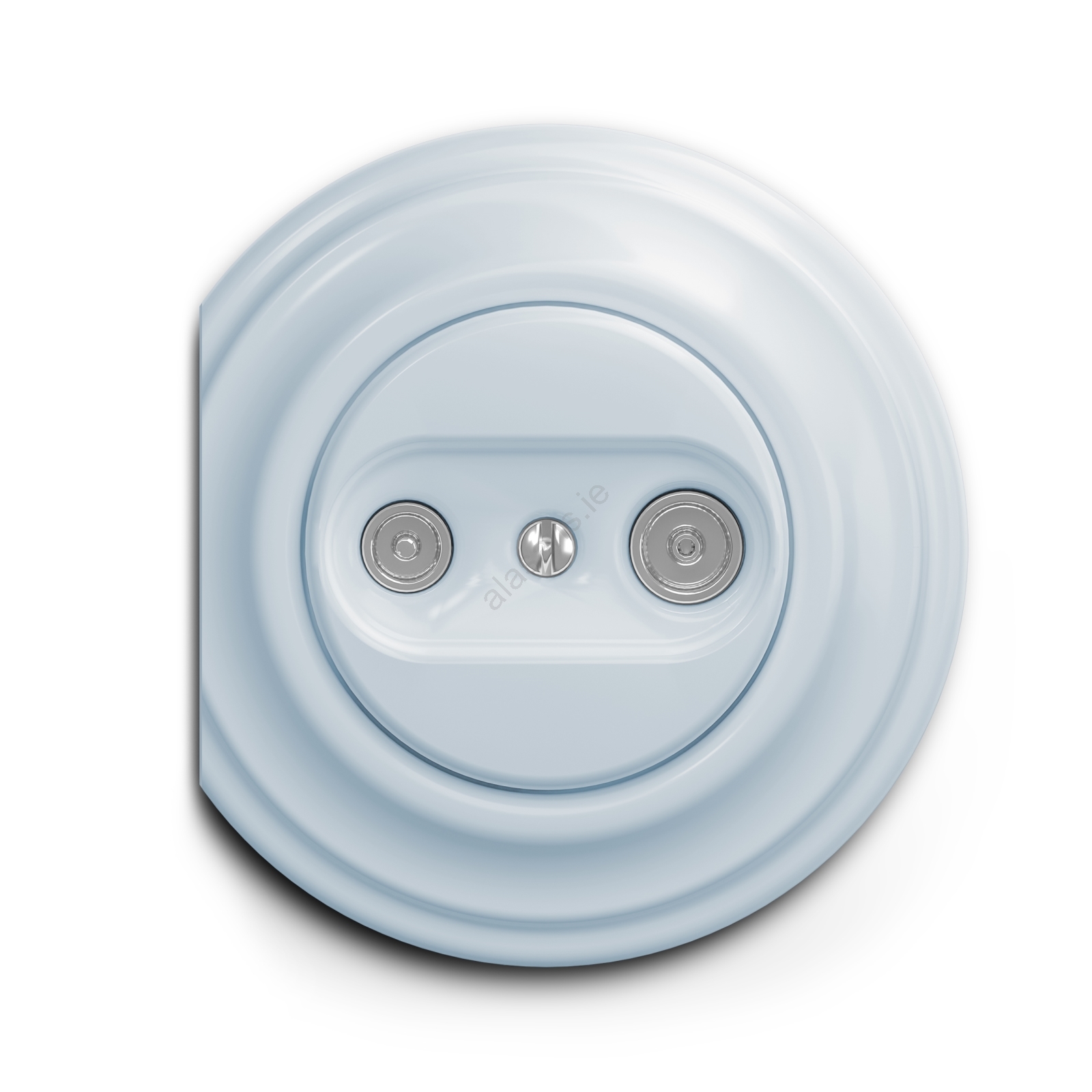

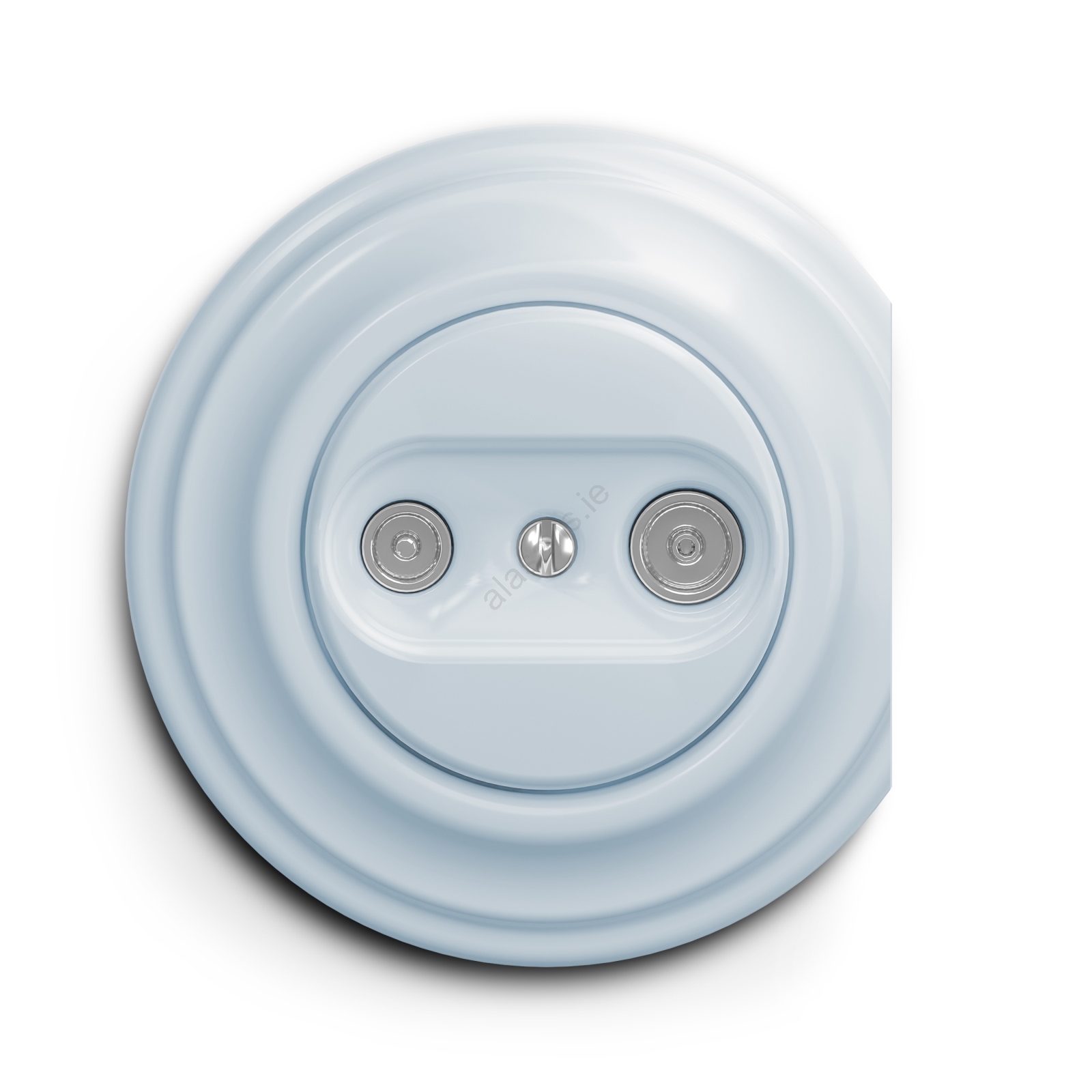

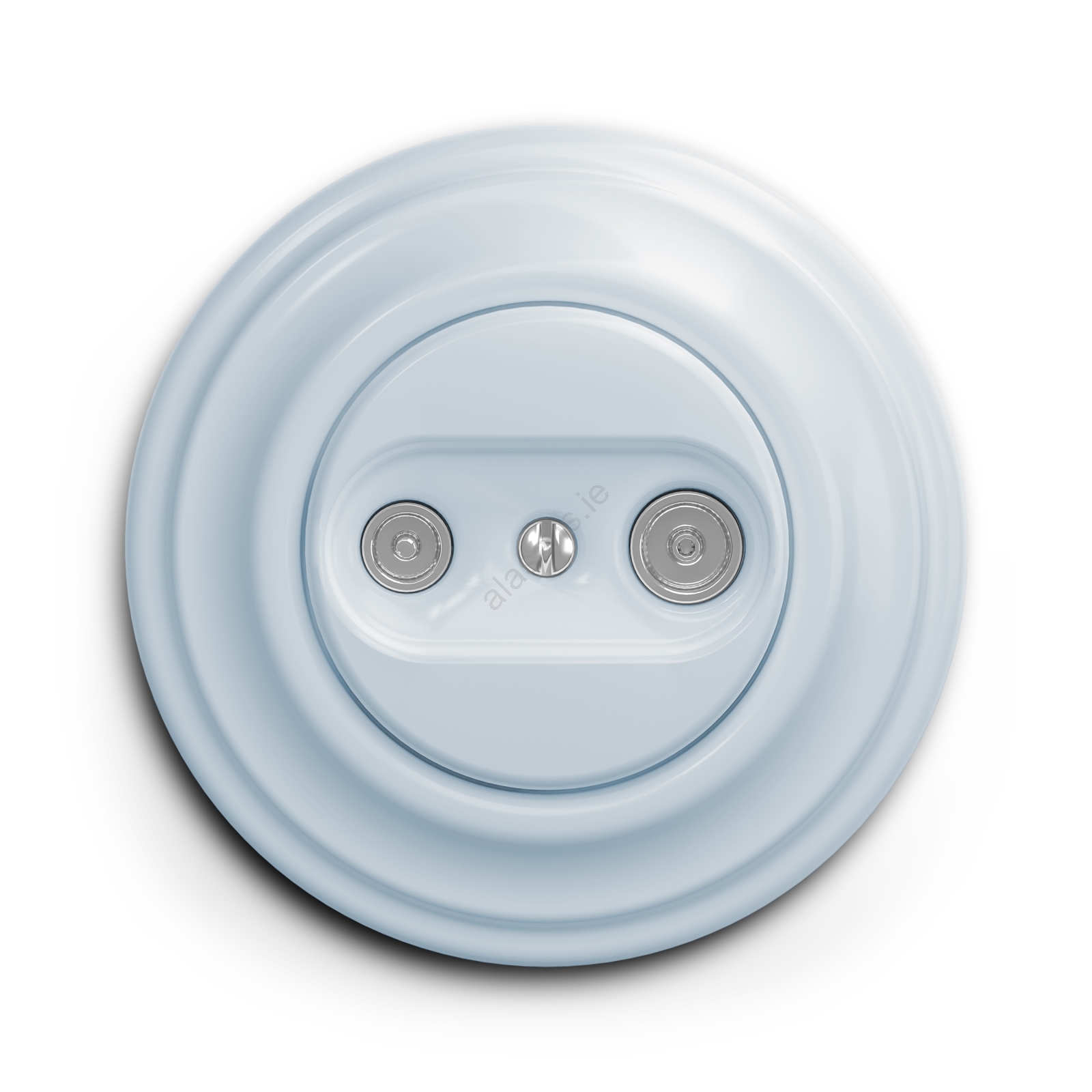

  • TV+R pass-through outlet.
  • Its retro design instantly catches the eye.

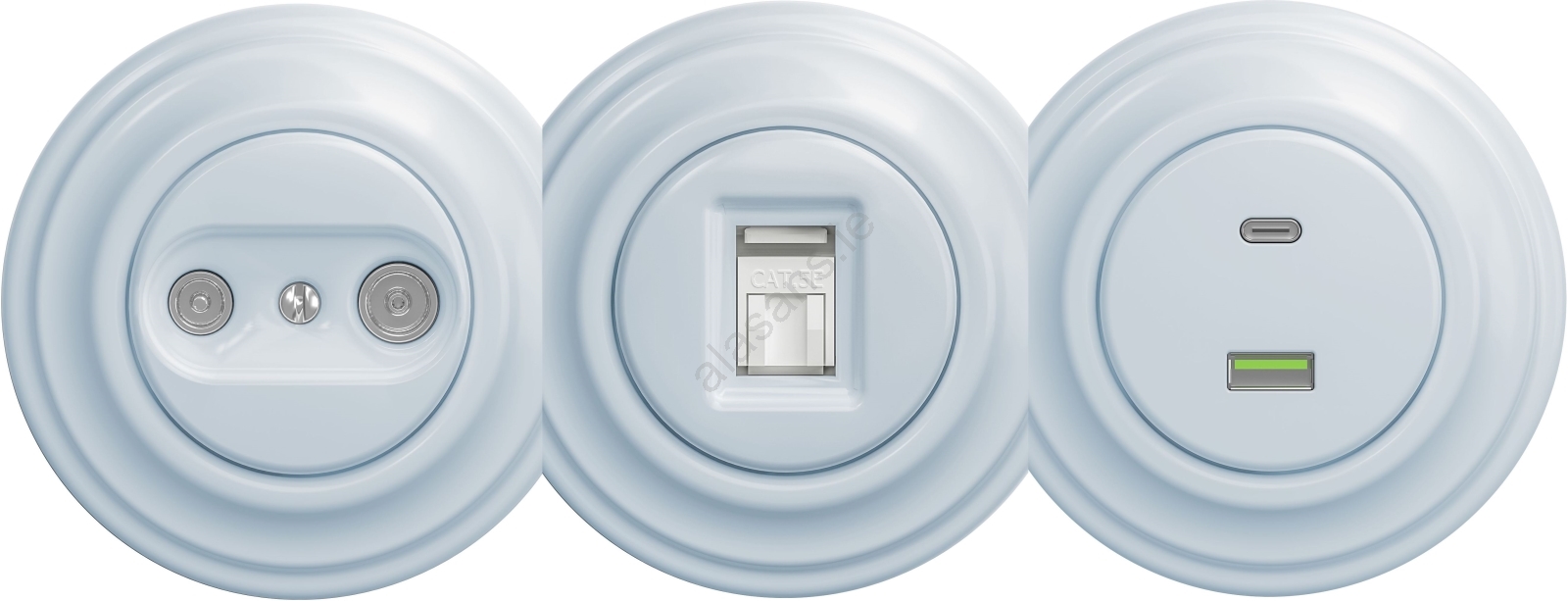

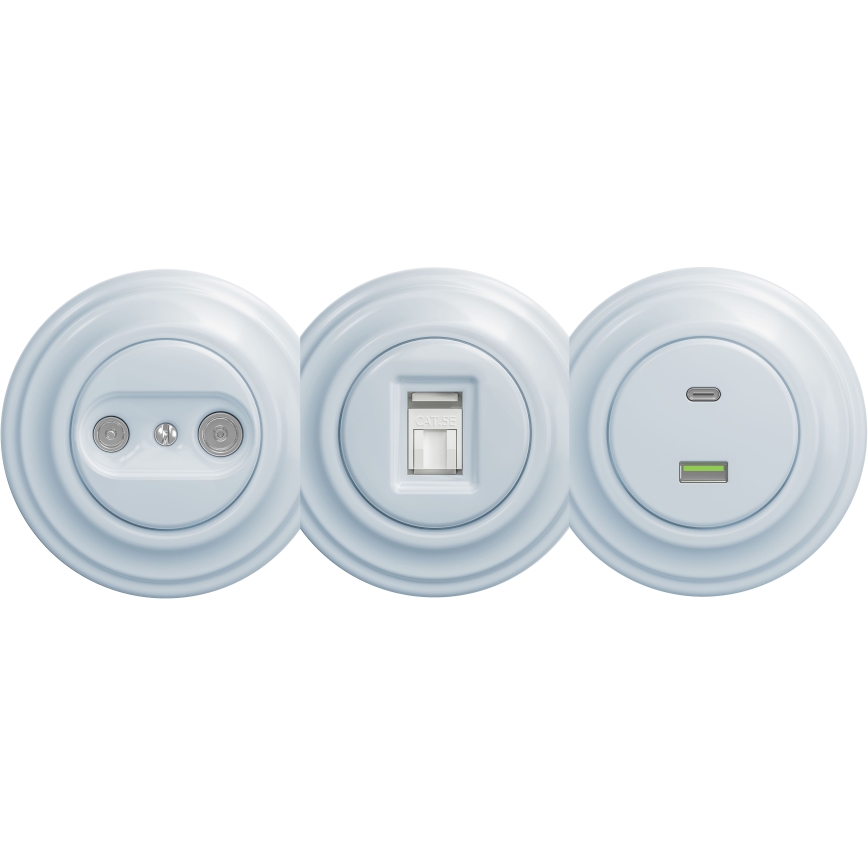

  • Rotatable frames let you easily assemble double, triple or multi-module configurations.
  • You can combine sockets and switches or use a run of identical modules.
  • Choose an end frame with a single-sided trim that can be rotated as needed, and a middle frame to connect elements on both sides, creating a continuous series with no practical limit on the number of modules.
  • Install them horizontally or vertically to suit your layout.

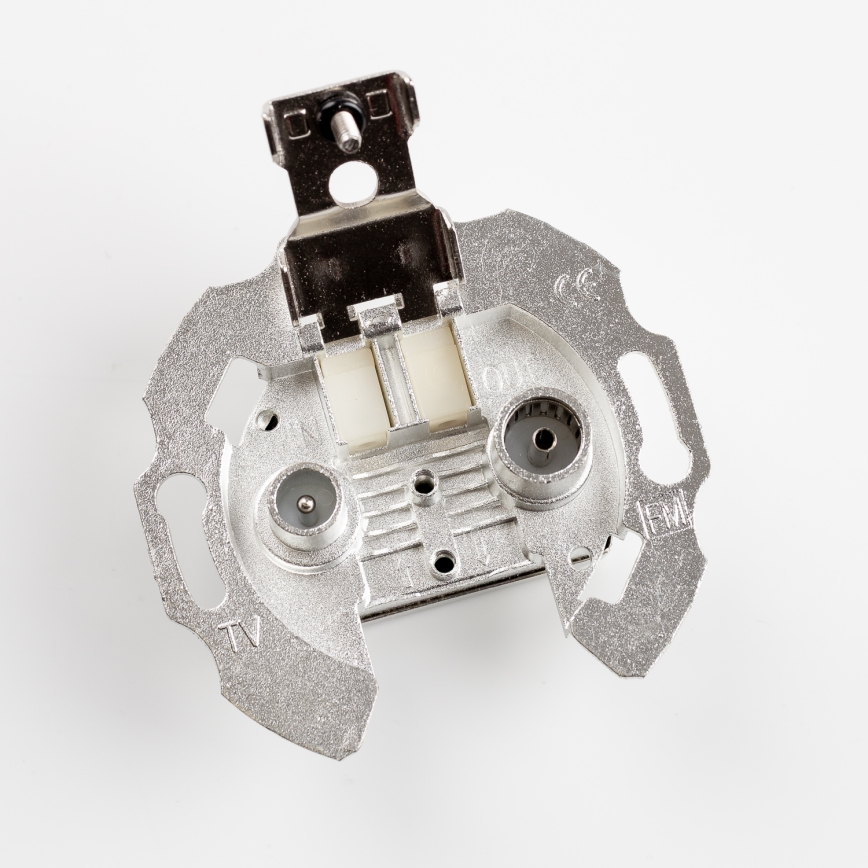

  • Connection type: screw terminal.
  • Mounting: wall installation - suitable for electrical installation boxes with a 71 mm spacing (e.g., KP68 or KU68).
  • Material: heat-resistant plastic.
  • End attenuation: 7 dB.
  • Pass-through attenuation: 3 dB.
  • Connector type: IEC.
  • Labeling: TV + R.
  • Device width: 70,5 mm.
  • Device height: 70,5 mm.
  • Device depth: 20 mm.
  • Always use only round electrical installation boxes.
  • Allow for round cut-outs in tiles.
  • Frame not included.
  • Made in the Czech Republic.
