• Product description

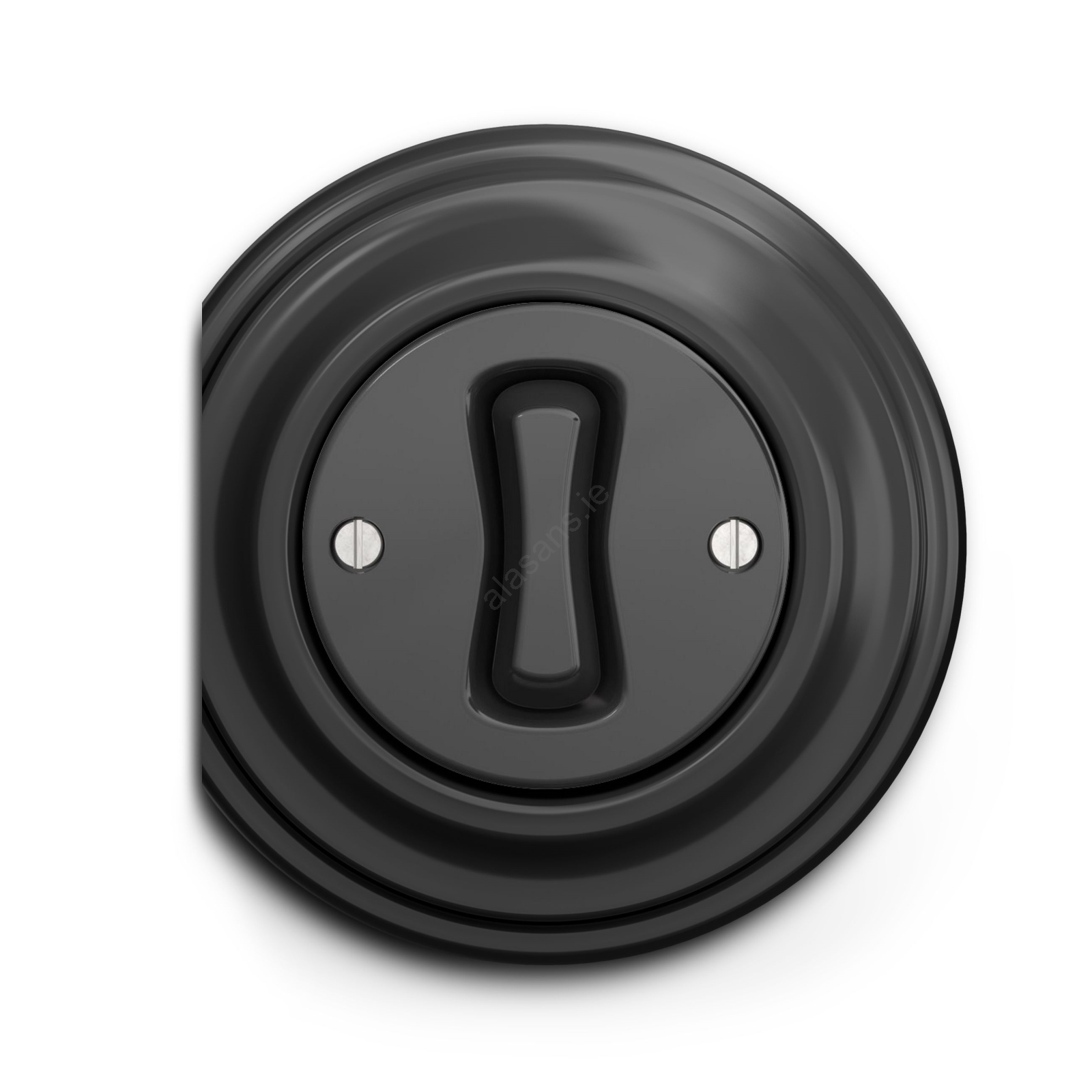

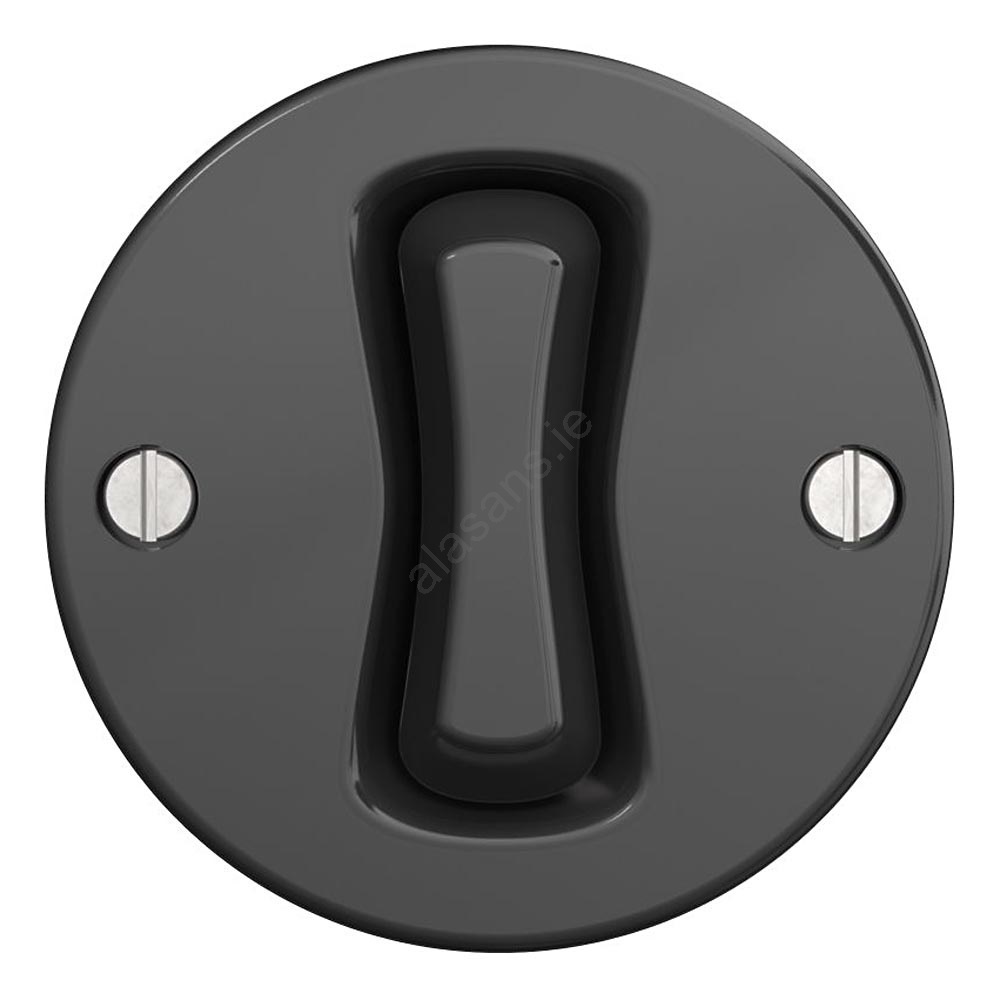

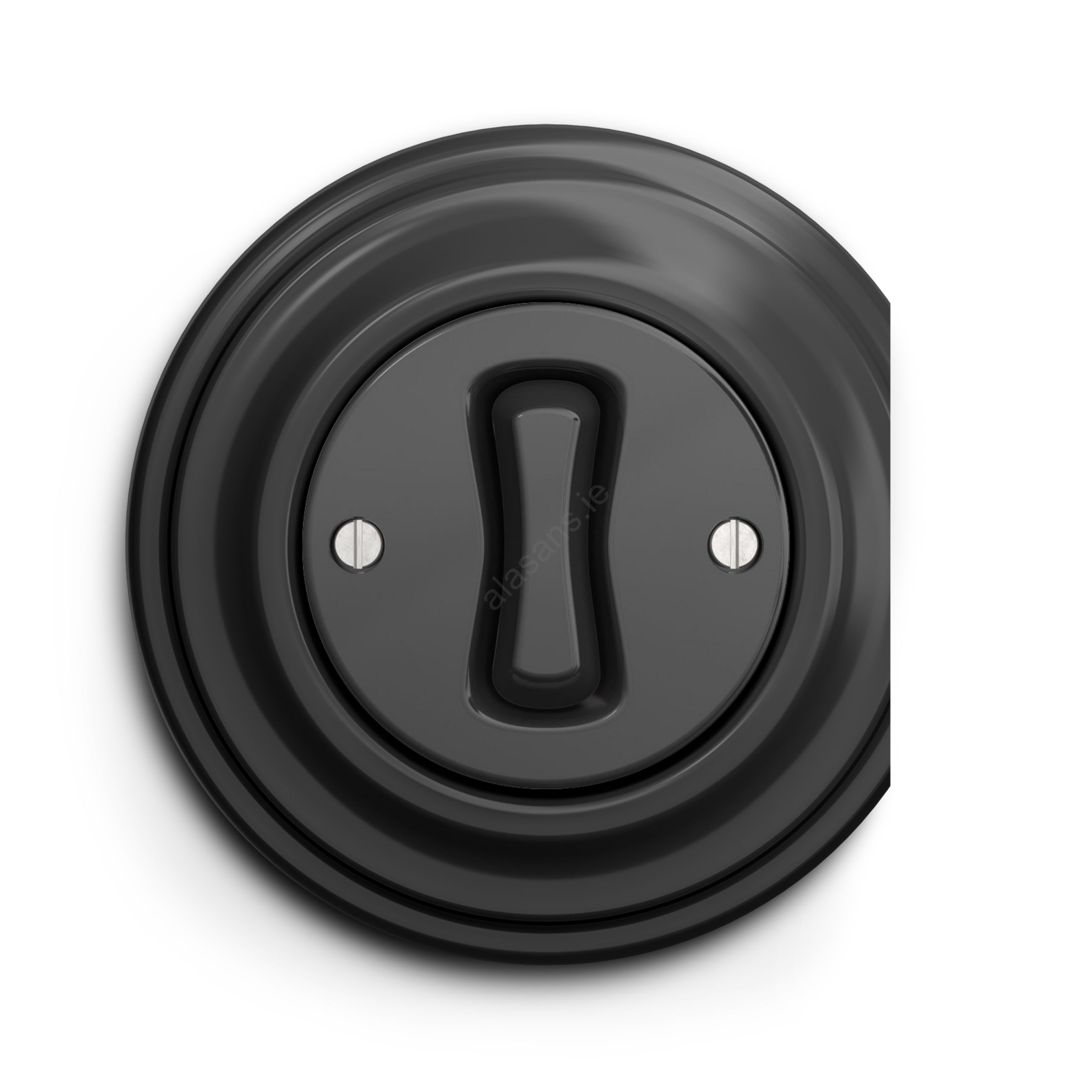

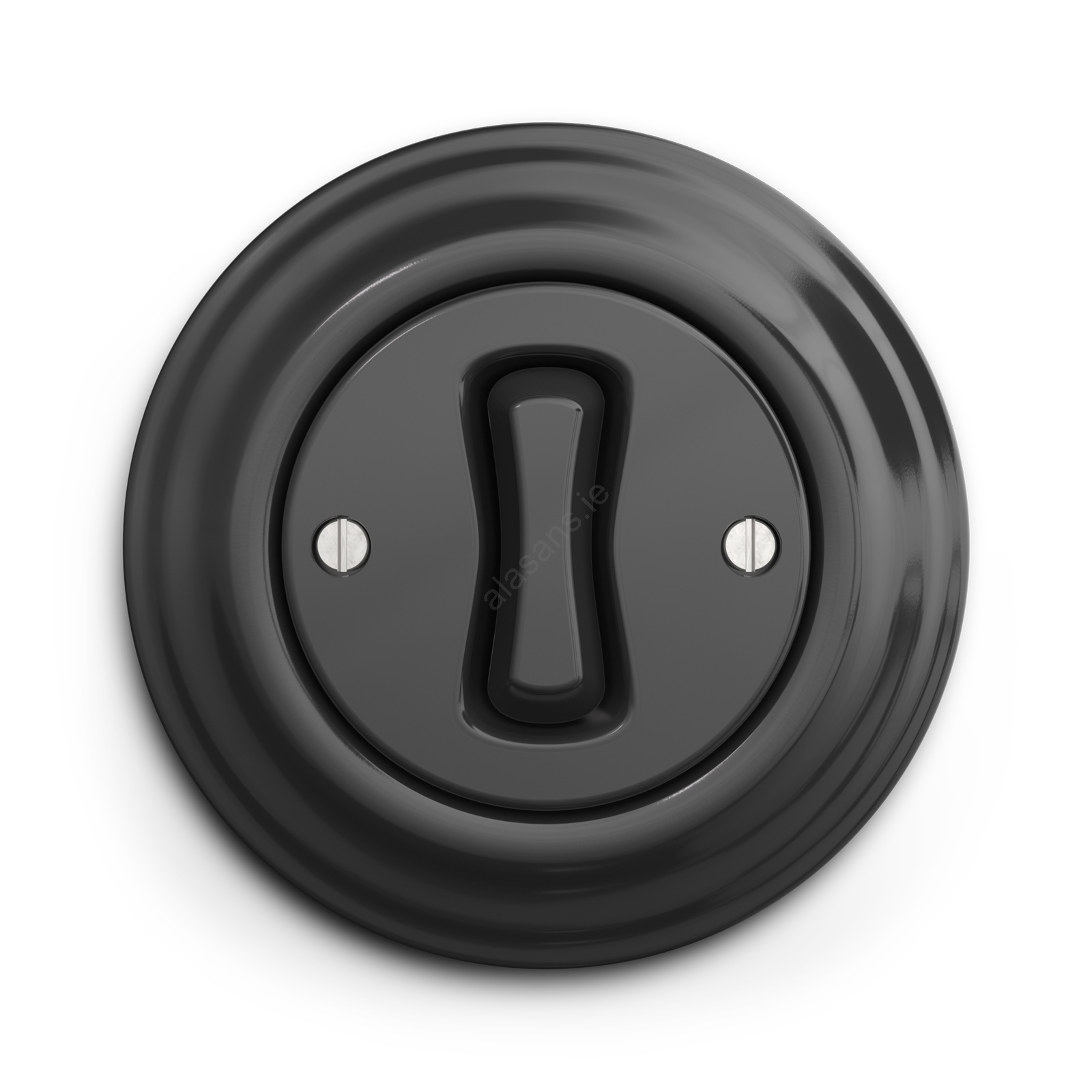

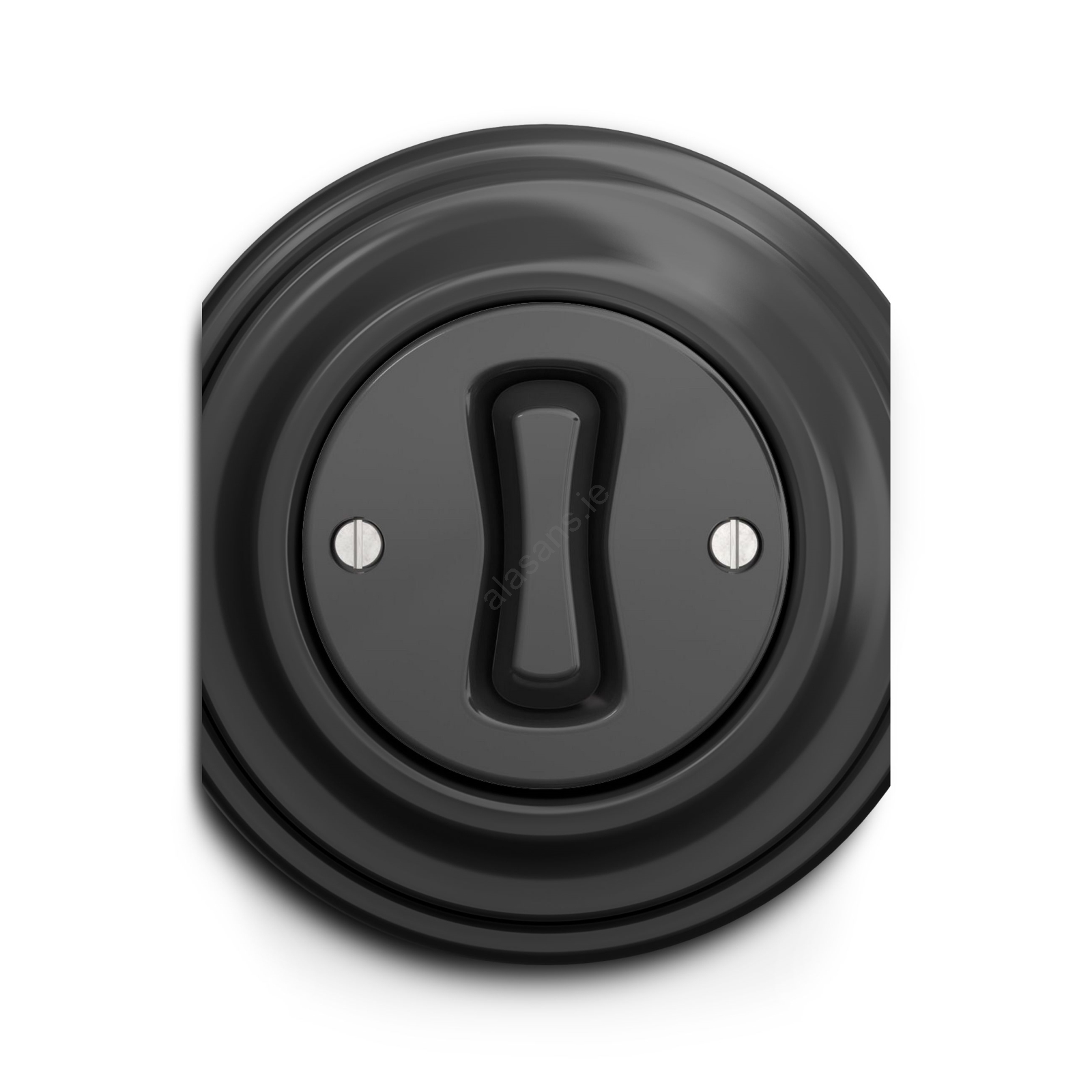

  • Doorbell button.
  • Its retro design makes a strong first impression.

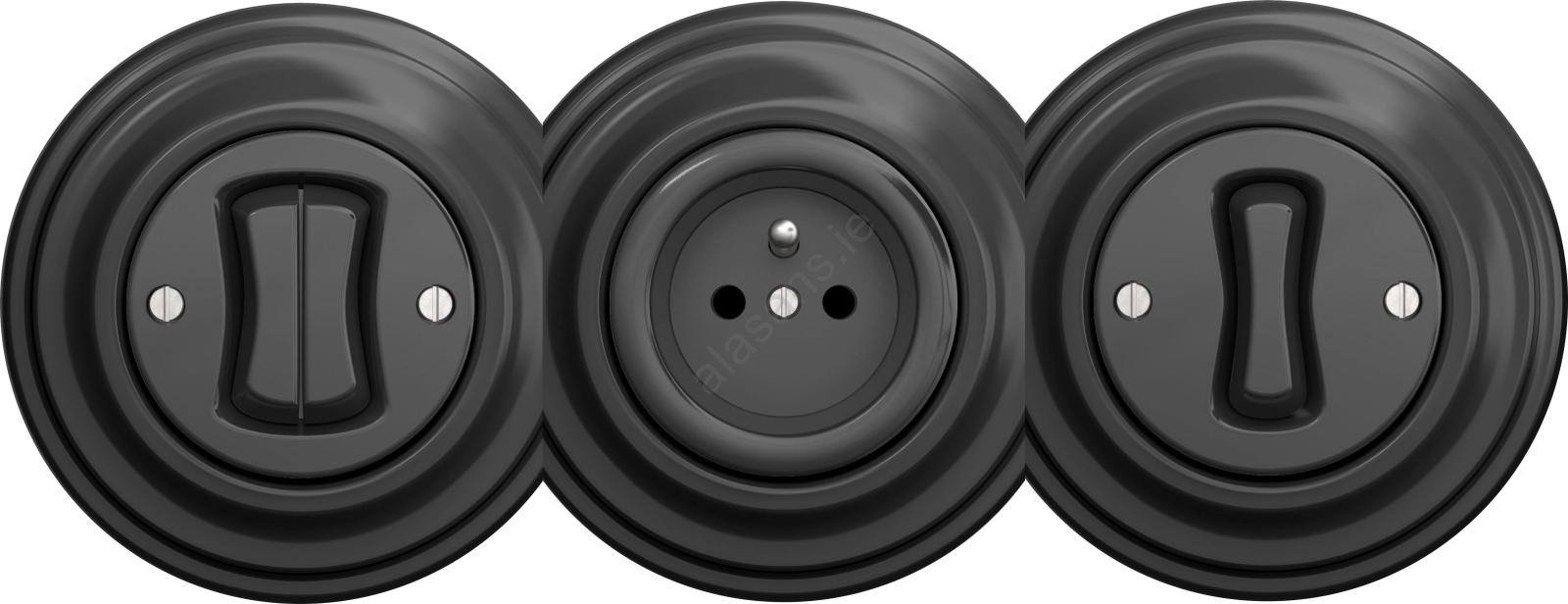

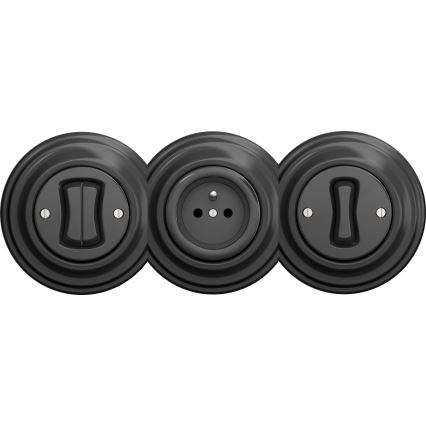

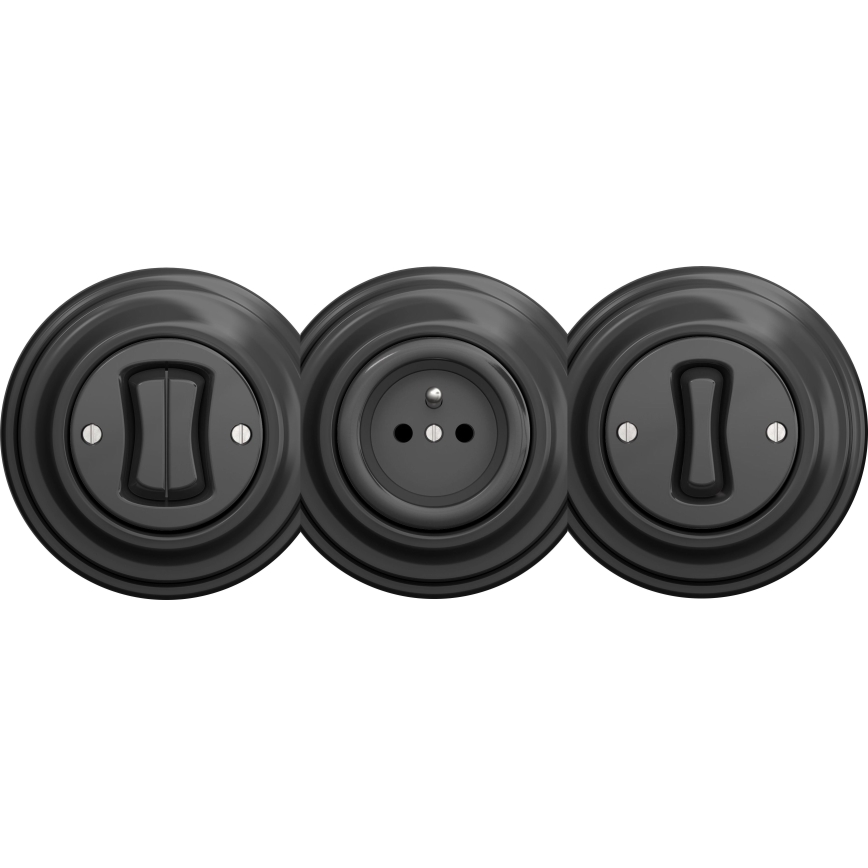

  • Use rotatable frames to easily create double, triple or multi-module arrangements.
  • Mix sockets and switches or create a run of identical modules.
  • Choose an end frame with a one-sided cutout that can be rotated as needed, and a middle frame that connects on both sides to build a continuous series with no limit on the number of modules.
  • Mount them horizontally or vertically to suit your layout.
  • Connection type: screw terminals.
  • Control type: rocker.
  • Mounting method: flush wall mounting - suitable for electrical installation boxes with a spacing of 71 mm (např. KP68, nebo KU68).
  • Material type: heat-resistant plastic.
  • Rated current: 10 A.
  • Rated voltage: 230 V.
  • Frequency: 50 Hz.
  • Suitable for protection rating (IP): IP20.
  • Device width: 70.5 mm.
  • Device height: 70.5 mm.
  • Device depth: 30 mm.
  • Always use round electrical installation boxes only.
  • Allow for round cut-outs in wall coverings.
  • Frame not included.
  • Made in the Czech Republic.

  Brand

  Kliklap



  This product is listed in the following categories

  Brands, Electrical equipment, Kliklap, Retro switches, Switches, Switches, sockets, dimmers and frames, Vintage switches and sockets

• Parameters

• Documents for download

• Ratings and reviews0

• Questions about the product0

Buy

Product code: KA0100
