• Product description

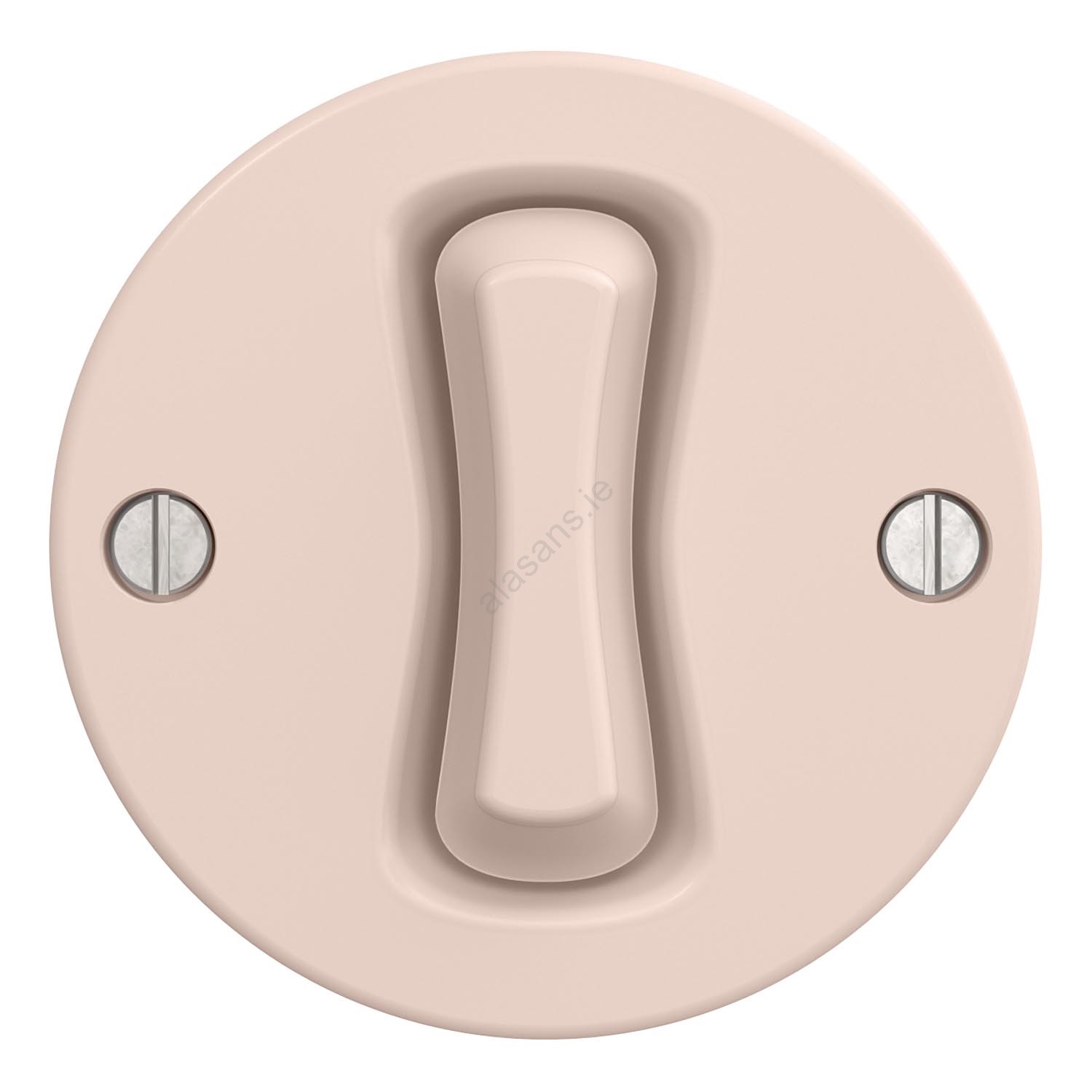

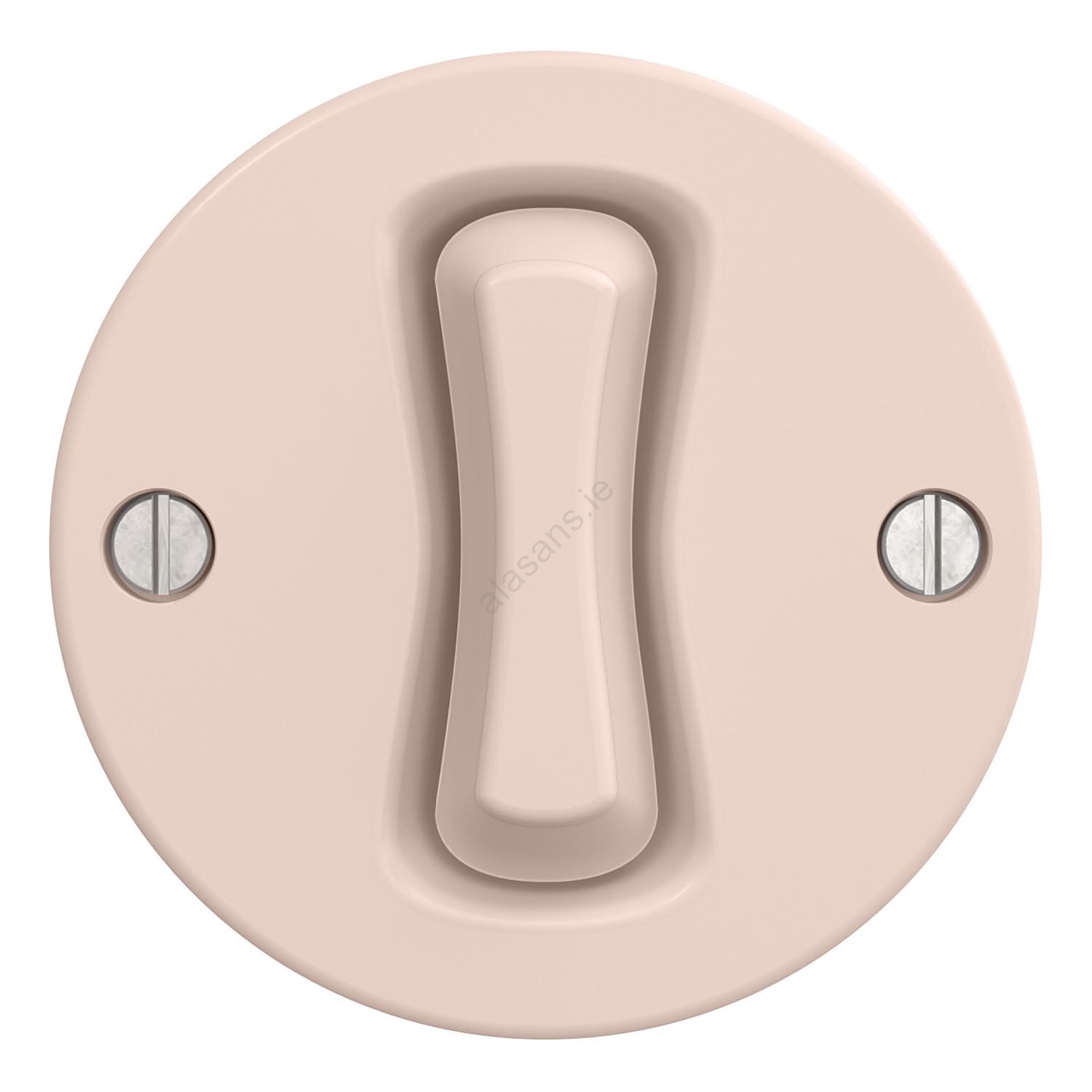

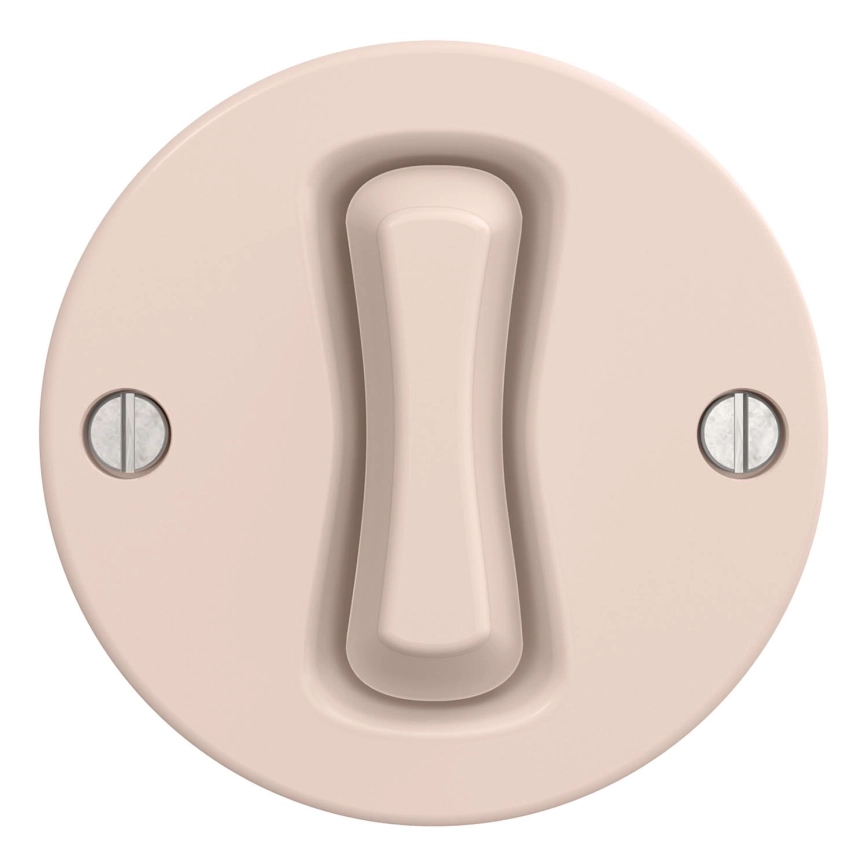

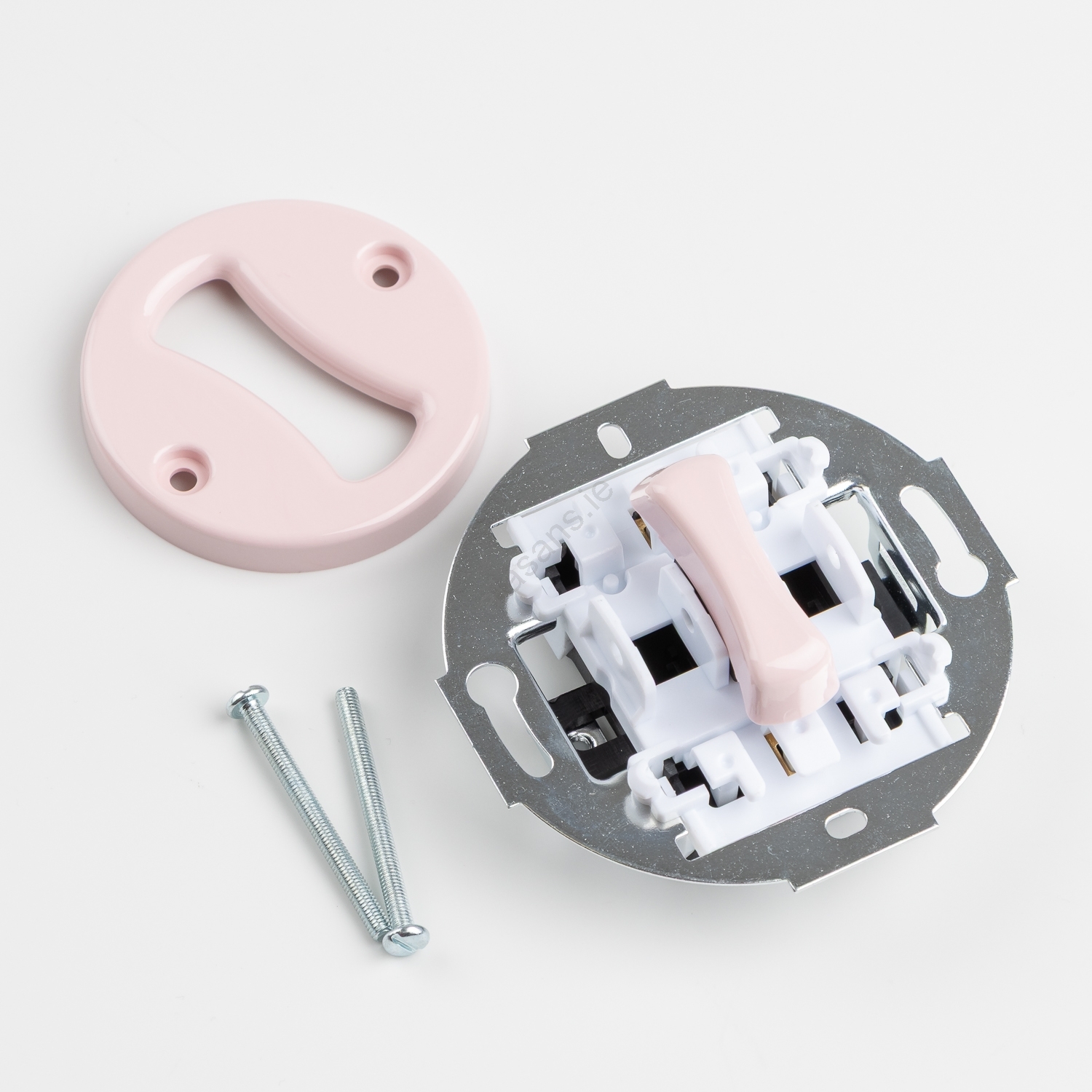

  • Doorbell push button.
  • Its retro design makes an immediate impression.
  • Rotatable frames allow you to easily create double, triple and multi-gang configurations.
  • You can combine sockets and switches or use a run of identical modules.
  • Choose an end frame with a single-sided cutout that can be rotated as needed, and a middle frame to connect modules on both sides, enabling a complete series with an unlimited number of units.
  • Install horizontally or vertically to suit your layout.
  • Connection type: screw terminal.
  • Control type: rocker.
  • Mounting method: flush wall mounting - suitable for electrical installation boxes with 71 mm spacing (e.g., KP68 or KU68).
  • Material: heat-resistant plastic.
  • Rated current: 10 A.
  • Rated voltage: 230 V.
  • Frequency: 50 Hz.
  • Ingress protection (IP): IP20.
  • Device width: 70.5 mm.
  • Device height: 70.5 mm.
  • Device depth: 30 mm.
  • Use only round electrical installation boxes.
  • Also allow for round cut-outs in wall coverings.
  • Frame not included.
  • Made in the EU.

  Brand

  Kliklap



  This product is listed in the following categories

  Brands, Electrical equipment, Electrical installation, Kliklap, Retro switches, Switches, Switches, dimmers and frames, Vintage switches and sockets

• Parameters

• Documents for download

• Ratings and reviews0

• Questions about the product0

Buy

Product code: KA0126
