• Product description

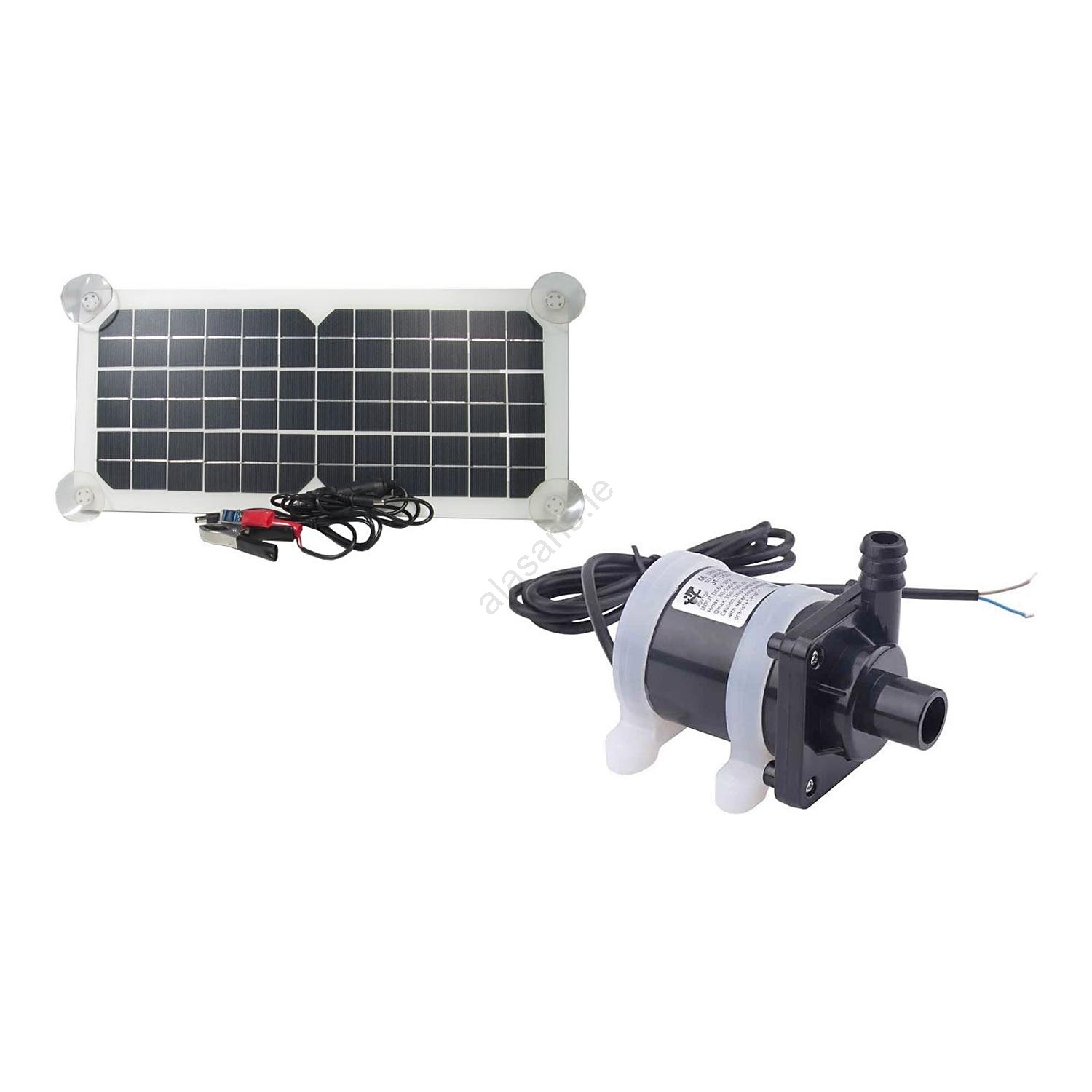

  • The pump operates across a wide voltage range of 8–24 VDC and is supplied with a 12V solar panel that produces up to 21V open-circuit.
  • Primarily intended as a solar water pump for garden ponds and similar applications.
  • The panel can also serve as a backup power source for charging phones, power banks, etc.

  • Pump specifications:
  • Operating voltage: 8–24 VDC.
  • No-load current at 12 VDC: 65 mA.
  • Current draw during pumping (12 VDC): 350 mA.
  • Max. water flow: 700 l/h (12 V), 900 l/h (24 V).
  • Maximum head: 5 m — flow decreases at greater head.
  • Maximum liquid temperature: 60 °C.
  • Motor type: brushless, designed for continuous operation.
  • Supply cable length: 1 m.
  • Suction port diameter: 16 mm.
  • Discharge port diameter: 12 mm.
  • Removable silicone pads for secure mounting to a surface.
  • Dimensions: diameter 41.5 mm; length 81 mm.

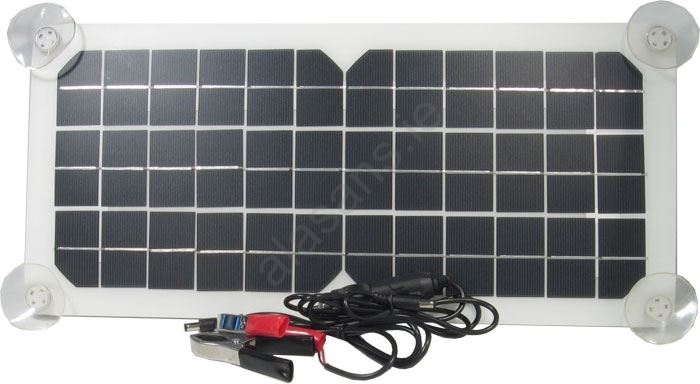

  • Panel specifications:
  • Max. power: 20 W.
  • Maximum current at peak power (Imp): 1.11 A.
  • Maximum output voltage at peak power (Vmp): 18 V.
  • 12 V battery charging output: Vmp max. 18 V.
  • USB output: max. 5.1 V / 2.1 A.
  • LED indicator: steady on at full illumination, flashes under low light.
  • Dimensions: 435 x 200 x 2 mm.

  • Important:
  • The pump can operate submerged, but it must be placed below the level of the liquid being pumped — it is not self-priming.
  • The PV panel includes a step-down converter for the USB output; there is no regulator on the 12 V output. Given the panel's power you can safely connect batteries larger than 20 Ah directly for continuous charging without risk of damage. For batteries up to 20 Ah, and only during extended sun exposure, use any PWM charge controller. For periods of a few hours even the smallest batteries can be connected without a regulator. Maximum charging current is 1.11 A.
