• Product description

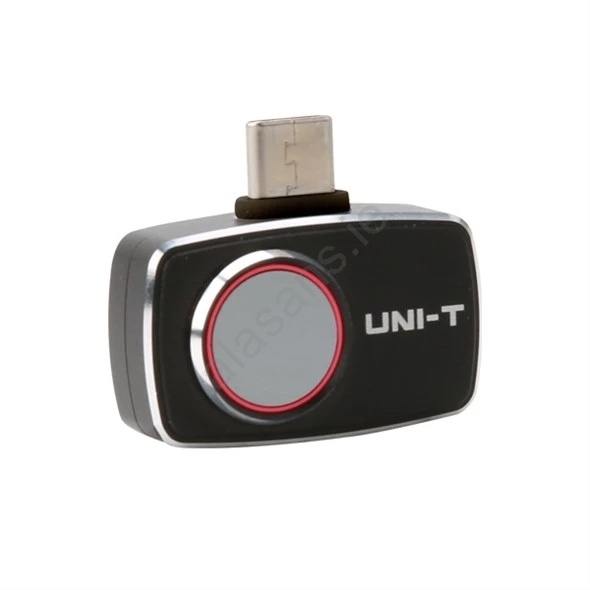

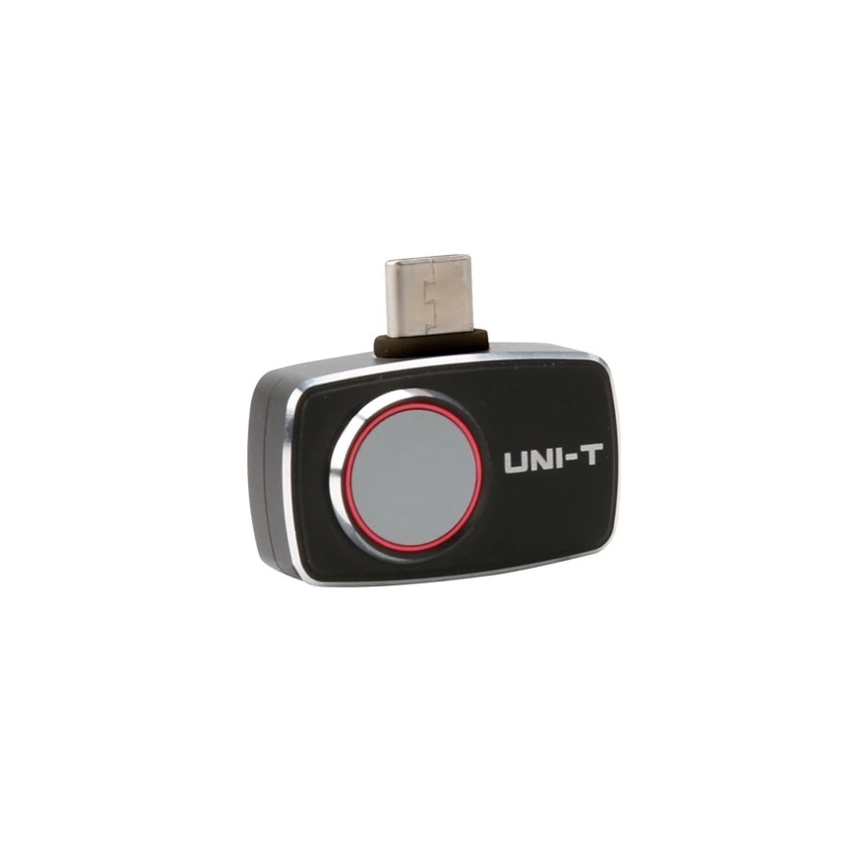

  • A professional thermal camera for smartphones running Android 6 or later is a compact, efficient tool for measuring surface temperatures of objects across a wide range from -20 °C to 550 °C.

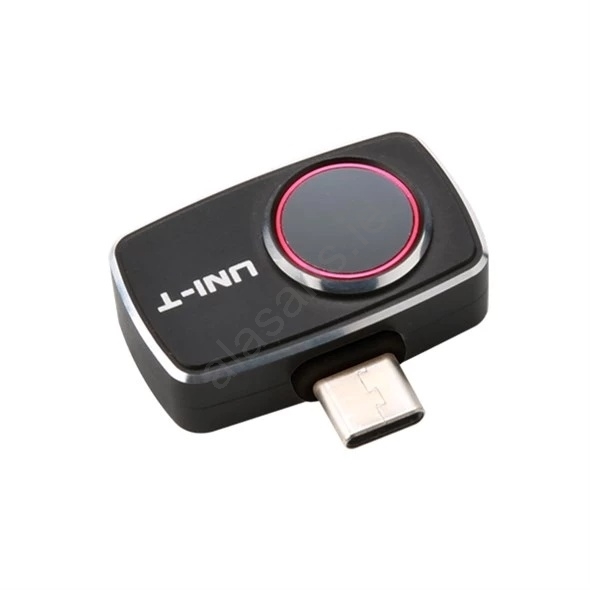

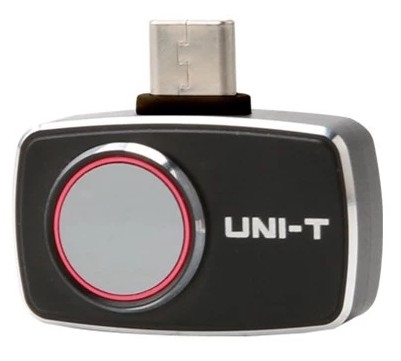

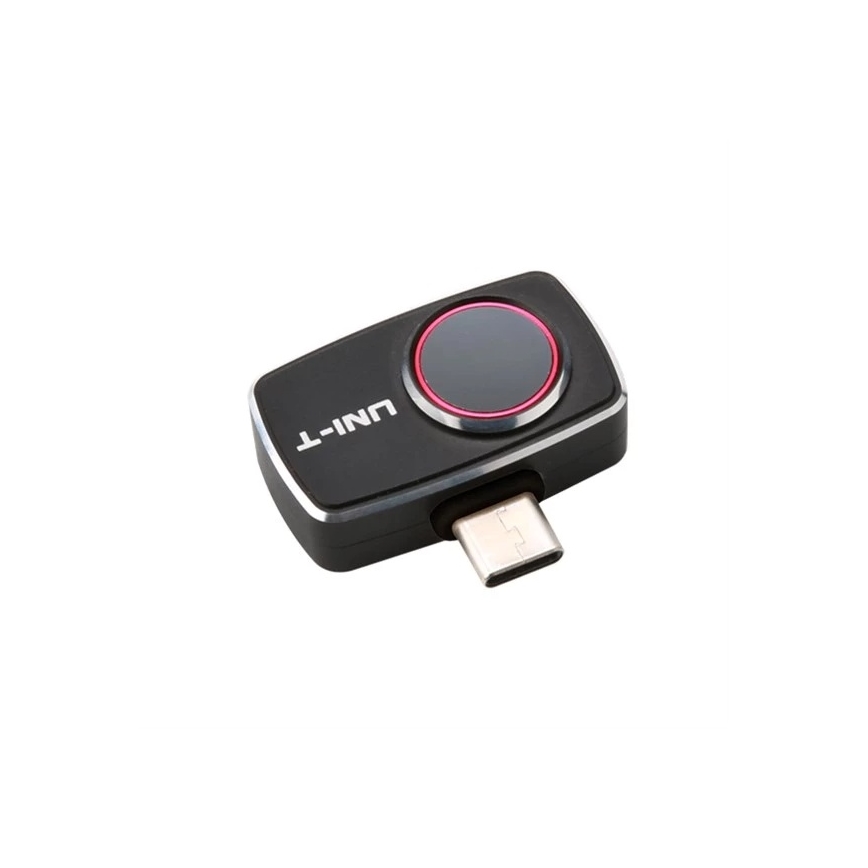

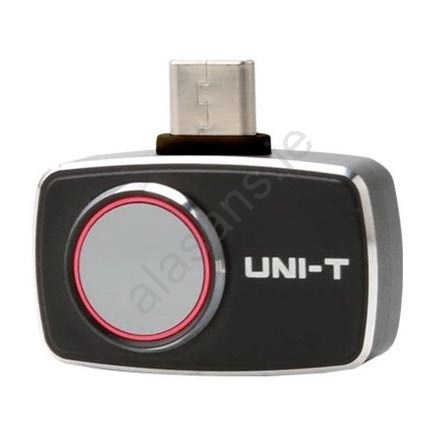

  • The device connects to the mobile phone primarily via an integrated USB-C connector; alternatively, the supplied extension cables (USB-C/USB-C or Micro USB/USB-C) can be used.
  • Thanks to its compact dimensions and low weight the camera is highly portable, and its construction is designed to withstand drops from up to 1 meter.

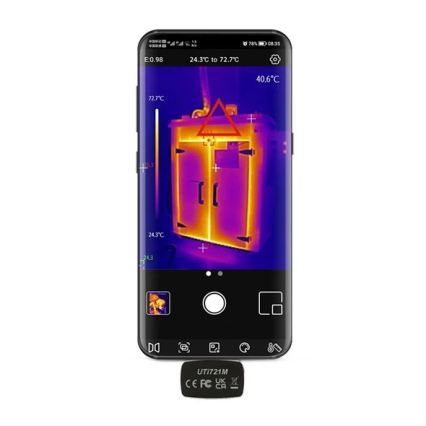

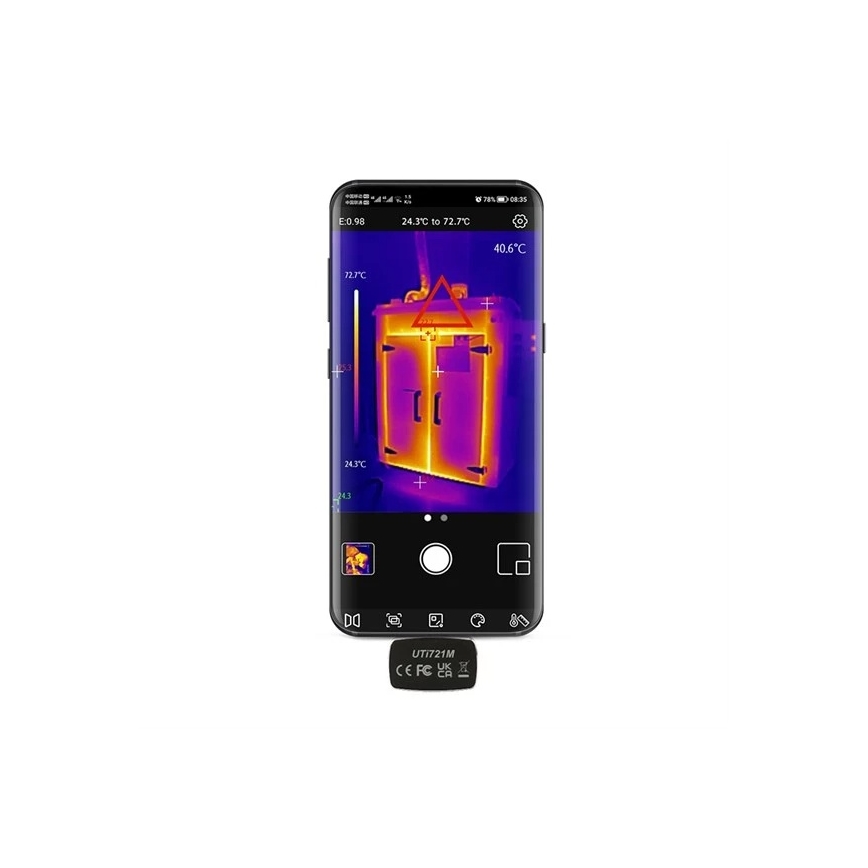

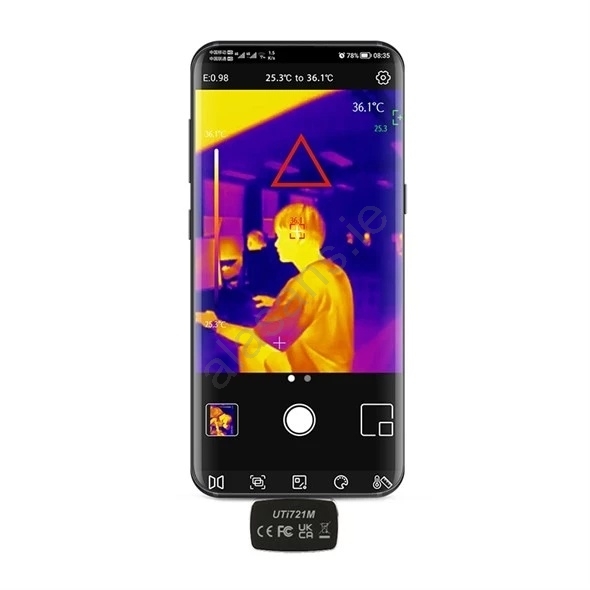

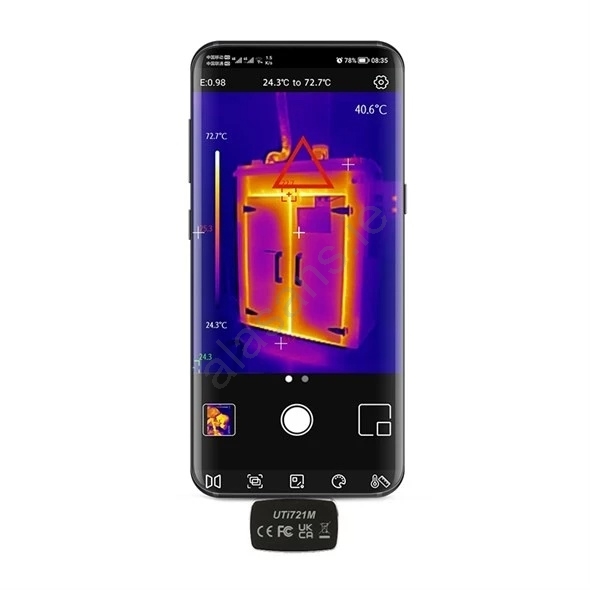

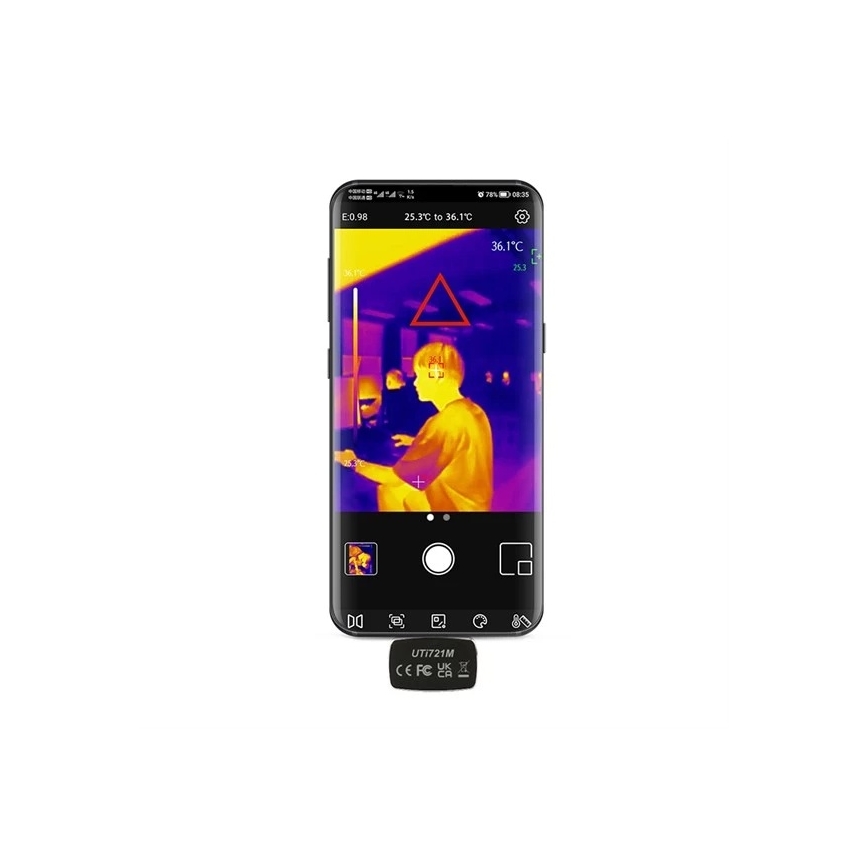

  • Through the mobile app the camera displays a real-time thermal image with seven selectable color palettes (Iron Red, Rainbow, Grayscale, Hot Red, Black & White, Lava, High-Contrast Rainbow).
  • Recording can be viewed in various image modes (Thermal, Fusion, PIP), which allow, for example, blending or overlaying the infrared image with the phone's visible-light camera.
  • Users have access to advanced analytical tools – temperature measurement at a specific point, along a line, or within a defined area (rectangle, circle), plus automatic tracking of the hottest and coldest spots.
  • The camera supports setting an alarm when a temperature limit is exceeded and saving photos (JPEG) or videos (MP4) directly to the device's memory.
  • The main advantage of this solution is intuitive, instant visual detection of temperature anomalies, providing comprehensive data for quick and accurate assessment of fault locations or heat loss.
  • Main technical specifications:
  • Infrared sensor resolution: 256 x 192 pixels.
  • Measuring range: -20 °C to 550 °C (Industry and EST modes).
  • Field of view (FOV): 56° (V) × 42.2° (H).
  • Thermal sensitivity (NETD): < 50 mK (at 25 °C).
  • Temperature measurement accuracy: ±2% or ±2 °C (from 0 °C to 550 °C) / EST mode: ±0.5 °C (from 30 °C to 40 °C).
  • Frame rate: ≤ 25 Hz.
  • Spectral range: 8 μm – 14 μm.
  • Emissivity: adjustable from 0.01 to 1.0 (default 0.95).
  • Lens focal length: 3.2 mm (fixed focus).
  • Compatibility: Android 6 or later (USB-C connection).

  Brand

  Uni-T
