• Product description

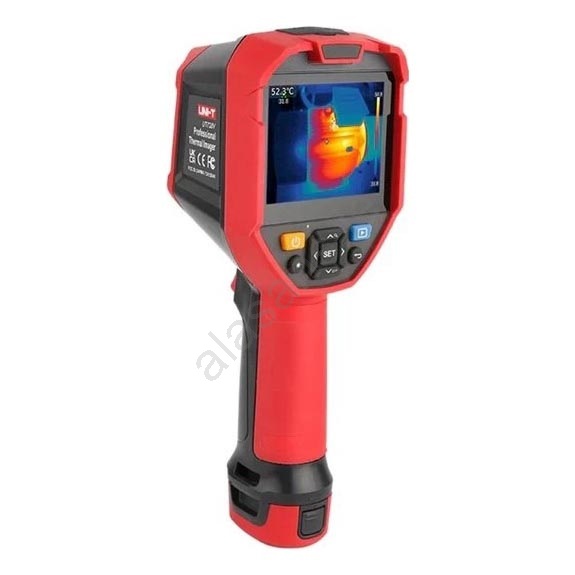

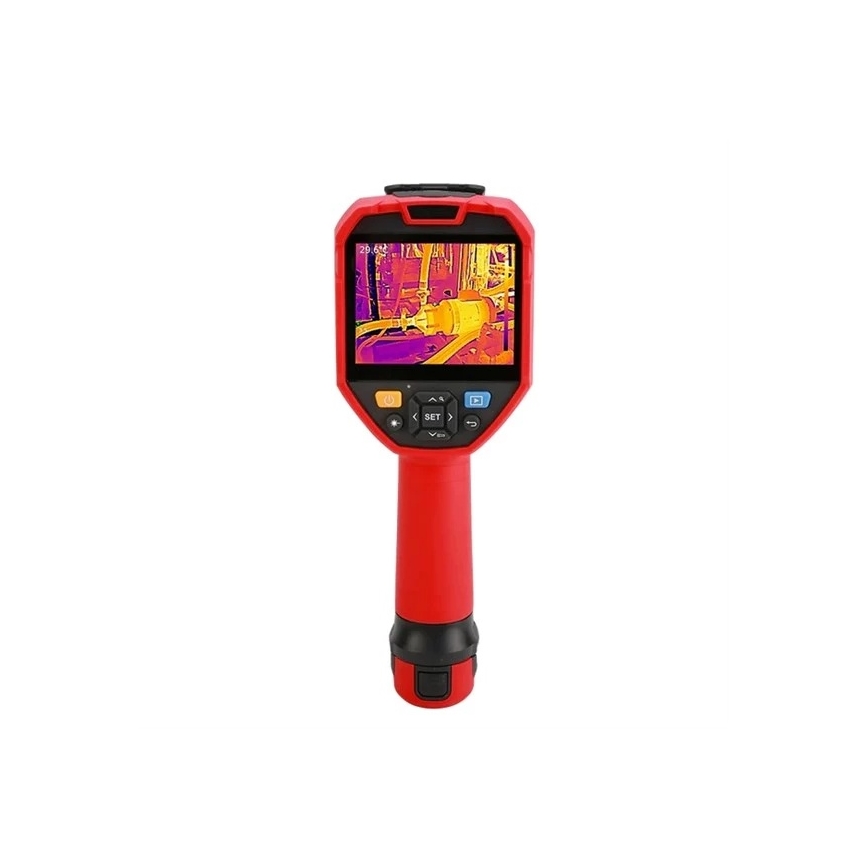

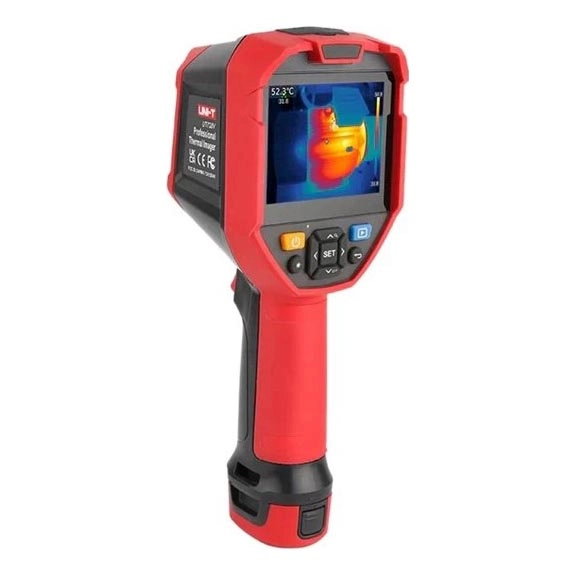

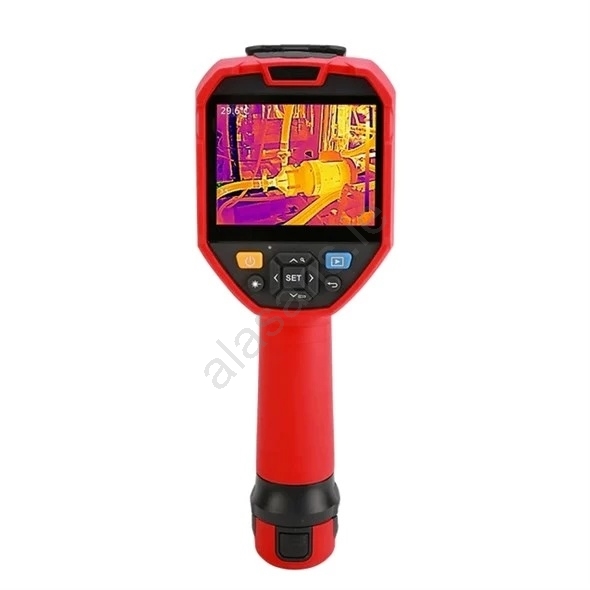

  • The professional thermal camera UNI-T UTi720V is a high-end measuring instrument designed for precise surface temperature measurement of objects across a wide range from -20 °C to +550 °C.
  • The device combines a sensitive thermal sensor with a resolution of 256 x 192 pixels and a 5 MP digital camera.

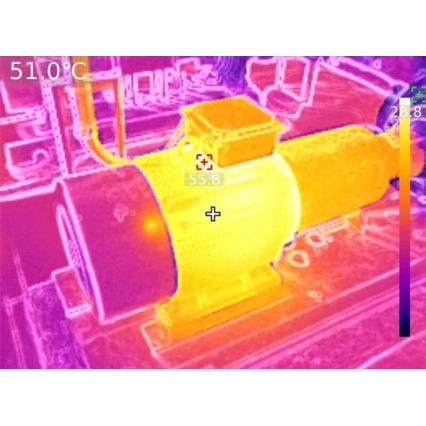

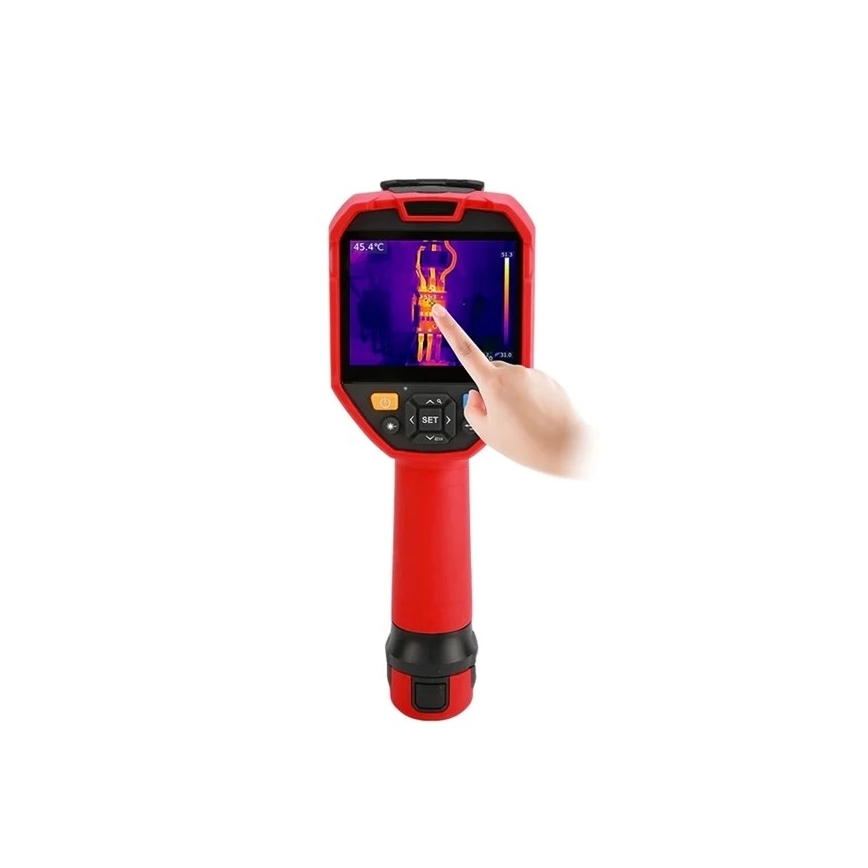

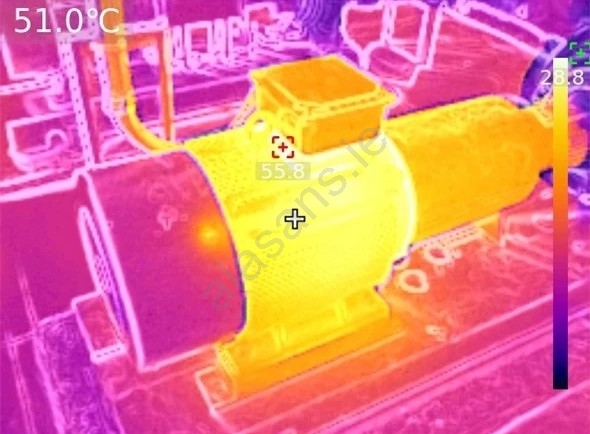

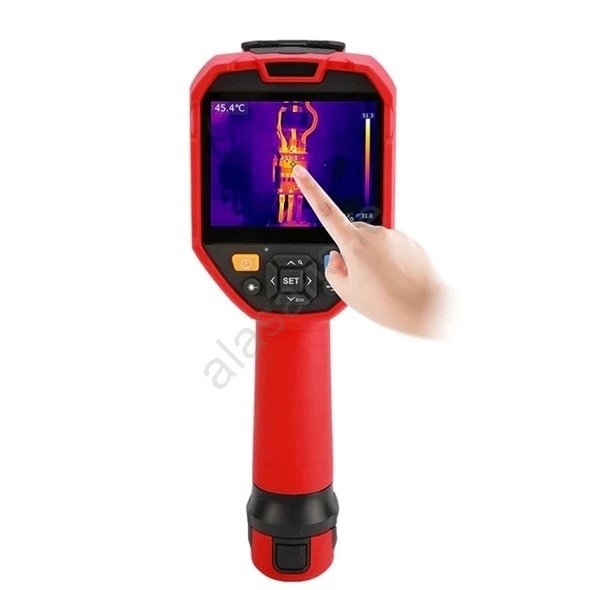

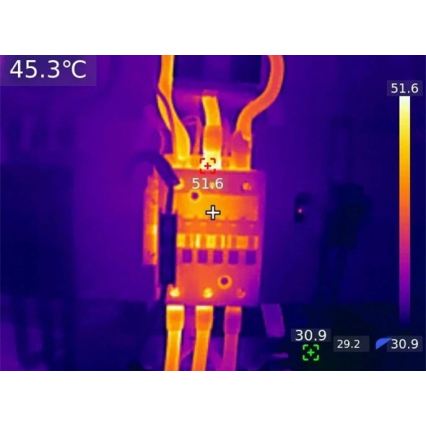

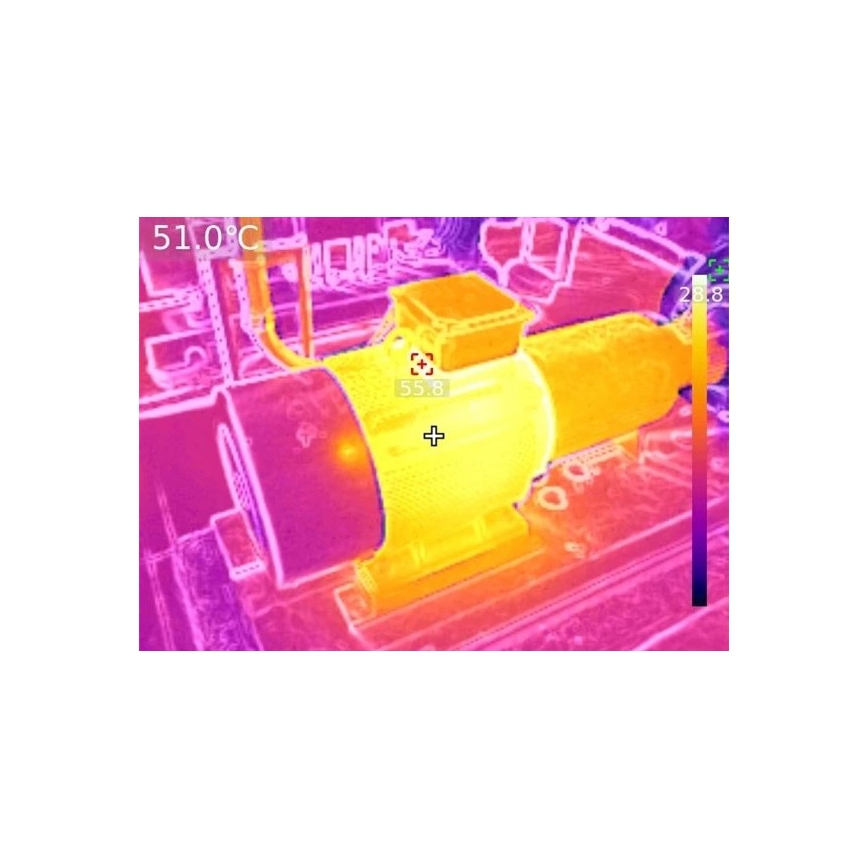

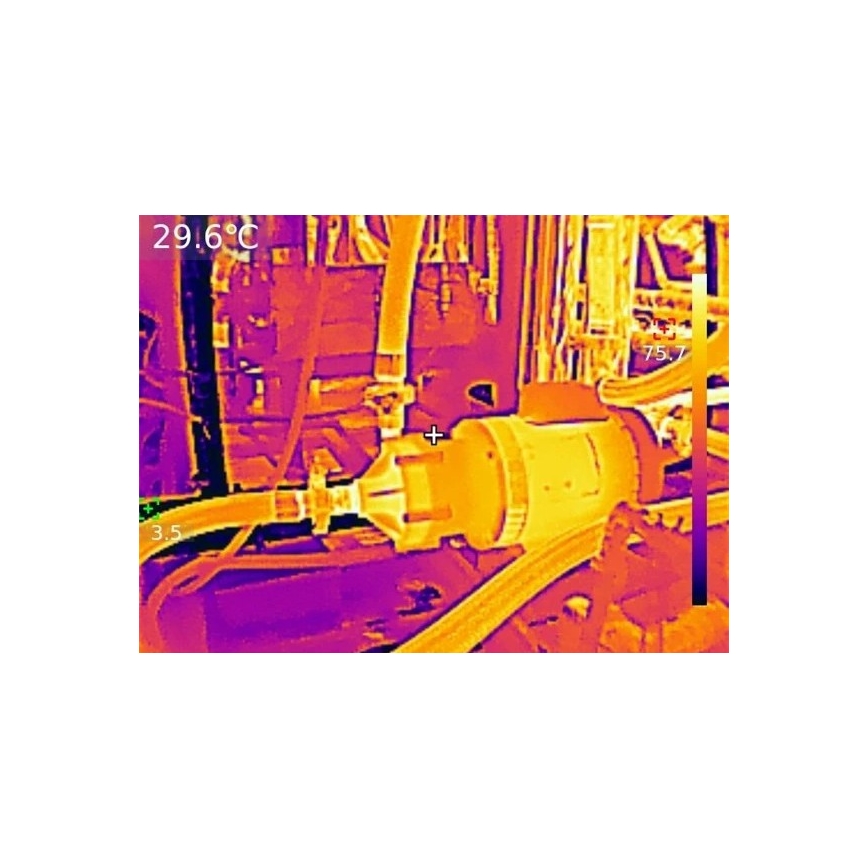

  • The resulting image can be viewed in 4 modes (separate thermal, visual, thermal-visual fusion T-Mix or picture-in-picture PIP) on a large 3.5" IPS touchscreen.
  • For extremely detailed inspection of small components from very close range (around 4 cm), the camera can be optionally equipped with the UT-Z003 macro lens.

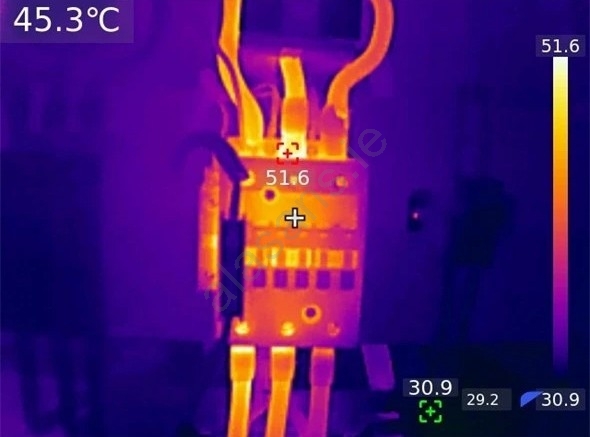

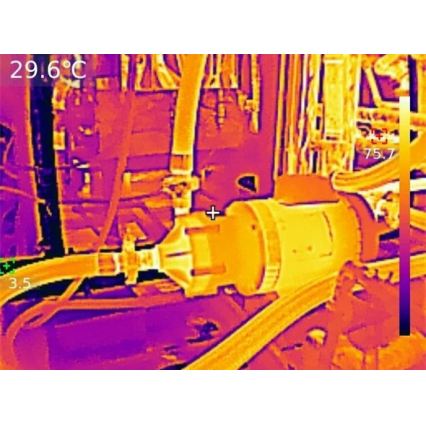

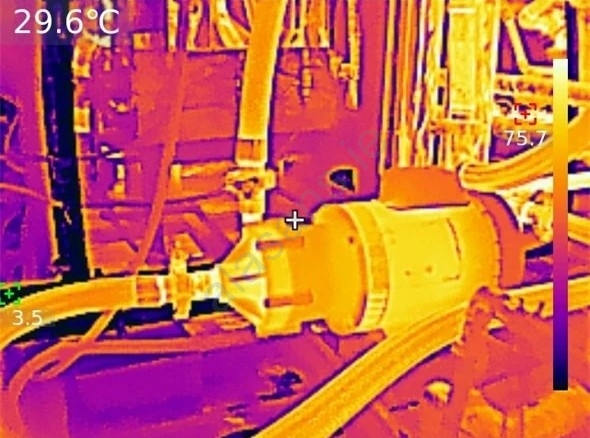

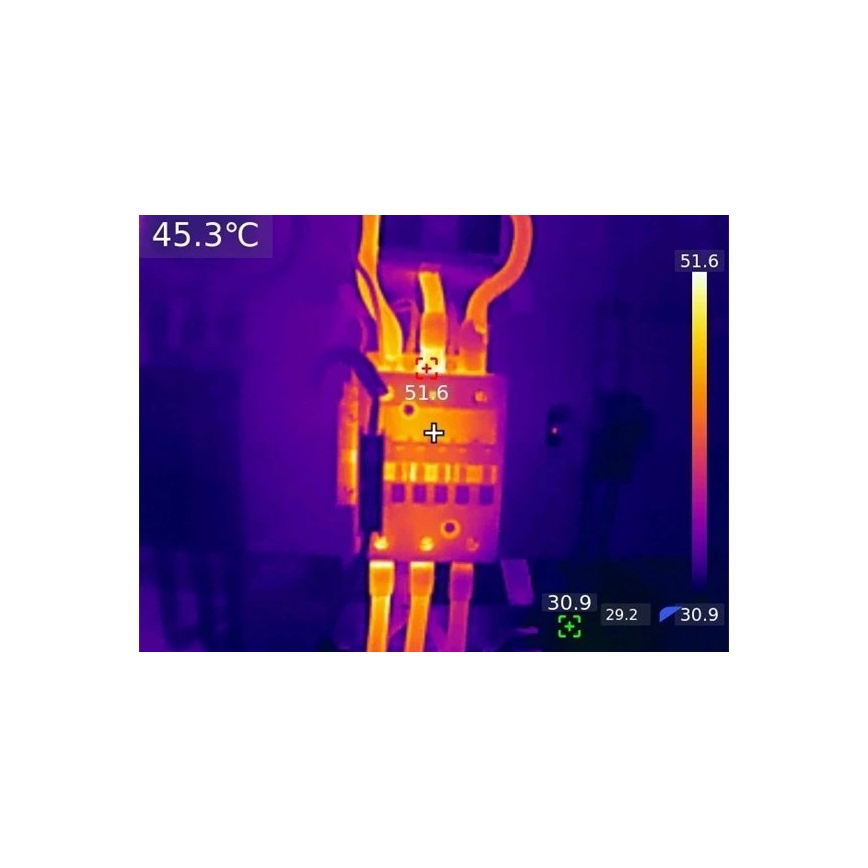

  • The camera features advanced analytical functions that allow monitoring of the hottest and coldest points or analyzing temperature at multiple defined points, lines, circles or rectangles simultaneously.
  • An automatic alarm (visual, audible and via LED flashlight) activates when set limits are exceeded.
  • Optional extras include integrated laser targeting with a range of up to 30 meters, the ability to record video and voice commentary, and a built-in Wi-Fi module for live streaming to a mobile app.
  • Also included is advanced PC software for analysis and real-time data visualization.
  • Rugged construction with an IP54 rating reliably resists dust, splashing water and drops from 2 meters, ensuring high durability in demanding industrial environments.
  • Technical specifications:
  • Temperature measurement range: -20 °C to +550 °C.
  • IR sensor resolution: 256 x 192 pixels (refresh rate ≤25 Hz).
  • Digital camera: 5 MP (with 2x and 4x digital zoom options).
  • Display: 3.5" IPS touchscreen (resolution 640 x 480 pixels).
  • Thermal sensitivity (NETD): < 50 mK.
  • Focus mode: Focus Free (fixed-focus lens), field of view 56° (H) x 42.2° (V).
  • Image modes and palettes: 4 display modes, 7 color palettes (including Ironbow, Rainbow, Lava, etc.).
  • Multimedia and data: video (AVI) and audio recording, image saving (JPG), QR code for photo management.
  • Connectivity: Wi-Fi (live streaming to app), USB-C connector.
  • Storage: Micro SD card up to 32 GB (included).
  • Power and runtime: removable 5200 mAh Li-ion battery, operating time ≥4 hours (with Wi‑Fi off).
  • Durability and certifications: IP54 rating, drop resistance from 2 meters, certifications CE, UKCA, FCC, RoHS.
  • Dimensions: 260 x 97 x 99 mm.
  • Package contents: UTi720V thermal camera, Micro SD card, USB-C cable, user manual.
