• Product description

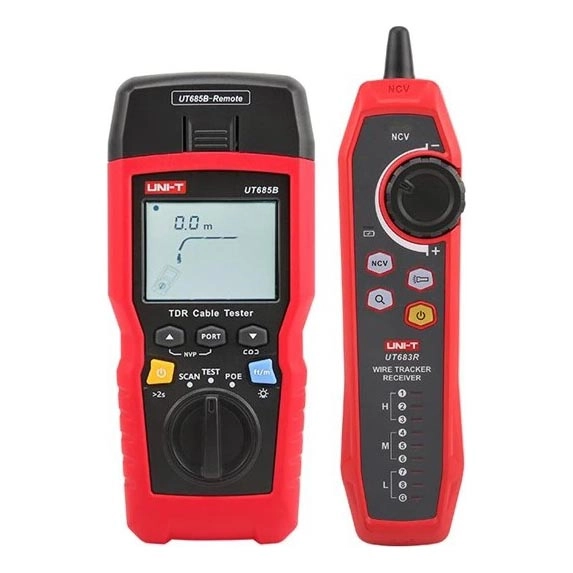

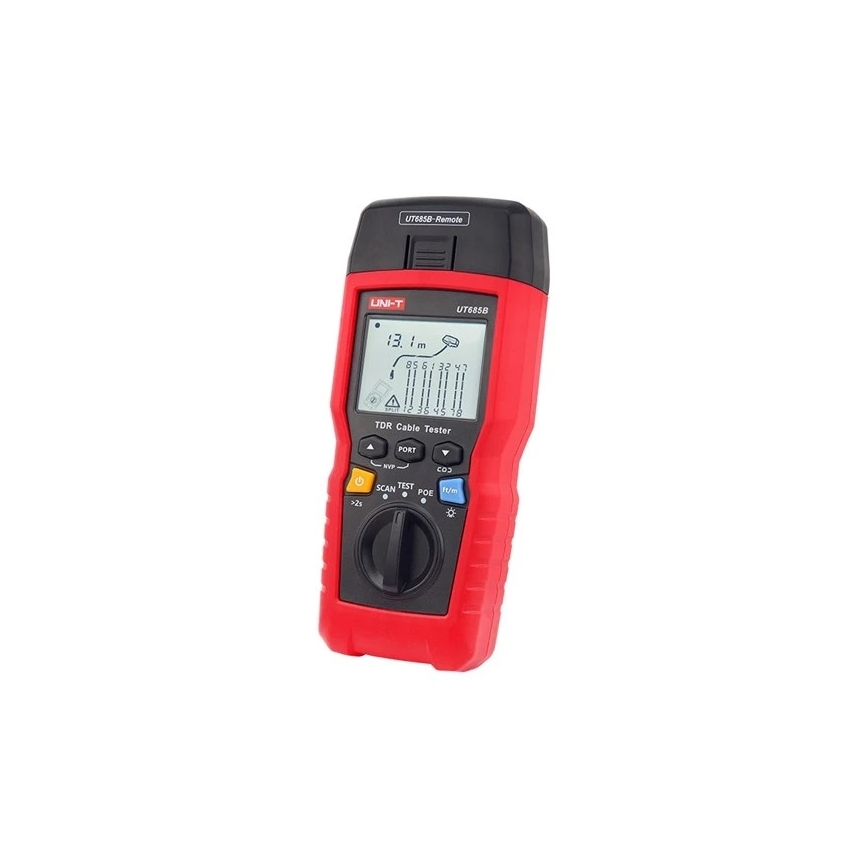

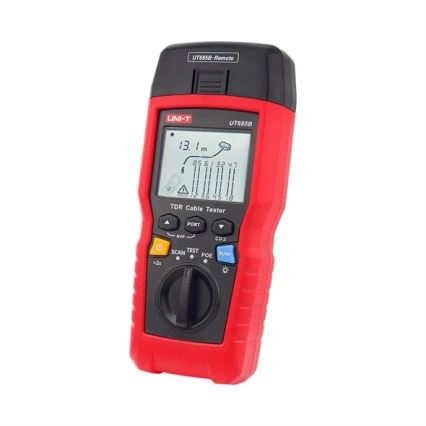

  • Handheld diagnostic tester employs Time Domain Reflectometry (TDR) technology for precise measurement of cable length and condition.
  • The kit is designed to test copper network cables from CAT 5E to CAT 8 and coaxial cables.
  • The device can identify shorts, open circuits, miswires and split pairs.
  • The tester automatically detects PoE presence and identifies 802.3af, 802.3at and 802.3bt standards.
  • The 2.8-inch backlit graphic display shows a clear wiring map and the exact fault location.
  • Robust input protection up to 70 V DC ensures device safety when connected to active networks.

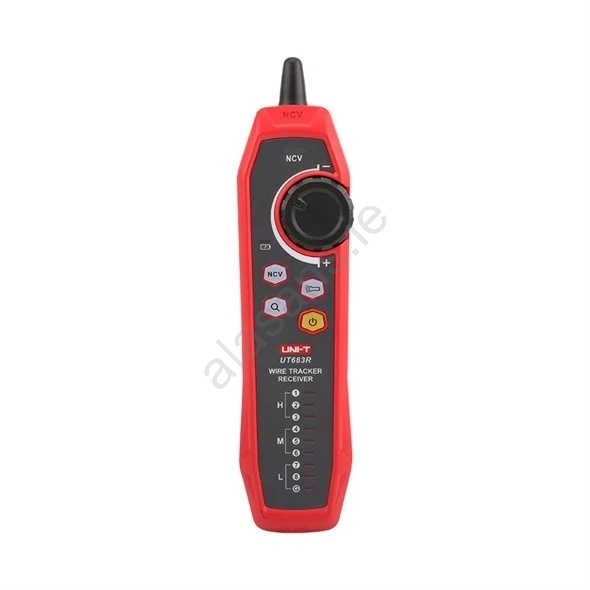

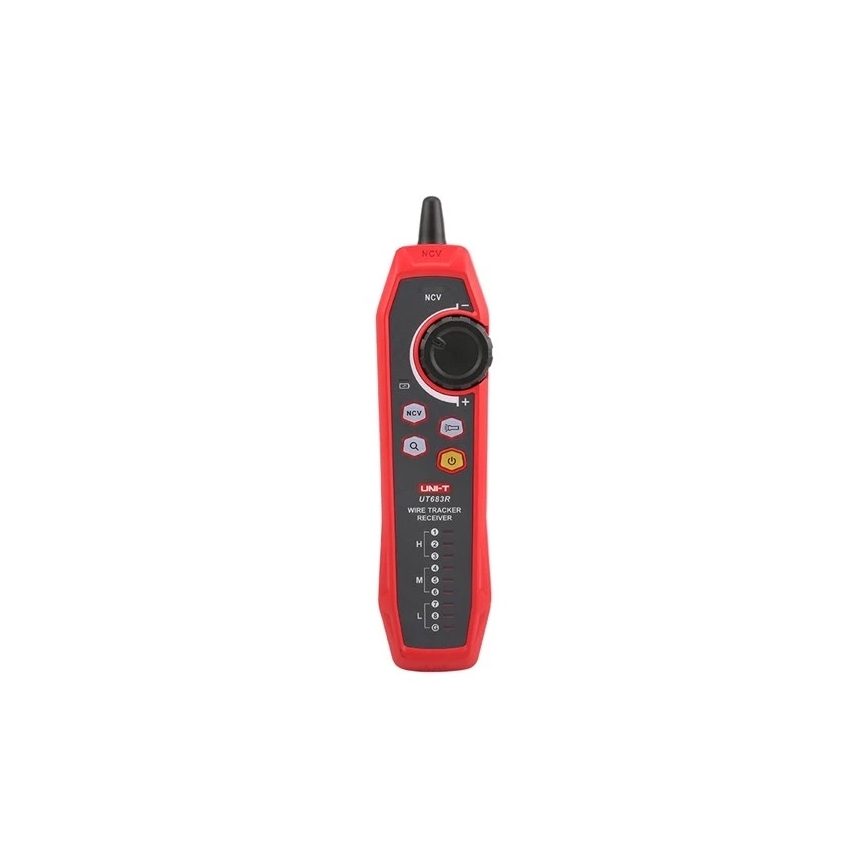

  • The kit includes a receiver that simplifies locating and tracing cable routes in installations.
  • Intuitive operation and high accuracy make it an ideal tool for professional telecommunications network management.
  • Product parameters:
  • Measurement method: Time Domain Reflectometry (TDR) technology allows length measurement even without the remote unit connected.

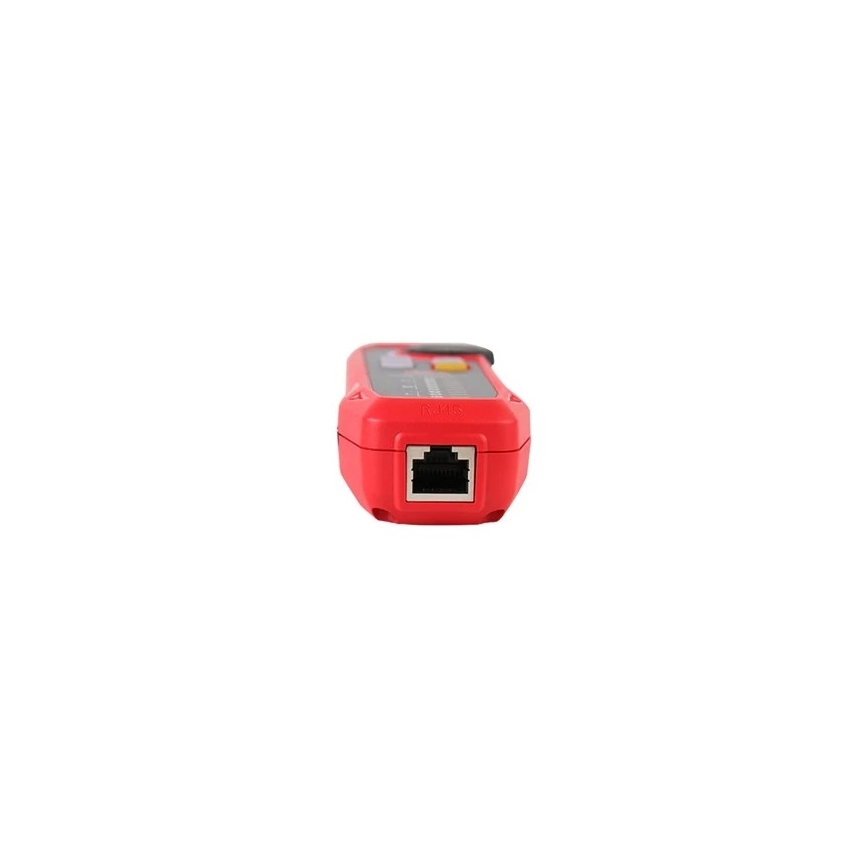

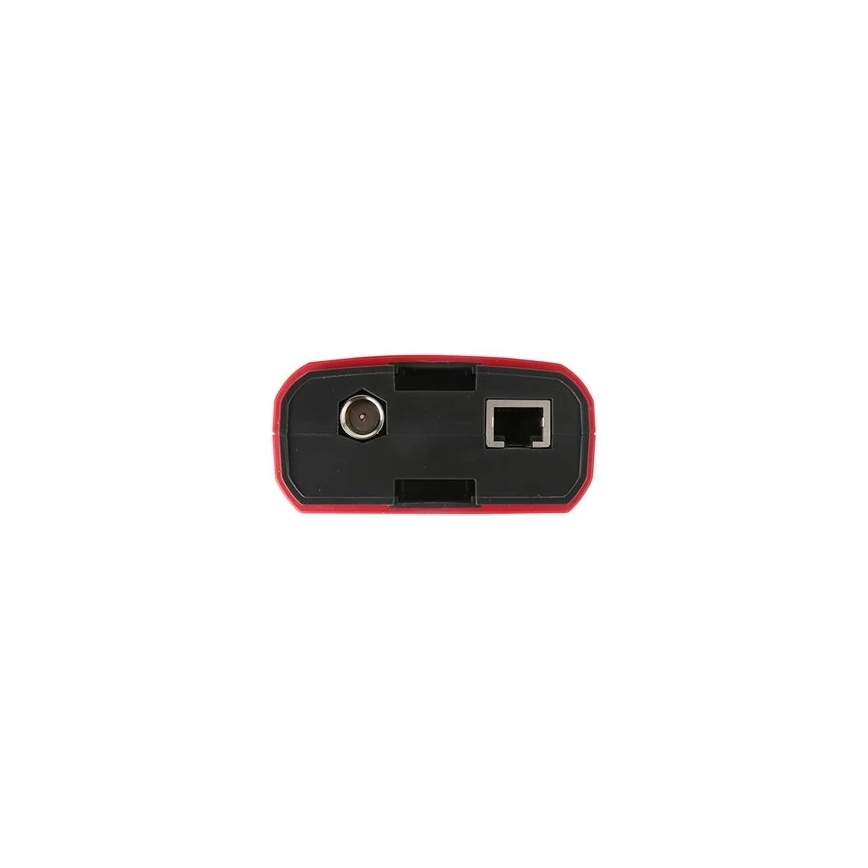

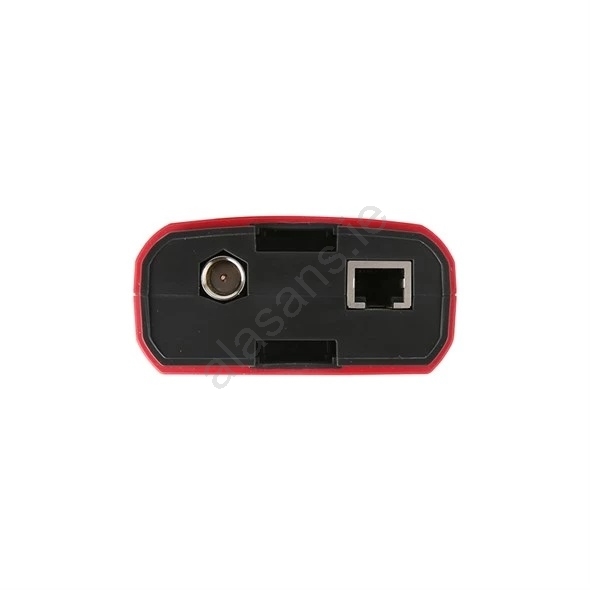

  • Connector types: the device is equipped with ports for RJ45, RJ11 and coaxial connectors.
  • Maximum range: cable length and fault location can be measured up to 500 meters.
  • Measurement resolution: the device provides detailed results with 0.33 m resolution.

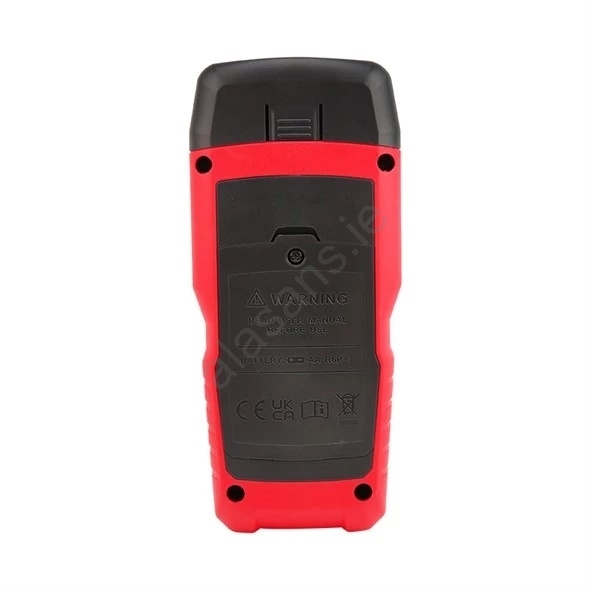

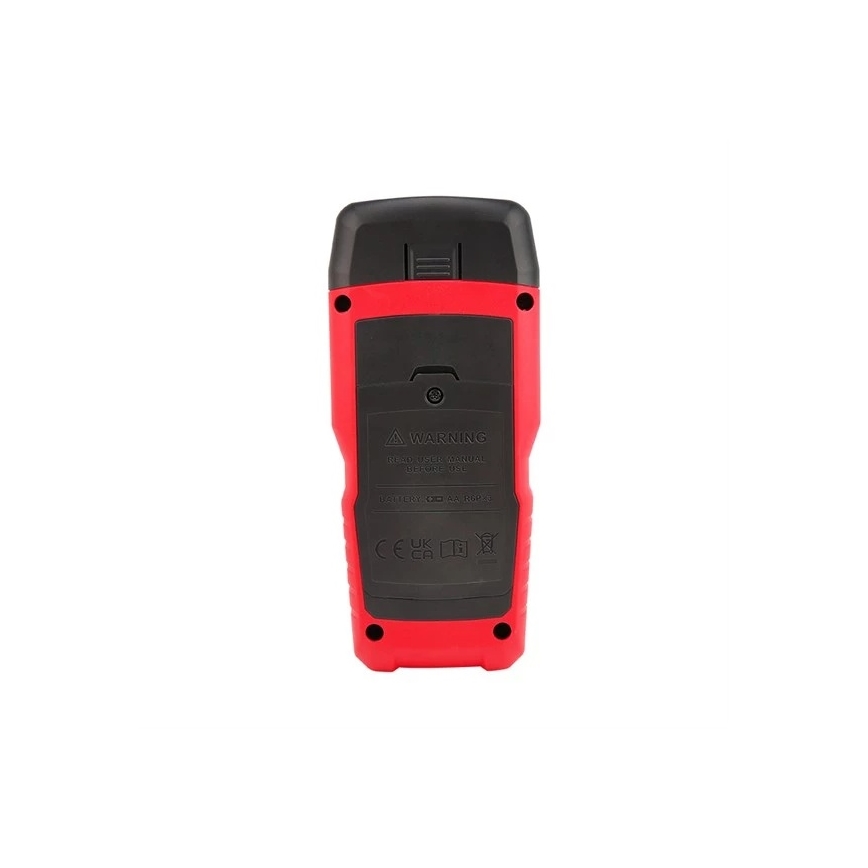

  • Power: the system is powered by 4 AAA alkaline batteries (included).
  • Energy saving: auto power-off after 10 minutes of inactivity extends battery life.
  • Technical specifications:
  • Supported shielding: the tester works with unshielded (UTP) and shielded (FTP, SSTP) twisted pairs.
  • Coaxial cables: supports coaxial cables with impedances of 50 Ω, 75 Ω and 93 Ω.
  • Length accuracy: measurement tolerance is ±4% of the measured value or 0.6 m.
  • Operating conditions: the device reliably operates at temperatures from 0 °C to 45 °C.
  • Construction: the main unit weighs 360 grams and features high mechanical durability.
  • Accessories: the package includes a receiver for signal tracing.
