• Product description

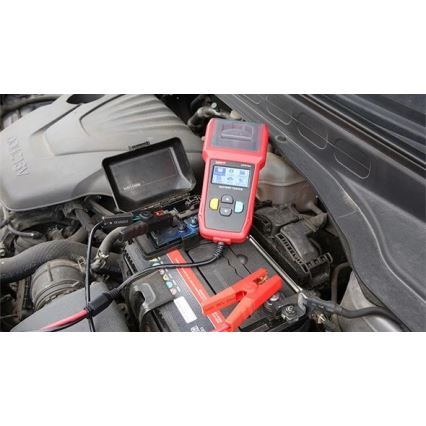

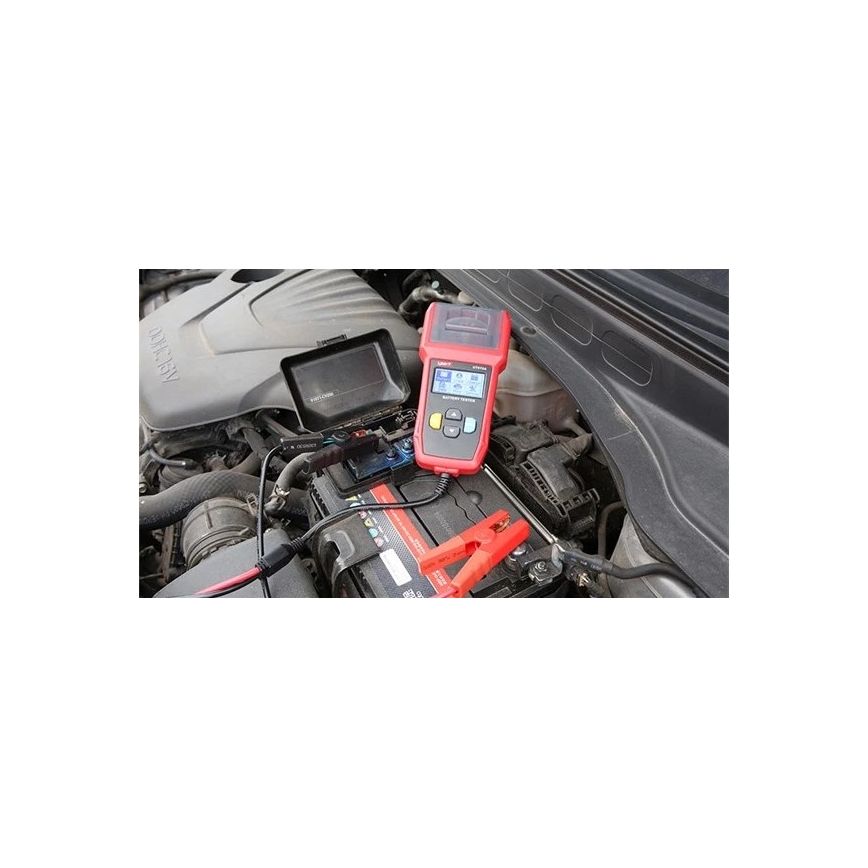

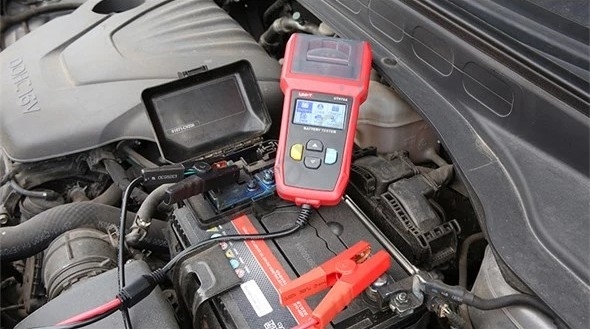

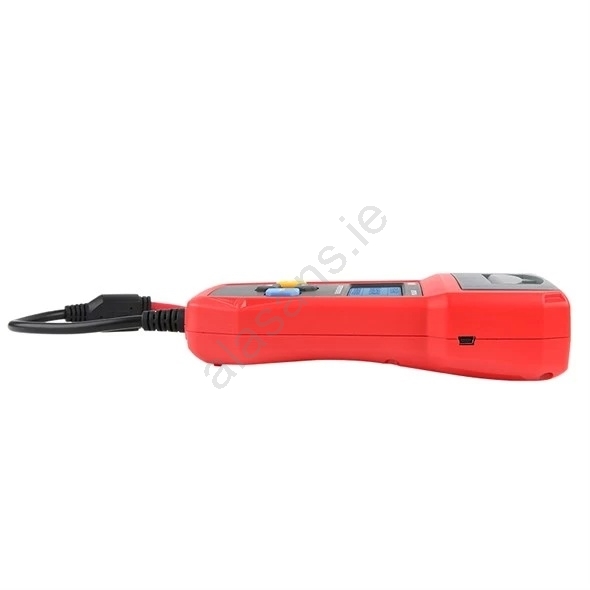

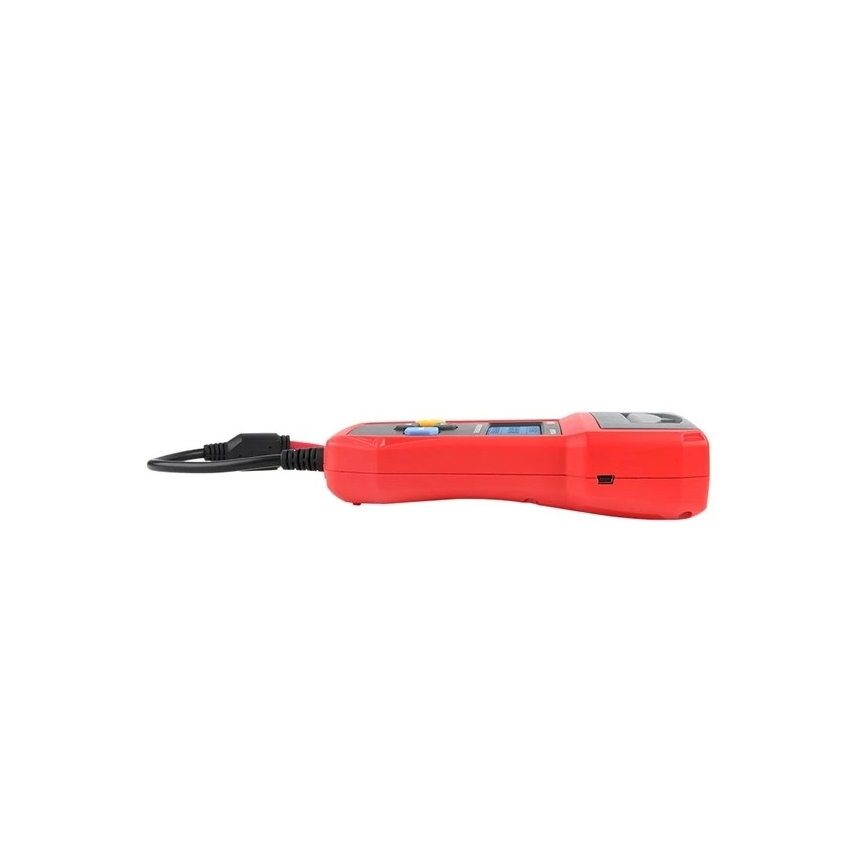

  • The portable UNI-T UT675A tester is a professional diagnostic instrument designed for fast and accurate analysis of vehicle lead-acid batteries with capacities from 3 to 250 Ah, all without the need to remove them from the vehicle.
  • This top-of-the-line device provides a comprehensive assessment of battery condition by measuring voltage, internal resistance, cranking currents, remaining capacity and overall life expressed as a percentage.
  • In addition to the battery itself, it can also test vehicle starting and charging systems (12V and 24V), including alternator diode diagnostics.
  • A major advantage of this model is the built-in thermal printer, which enables immediate printing of measured results in real time, and the ability to transfer data to a computer via USB interface.
  • The tester supports a wide range of battery constructions (standard lead-acid, GEL, EFB and flat or spiral AGM) and is compatible with international standards such as CCA, DIN, EN, IEC and others.
  • If the battery standard cannot be found on the label, the device allows testing by entering approximate values under the CCA standard.

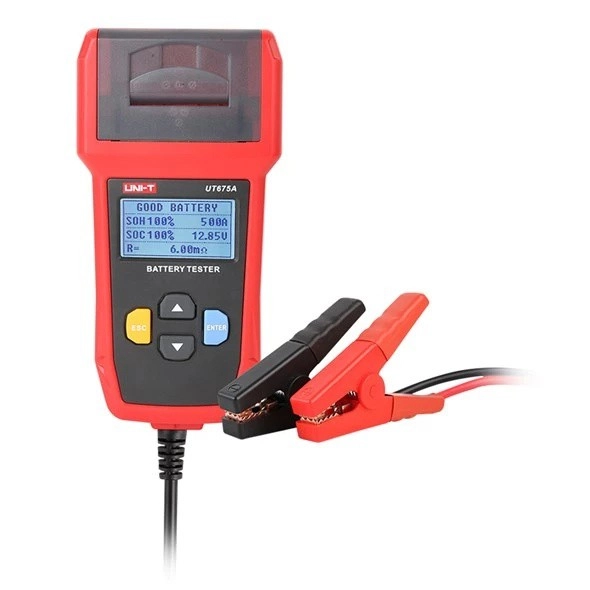

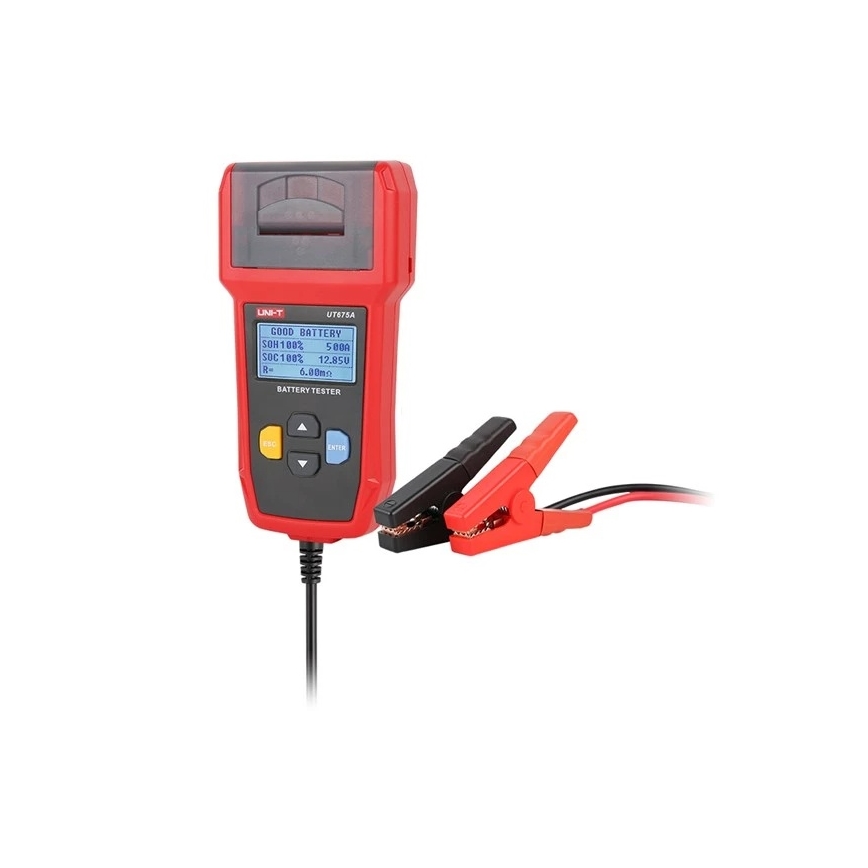

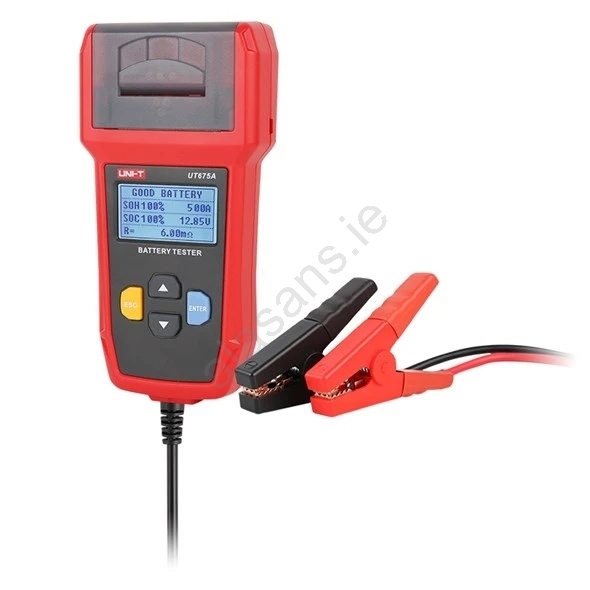

  • A clear LCD display, intuitive interface and power supplied directly from the tested battery ensure maximum comfort during use.
  • Safe operation is guaranteed by integrated reverse-polarity protection, overvoltage protection and system indication of poor clamp contact.
  • Technical parameters:
  • Range of tested capacities: 3 Ah to 250 Ah (for 12V starting lead-acid batteries).
  • Supported battery types: standard lead-acid, AGM flat, AGM spiral, GEL, EFB.
  • Testing standards: CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, Ah.
  • Vehicle system diagnostics: testing of starting and charging systems 12V/24V (including alternator diode test).
  • Voltage measurement: 7,00 V to 16,00 V (when testing the battery) / 7,00 V to 30,00 V (when testing starting/charging).
  • Displayed parameters: battery condition (%), life (%), capacity (%), internal resistance, voltage, starting currents.

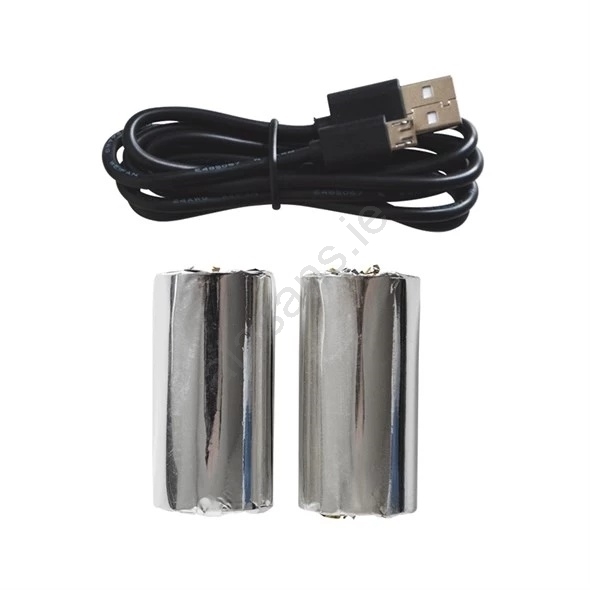

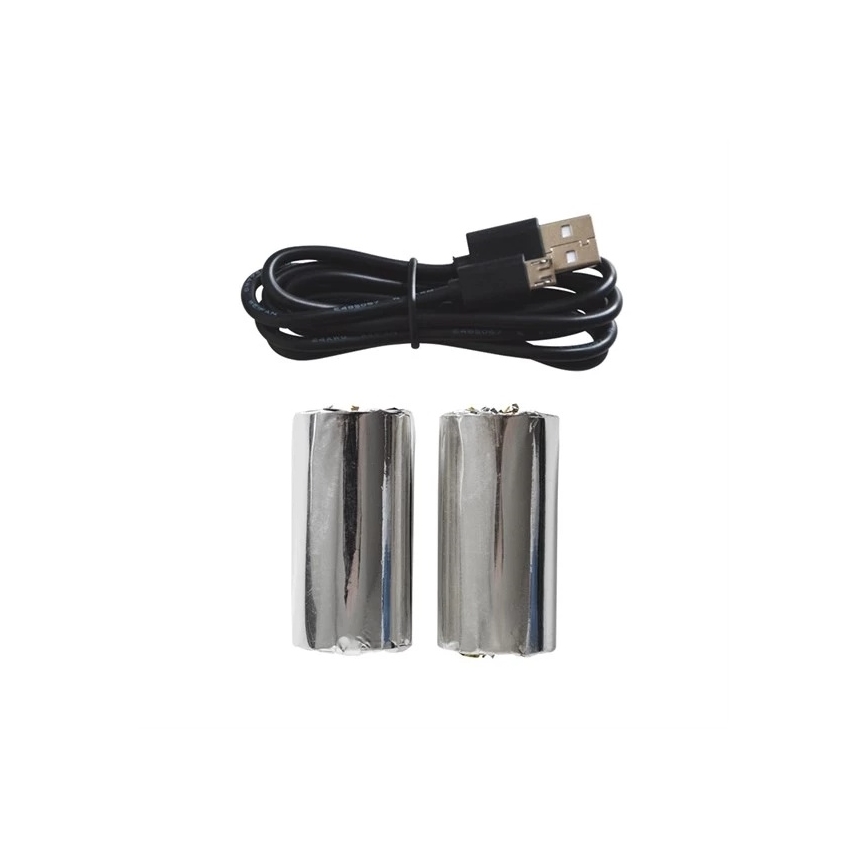

  • Features and equipment: built-in printer for measured values, USB interface for data transfer to PC, system time setting, language selection (English/Chinese).
  • Safety protections: reverse polarity protection, overvoltage protection, indication of poor clamp contact.
  • Display: LCD with resolution 128 x 64 pixels.
  • Power supply: directly from the tested battery (does not require its own batteries).
  • Operating temperature: -20 °C to +50 °C.
  • Certifications: CE, FCC, RoHS.
