• Product description

  • A specialized instrument for efficient solar panel diagnostics and identification of operational anomalies.
  • The tester can simultaneously measure maximum power, peak voltage, current, open-circuit voltage (Voc) and short-circuit current (Isc) of the panel.

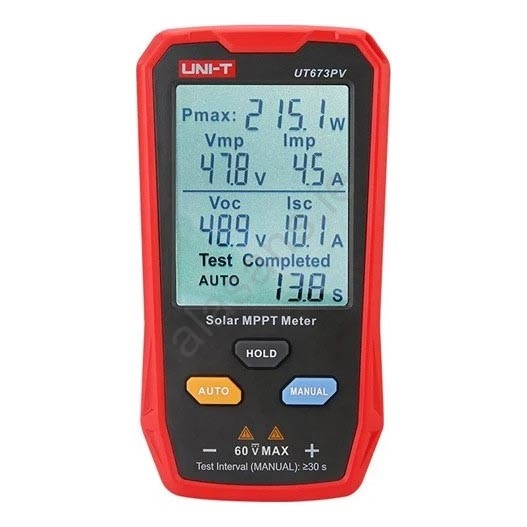

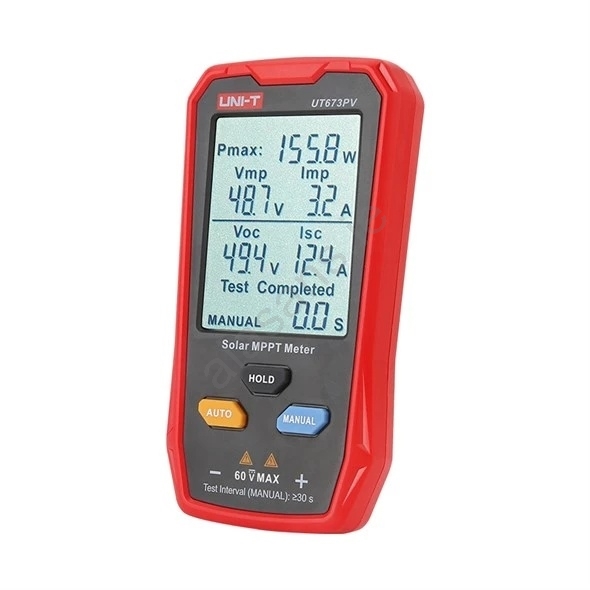

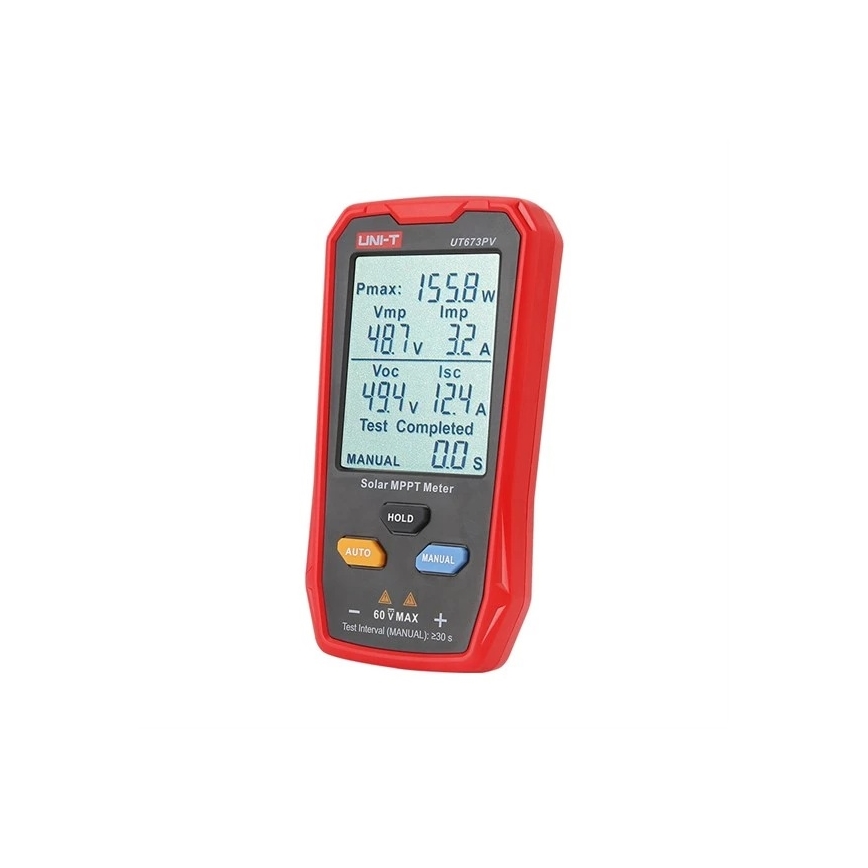

  • A large LCD display shows all measured parameters at once for clear readout without the need to switch.
  • A unique power system drawing directly from the solar panel eliminates the need for any external batteries.
  • Compact, lightweight construction simplifies handling and increases work efficiency during field installations.

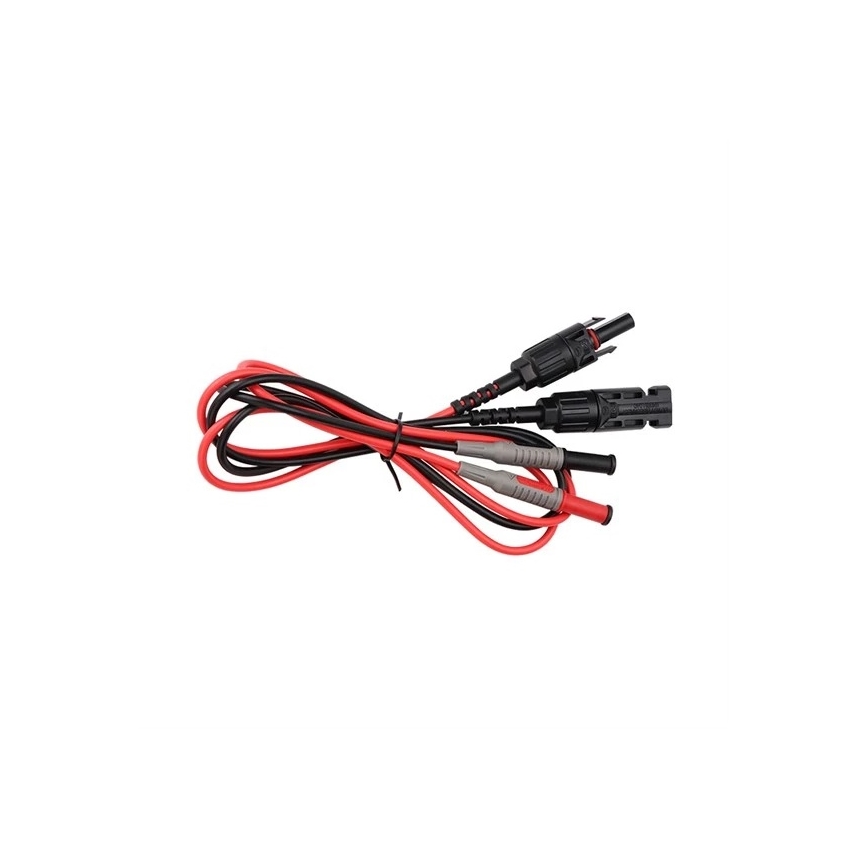

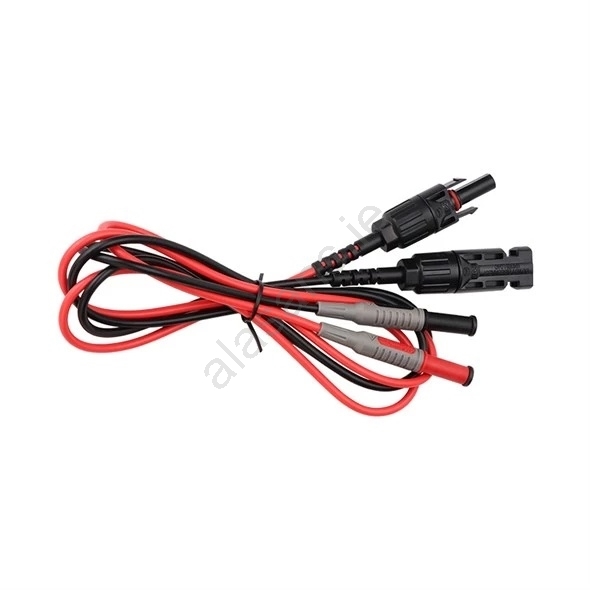

  • The device is equipped with standard MC4 connectors for quick and secure connection to most solar modules.
  • Integrated protections against overvoltage, overheating and reverse polarity protect both the device and the tested panel from damage.
  • Automatic and manual MPPT test functions enable precise determination of the panel’s actual peak power.
  • This tool is an ideal choice for installation companies, service technicians and photovoltaic system manufacturers.
  • Technical specifications:
  • Power measurement (Pmax): the device measures maximum power in the range from 5 W to 800 W with high accuracy.
  • Voltage ranges: the range for maximum power voltage (Vmp) and open-circuit voltage (Voc) is from 12 V to 60 V.
  • Current ranges: maximum power current (Imp) and short-circuit current (Isc) can be measured from 0 A to 35 A.
  • Display features: a large LCD panel measuring 52 x 66 mm ensures excellent data readability.
  • Operational functions: the Data Hold function allows freezing measured values on the display for easy recording.
  • Safety features: the device provides multi-stage protection against overcurrent and exceeding permitted power.
