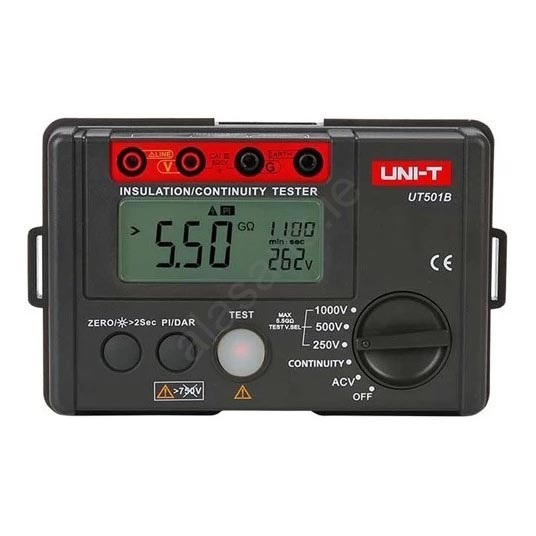

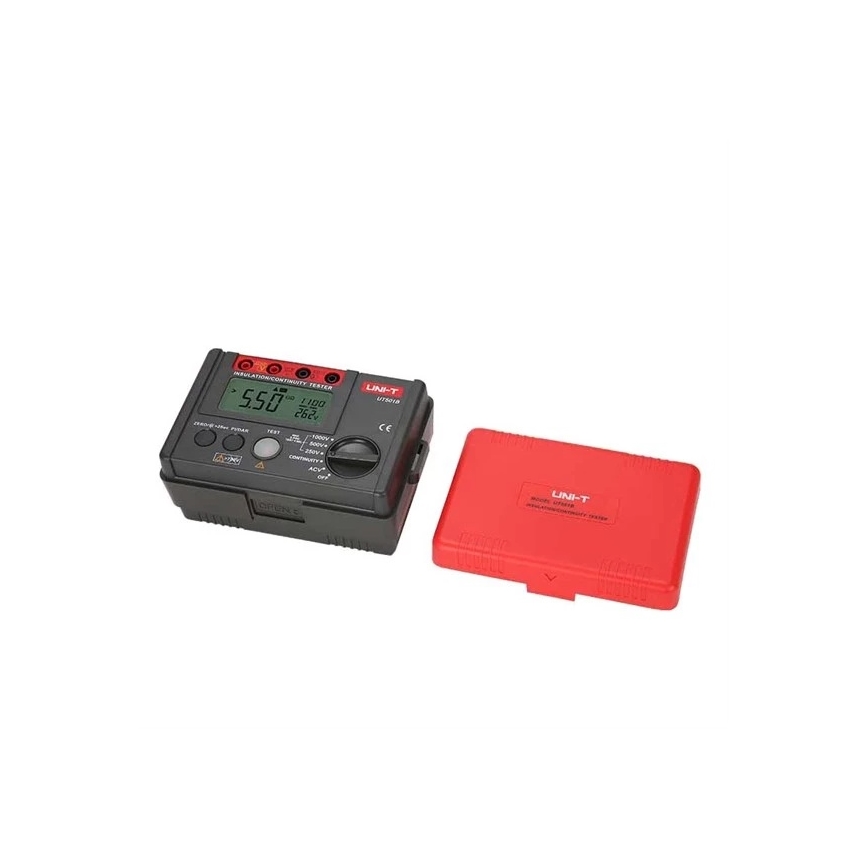

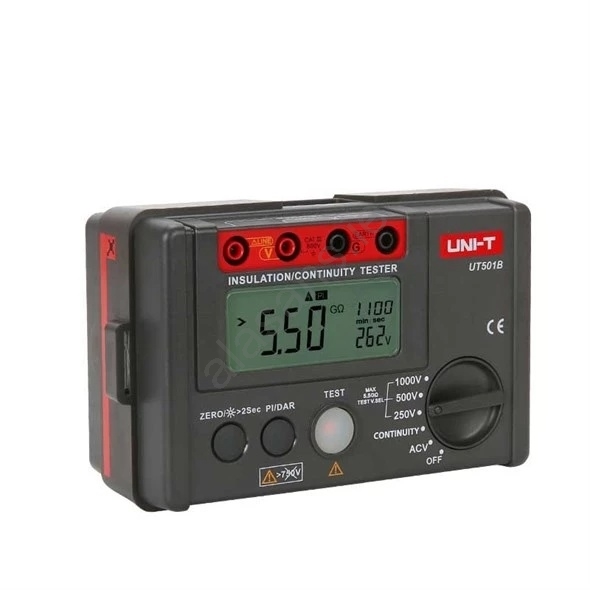

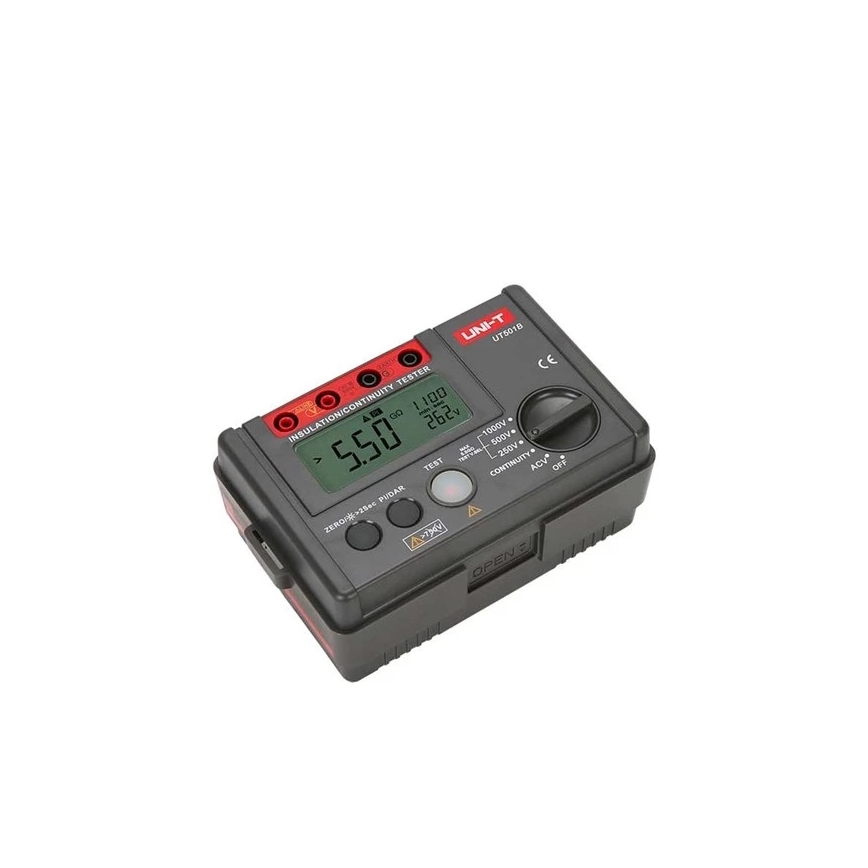

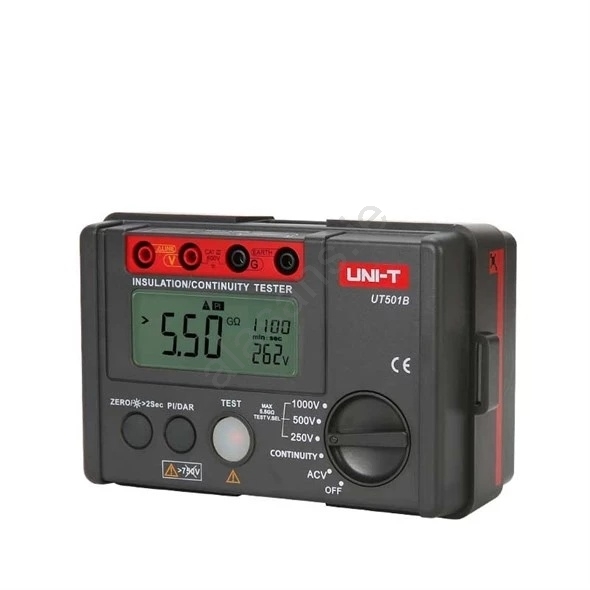

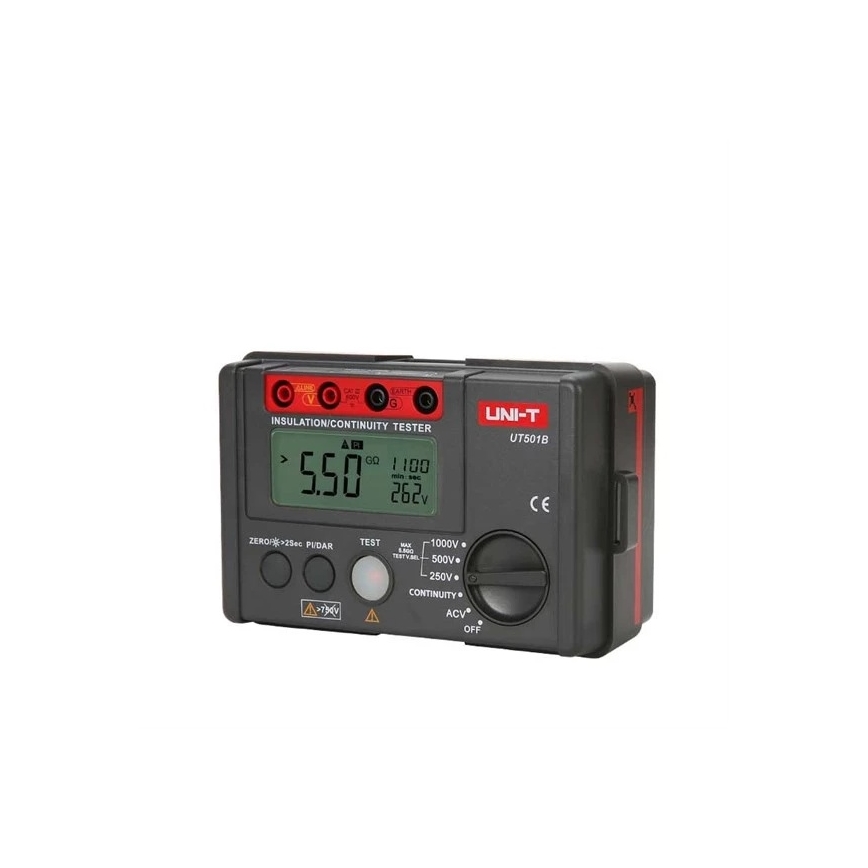

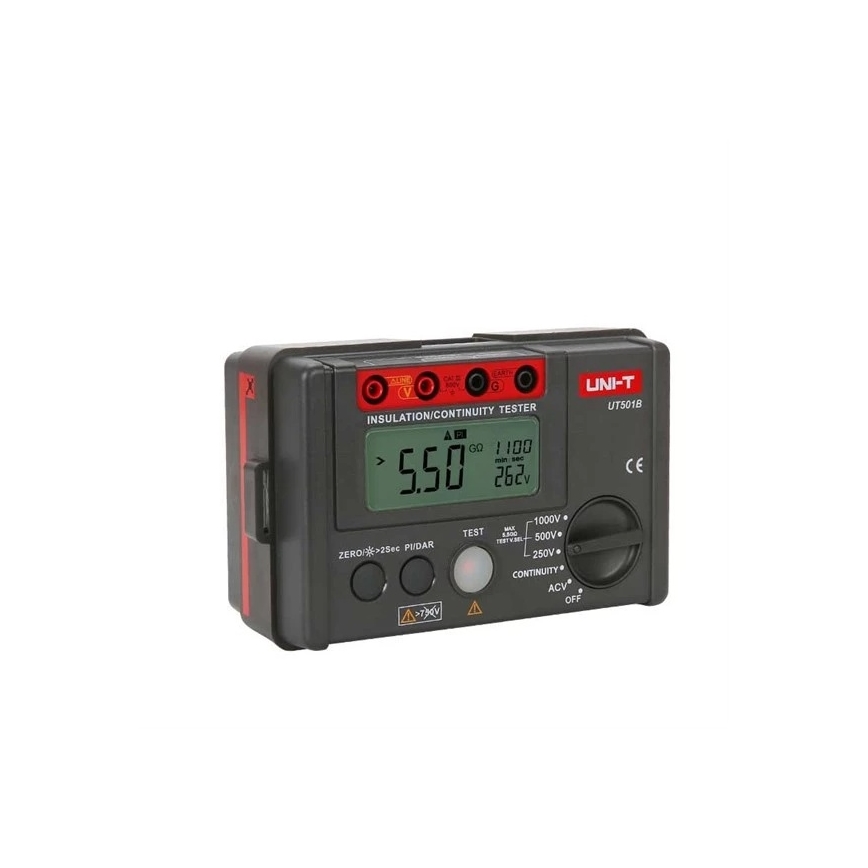

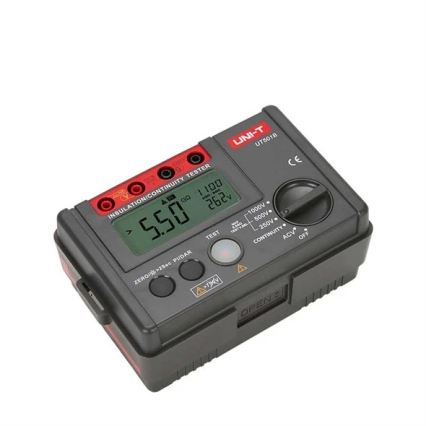

  • Insulation resistance tester UNI-T UT501B is a professional portable diagnostic instrument designed for inspections, electrical maintenance and routine testing of electrical installations, transformers, generators, motors, cables and household appliances.
  • The device measures insulation resistance from 0 MΩ to 5.5 GΩ with selectable DC test voltages of 250 V, 500 V and 1000 V.
  • In addition to standard insulation resistance, it measures AC voltage, low resistance from 0 to 200 Ω for continuity testing, and advanced diagnostic parameters such as polarization index (PI) and dielectric absorption (DAR).
  • The instrument is designed in strict compliance with safety standards IEC61010 and IEC61557 and features surge protection rated CAT III 600 V.
  • User comfort is enhanced by a large, clear backlit LCD with an auxiliary line for displaying the current test voltage.
  • When dangerous voltage is detected or a warning occurs, the display backlight automatically switches to red, accompanied by an audible buzzer alarm.
  • Practical features include automatic range switching, a ZERO button to null the display when measuring low resistances, and automatic discharge of circuit capacitance after testing.
  • The instrument is powered by six standard 1.5 V AA batteries and is supplied as a convenient kit with test leads and crocodile clips.
  • Technical specifications:
  • Insulation resistance measurement: 0.00 MΩ to 5.5 GΩ.
  • Test voltage (DC): 250 V / 500 V / 1000 V (open-circuit voltage tolerance +10%, short-circuit current approx. 2 mA).
  • Measuring current and internal resistance during test: 1.00 mA to 1.10 mA (at 250 kΩ / 500 kΩ / 1 MΩ depending on selected voltage).
  • Insulation resistance measurement accuracy: 0.00 MΩ to 99.9 MΩ: ±(3% + 5) / 100 MΩ to 5.5 GΩ: ±(5% + 5).
  • Diagnostic modes: polarization index (PI) 10 min / 1 min; dielectric absorption ratio (DAR) 60 s / 30 s.
  • Low-resistance (continuity) measurement: range 0.00 Ω to 200 Ω (resolution 0.01 Ω, accuracy ±(2% + 3), test current approx. 200 mA, ZERO function).
  • AC voltage measurement: range 30 V to 600 V (50/60 Hz, resolution 1 V, accuracy ±(2% + 3)).
  • Display: multifunction backlit LCD measuring 70.6 x 34 mm (max. display 1999, red warning backlight).
  • Power supply: 6× alkaline 1.5 V AA batteries (low-battery indication when voltage falls below 7 V).
  • Safety rating and standards: CAT III 600 V, compliant with IEC61010 and IEC61557.

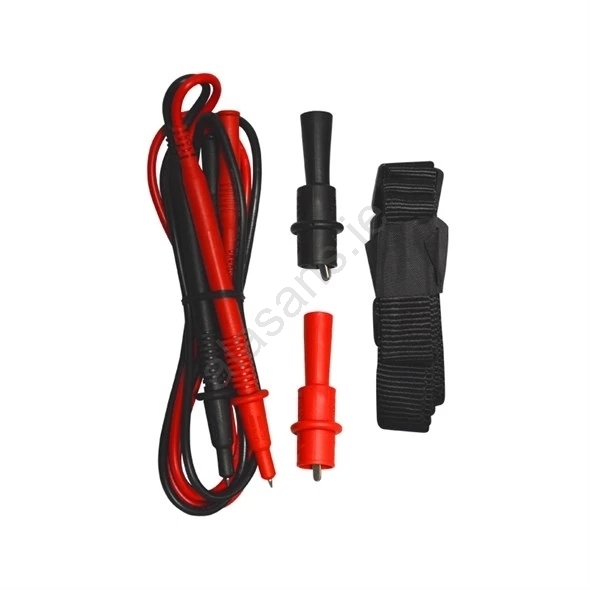

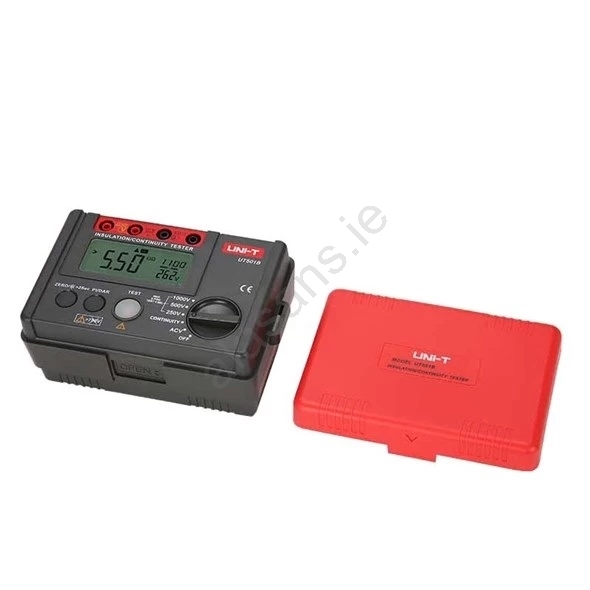

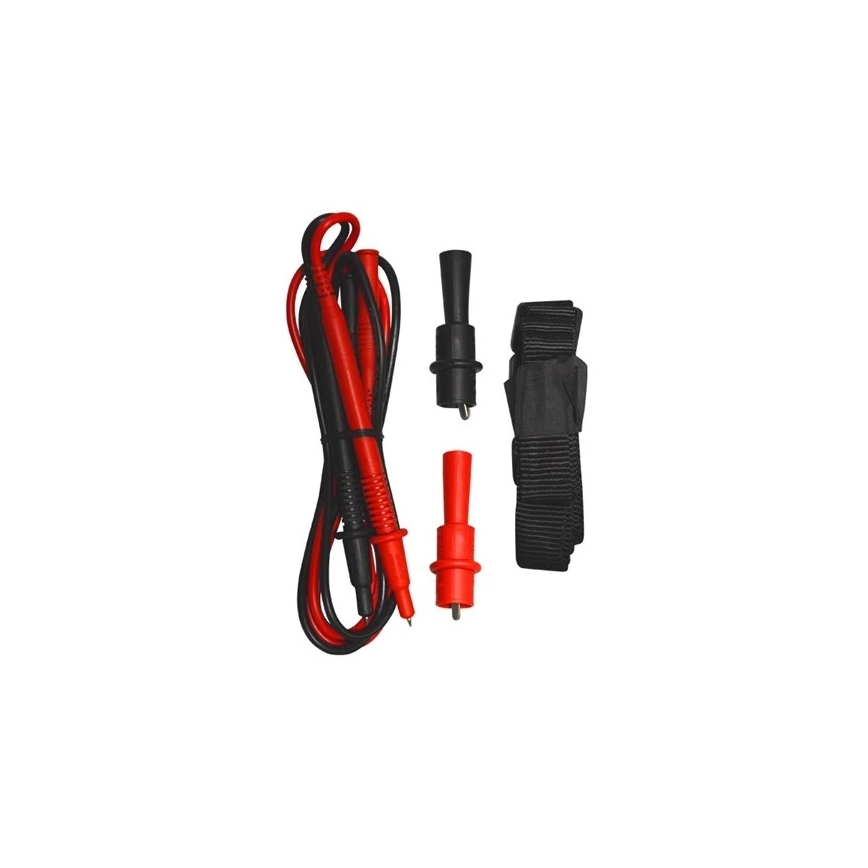

  • Package contents: UT501B tester, 1 pair of test leads, 1 pair of crocodile clips, 6× AA 1.5 V batteries.
