• Product description

  • The compact digital lux meter UNI-T UT383S is a reliable instrument for accurately measuring illumination intensity, ideal for industrial, agricultural, laboratory, office and educational applications.

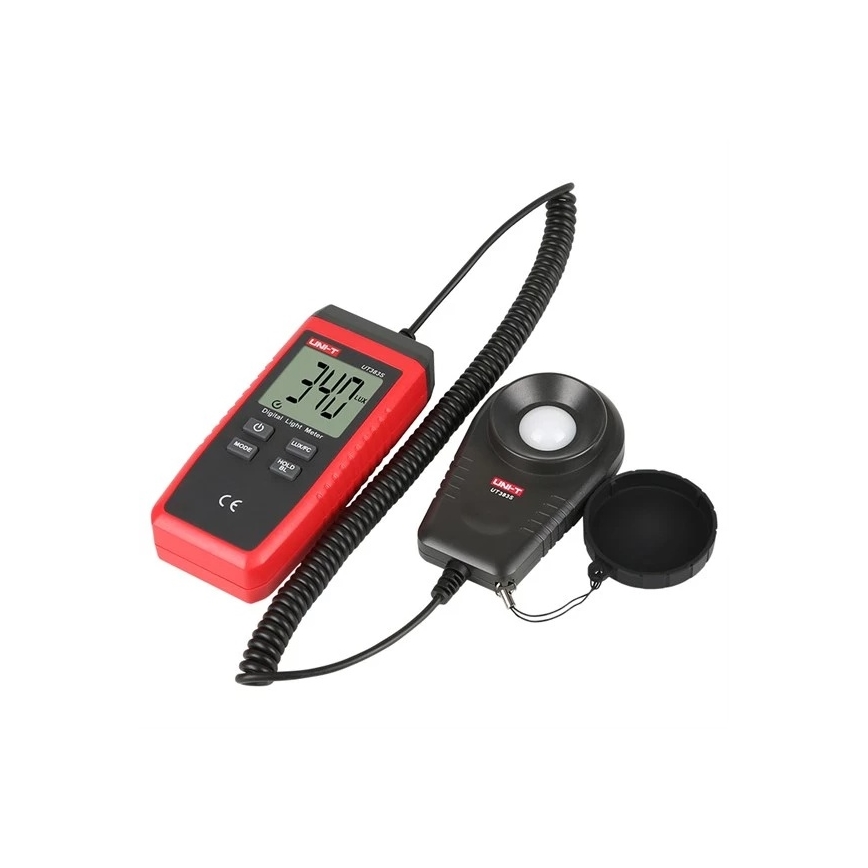

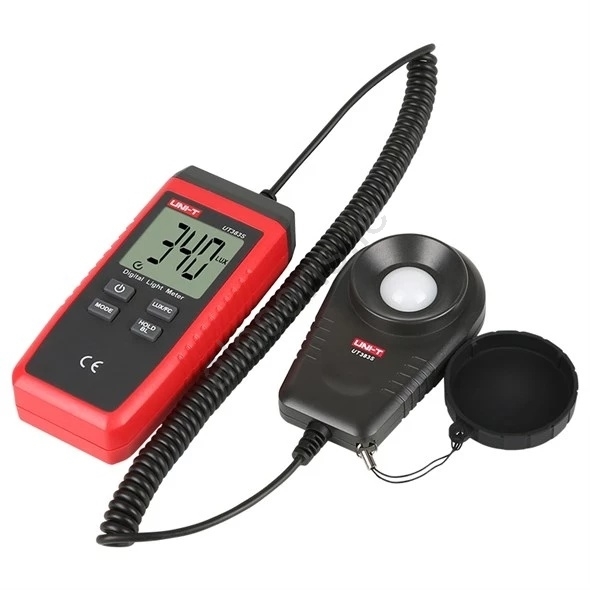

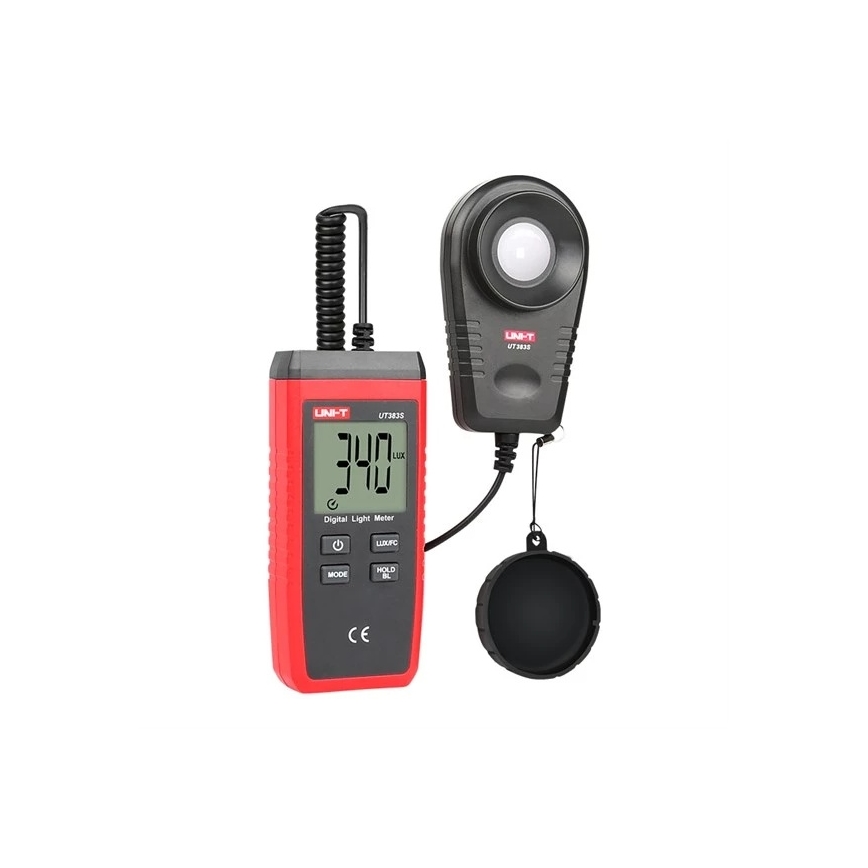

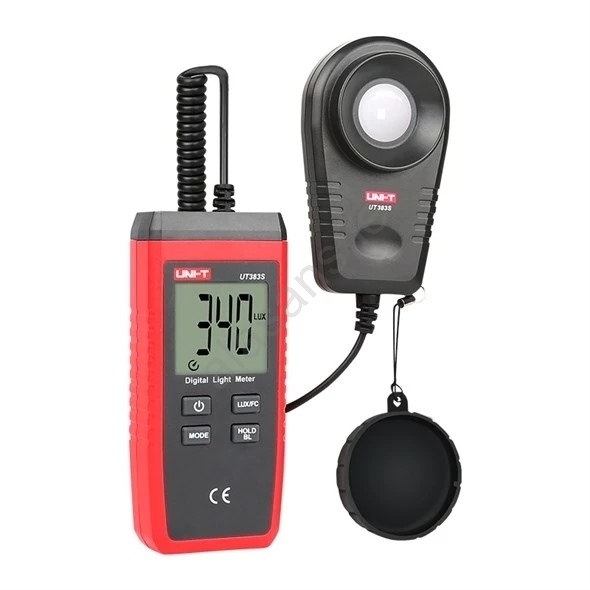

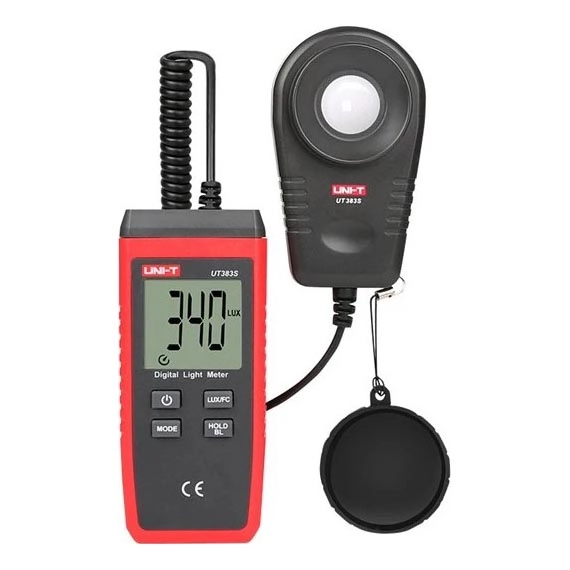

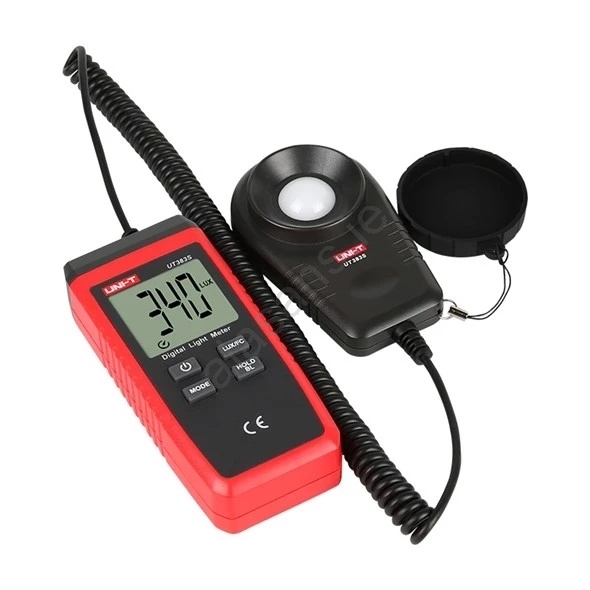

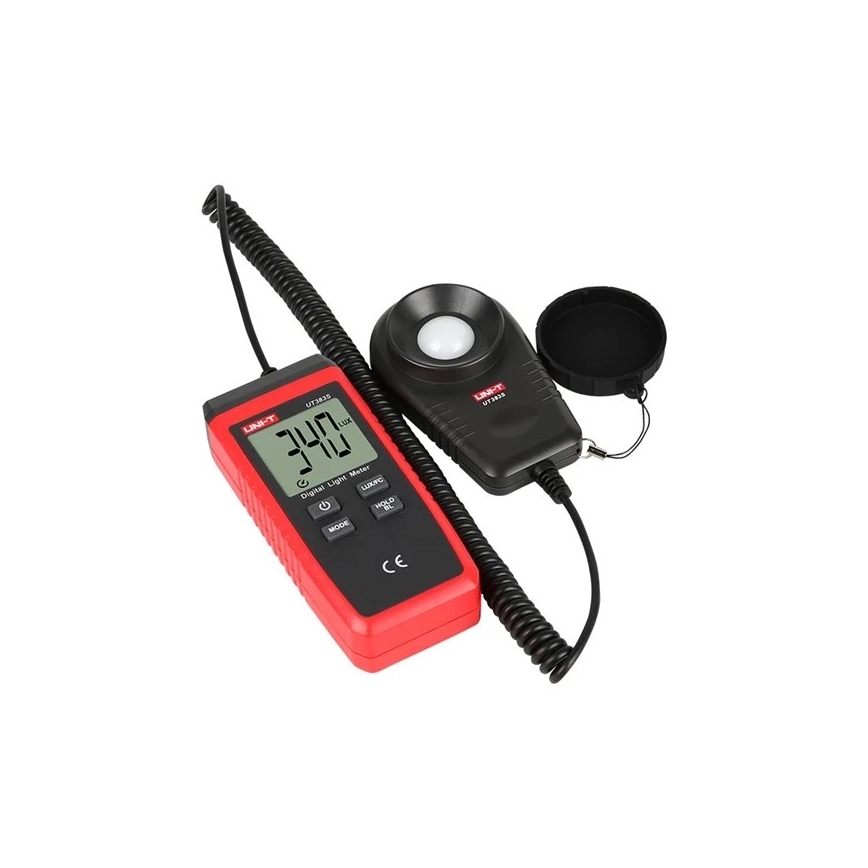

  • For maximum flexibility on the job, the sensitive sensor with protective cover is connected to the durable instrument body via a flexible cable.
  • Measured values are shown on a clear backlit display that automatically switches measurement ranges up to a maximum of 199 900 lux.
  • The instrument allows easy switching between Lux (Lx) and foot-candle (FC) units and responds quickly with a measurement rate of 2 readings per second.
  • During operation you'll appreciate useful features such as freezing the current reading on the display (Data Hold) and recording maximum and minimum values (MAX/MIN mode).
  • Power is supplied by three AAA batteries; an auto-off function after 5 minutes of inactivity helps extend battery life.
  • The instrument is additionally designed to safely withstand drops from a height of 1 meter.
  • Technical specifications:
  • Measurement range: 0 to 199 900 Lx (auto-ranging).
  • Accuracy (Lx): ±(4% + 8 digits) up to 9 999 Lx; ±(5% + 10 digits) for higher values.
  • Accuracy (FC): ±(4% + 8 digits) up to 999.9 FC; ±(5% + 10 digits) for higher values.
  • Measurement rate: 2 readings per second.
  • Display: backlit (35 × 32 mm), 4 digits with overrange indication „OL“.
  • Functions: Data Hold, MAX/MIN mode, low-battery indicator.
  • Drop resistance: 1 m.
  • Operating environment: 0 °C to 40 °C (at relative humidity up to 80 %).
  • Power supply: 3x 1.5V AAA batteries (included).
