• Product description

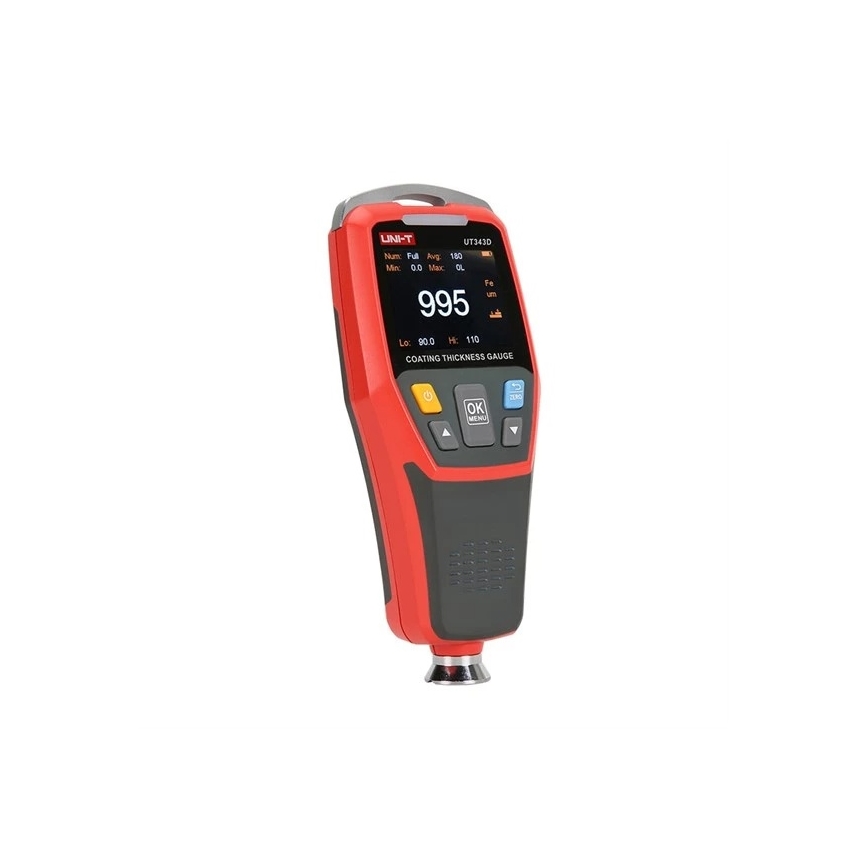

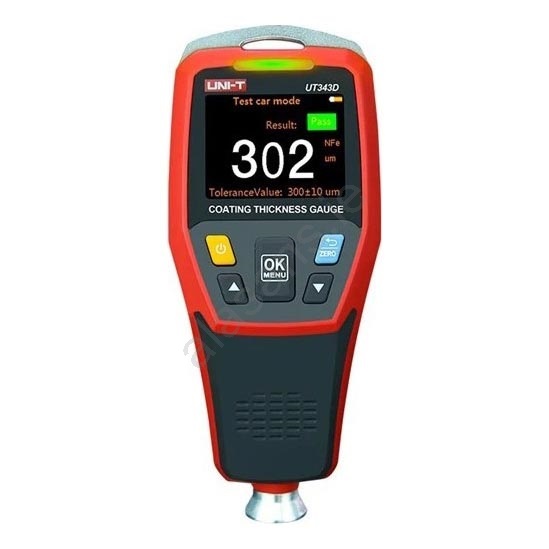

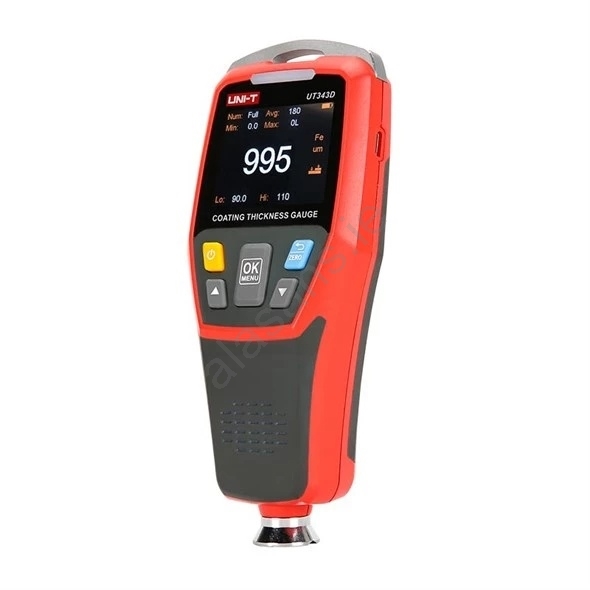

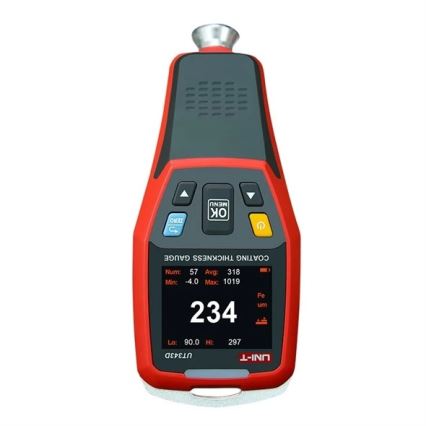

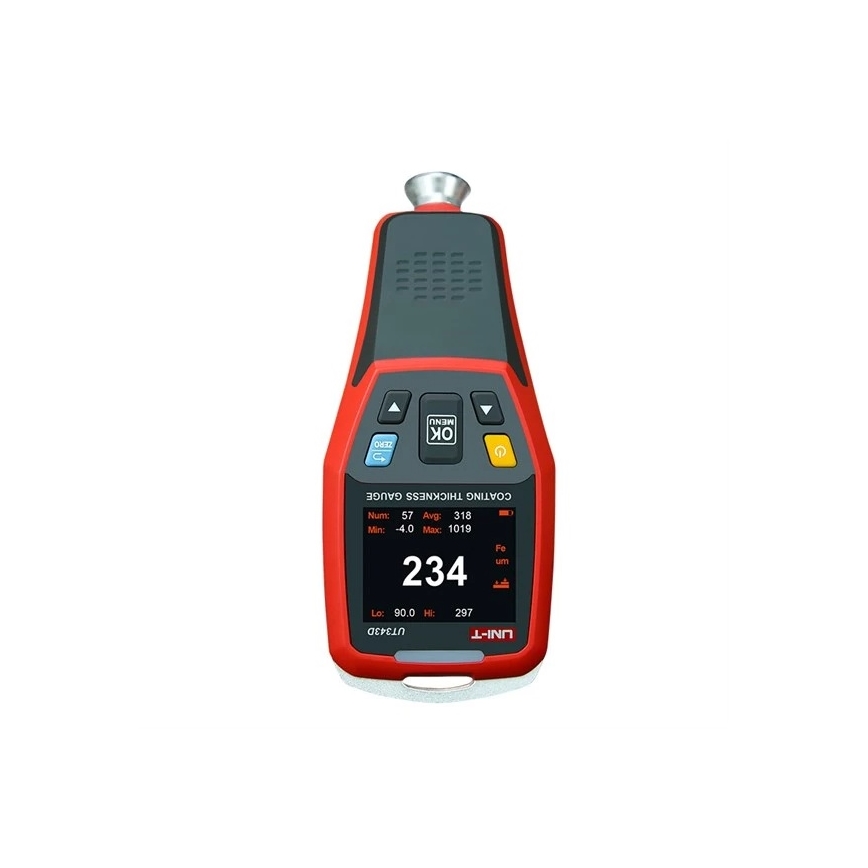

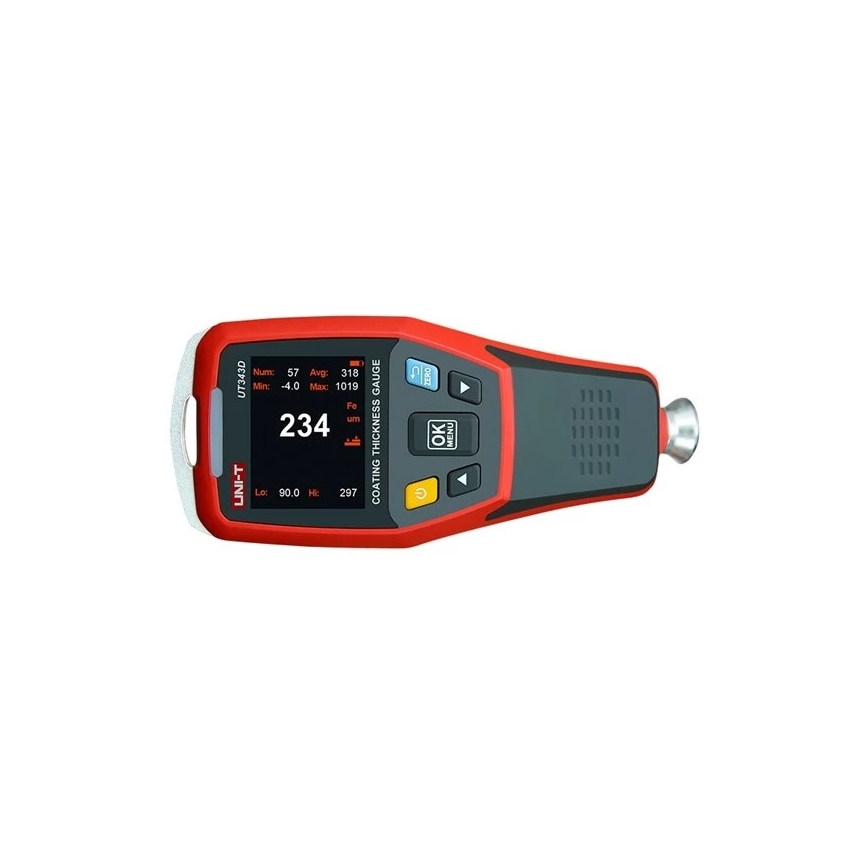

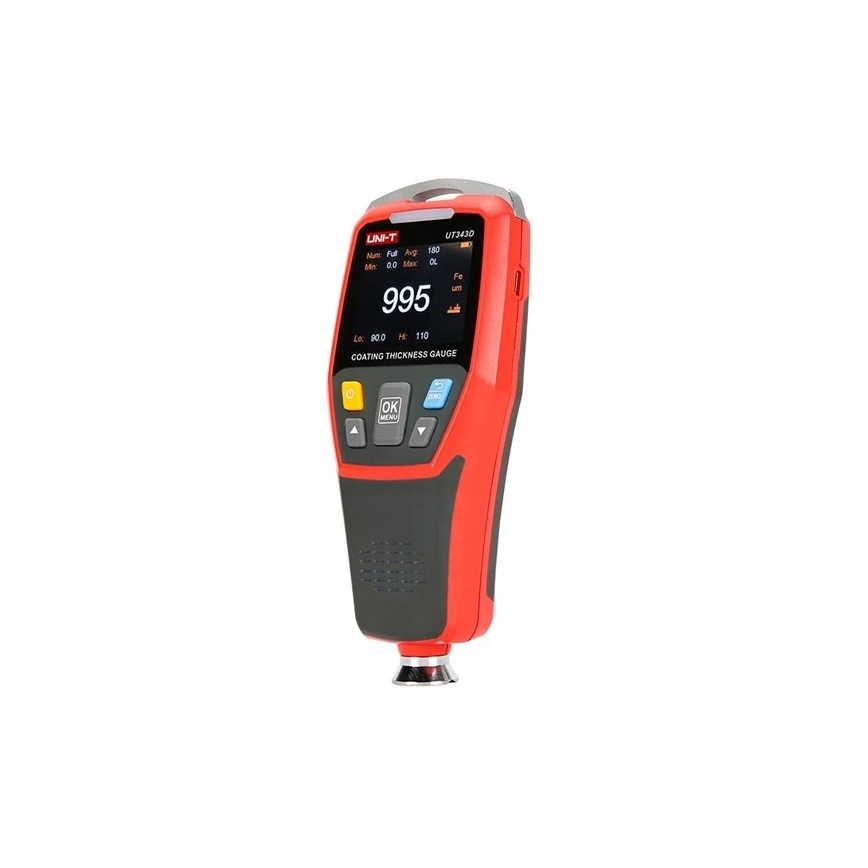

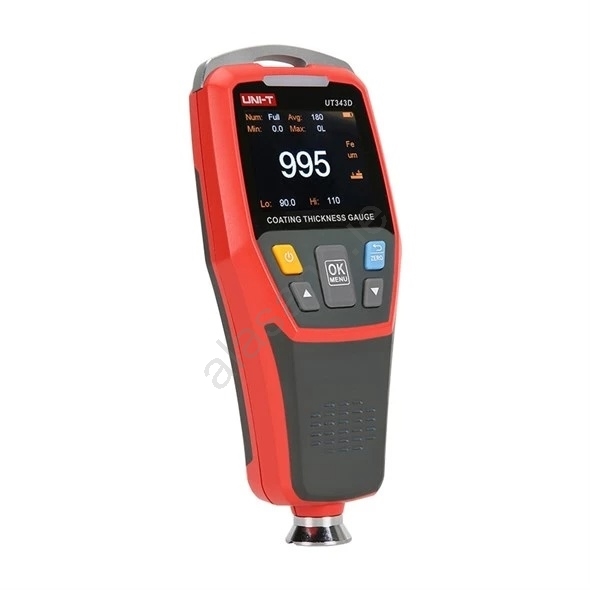

  • High-precision instrument designed for nondestructive coating thickness measurement on ferrous and non-ferrous metals.
  • The device automatically detects the substrate type and selects the appropriate measurement method.
  • An integrated algorithm enables single-point measurements as well as advanced multi-point averaging.

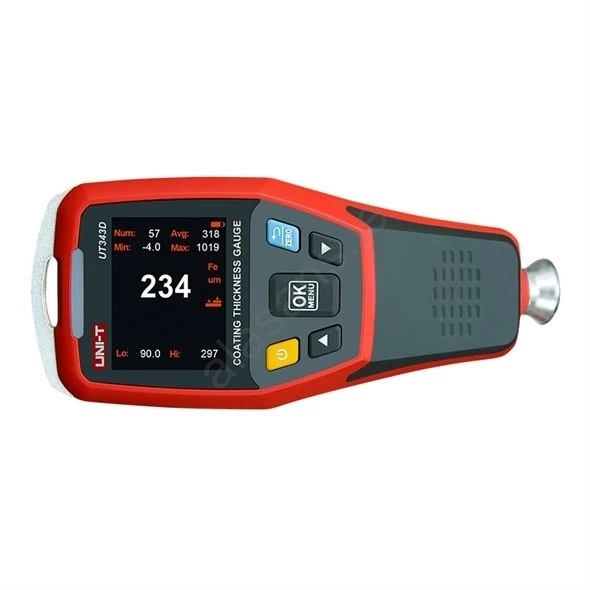

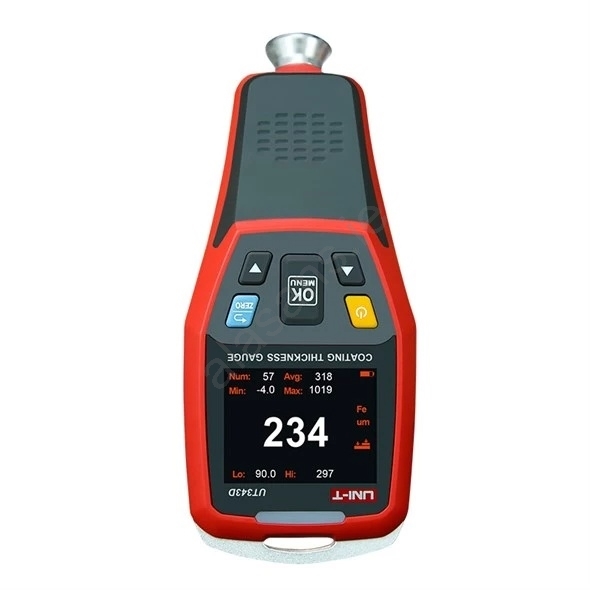

  • A 2-inch color TFT display automatically rotates with the instrument for convenient data reading.
  • A tri-color LED indicator combined with an audible alarm instantly signals readings outside preset limits.
  • The internal memory stores up to 500 groups of measurement data for later analysis.
  • Includes communication software for transferring and processing measurement results on a PC via USB.

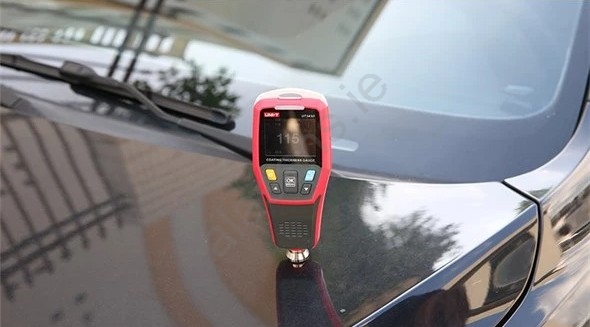

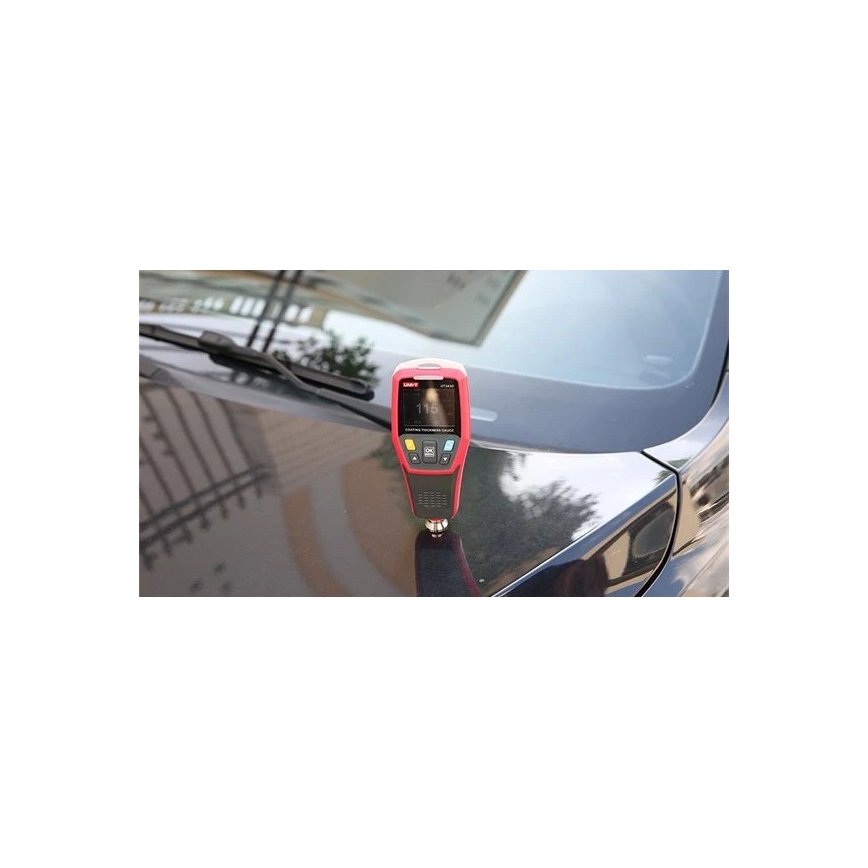

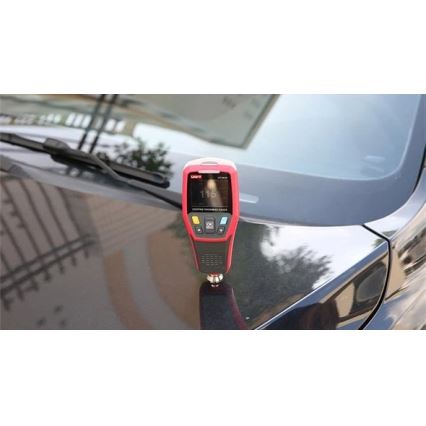

  • Fast-test mode and high resolution make this gauge an ideal tool for quality control in the automotive and aerospace industries.
  • Calibration can be performed using the supplied calibration plates via zero- or two-point calibration.
  • Technical specifications:
  • Measurement range: measures coating thickness across a wide range from 0 to 1250 μm.
  • Accuracy: measurement tolerance is specified at a top-level ± (3% of the reading + 1 μm).
  • Resolution: for thin coatings up to 100 μm the resolution is a fine 0.1 μm.
  • Measurement modes: user-selectable single or continuous measurement with calculation of minimum, maximum and average values.
  • Display: high-quality LCD with 320 x 240 pixel resolution and manual brightness adjustment.
  • Power: powered by two standard AAA batteries (included).
  • Power saving: auto-off function preserves battery life during inactivity.
