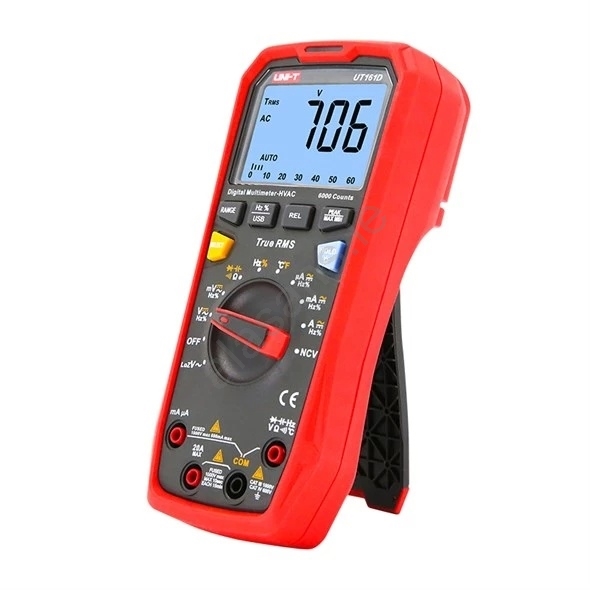

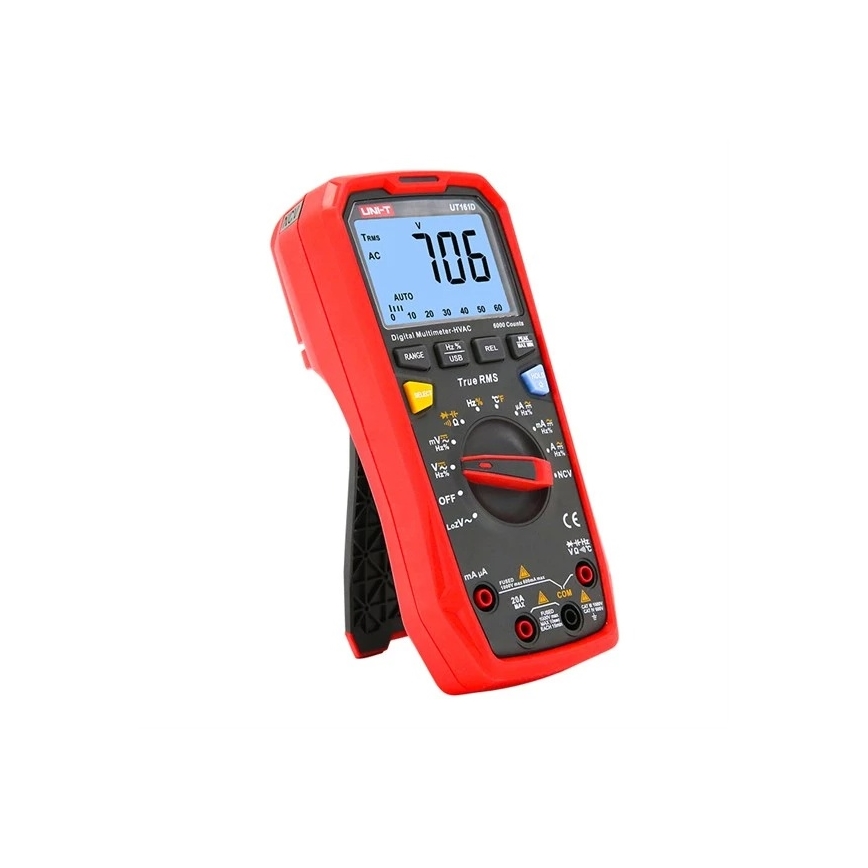

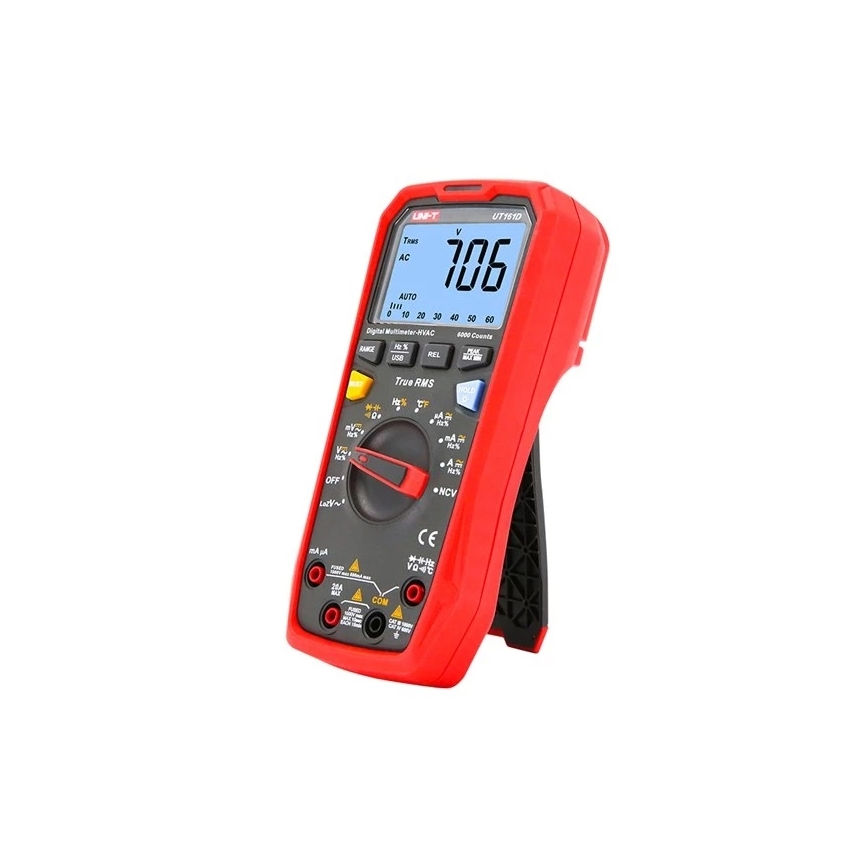

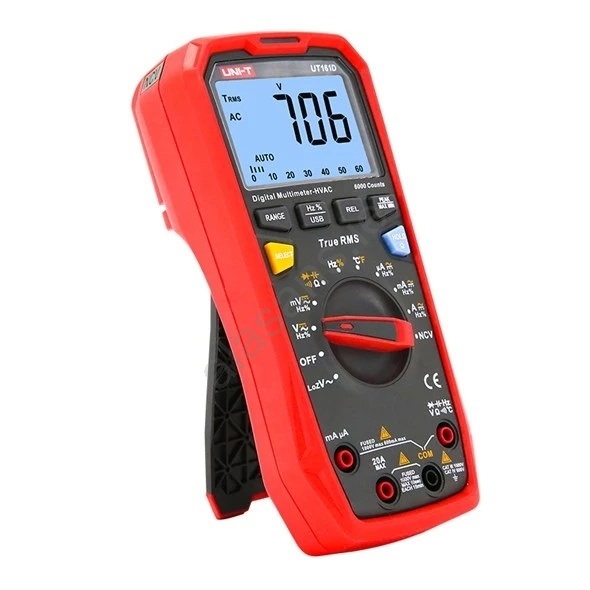

• Product description

  • True RMS (AC/DC voltage and current) measurements up to 1000 V / 20 A.
  • Ranges:
  • Voltage: 60 mV - 1000 V (AC/DC).
  • Current: 600 µA - 20 A (AC/DC).
  • Resistance: 600 Ω - 60 MΩ.
  • Capacity: up to 66 mF.
  • Frequency: up to 10 MHz.
  • Temperature: -40 °C to 1000 °C (up to 230 °C with type K thermocouple).
  • Other features:
  • Non-contact voltage detection (NCV).
  • Relative measurement (REL), MAX/MIN, continuity test, and diode LoZ mode with low impedance (approx. 2 kΩ).
  • Audible and optical overload signaling.
  • Automatic/manual range selection.
  • Overload warning (OL), low battery indication.
  • Automatic shutdown after 15 minutes.

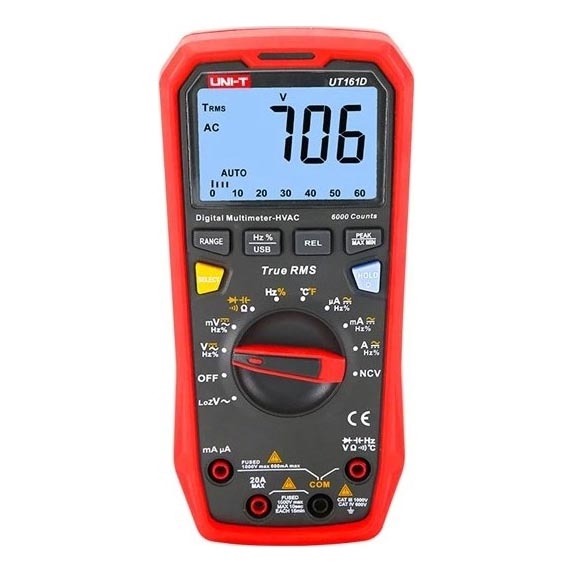

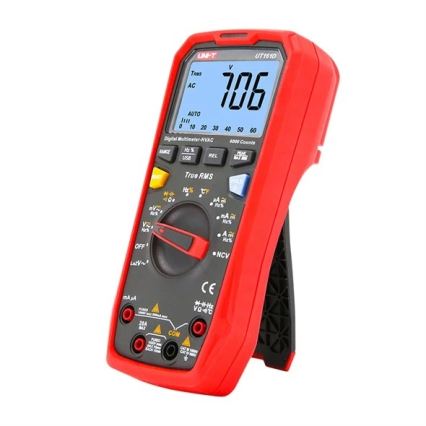

  • Display and design: backlit LCD HTN display ±6000 (analogue column - 31 segments).
  • Refresh rate: 2-3 times per second.
  • Power supply: 4x AAA batteries (included).
  • Resistance, double insulation, measurement even in an electromagnetic field of 1V/m.

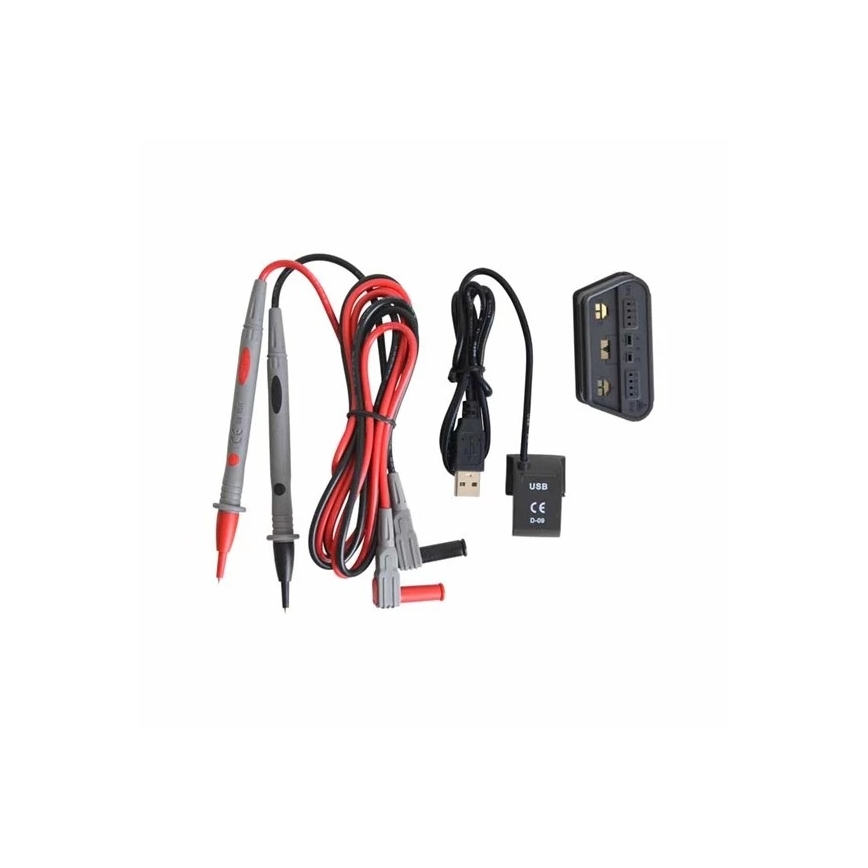

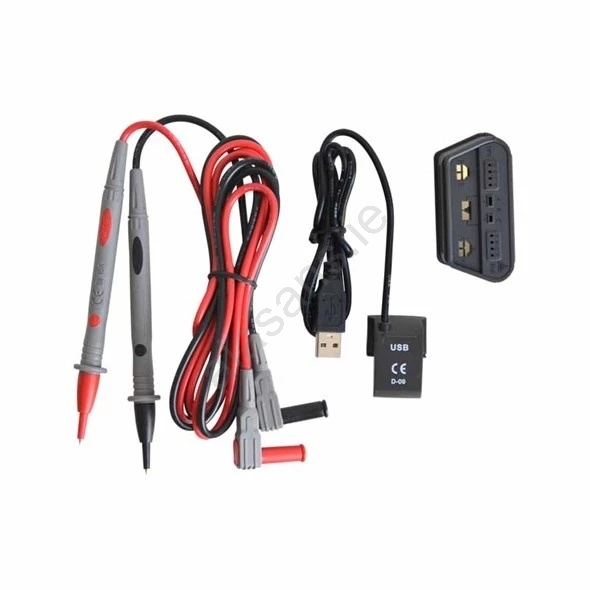

  • Connection and protection: USB cable with optoelectric converter for data transfer to PC.
  • Optional: Bluetooth adapter.
  • Protection: µA/mA input - FF fuse 600 mA / 1000 V (ø6x32 mm) A input - FF fuse 11 A / 1000 V (10x38 mm).
