• Product description

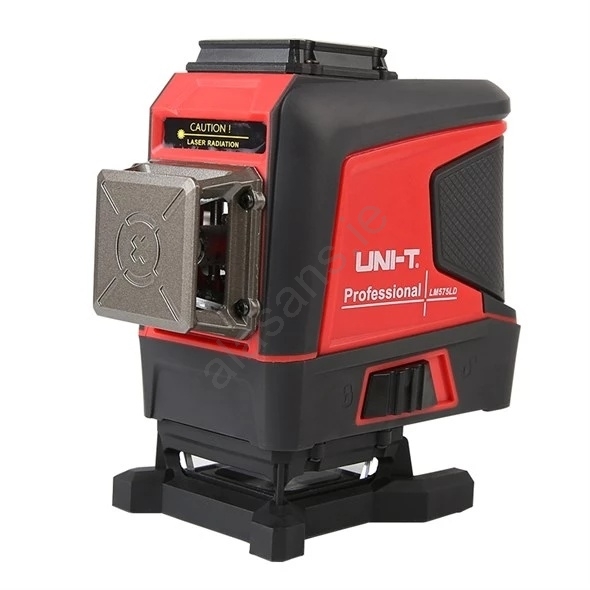

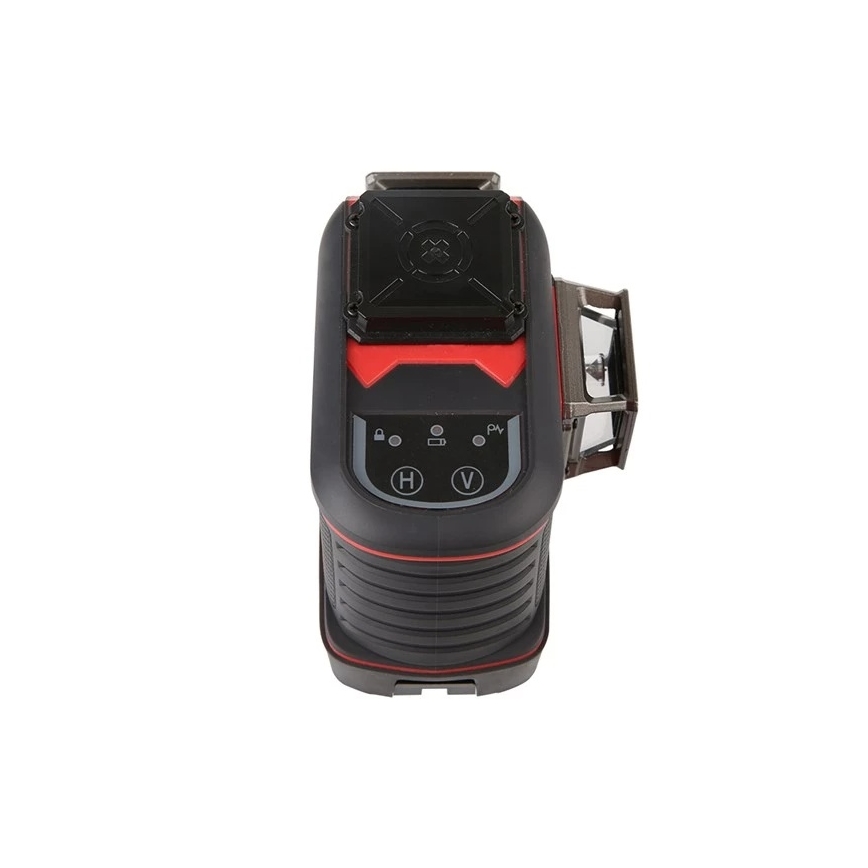

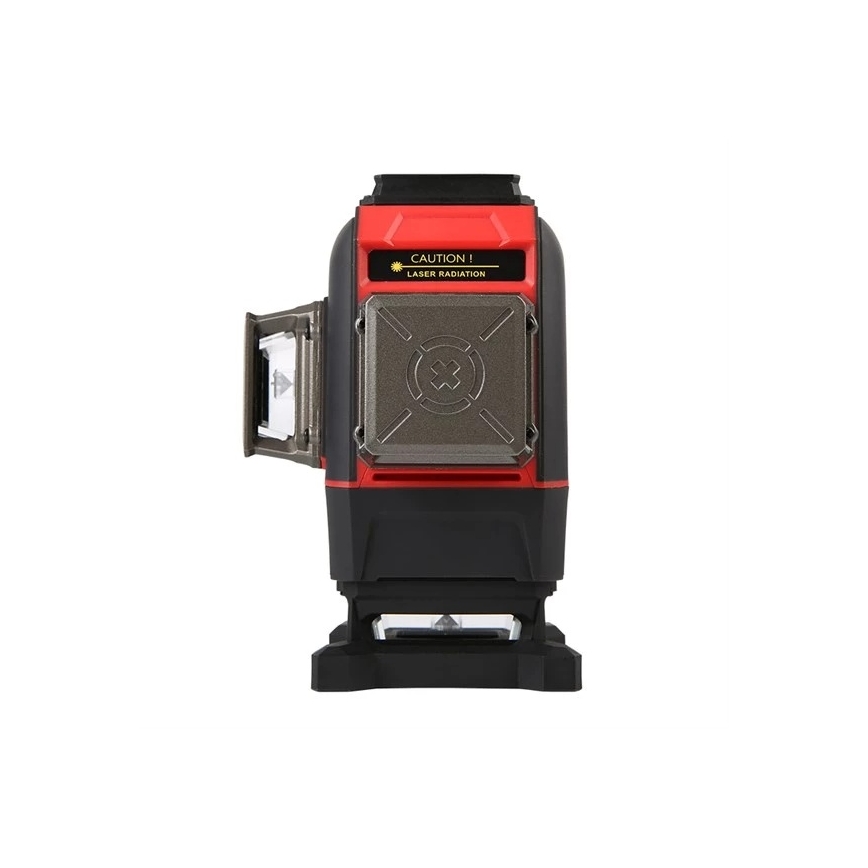

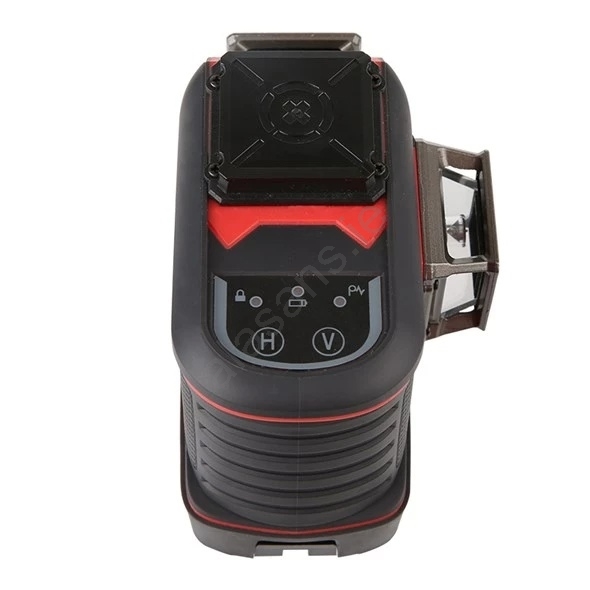

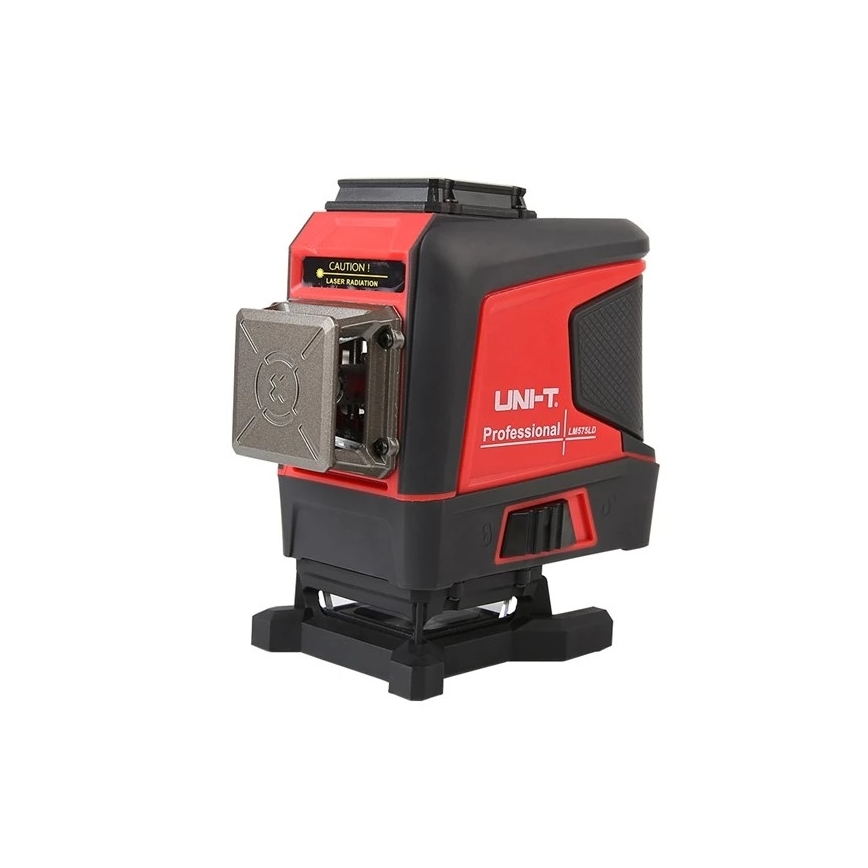

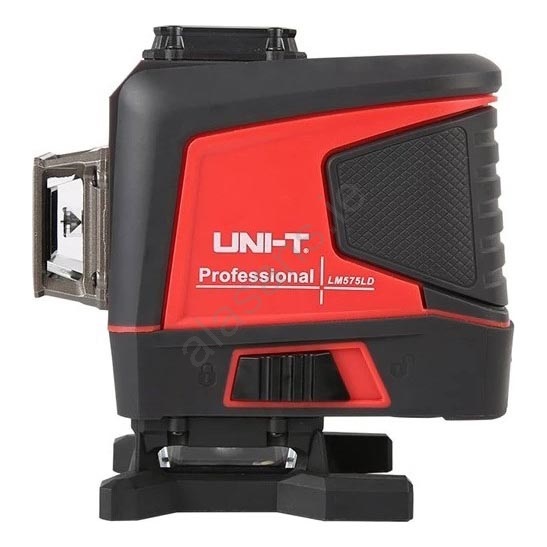

  • The professional cross-line laser is designed for precise floor leveling, wall tiling and other construction work both indoors and outdoors.
  • The device uses modern green LD (laser diode) technology, delivering highly visible beams even in large, brightly lit spaces.

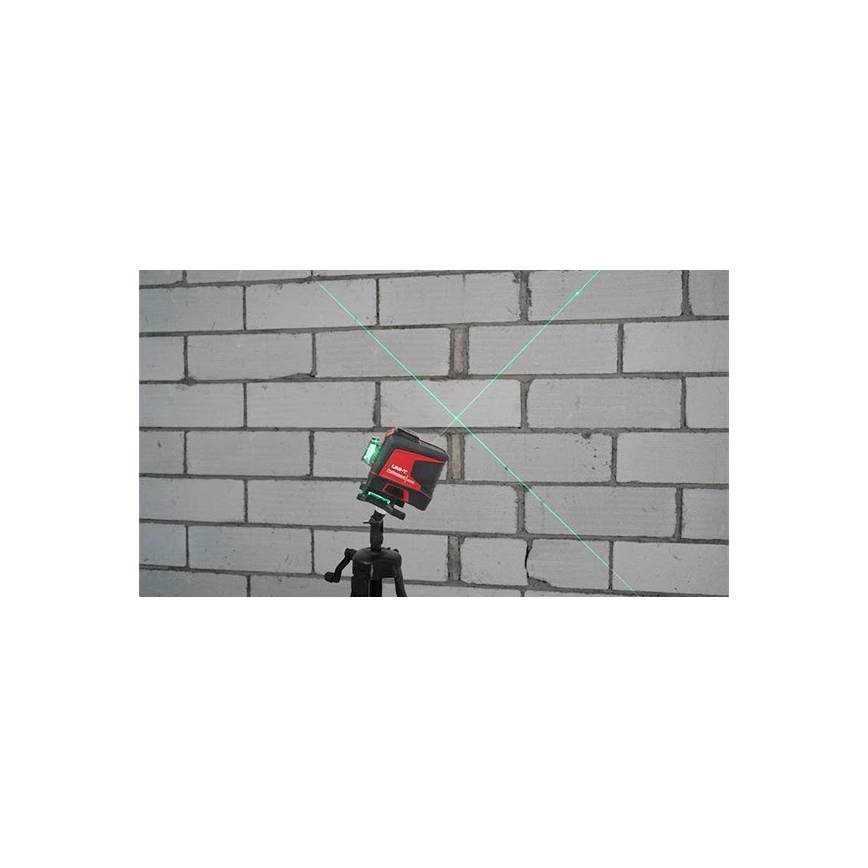

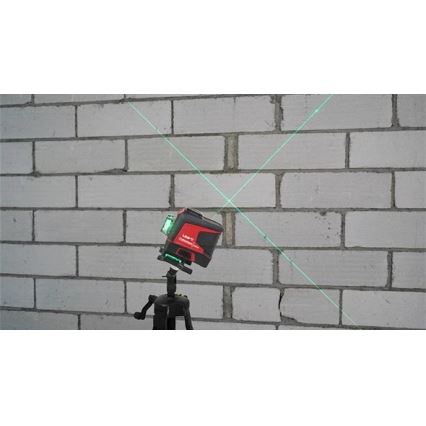

  • The laser generates a total of 12 lines in a 3D projection with a full 360° emission angle for both horizontal and vertical planes.
  • The automatic leveling system can establish an accurate plane in just three seconds.
  • The working range is 40 meters under standard operation and extends up to 50 meters in pulse mode.

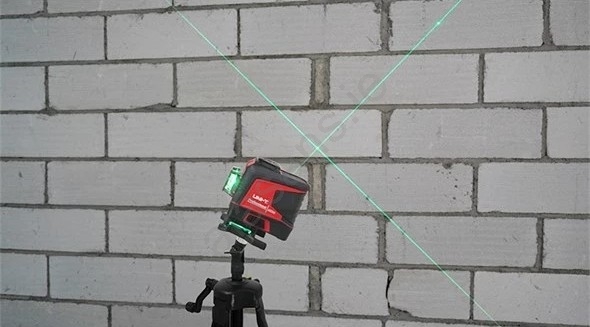

  • For work at any angle, the automatic leveling can be locked to switch the device into manual mode.
  • The package includes a remote control for convenient remote operation.
  • A powerful built-in Li-Ion battery with a 5200 mAh capacity provides continuous operation of all lasers for more than 6 hours.

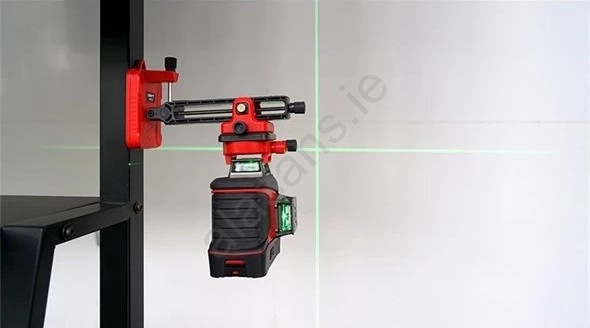

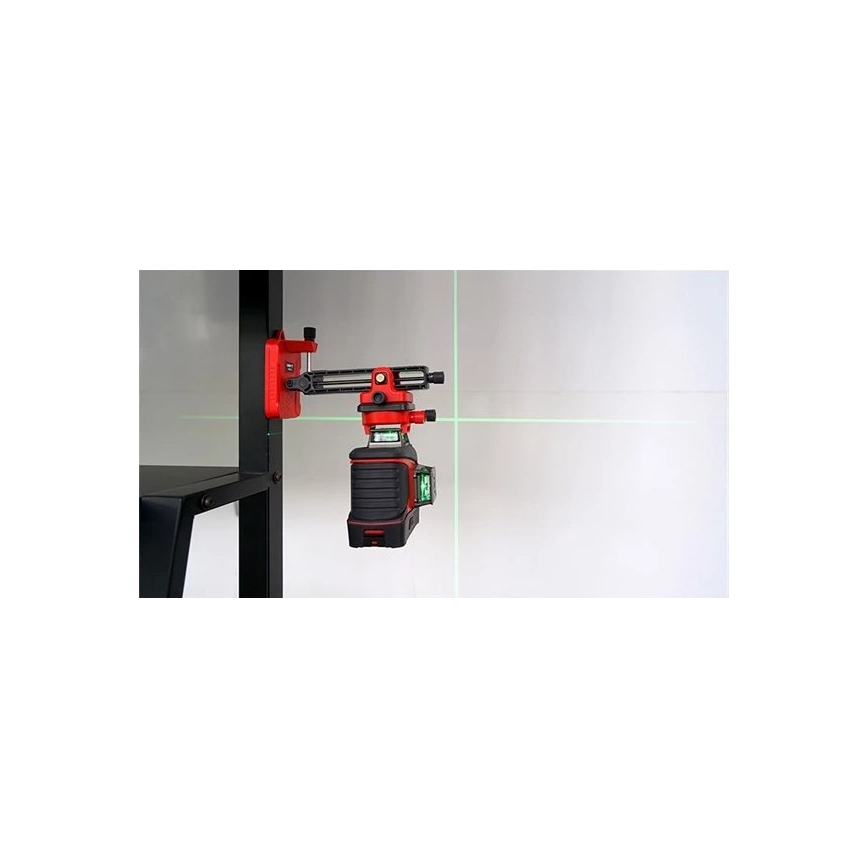

  • The design allows very close installation to walls and floors with a minimum beam-to-surface distance of just 10 mm.
  • Technical specifications:
  • Laser type and power: The device uses a Class II green laser with a high output of 30 mW.
  • Measurement accuracy: Deviation in both horizontal and vertical planes does not exceed ±3 mm at a distance of 10 meters.
  • Beam quality: The laser line width is maintained below 4 mm at a distance of 10 meters.
  • Self-leveling range: The system automatically compensates for device tilt within 3° ±1°.
  • Power and charging: The 18650-type battery is recharged via a modern USB-C cable.

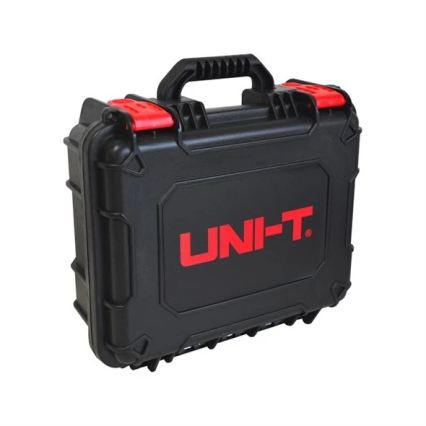

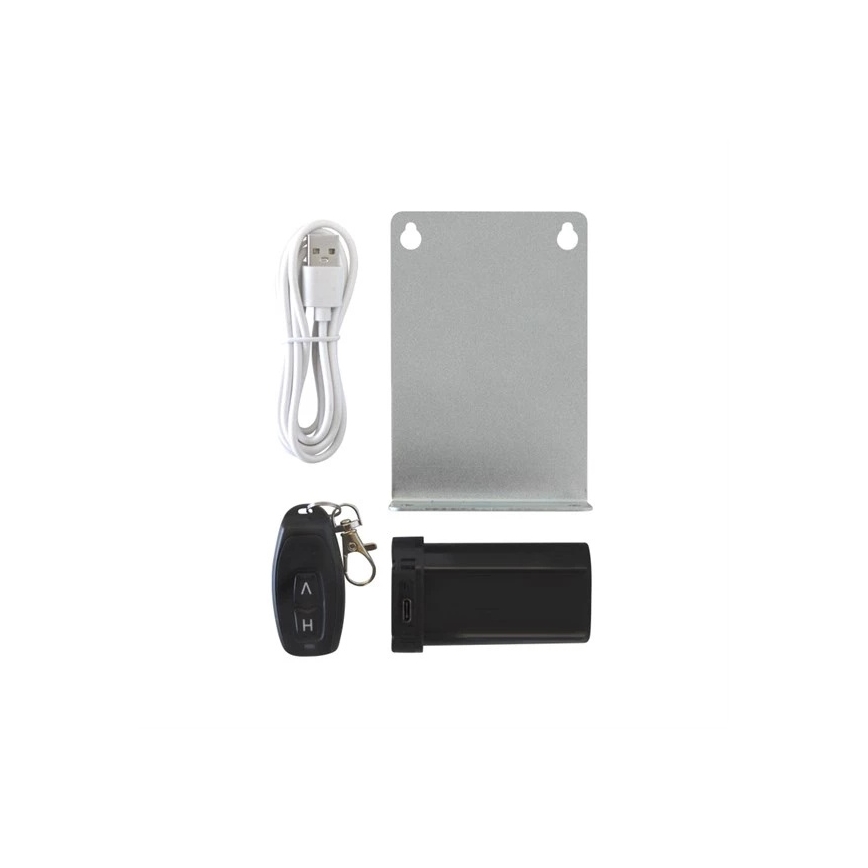

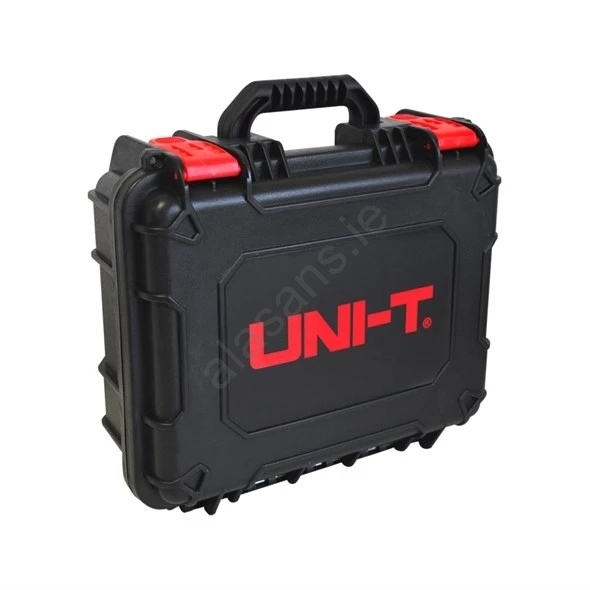

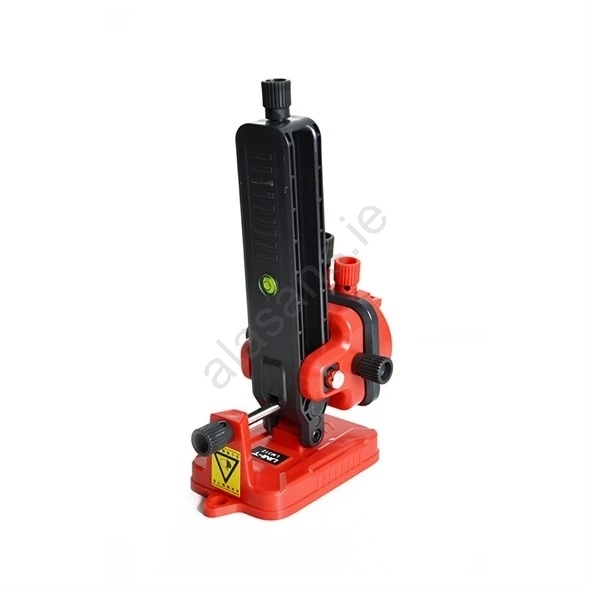

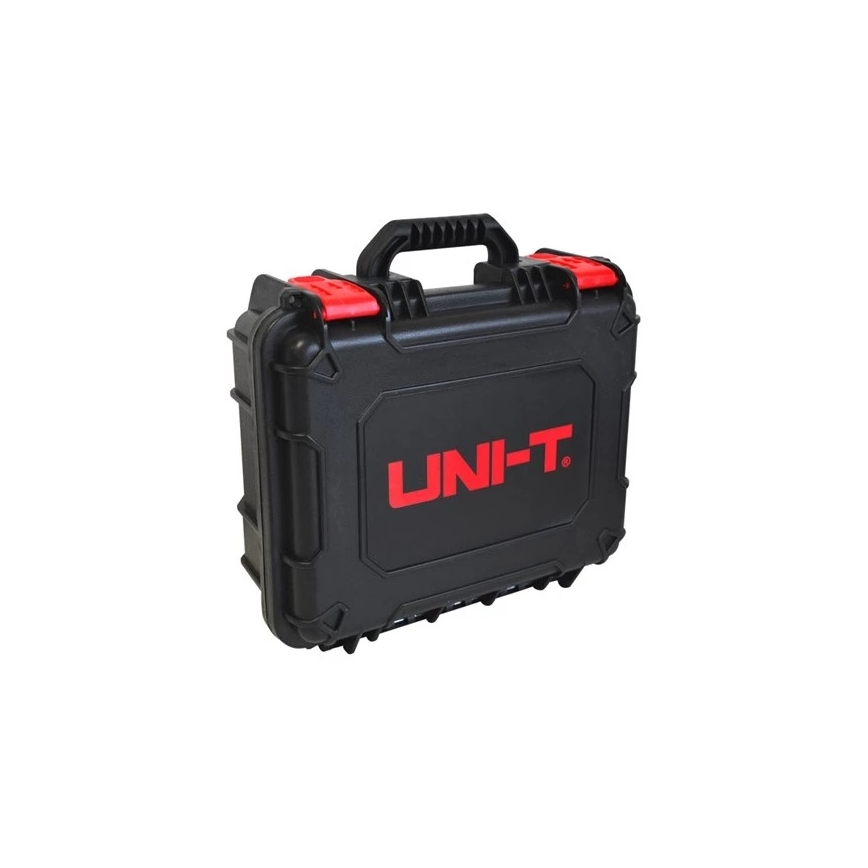

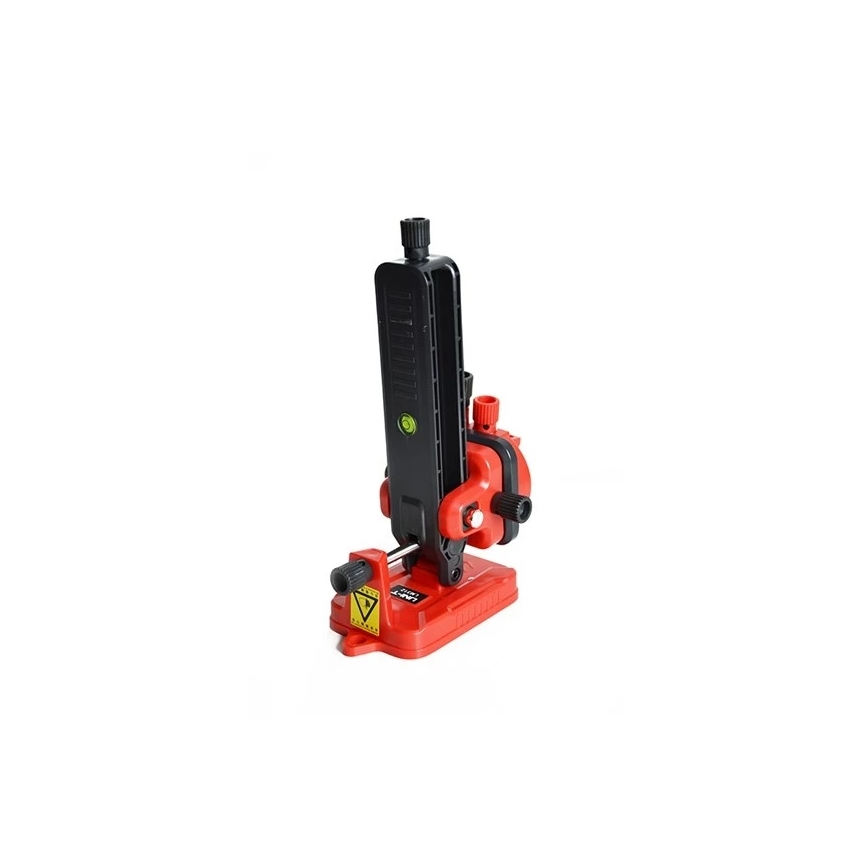

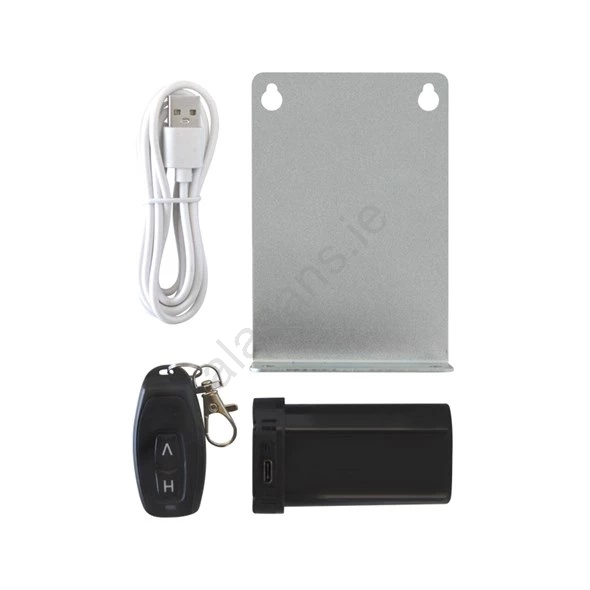

  • Package contents: cross-line laser LM575LD, remote control, LM312 mount, USB-C charging cable, battery 3.7V/5200mAh, device case.
