• Product description

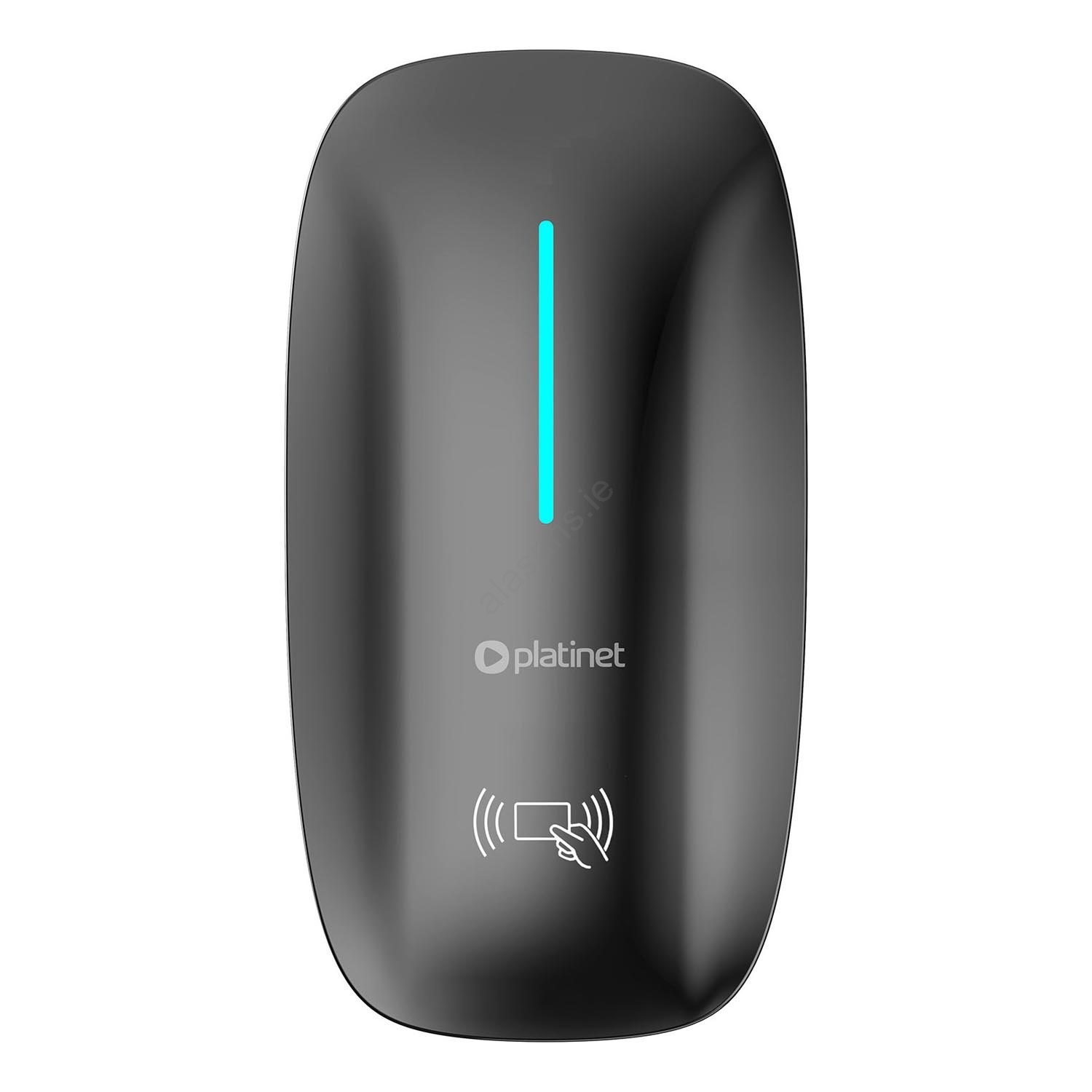

  • Plug & Play functionality combined with access control via RFID cards (4 included) ensures charging starts automatically when plugged in or when a card is presented, reliably protecting the station from unauthorized use.
  • To conveniently complete the charging process, simply unplug the charging connector from your vehicle.

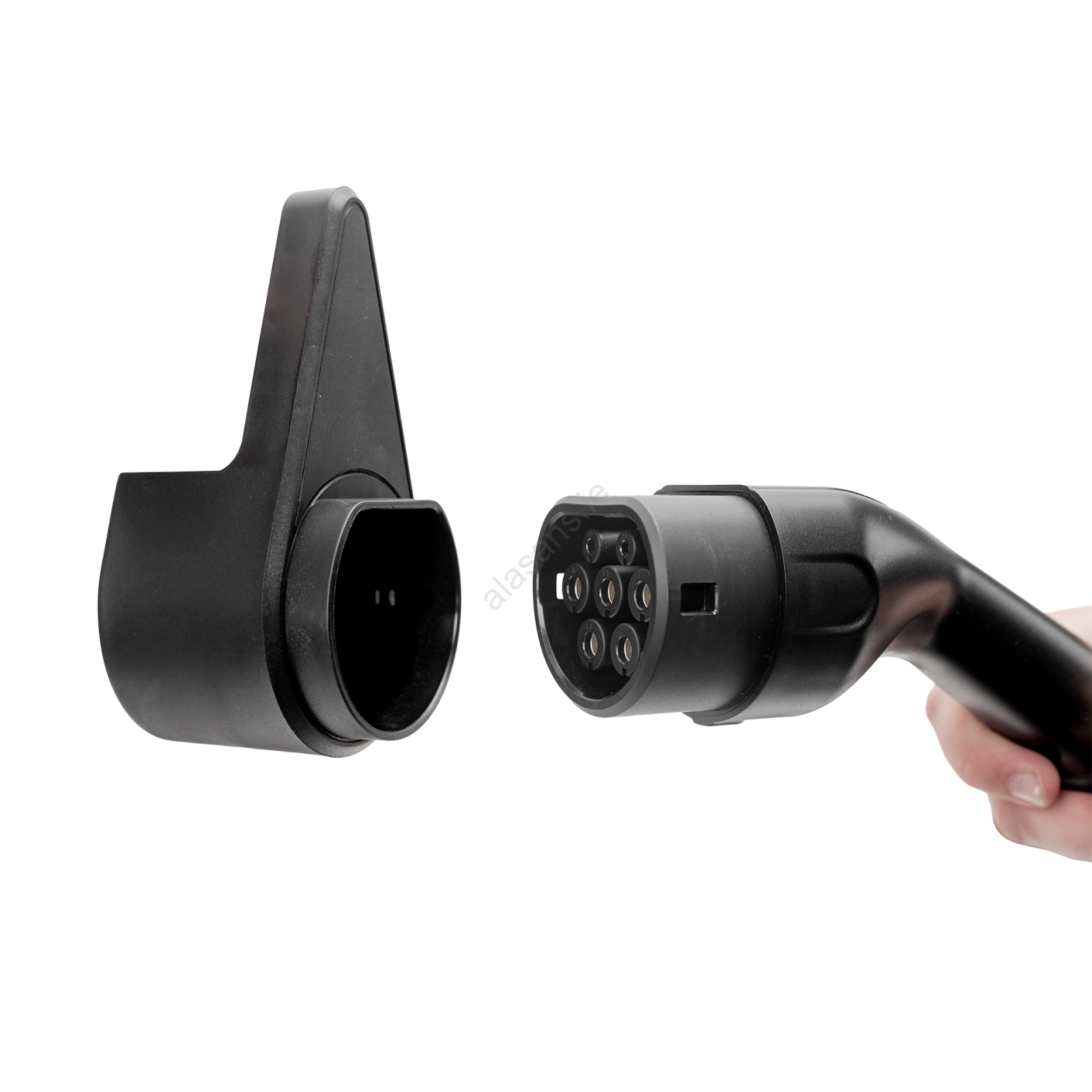

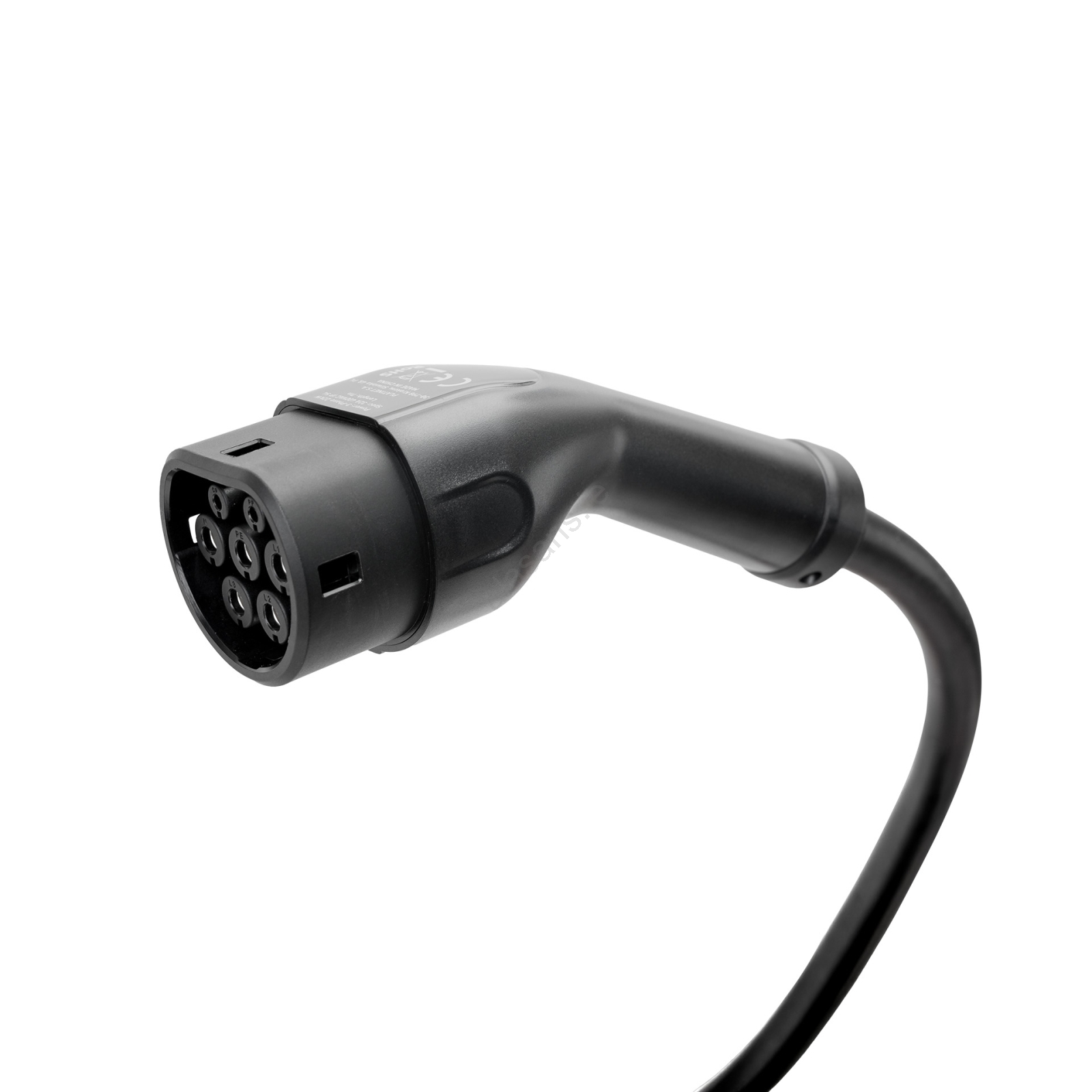

  • The European standard vehicle connector (Type 2) guarantees full compatibility and works with all EV/PHEV models that support this charging type.
  • An extended 7-meter cable provides comfortable reach to the car regardless of which side the charging inlet is located.
  • Rated input and output voltage is 400 V AC in a three-phase configuration at 50 Hz.
  • Current reaches up to 32 A and the rated power offers ultra-fast charging up to 22 kW.
  • The cable insulation resistance is an excellent 500 MΩ with a maximum contact resistance up to 0.5 mΩ.

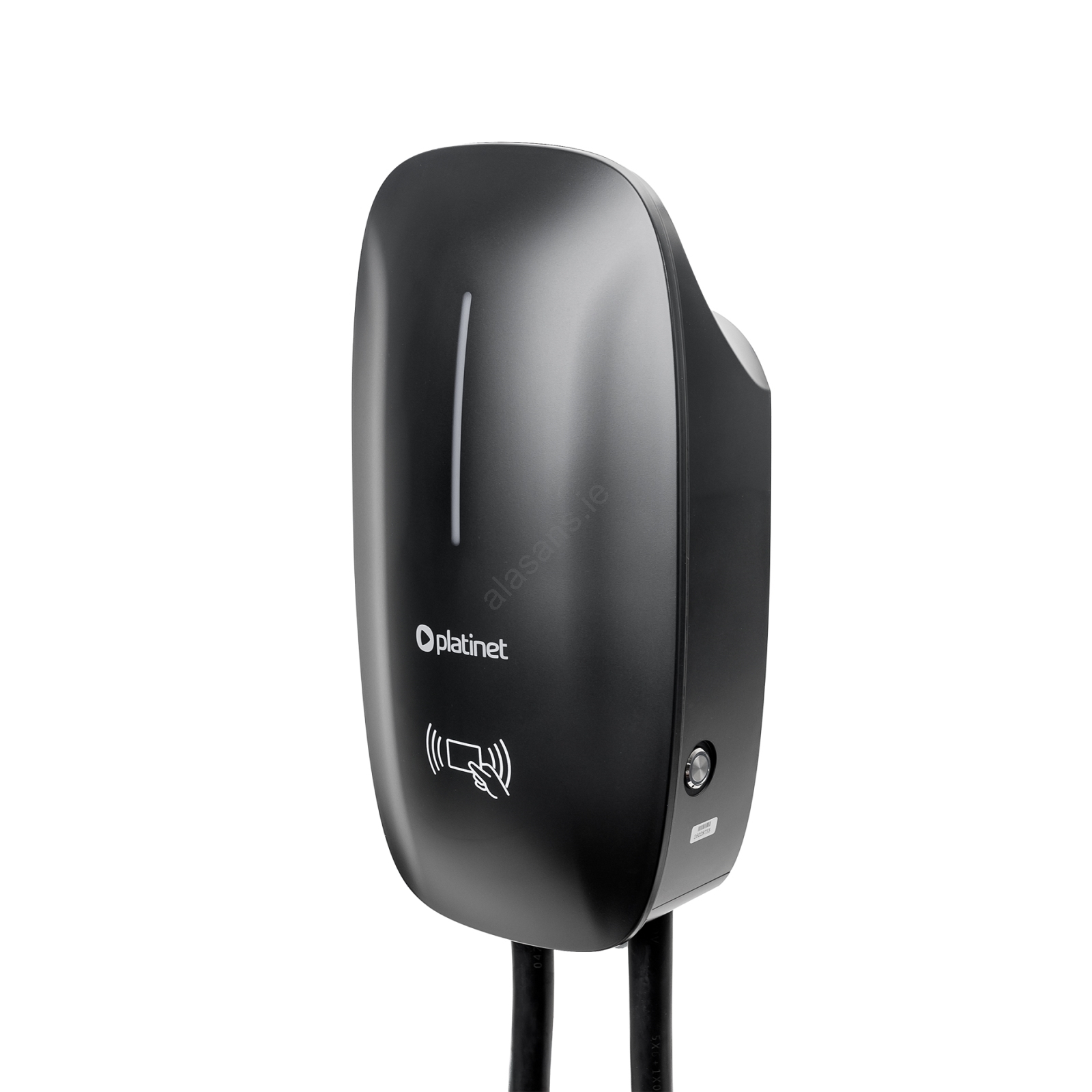

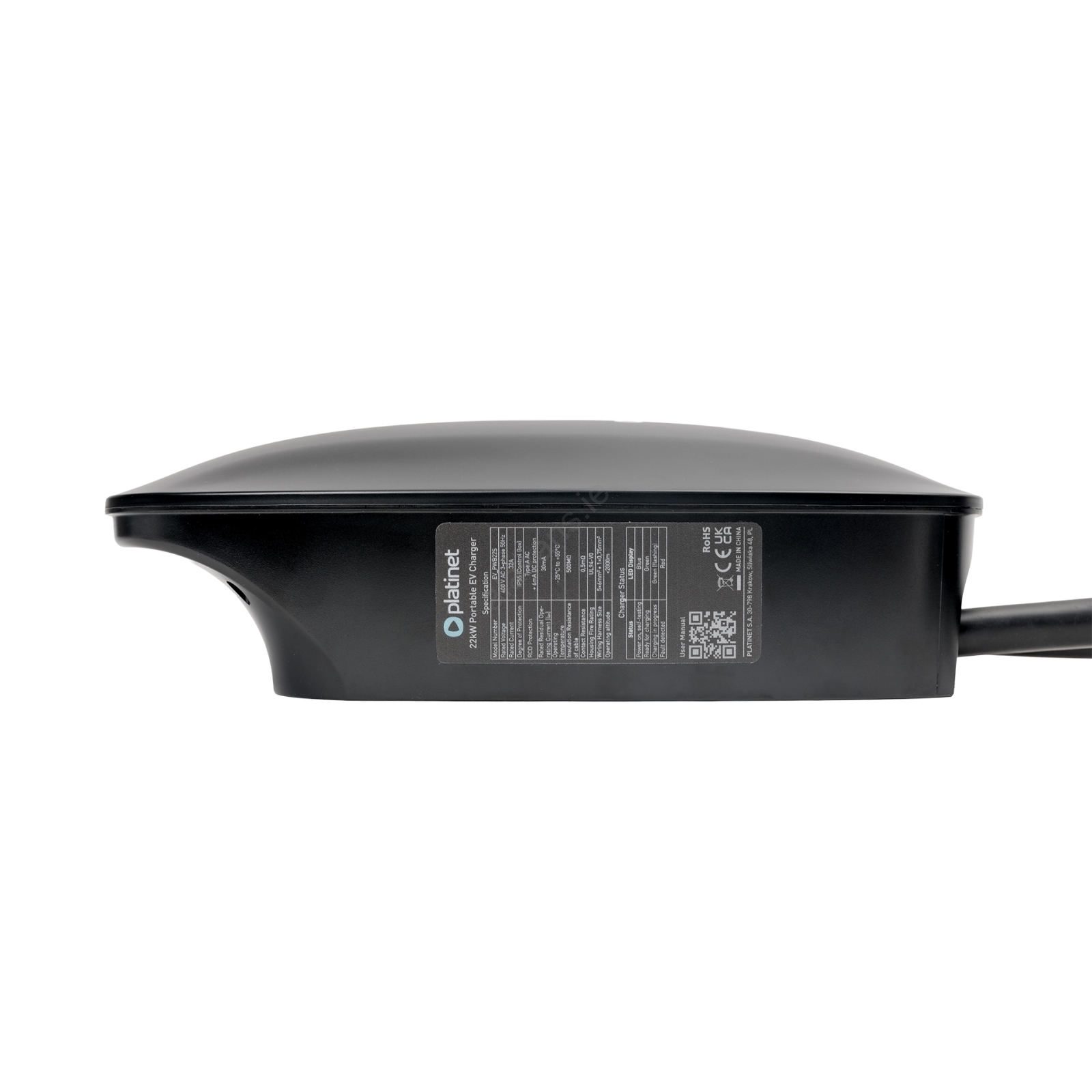

  • The robust housing features a high flammability rating of UL94V-0 and compact station dimensions of 10.5 × 36 × 18 cm with a weight suited for wall mounting.
  • A built-in LED display and wireless Wi-Fi and Bluetooth connectivity allow detailed monitoring of temperature, charging duration, real current and remote management of the station via the Tuya app.
  • A comprehensive safety system with leakage protection (Type A AC + DC 6 mA), overvoltage, undervoltage, overload, lightning and overtemperature protection is complemented by a high IP55 ingress protection rating for all‑weather operation from -25°C to +50°C.
