• Product description

  • Quality unshielded keystone category 5E/Class D.
  • Designed for Ethernet protocols.
  • Very simple installation.
  • Meets the requirements of international standards ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-D.

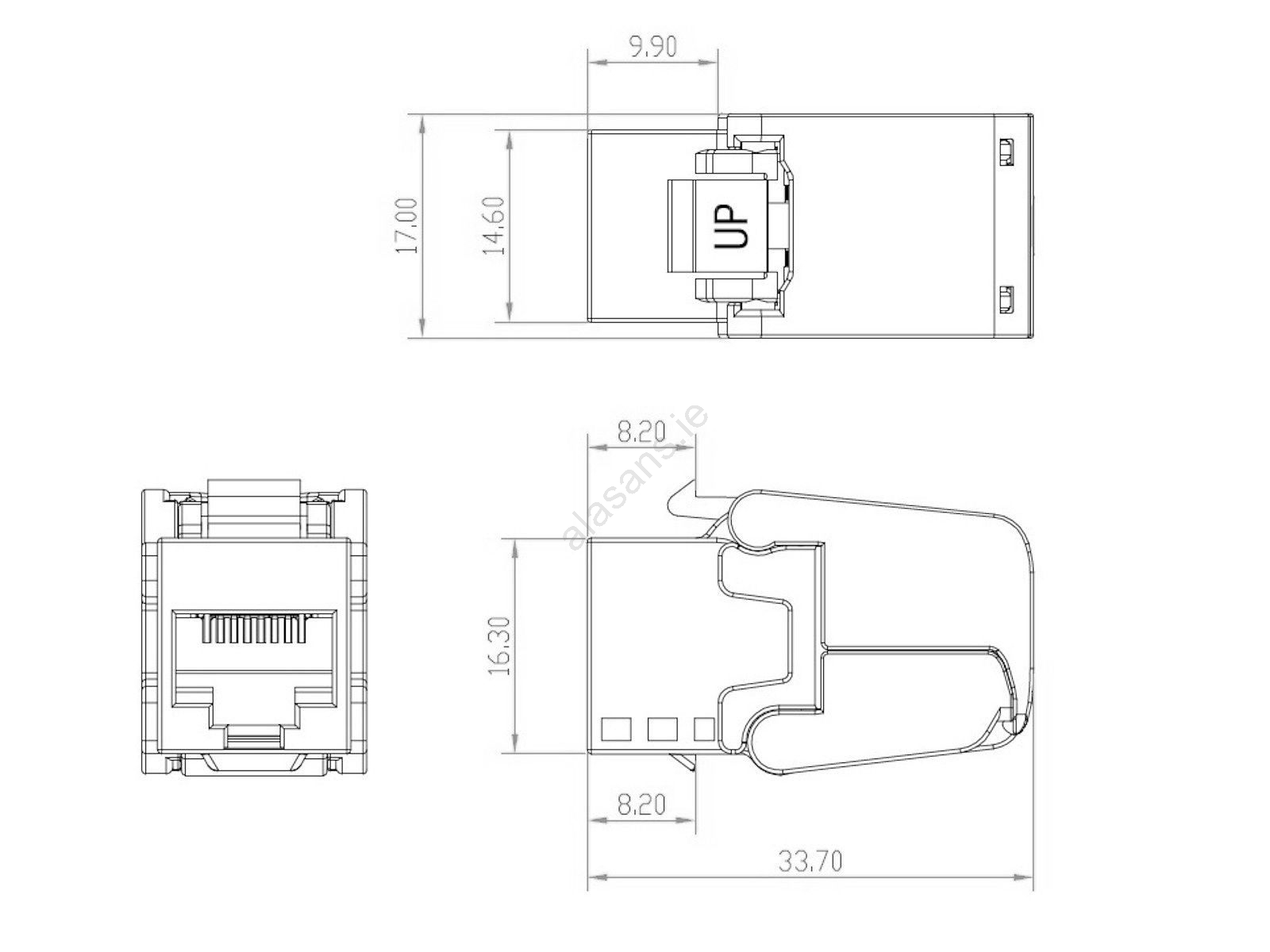

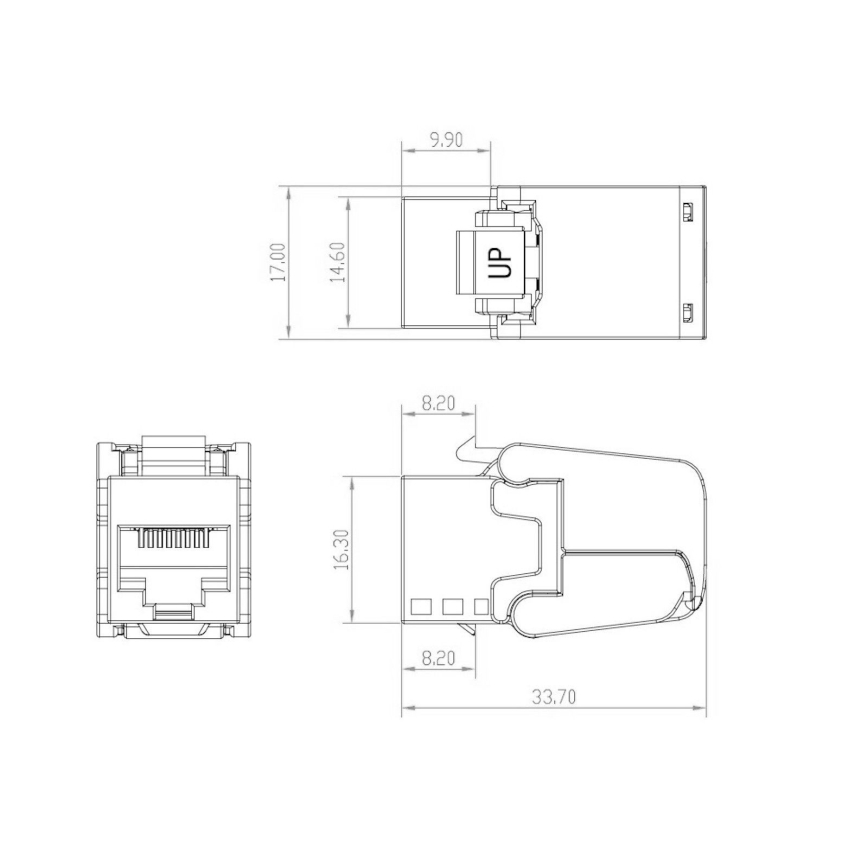

  • Keystone dimensions meet the requirements of EN 60603-7.
  • The keystones are fitted with a 180° self-cutting terminal block, which is color-coded according to the wiring type, either T568A or T568B.
  • Due to their compact size, these self-tapping keystones are compatible with most manufacturers' modular sockets.
  • Keystone design: UTP.
  • Number of ports: 1x RJ45 8p8c.
  • Min. port lifetime: 1000 connections/disconnections.
  • Contact coverage: 50 µ gold and 100 µ nickel.
  • Terminal block: self-tapping.
  • Min. terminal life: 200 notches.
  • Size and type of wire: AWG 26 - 22, wire.
  • Storage temperature: -40 to 70 °C.
  • Operating temperature: -10 to 60 °C.
  • Max. operating humidity: 93 %.
  • Package contents: 1x keystone, 1x plastic cap with wiring map.

  Special coupon offer applies to this product.

  Brand

  Solarix
