• Product description

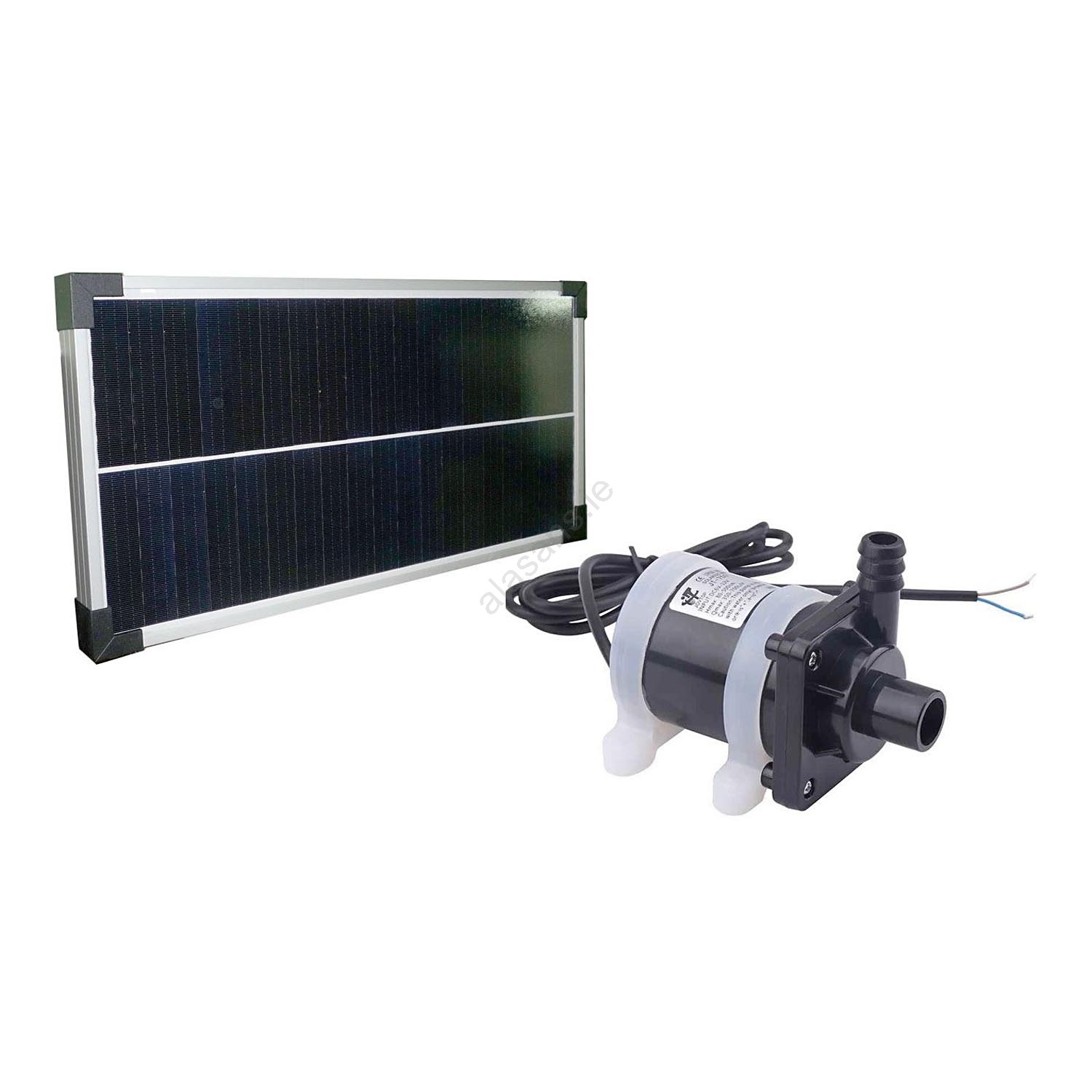

  • The pump is capable of operating across a wide voltage range of 8-24VDC and is supplied with a 12V solar panel that produces up to 21V open-circuit.
  • Primarily intended as a solar water pump for garden ponds and similar applications.

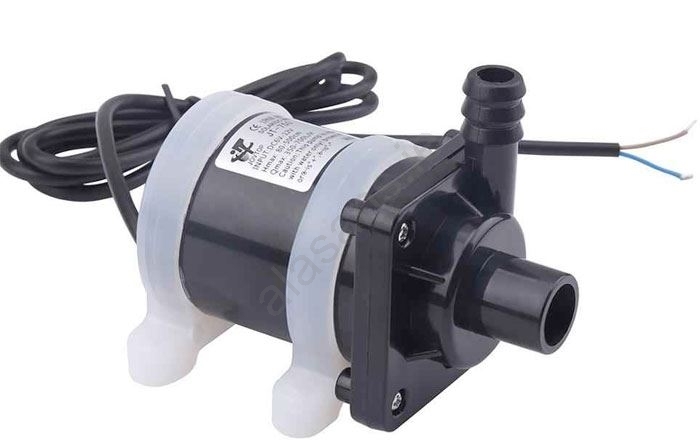

  • Pump specifications:
  • Operating voltage: 8-24VDC.
  • No-load current at 12VDC: 65 mA.
  • Current draw under load (12VDC): 350 mA.
  • Max. water flow: 700 l/h (12V), 900 l/h (24V).
  • Maximum head: 5 m - flow decreases at higher head.
  • Maximum liquid temperature: 60°C.
  • Motor type: brushless, continuous duty.
  • Cable length: 1 m.
  • Suction inlet diameter: 16 mm.
  • Discharge outlet diameter: 12 mm.
  • Removable silicone mounting pads for secure attachment to a surface.
  • Dimensions: diameter 41.5 mm; length 81 mm.

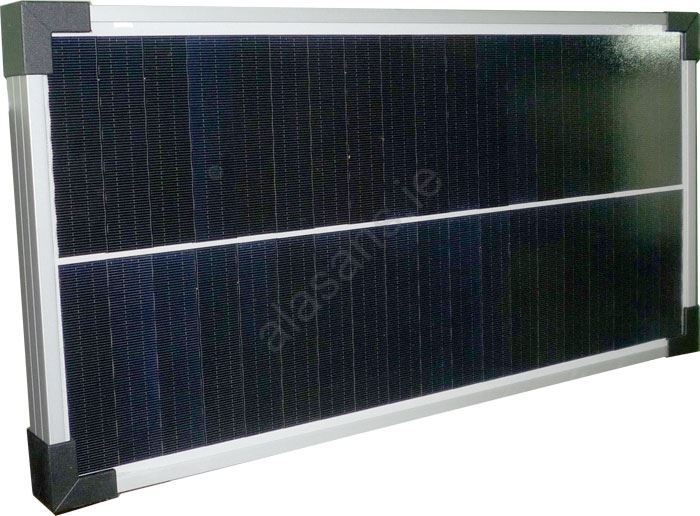

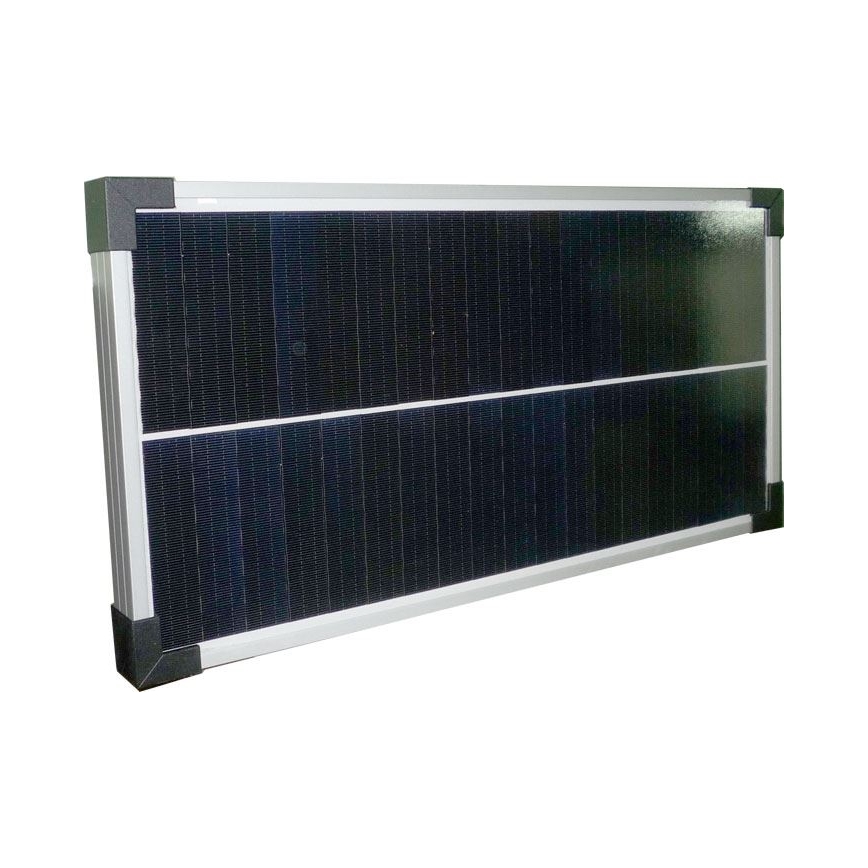

  • Panel specifications:
  • Maximum open-circuit voltage: Voc=21.75V.
  • Maximum short-circuit current: Isc=1.17A.
  • Voltage at 20W: Vmp=18.15V.
  • Current at 20W: Imp=1.11A.
  • Maximum system voltage: 1000V.
  • Connectors: no connectors.
  • Dimensions: 480 x 240 x 25 mm.

  • Upozornění: The pump can operate submerged, or must be installed below the level of the pumped liquid, i.e. it is not self-priming.
