• Product description

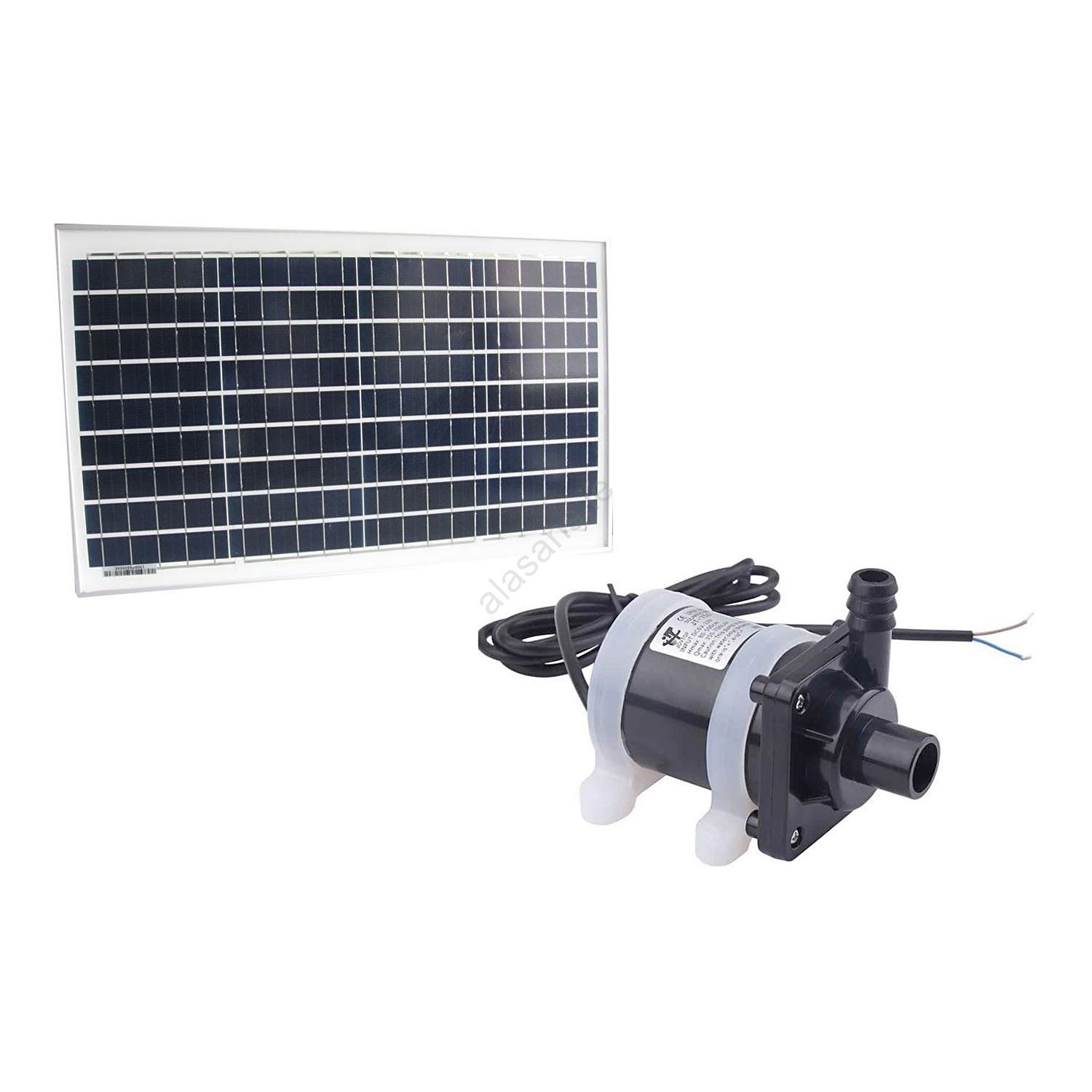

  • The pump can operate across a wide voltage range of 8–24 VDC and is supplied with a 12 V solar panel that can generate up to 21 V open-circuit.
  • Primarily designed as a solar water pump for garden ponds and similar applications.

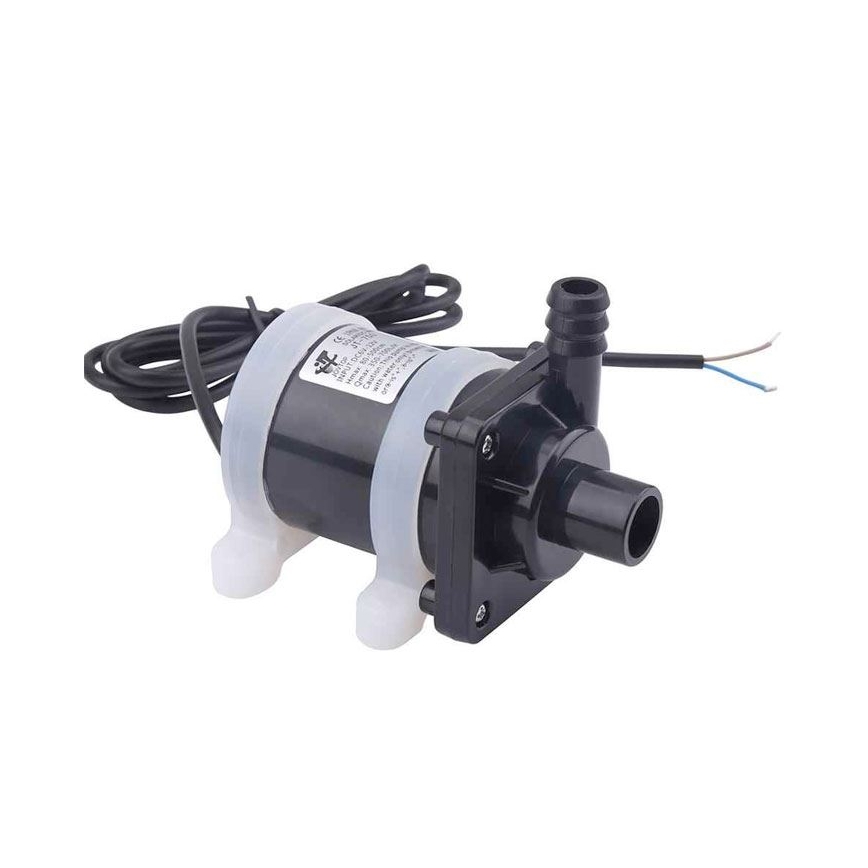

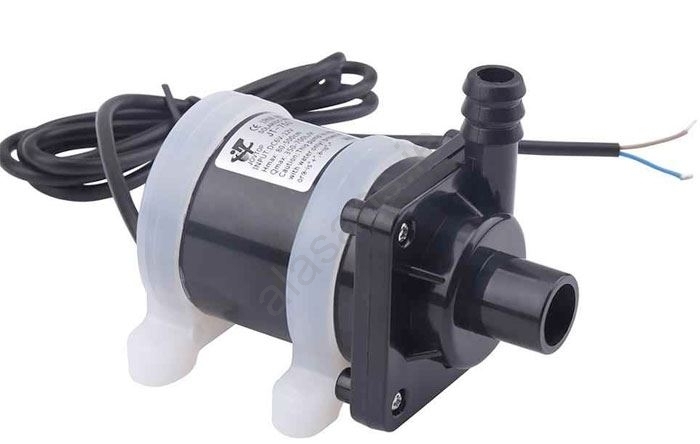

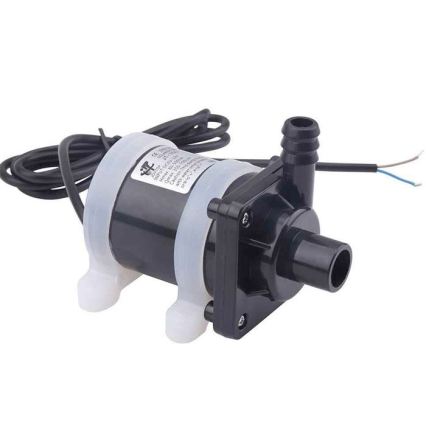

  • Pump specifications:
  • Operating voltage: 8–24 VDC.
  • No-load current at 12 VDC: 65 mA.
  • Current draw while pumping (12 VDC): 350 mA.
  • Max. water flow: 700 l/h (12 V), 900 l/h (24 V).
  • Maximum head: 5 m — flow decreases as head increases.
  • Maximum fluid temperature: 60 °C.
  • Motor type: brushless, designed for continuous operation.
  • Lead length: 1 m.
  • Suction inlet diameter: 16 mm.
  • Discharge outlet diameter: 12 mm.
  • Removable silicone pads for secure mounting to a surface.
  • Dimensions: diameter 41.5 mm; length 81 mm.

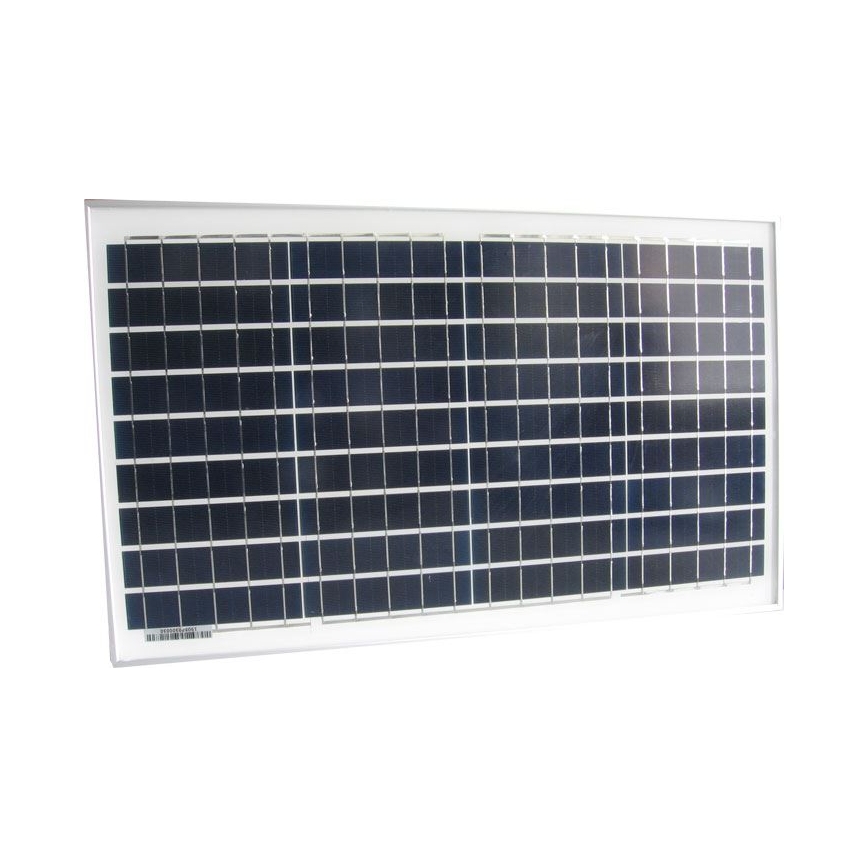

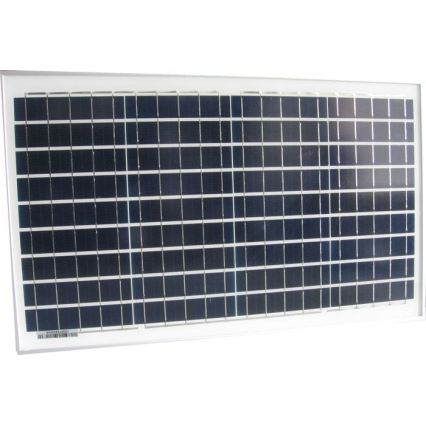

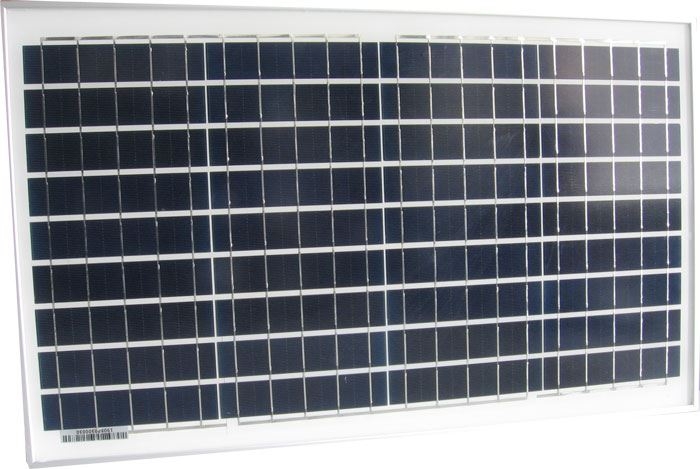

  • Panel specifications:
  • Maximum open-circuit voltage: Voc = 22.44 V.
  • Maximum short-circuit current: Isc = 1.75 A.
  • Voltage at maximum power (30 W): Vmp = 18.29 V.
  • Current at 30 W: Imp = 1.64 A.
  • Maximum system voltage: 500 V.
  • Dimensions: 670 x 410 x 25 mm.

  • Upozornění: The pump can operate submerged, or it must be positioned below the liquid level being pumped, i.e. it is not self-priming.
