• Product description

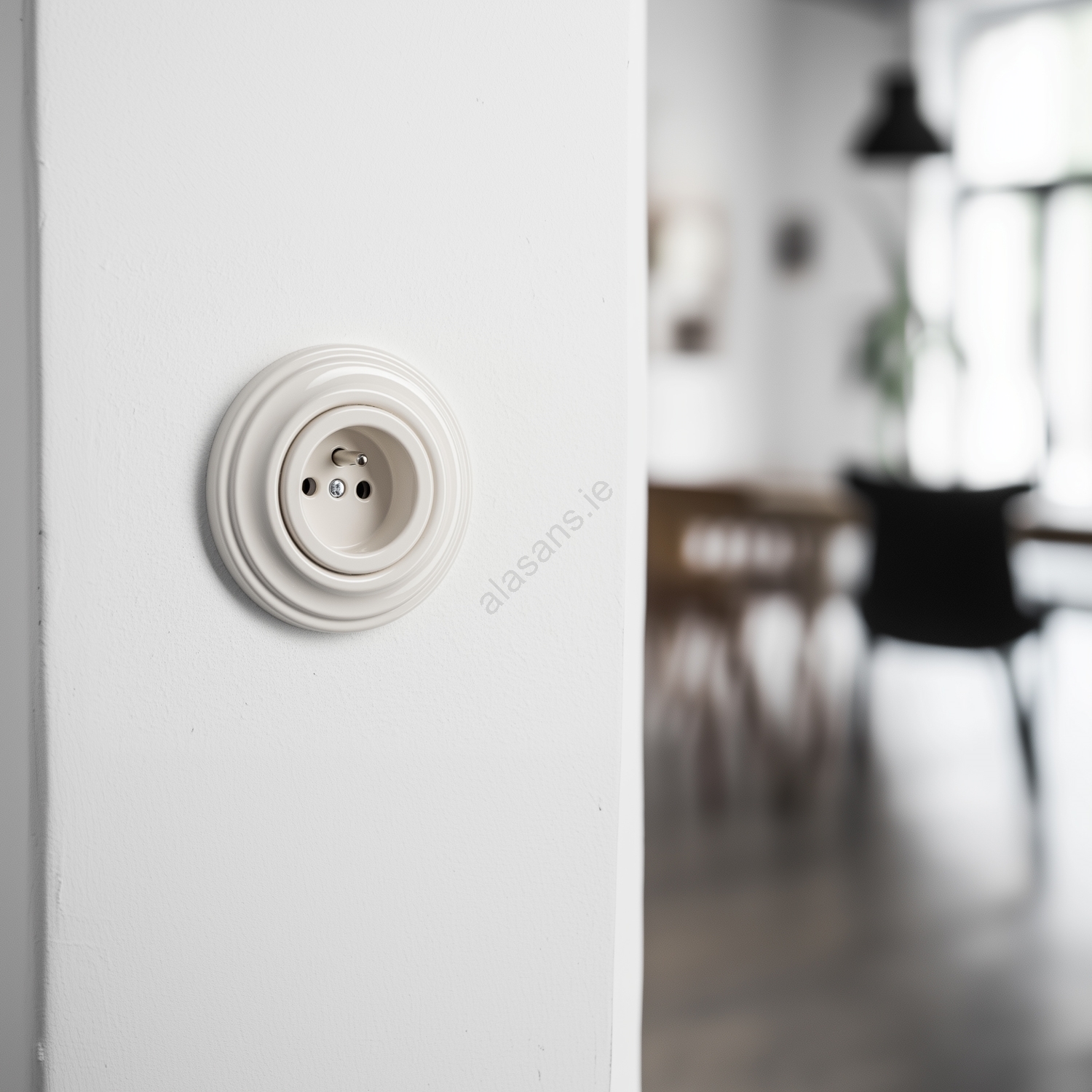

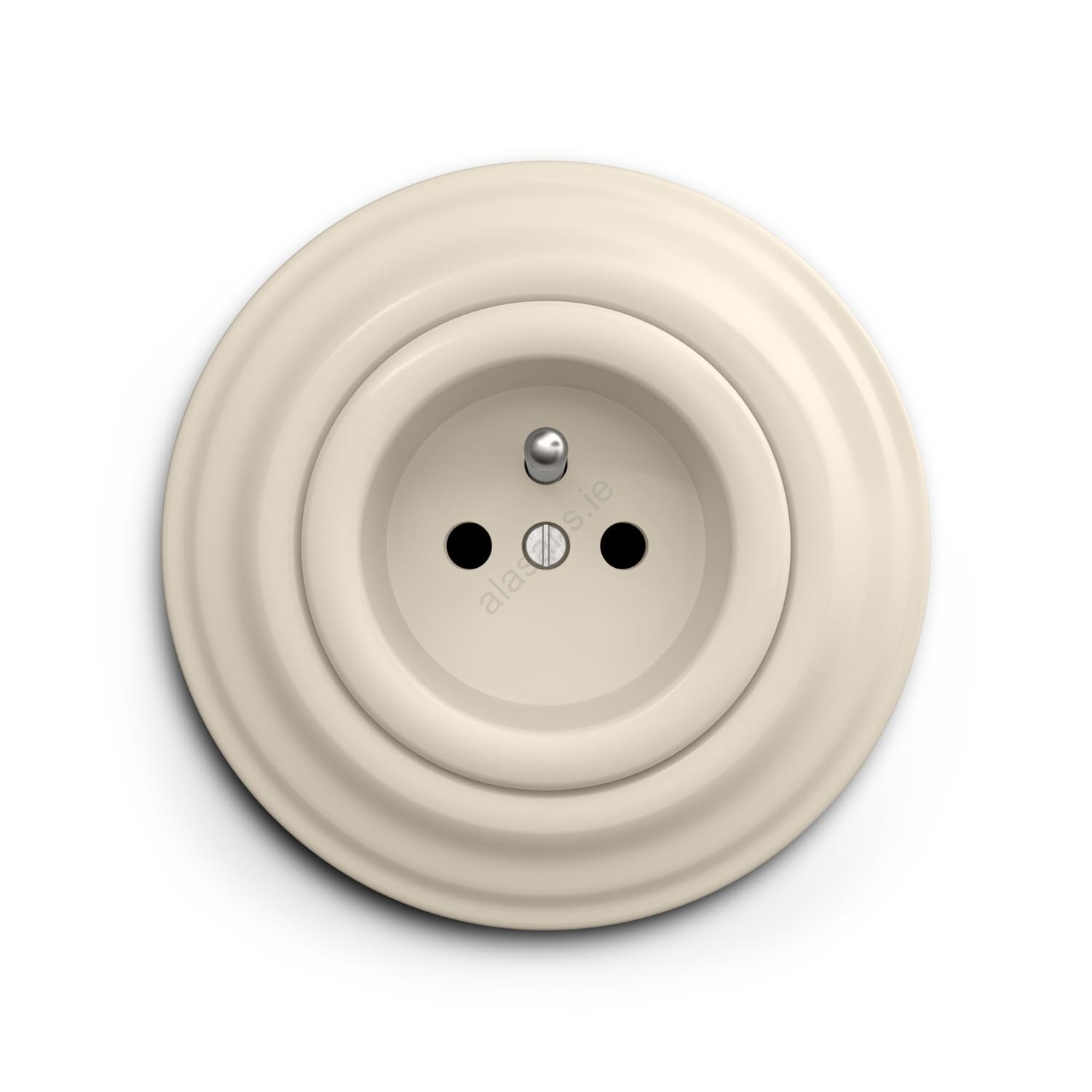

  • Retro 230 V socket.
  • Its retro design makes an immediate impression.
  • Rotating frames allow you to easily assemble double, triple or multiple-gang configurations.

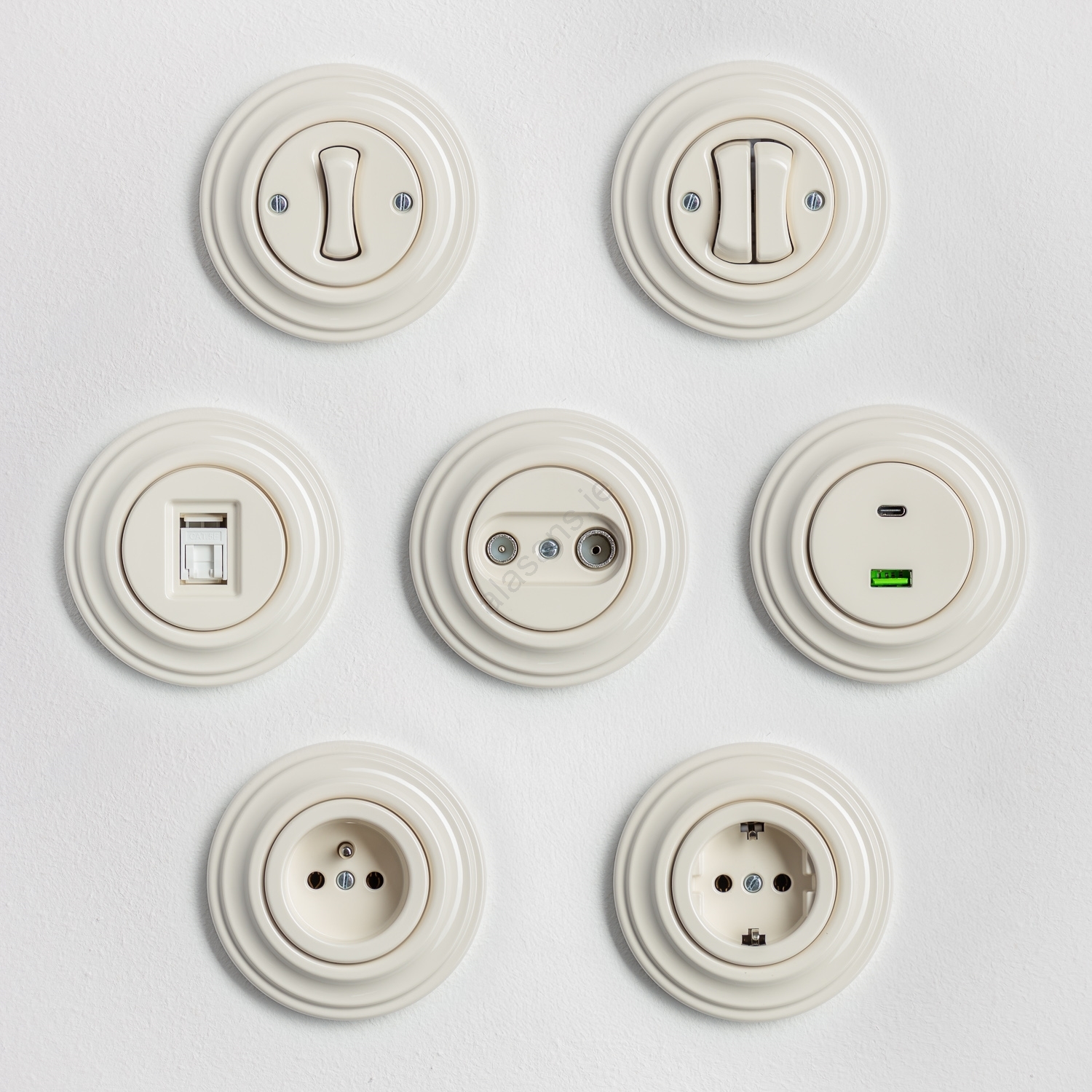

  • Combine sockets and switches or use a series of identical modules.
  • Choose an end frame with a one-sided cut that can be rotated to suit your needs and a middle frame that connects on both sides to create a continuous series with an unlimited number of modules.
  • Install them horizontally or vertically, depending on your requirements.

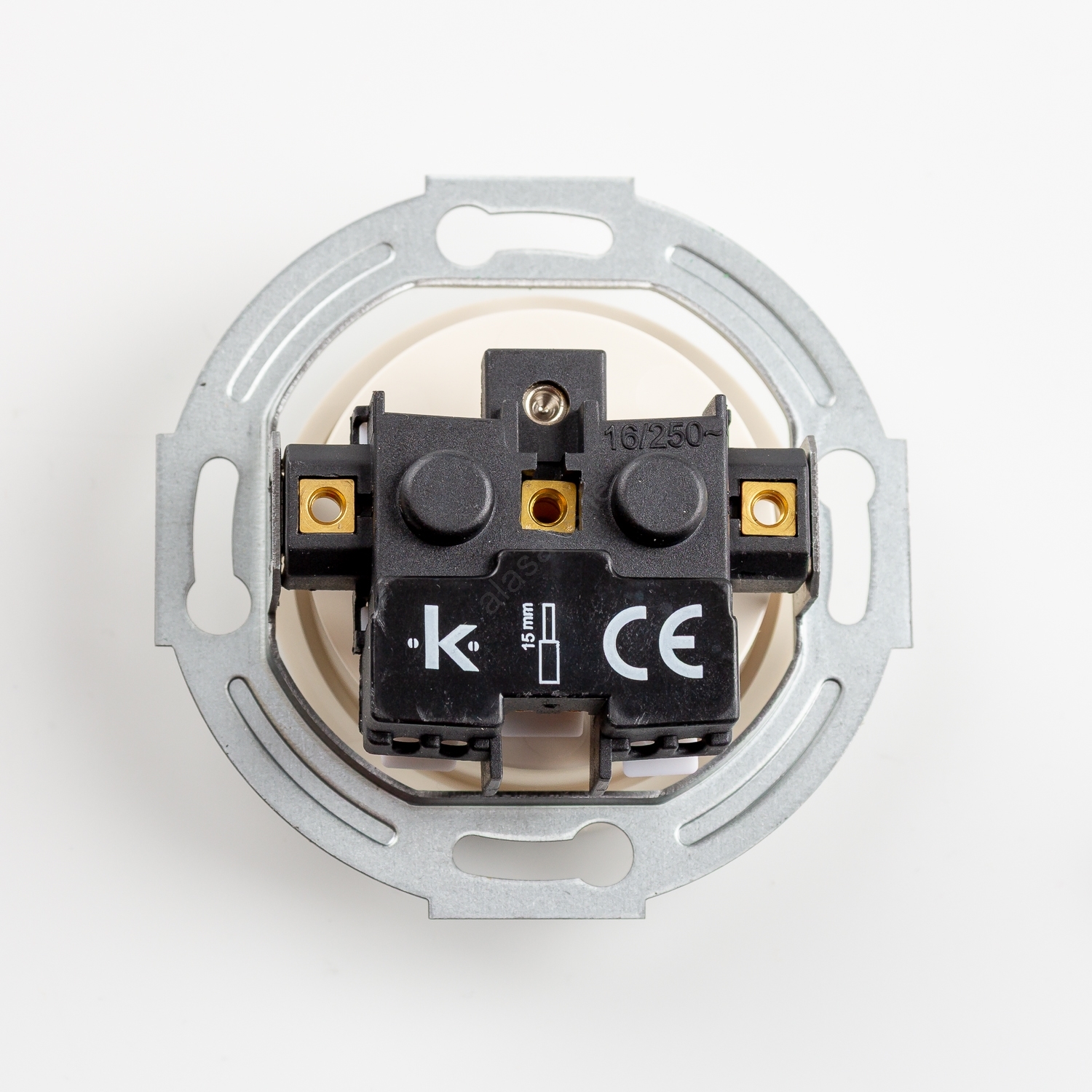

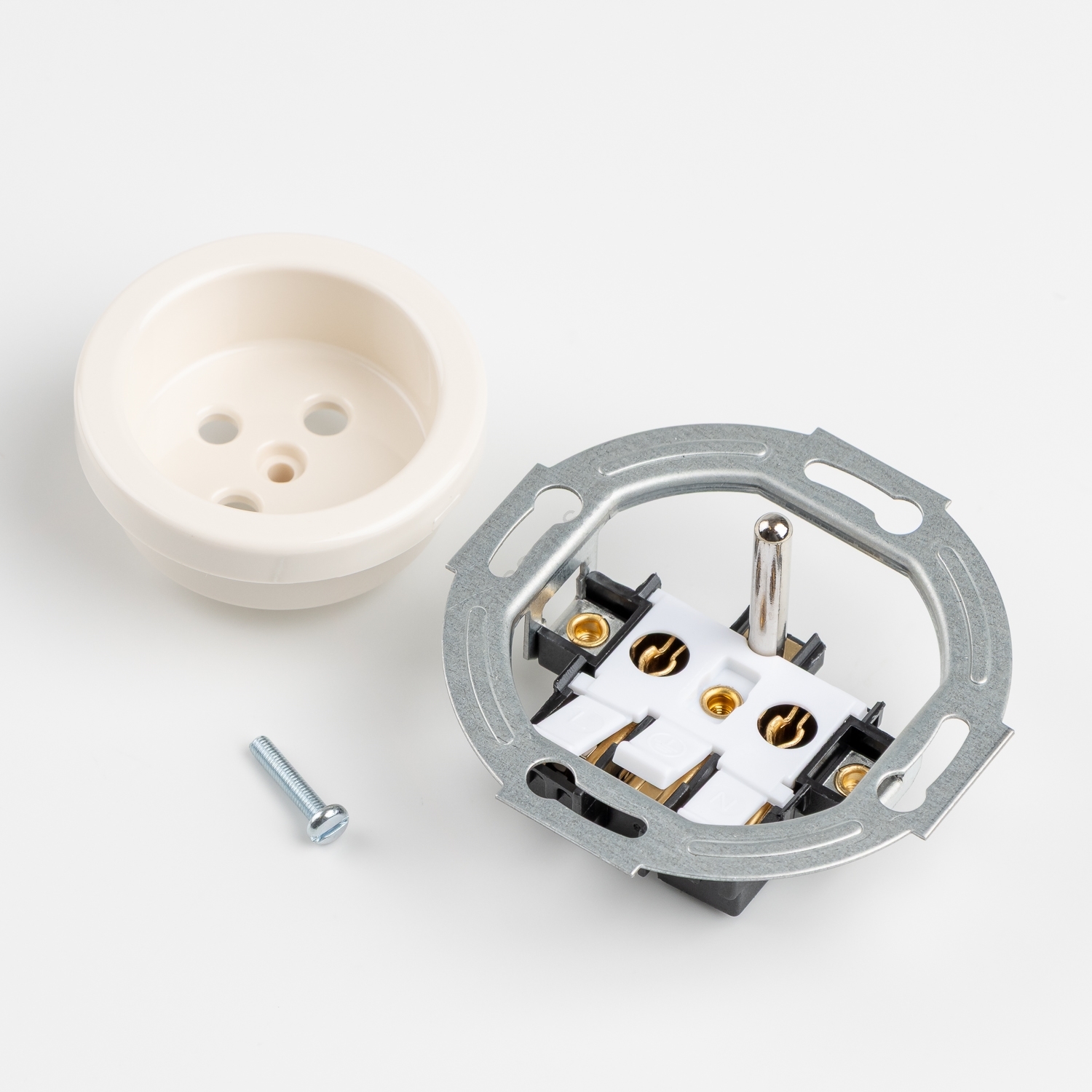

  • Connection type: screwless terminals.
  • Mounting: flush wall mounting - suitable for electrical installation boxes with a 71 mm spacing (e.g., KP68 or KU68).
  • Rated current: 16 A.
  • Rated voltage: 230 V.
  • Frequency: 50 Hz.
  • Protection rating (IP): IP20.
  • Device width: 70.5 mm.
  • Device height: 70.5 mm.
  • Device depth: 38 mm.
  • Always use round electrical installation boxes only.
  • Also allow for round cut-outs in tiling.
  • Made in the EU.
  • Socket type: E.



  Brand

  Reblig



  This product is listed in the following categories

  Brands, Electrical equipment, Electrical installation, Reblig, Retro sockets, Sockets, Sockets and splitters, Switches, dimmers and frames, Vintage switches and sockets

  Read more

  • Summary of types of sockets in foreign countries

• Parameters

• Documents for download

• Ratings and reviews0

• Questions about the product0

Buy

Product code: RG0134F
