• Product description

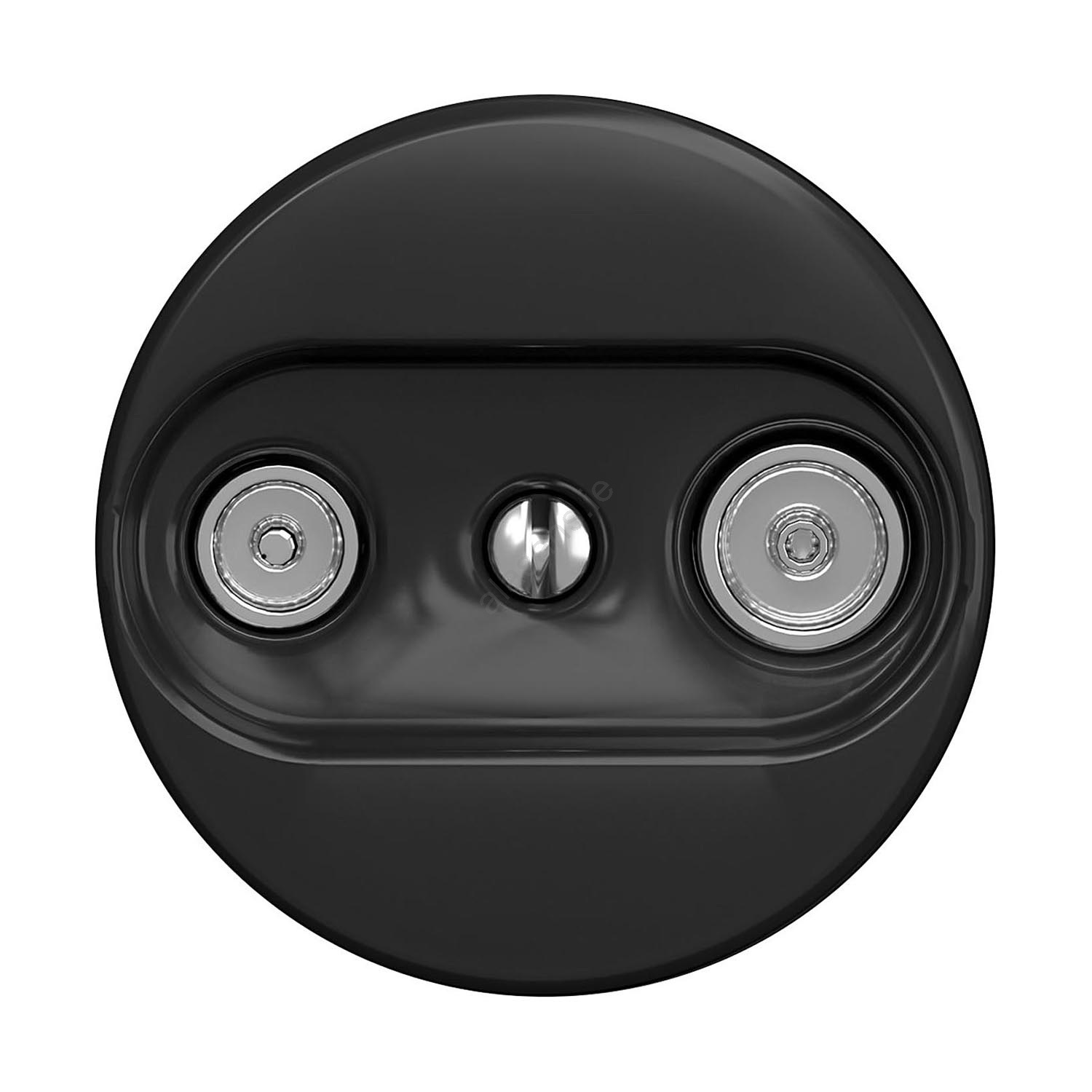

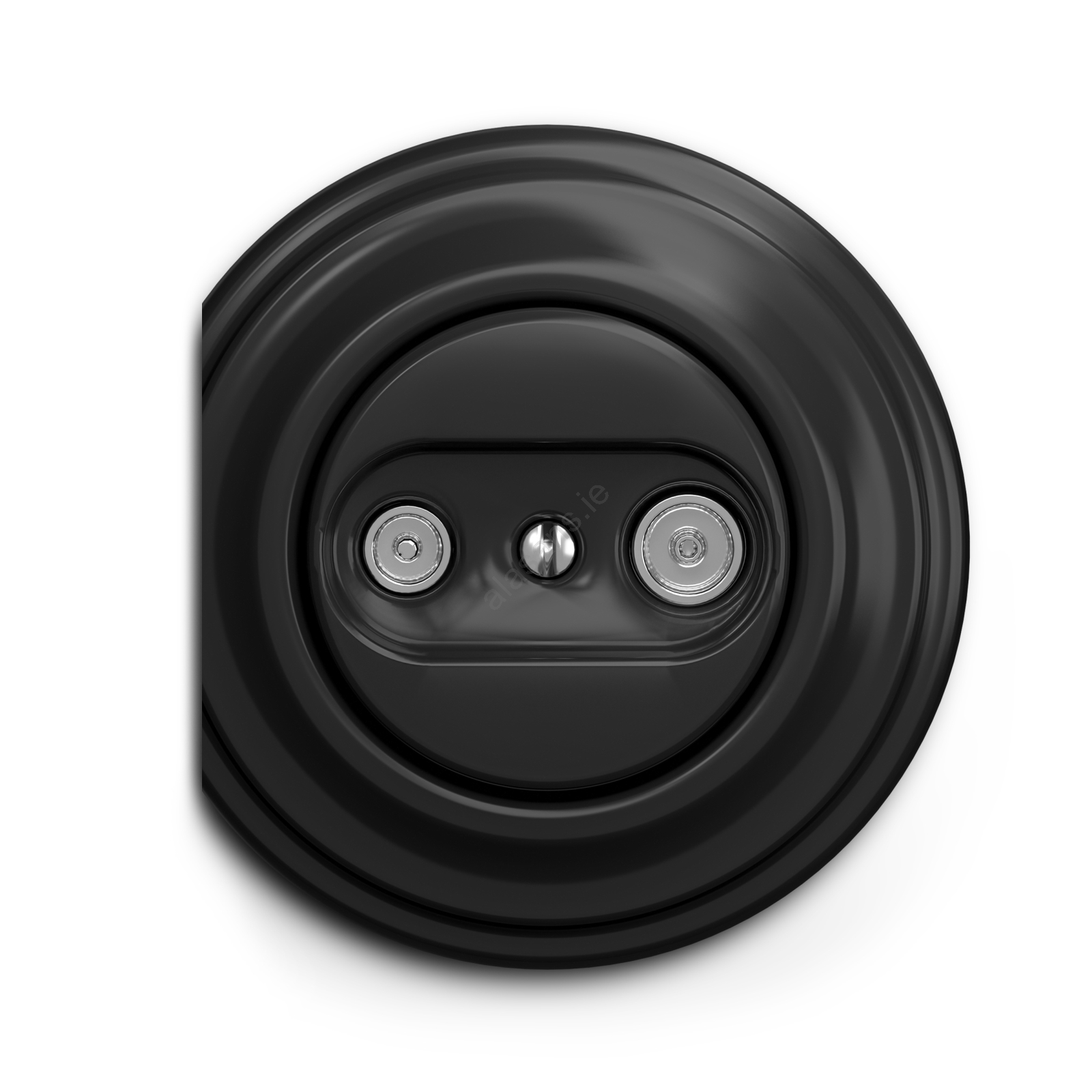

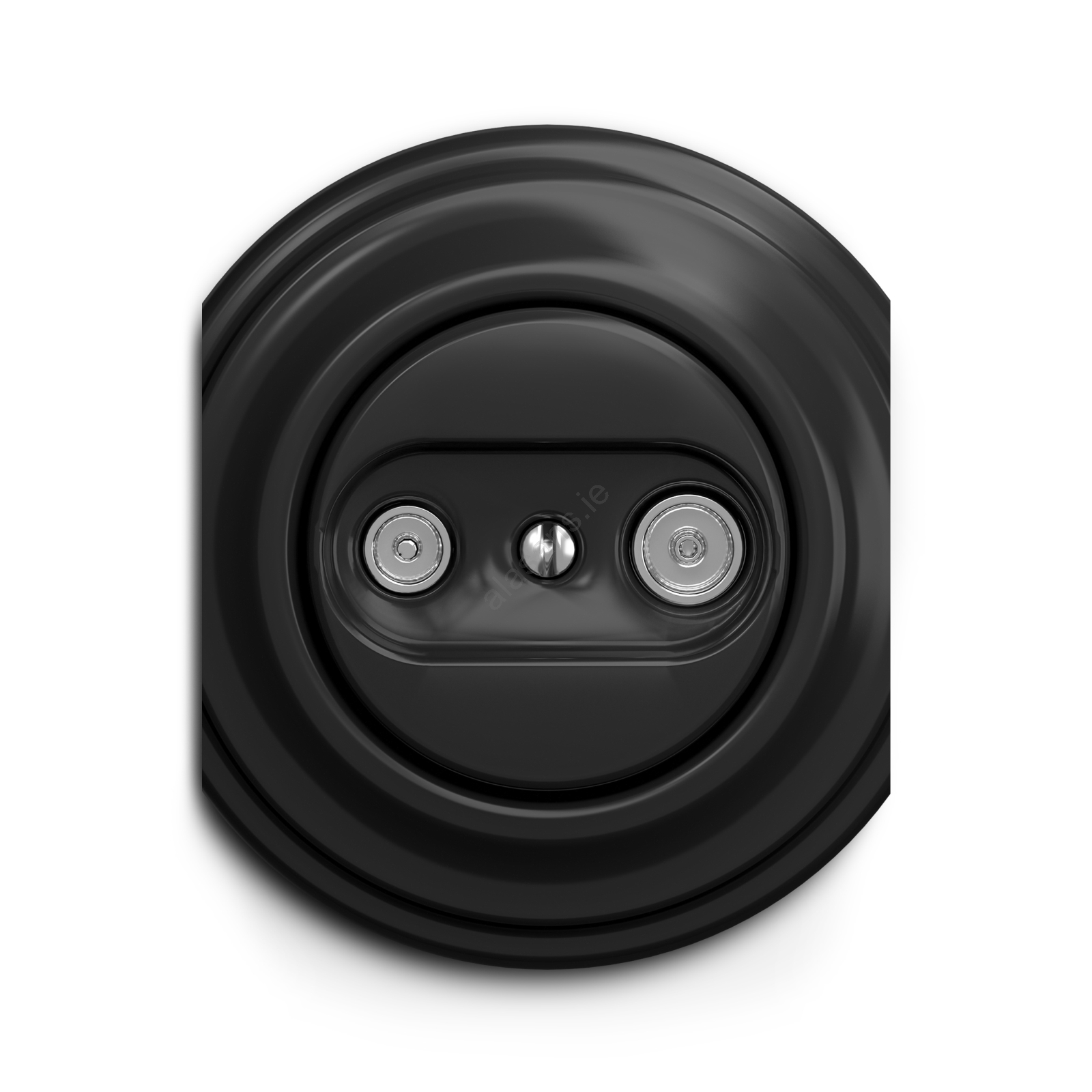

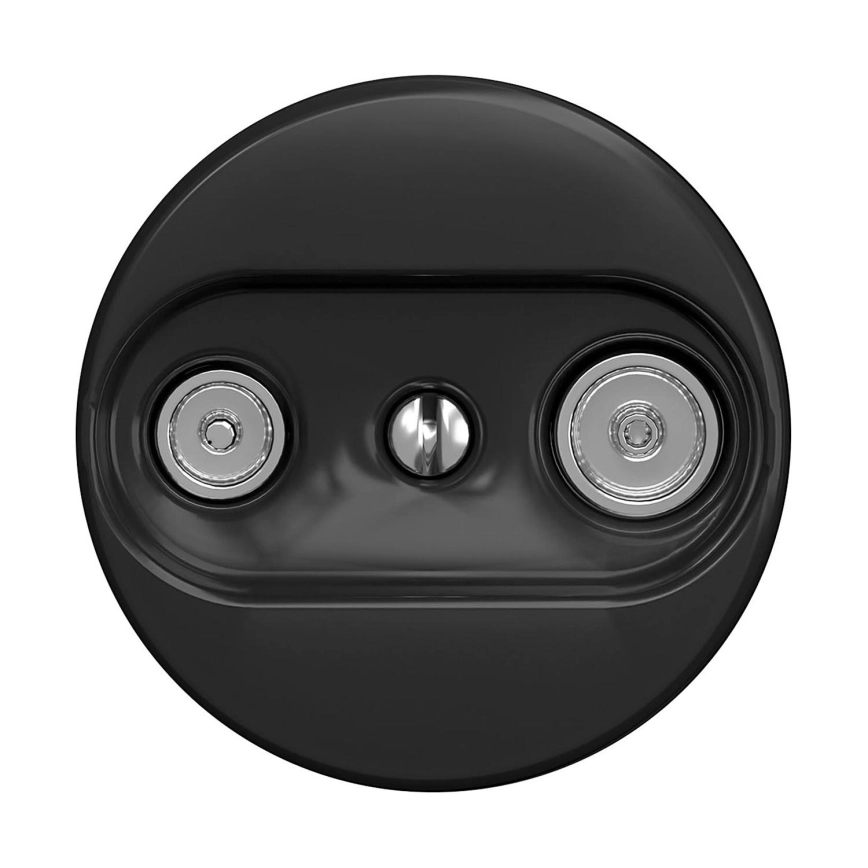

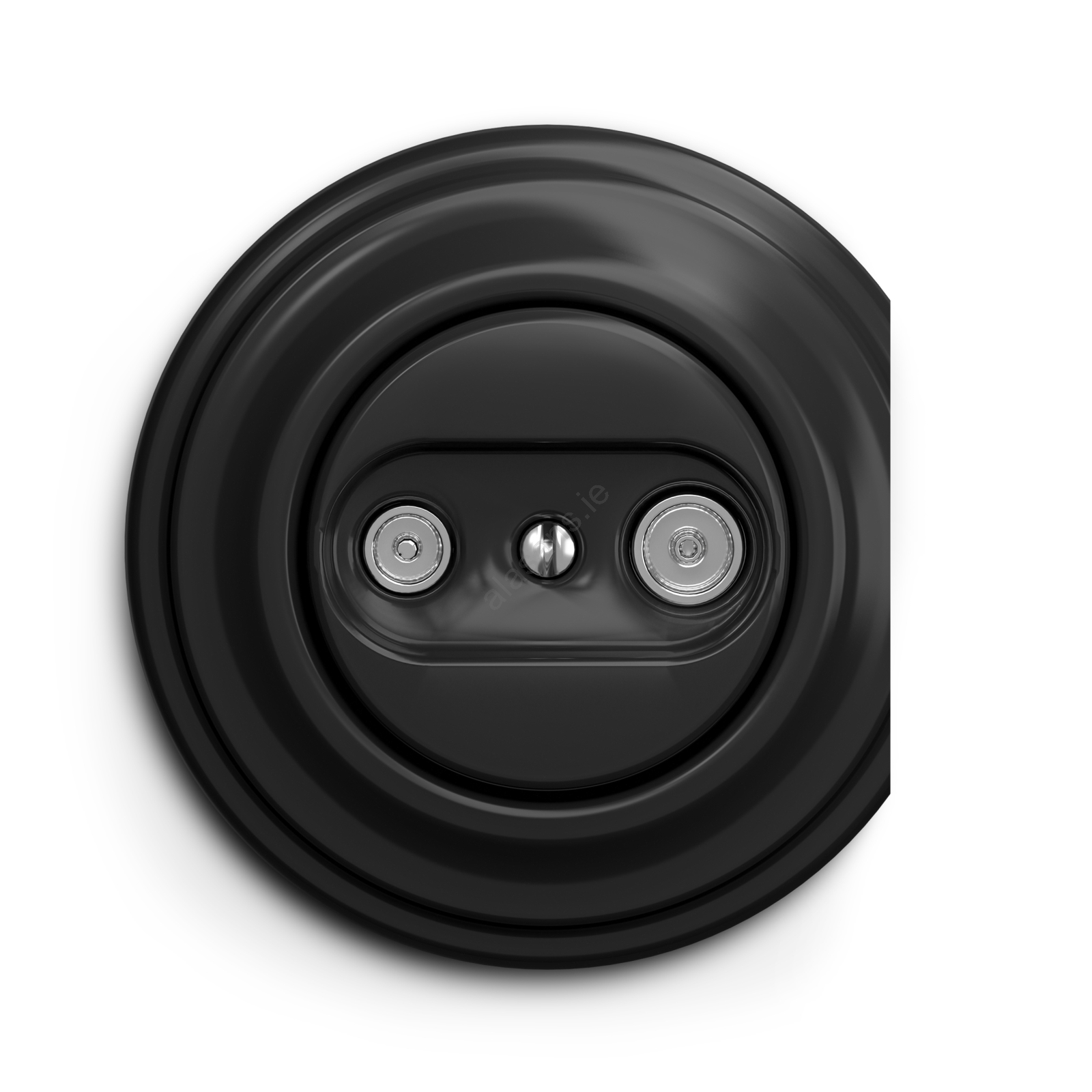

  • TV+R subscriber outlet (end module).
  • Its retro design makes a striking first impression.
  • With rotatable frames you can easily assemble double, triple or multi-gang configurations.
  • You can combine sockets and switches or use a series of identical units.
  • Choose an end frame with a single-sided trim that can be rotated as needed, and a middle frame to attach modules on both sides, creating a complete series with an unlimited number of elements.
  • Install them horizontally or vertically, according to your requirements.
  • Connection type: screw terminal.
  • Mounting: flush wall installation - suitable for electrical installation boxes with 71 mm spacing (e.g., KP68 or KU68).
  • Material: heat-resistant plastic.
  • End-of-line attenuation: 3 dB.
  • Connector type: IEC.
  • Labeling: TV + R.
  • Device width: 70.5 mm.
  • Device height: 70.5 mm.
  • Device depth: 20 mm.
  • Always use round electrical installation boxes only.
  • Allow for round cut-outs in tiling.
  • Frame not included.
  • Made in the Czech Republic.

  Brand

  Reblig



  This product is listed in the following categories

  Brands, Electrical equipment, Electrical installation, Reblig, Retro sockets, Sockets, Sockets and splitters, Switches, dimmers and frames, Vintage switches and sockets

• Parameters

• Documents for download

• Ratings and reviews0

• Questions about the product0

Buy

Product code: RG0068
