• Product description

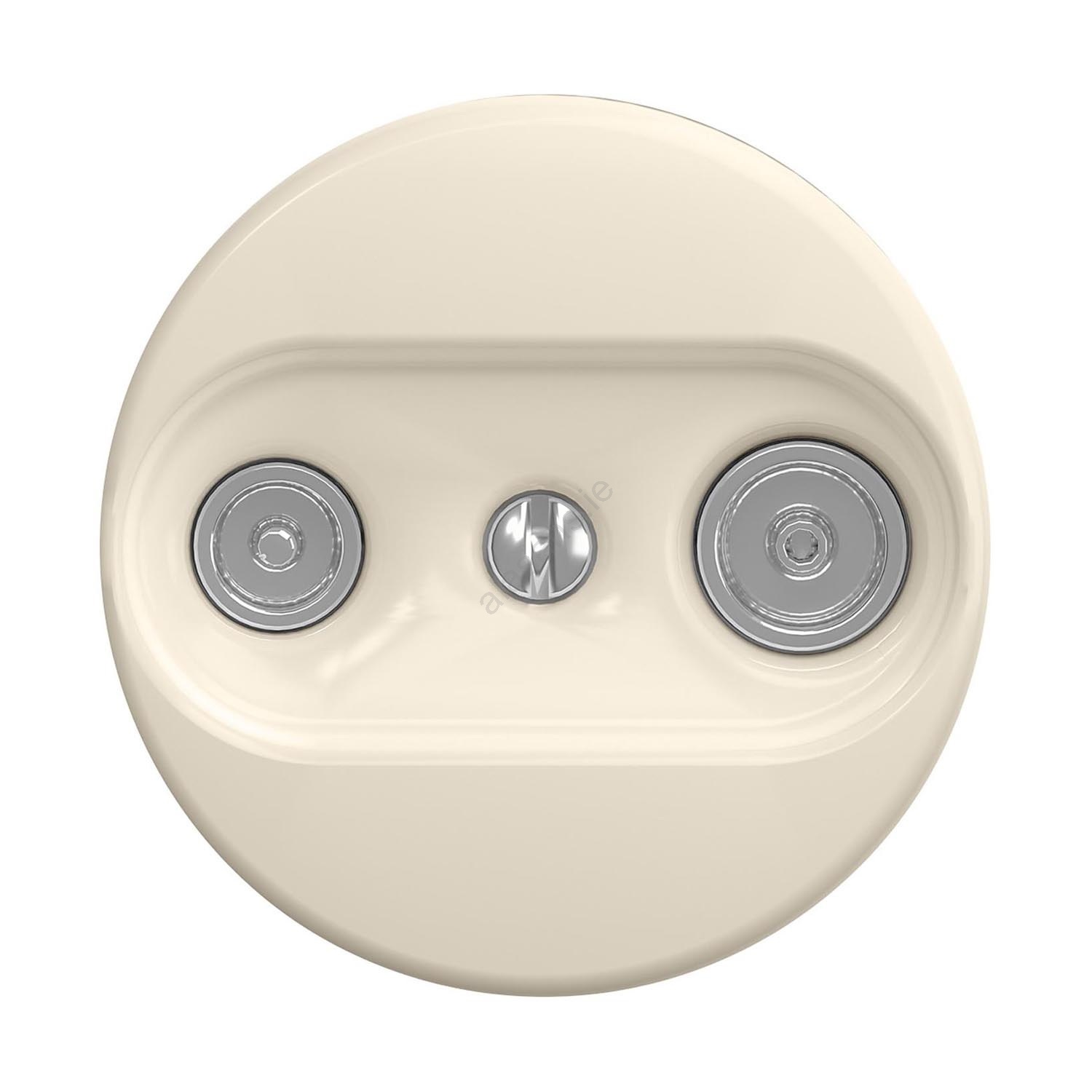

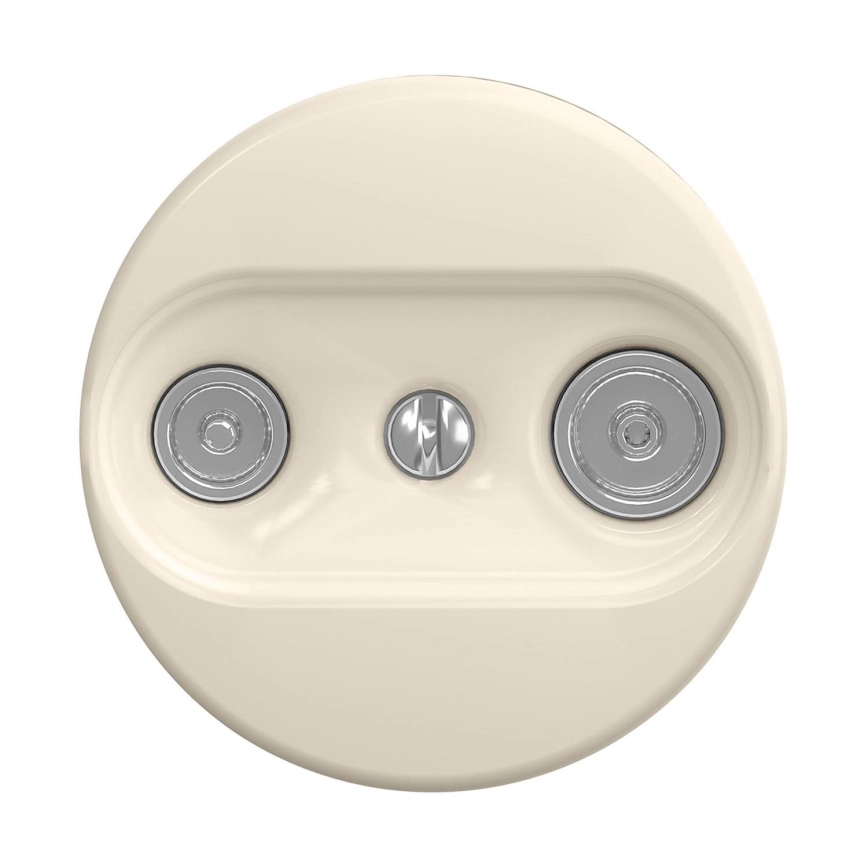

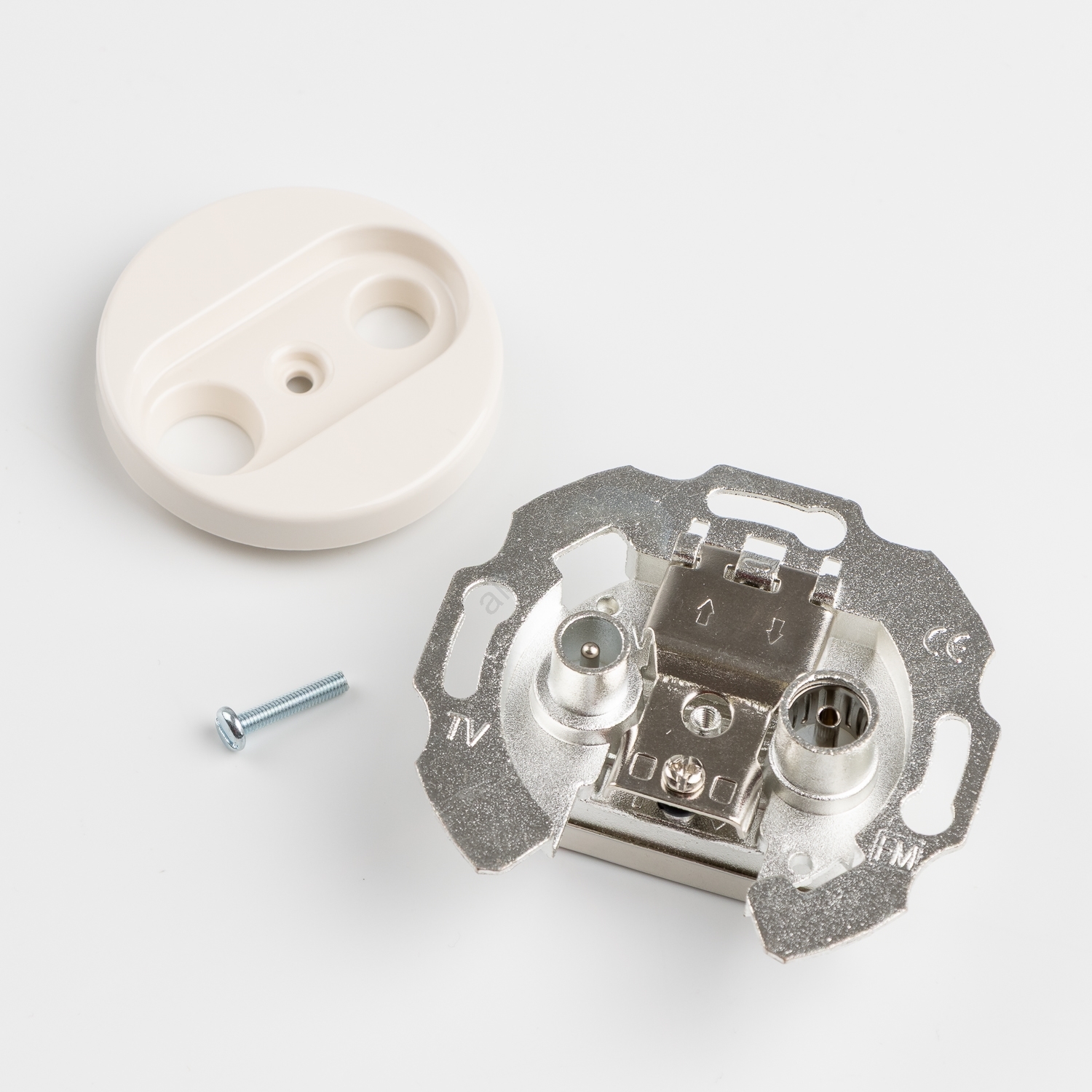

  • TV+R pass-through outlet (subscriber socket).
  • Its retro design makes a strong first impression.
  • Using rotatable frames, you can easily create double, triple and multi-gang configurations.
  • You can combine sockets and switches or use a run of identical modules.
  • Choose an end frame with a single-sided cut that can be rotated as needed, plus a middle frame that connects on both sides to build a continuous series with no practical limit to the number of modules.
  • Install horizontally or vertically to suit your layout.
  • Connection type: screw terminal.
  • Mounting: flush-mounted — suitable for electrical installation boxes with 71 mm spacing (e.g., KP68 or KU68).
  • Material: heat-resistant plastic.
  • End-of-line attenuation: 7 dB.
  • Pass-through attenuation: 3 dB.
  • Connector type: IEC.
  • Label: TV + R.
  • Width: 70.5 mm.
  • Height: 70.5 mm.
  • Depth: 20 mm.
  • Always use only round electrical installation boxes.
  • Allow for round cut-outs in tiles or wall finishes.
  • Frame not included.
  • Made in the EU.

  Brand

  Reblig
