• Product description

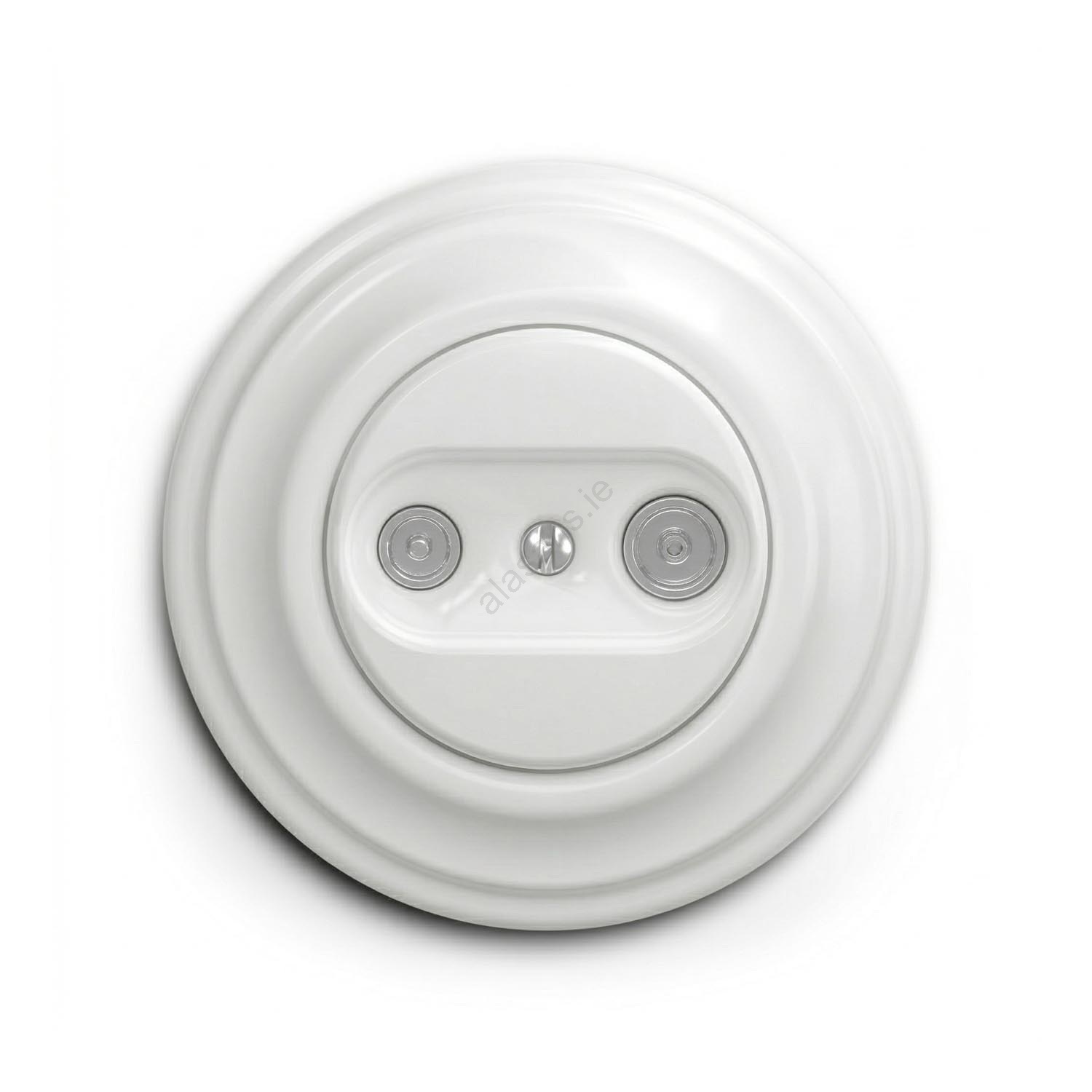

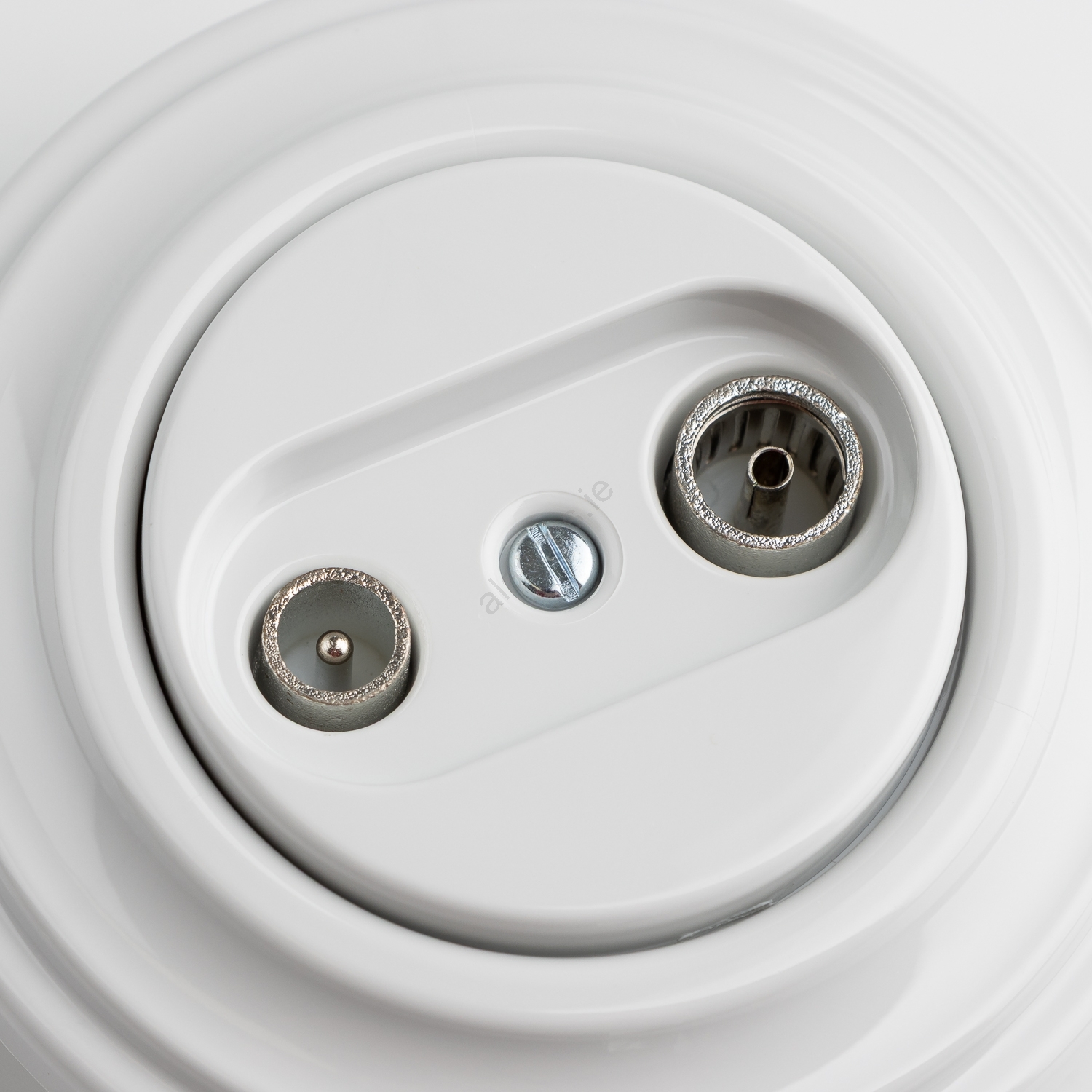

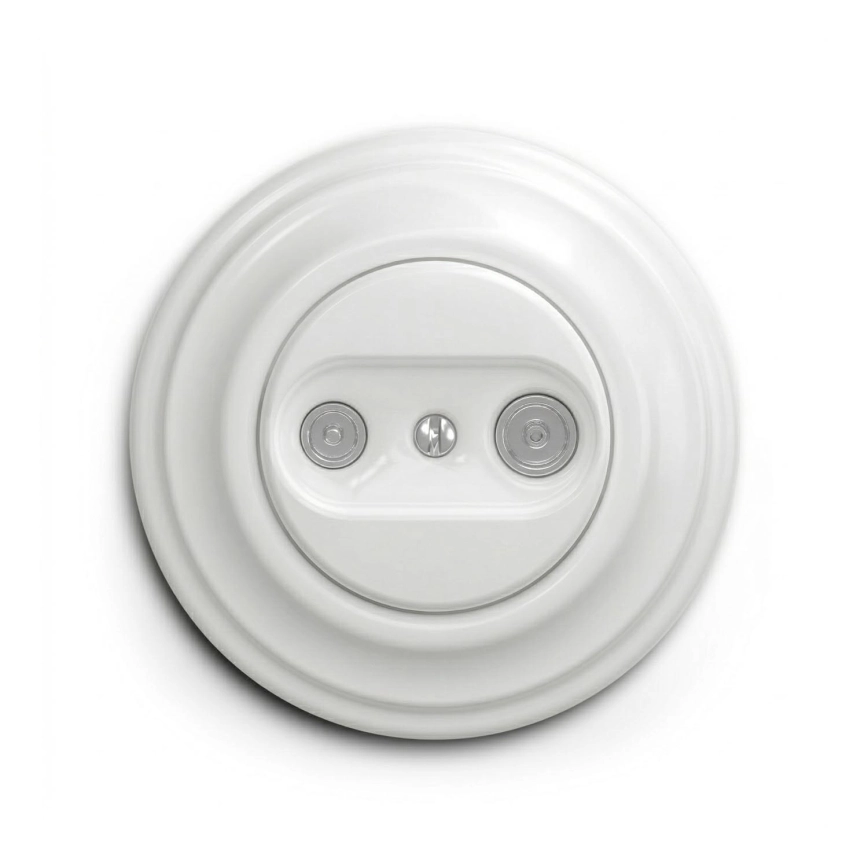

  • TV+R end outlet.
  • Its retro design stands out at first glance.

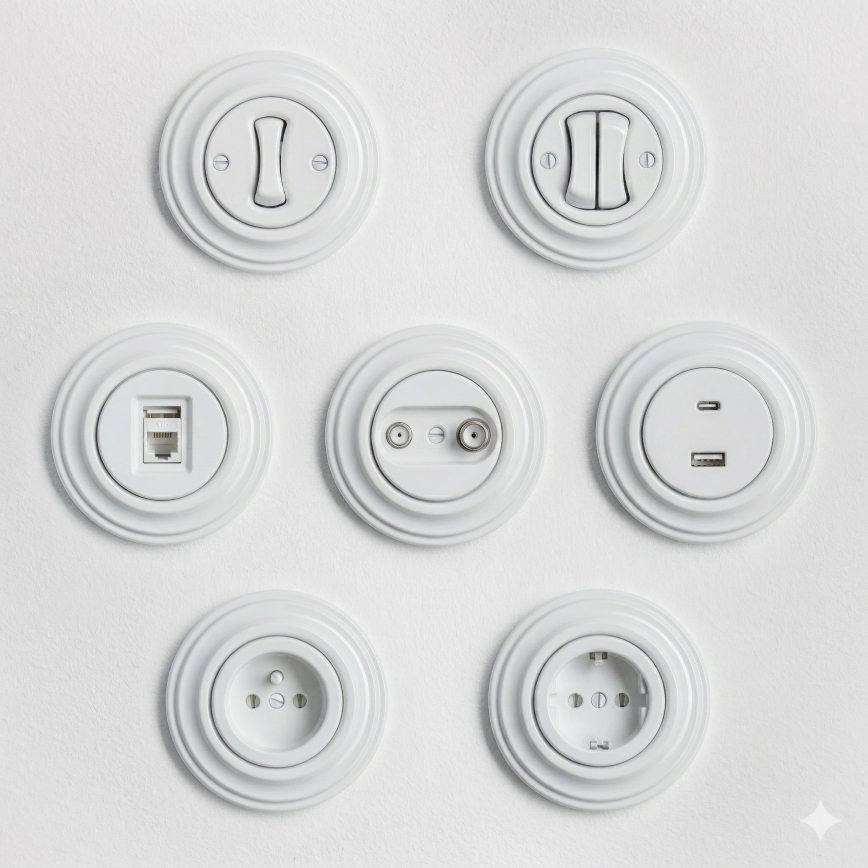

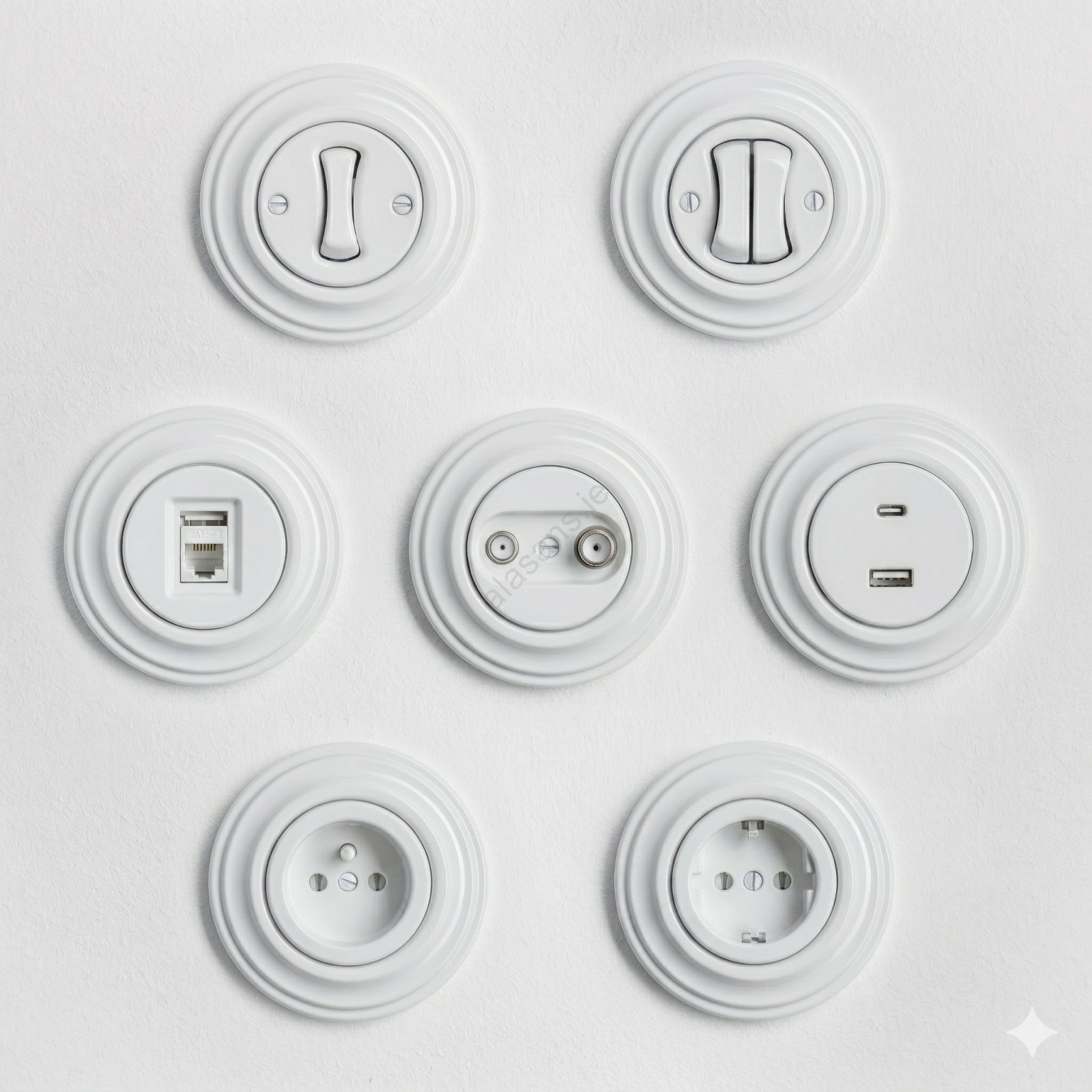

  • With rotatable frames you can easily assemble double, triple and multi-gang configurations.
  • You can combine sockets and switches or use a series of identical modules.
  • Select the end frame with a one-sided trim that can be rotated as needed, and the central frame that connects on both sides to form a continuous series with an unlimited number of modules.
  • Place them horizontally or vertically to suit your layout.

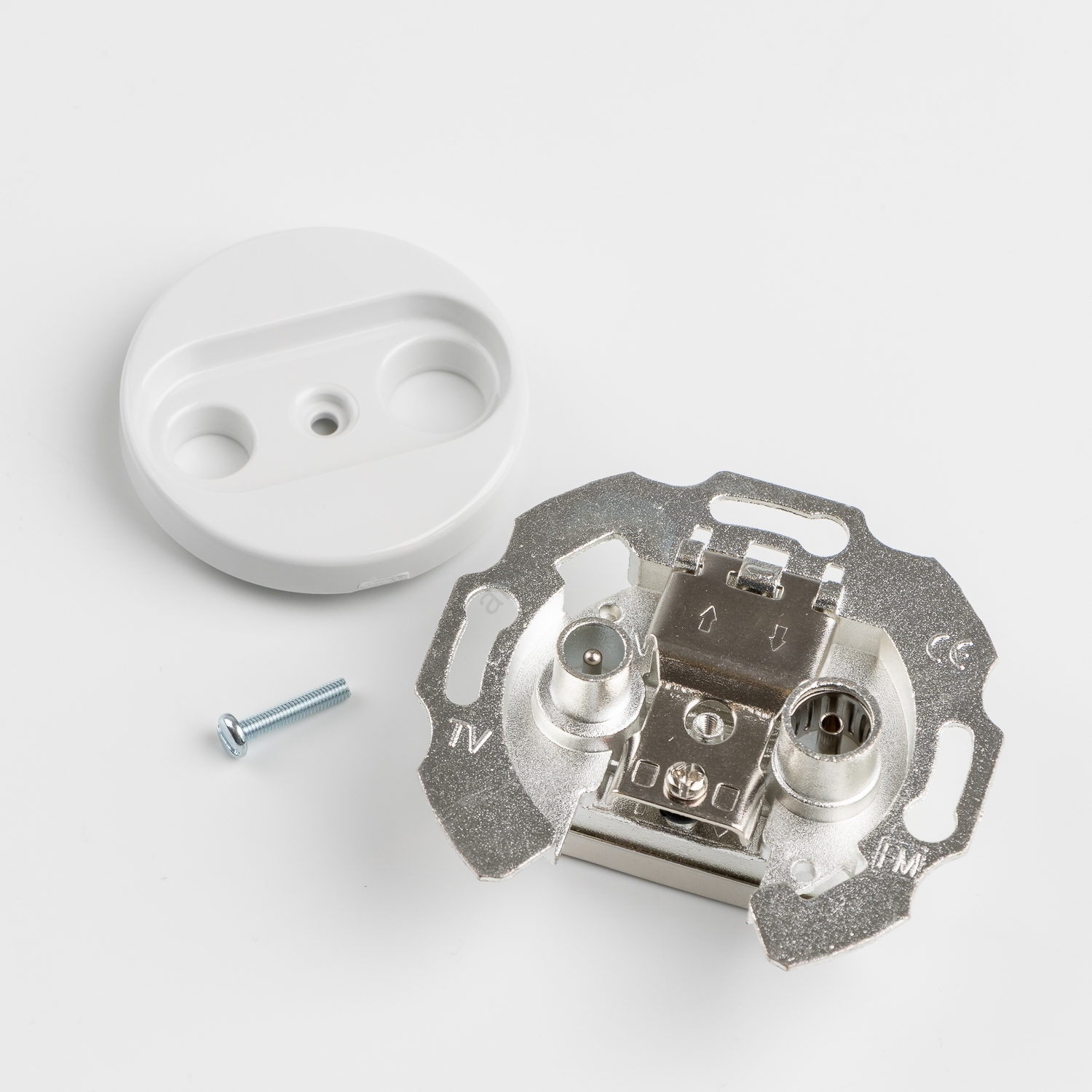

  • Connection type: screw terminal.

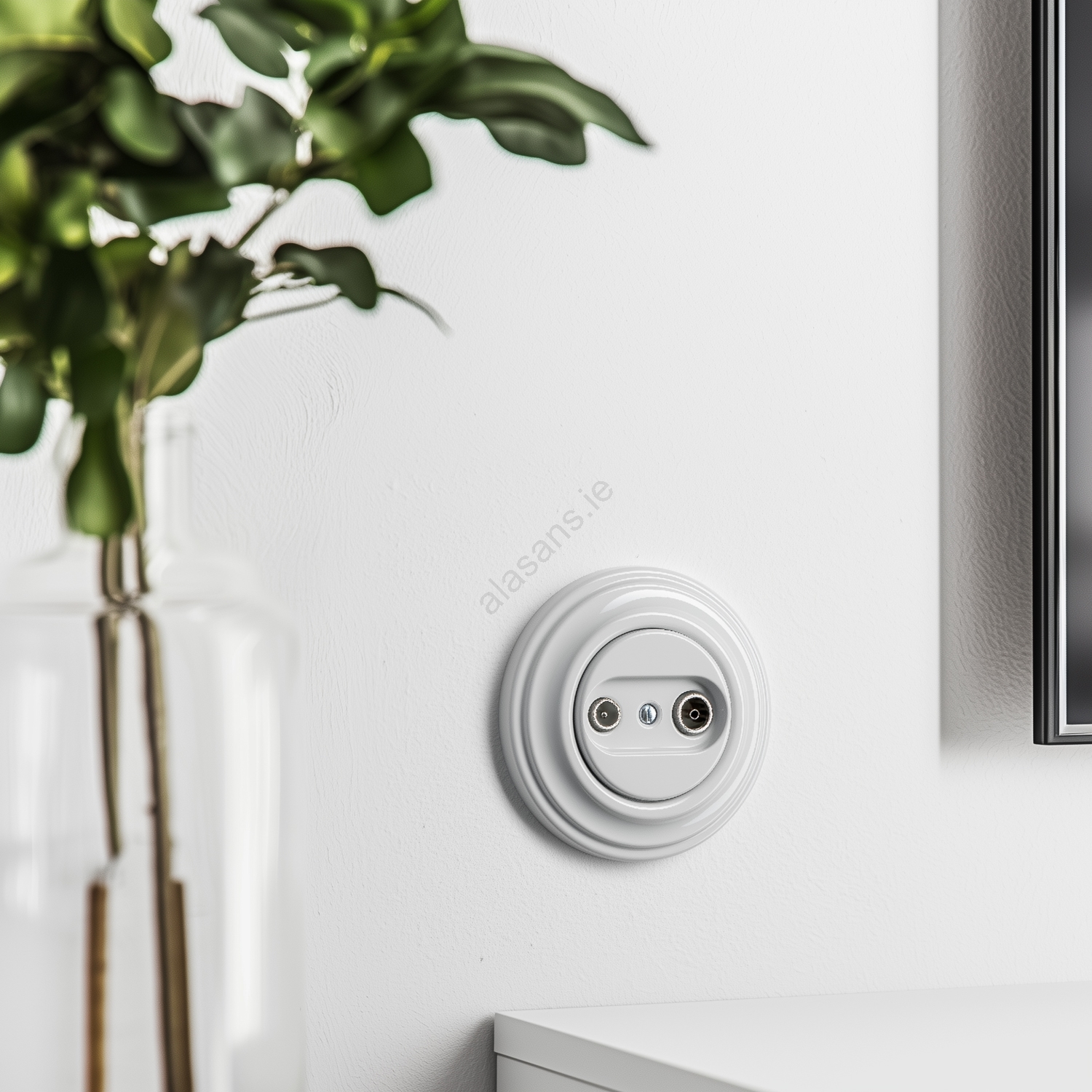

  • Mounting: flush wall installation - suitable for electrical installation boxes with a 71 mm spacing (e.g., KP68 or KU68).
  • Material type: heat-resistant plastic.
  • End attenuation: 3 dB.
  • Connector type: IEC.
  • Designation: TV + R.
  • Device width: 70.5 mm.
  • Device height: 70.5 mm.
  • Device depth: 20 mm.
  • Always use round mounting boxes only.
  • Also allow for round cut-outs in the tiles.
  • Frame is included in the package.
  • Made in the EU.

  Brand

  Reblig



  This product is listed in the following categories

  Brands, Electrical equipment, Electrical installation, Reblig, Retro sockets, Sockets, Sockets and splitters, Switches, dimmers and frames, Vintage switches and sockets

• Parameters

• Documents for download

• Ratings and reviews0

• Questions about the product0

Buy

Product code: RG0151H
