• Product description

  • Two-way (staircase) switch = switching a lighting circuit from two locations (hallway, stairwell).
  • For correct operation a second switch of the same type must be used, or extend the circuit with a series 7 or 6+6 switch.

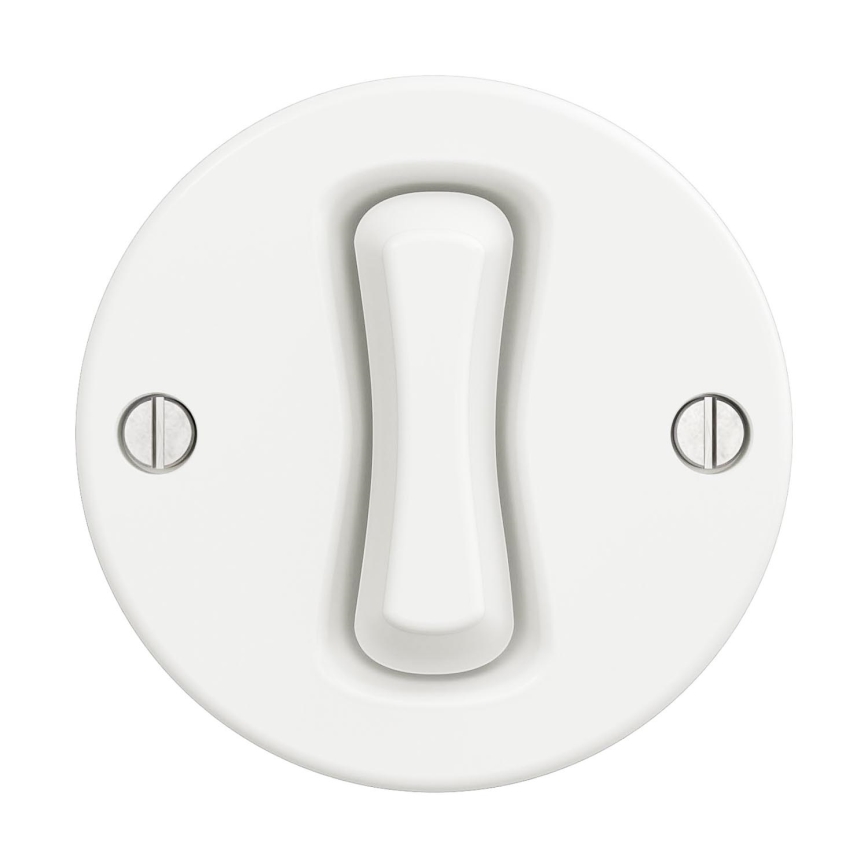

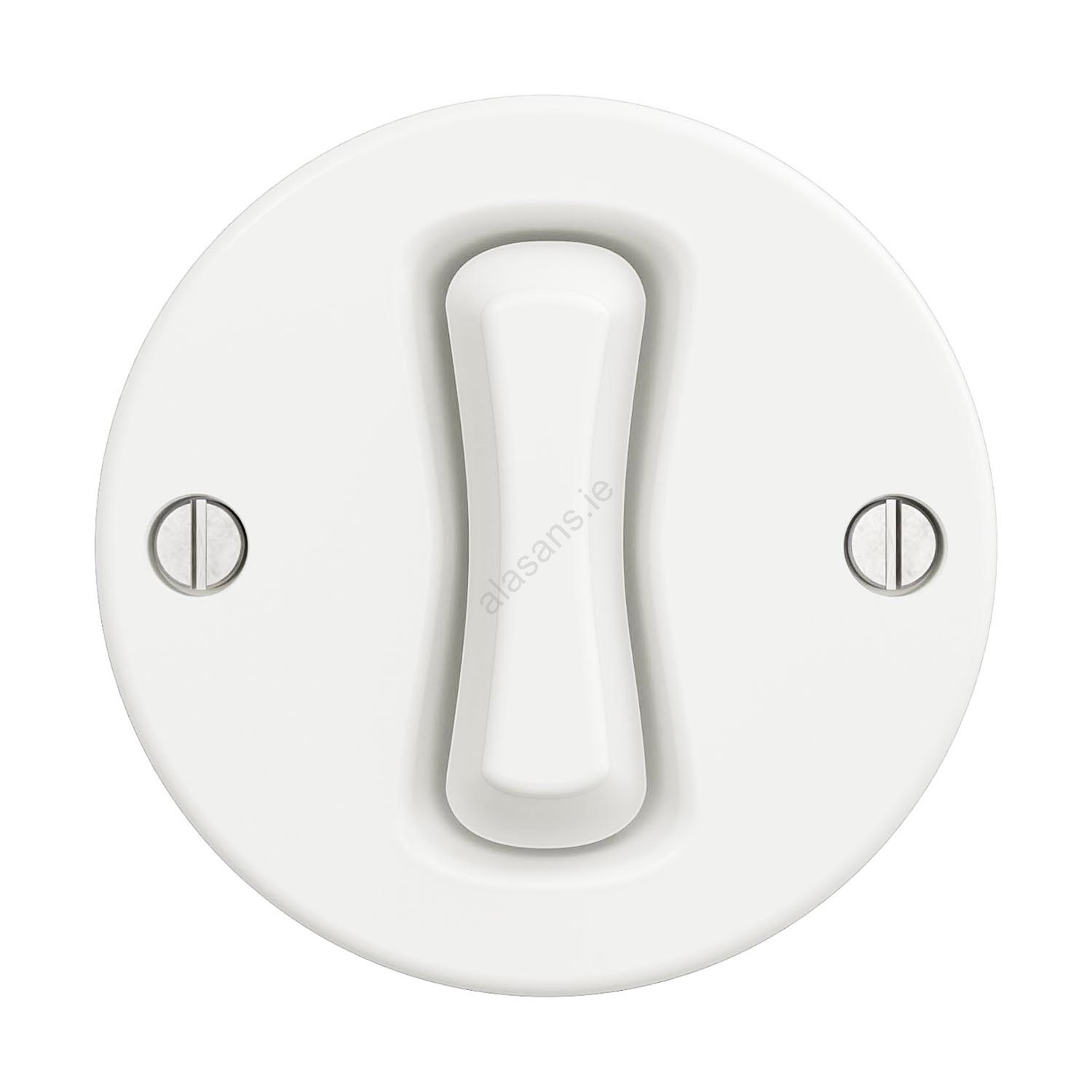

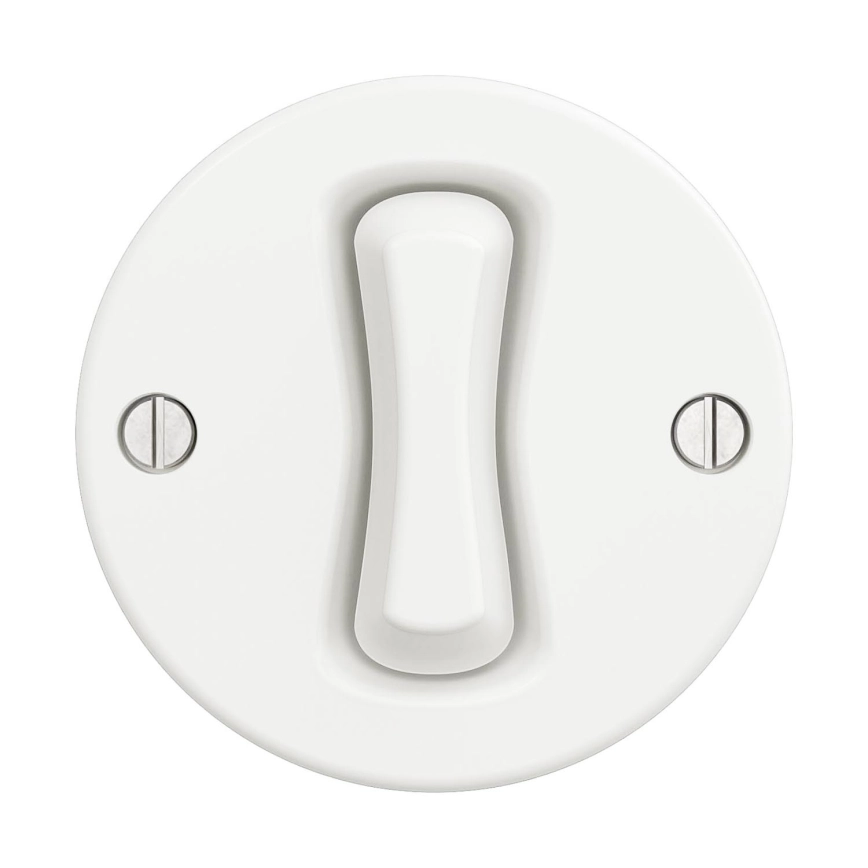

  • Round switch in ceramic white finish.
  • Its retro design makes an immediate impression.
  • Using rotating frames you can easily assemble double, triple or multiple product combinations.

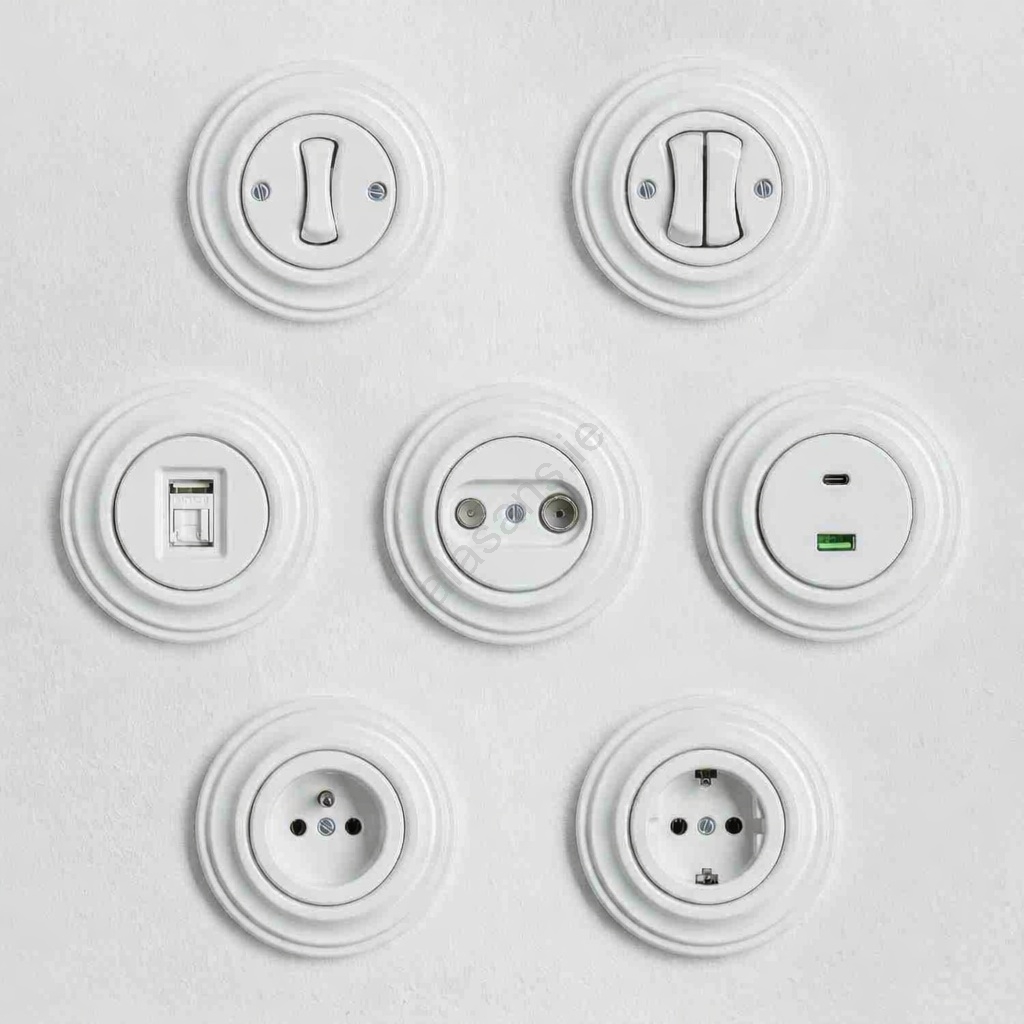

  • You can combine sockets and switches or use a row of identical modules.
  • Choose an end frame with a one-sided cut that can be rotated as needed, then a central frame to connect on both sides and create a complete series with an unlimited number of modules.
  • Install them horizontally or vertically, according to your requirements.

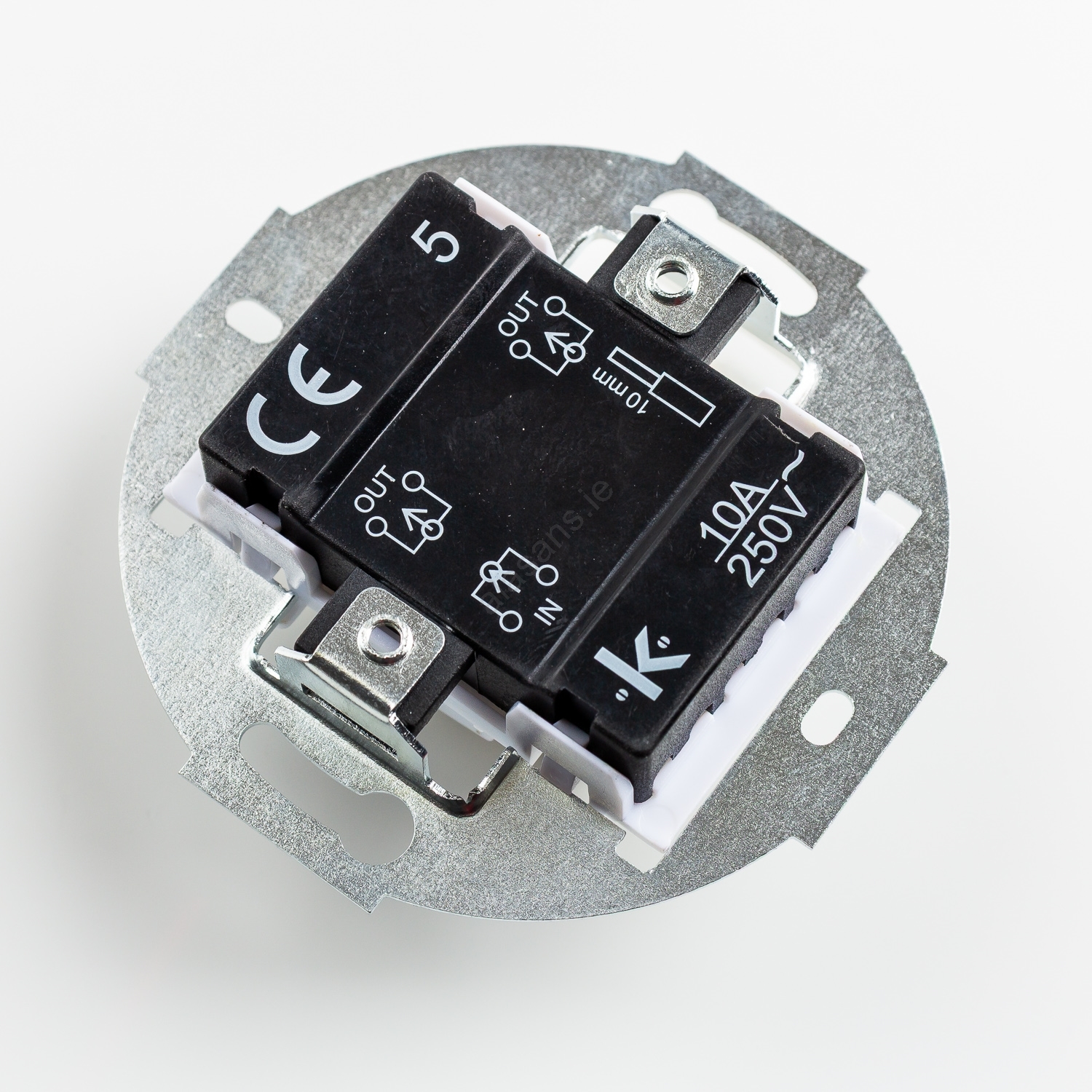

  • Connection type: screw terminal.
  • Control type: rocker.
  • Mounting method: flush wall mounting - suitable for electrical installation boxes with 71 mm spacing (e.g., KP68 or KU68).
  • Material type: heat-resistant plastic.
  • Rated current: 10 A.
  • Rated voltage: 230 V.
  • Frequency: 50 Hz.
  • Ingress protection (IP): IP20.
  • Device width: 70.5 mm.
  • Device height: 70.5 mm.
  • Device depth: 30 mm.
  • Always use round electrical mounting boxes.
  • Allow for round cut-outs in tiles or cladding.
  • Frame not included.
  • Made in the Czech Republic.
