• Product description

  • Series switch = switching two lighting circuits from a single switch.
  • Its retro design makes an immediate impression.
  • With rotatable frames you can easily configure double, triple and multi-gang assemblies.

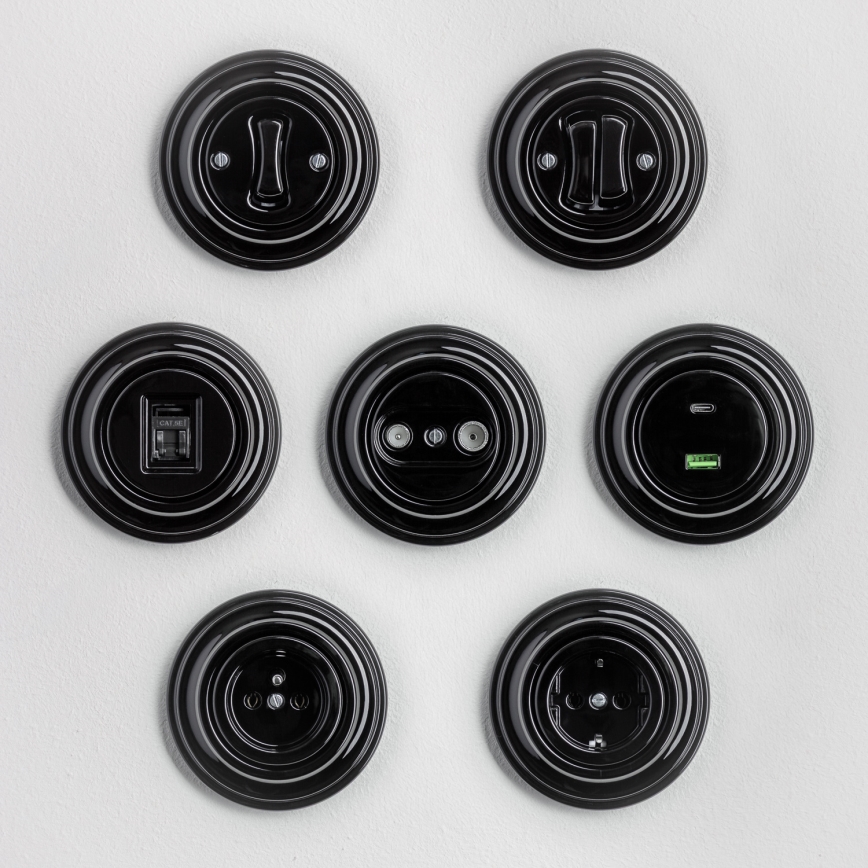

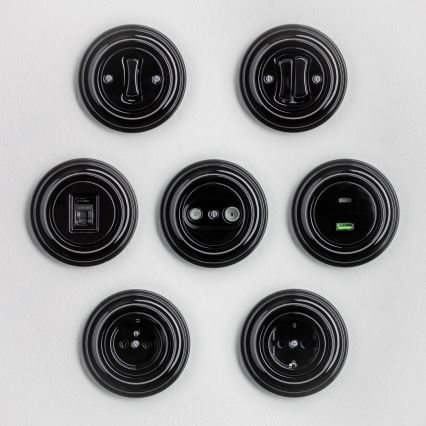

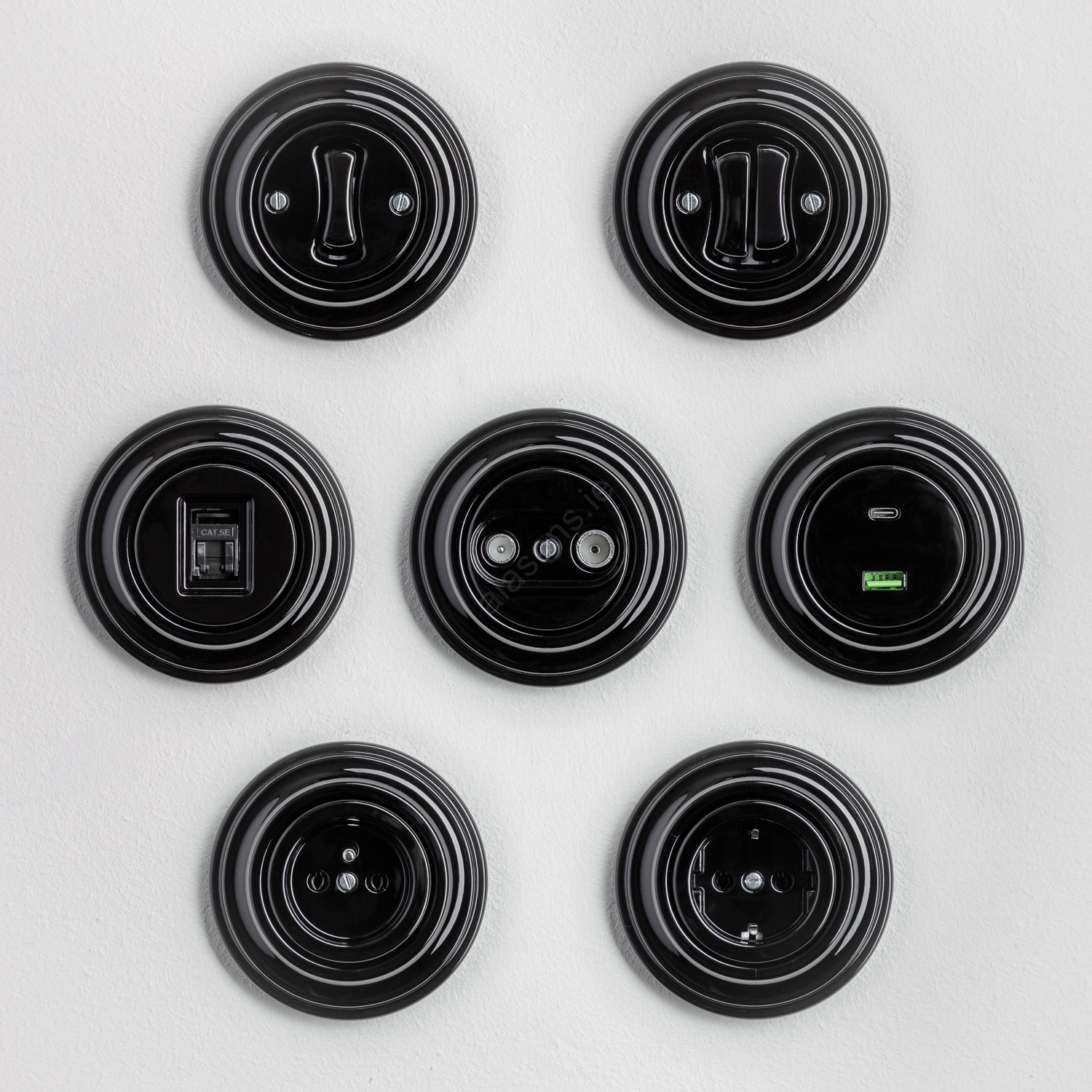

  • Mix sockets and switches or create a run of identical modules.
  • Choose an end frame with a one-sided cut that can be rotated as required, and a middle frame that connects on both sides—letting you build a continuous series with an unlimited number of modules.
  • Install them horizontally or vertically to suit your layout.

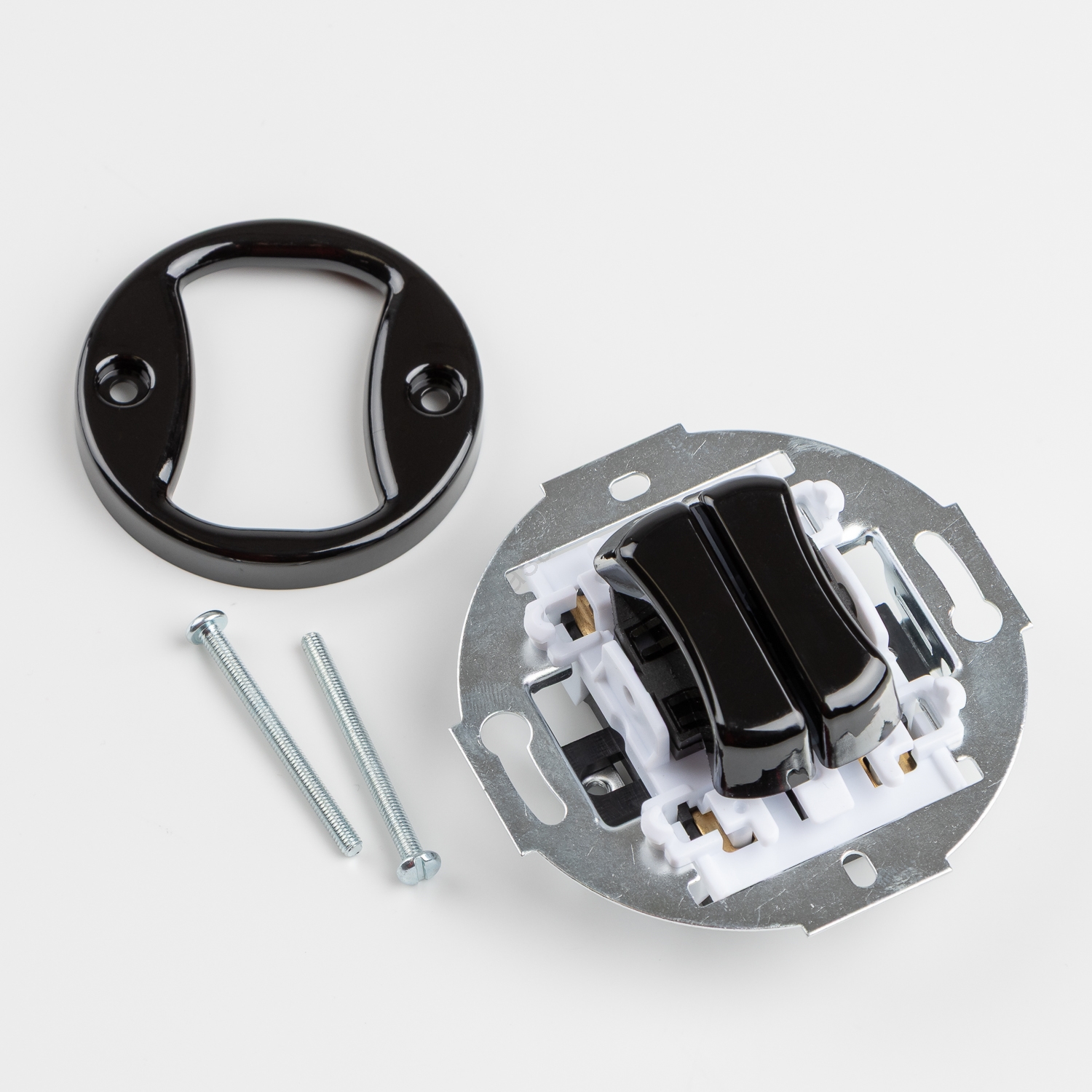

  • Connection type: screw terminal.

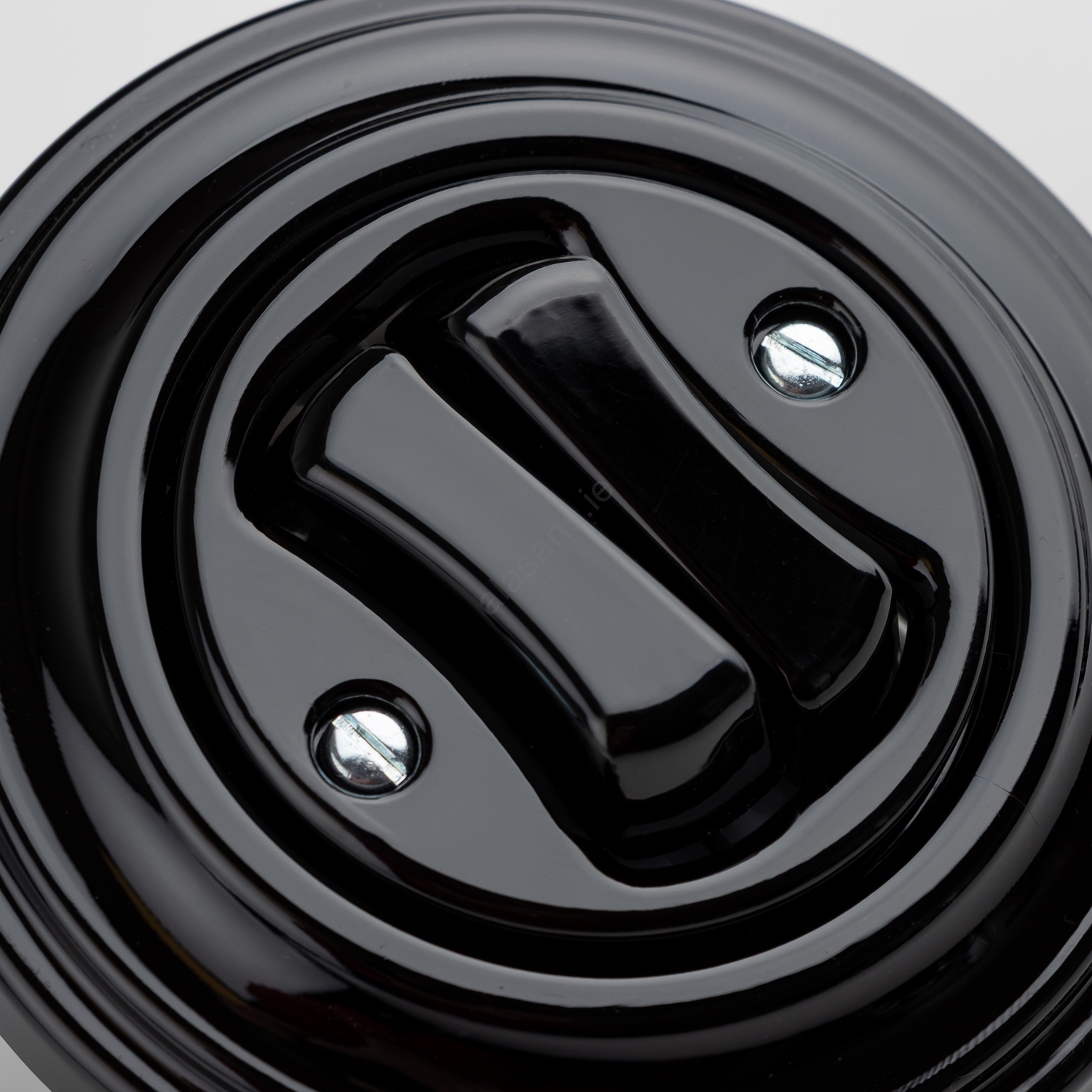

  • Control type: rocker switch.

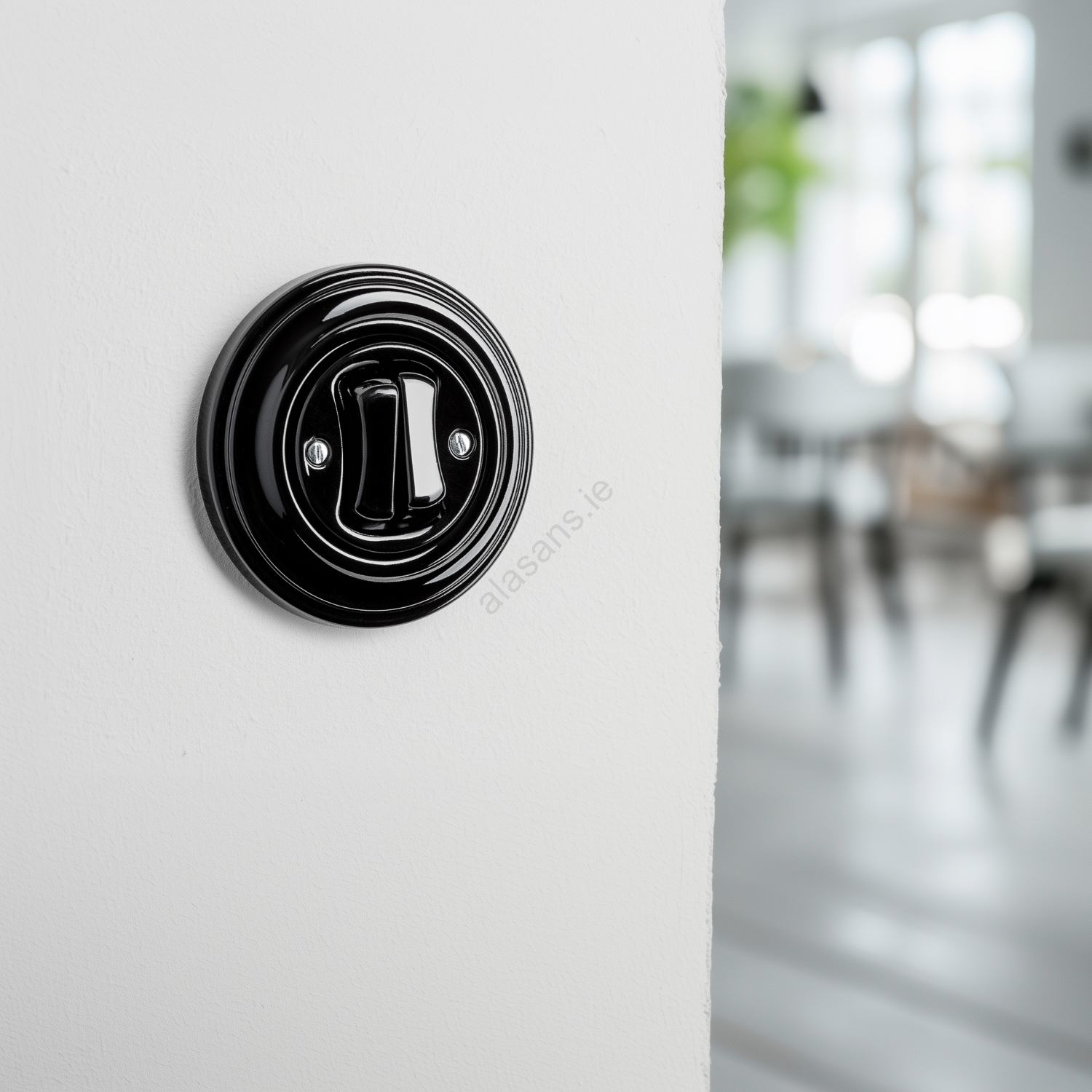

  • Mounting method: flush wall installation - suitable for electrical installation boxes with 71 mm spacing (e.g. KP68 or KU68).
  • Material: heat-resistant plastic.

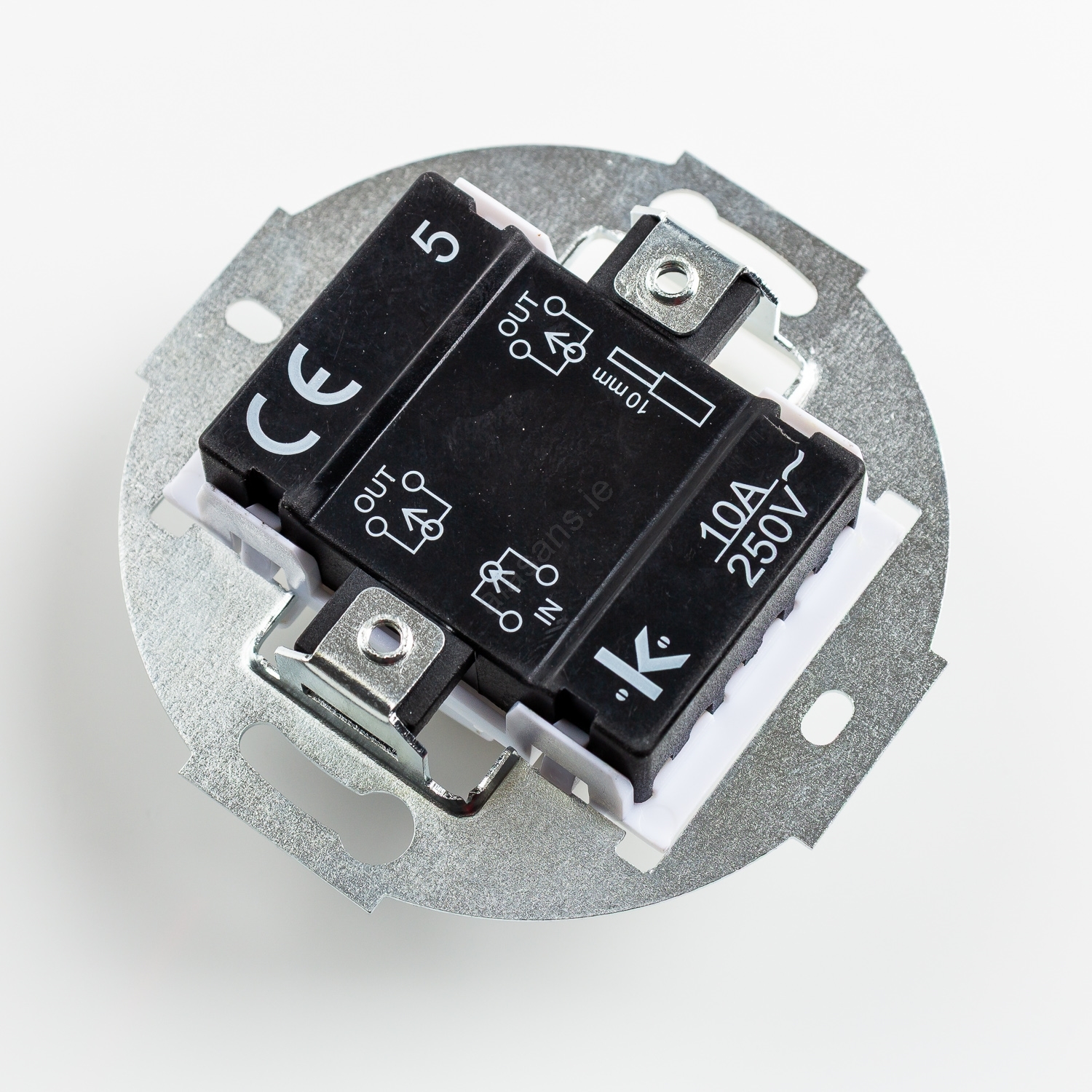

  • Rated current: 10 A.
  • Rated voltage: 230 V.
  • Frequency: 50 Hz.
  • Ingress protection (IP): IP20.
  • Always use only round electrical installation boxes.
  • Also allow for round cut-outs in tiling.
  • Made in the EU.

  Brand

  Reblig



  This product is listed in the following categories

  Brands, Electrical equipment, Reblig, Switches, Switches, dimmers and frames, Vintage switches and sockets

• Parameters

• Documents for download

• Ratings and reviews0

• Questions about the product0

Buy

Product code: RG0016B
