• Product description

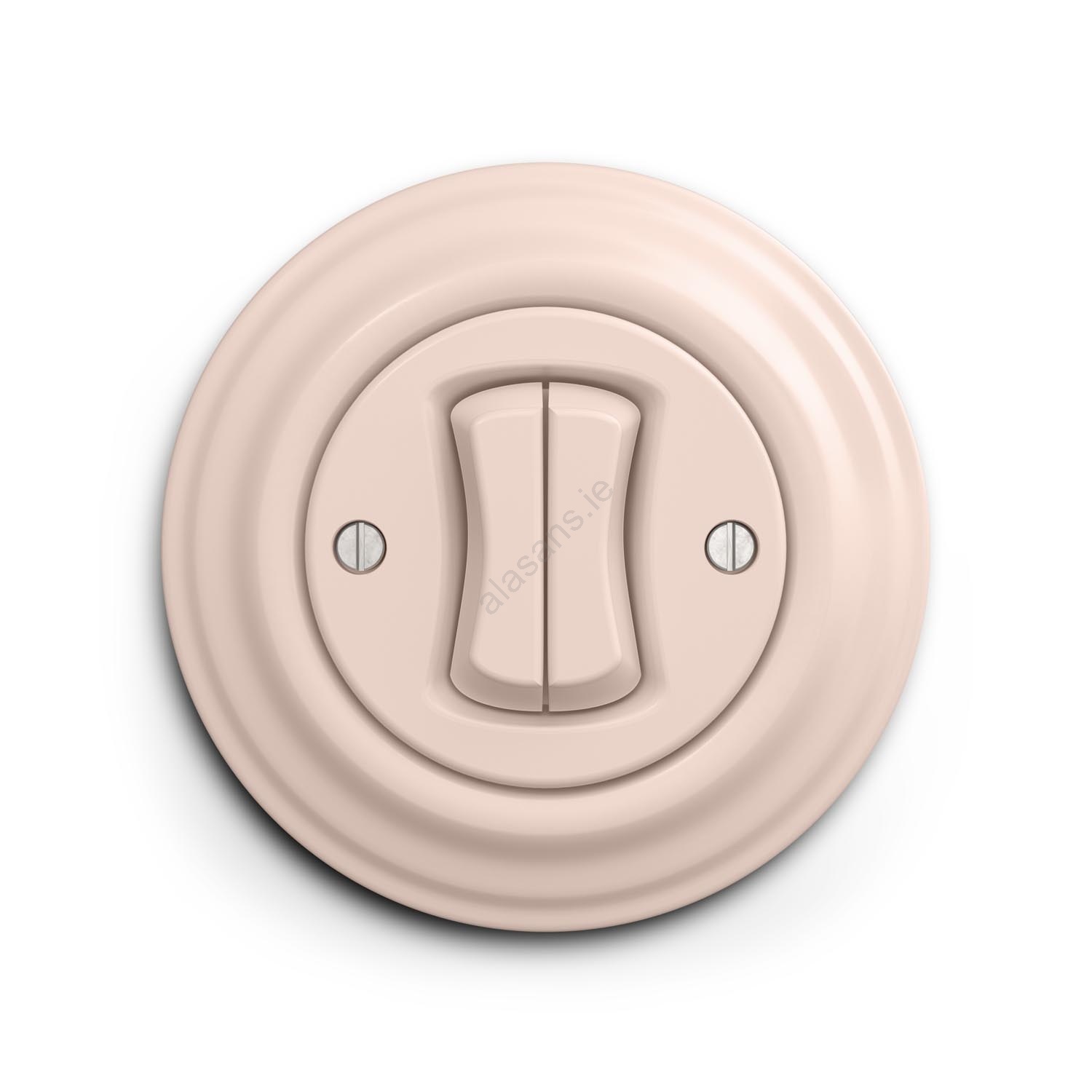

  • Dual doorbell button.
  • Its eye-catching retro design impresses at first glance.
  • With rotatable frames you can easily create double, triple or multi-gang configurations.

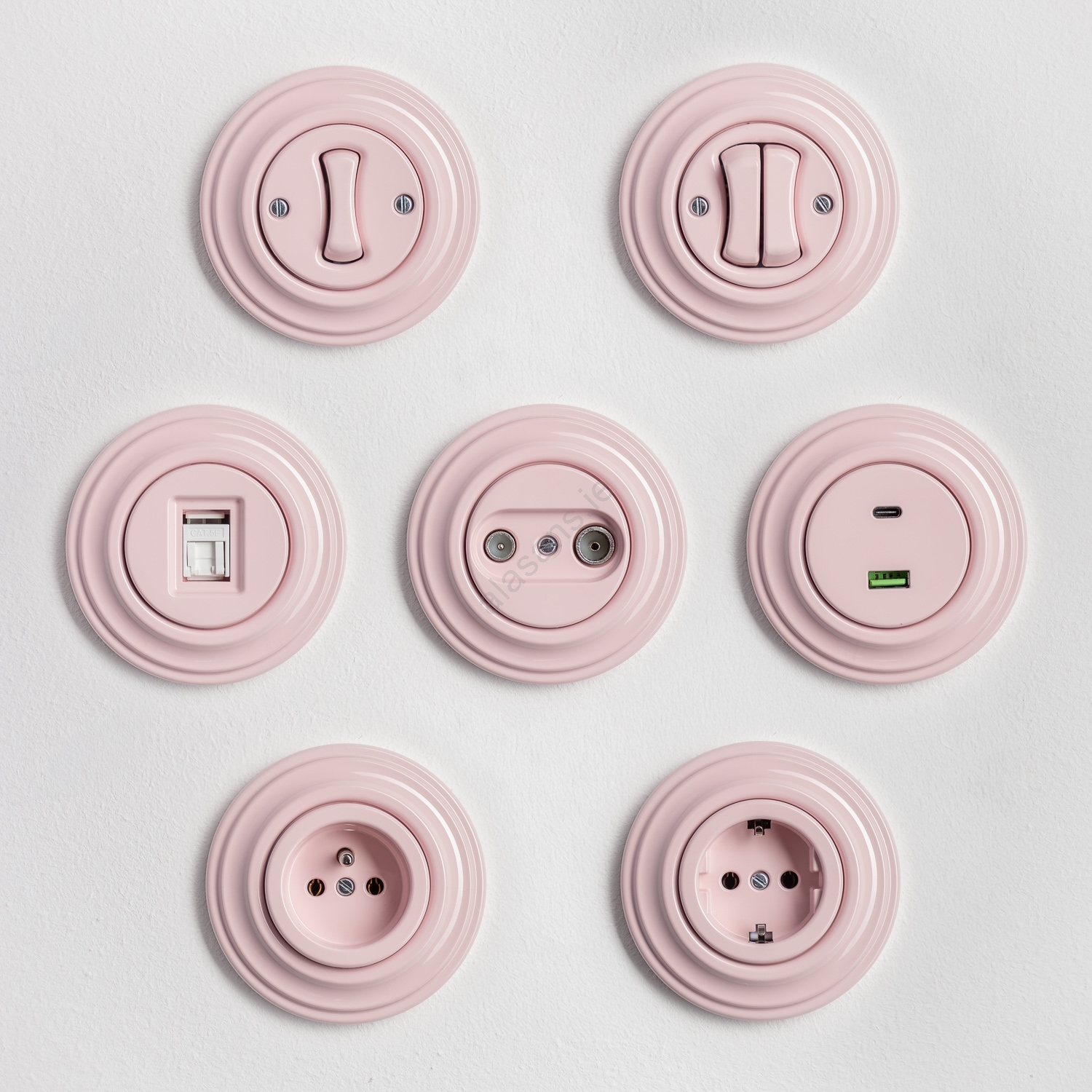

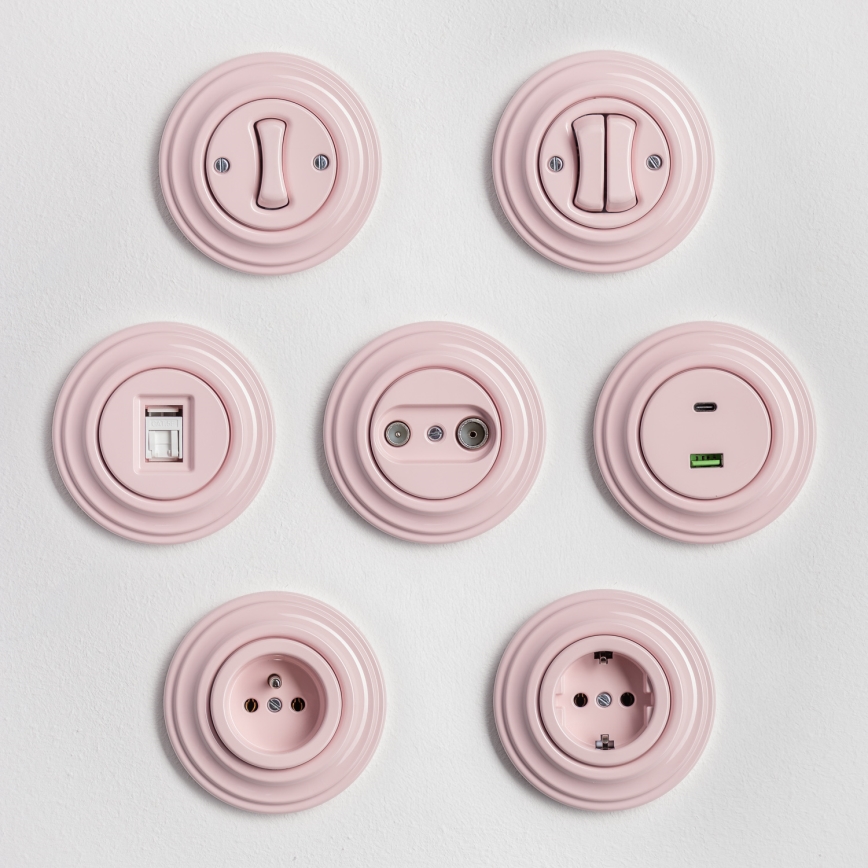

  • You can mix sockets and switches or use a run of identical modules.
  • Choose an end frame with a single-sided cut that can be rotated as needed, and a middle frame to attach on both sides to form a continuous series with an unlimited number of modules.
  • Install them horizontally or vertically, according to your needs.
  • Connection type: screw terminal.
  • Control type: rocker.
  • Mounting method: flush wall installation - suitable for electrical installation boxes with 71 mm fixing centers (e.g. KP68 or KU68).
  • Material type: heat-resistant plastic.
  • Rated current: 10 A.
  • Rated voltage: 230 V.
  • Frequency: 50 Hz.
  • Ingress protection (IP): IP20.
  • Device width: 70.5 mm.
  • Device height: 70.5 mm.
  • Device depth: 30 mm.
  • Always use round electrical installation boxes only.
  • Also allow for round cut-outs in wall coverings.

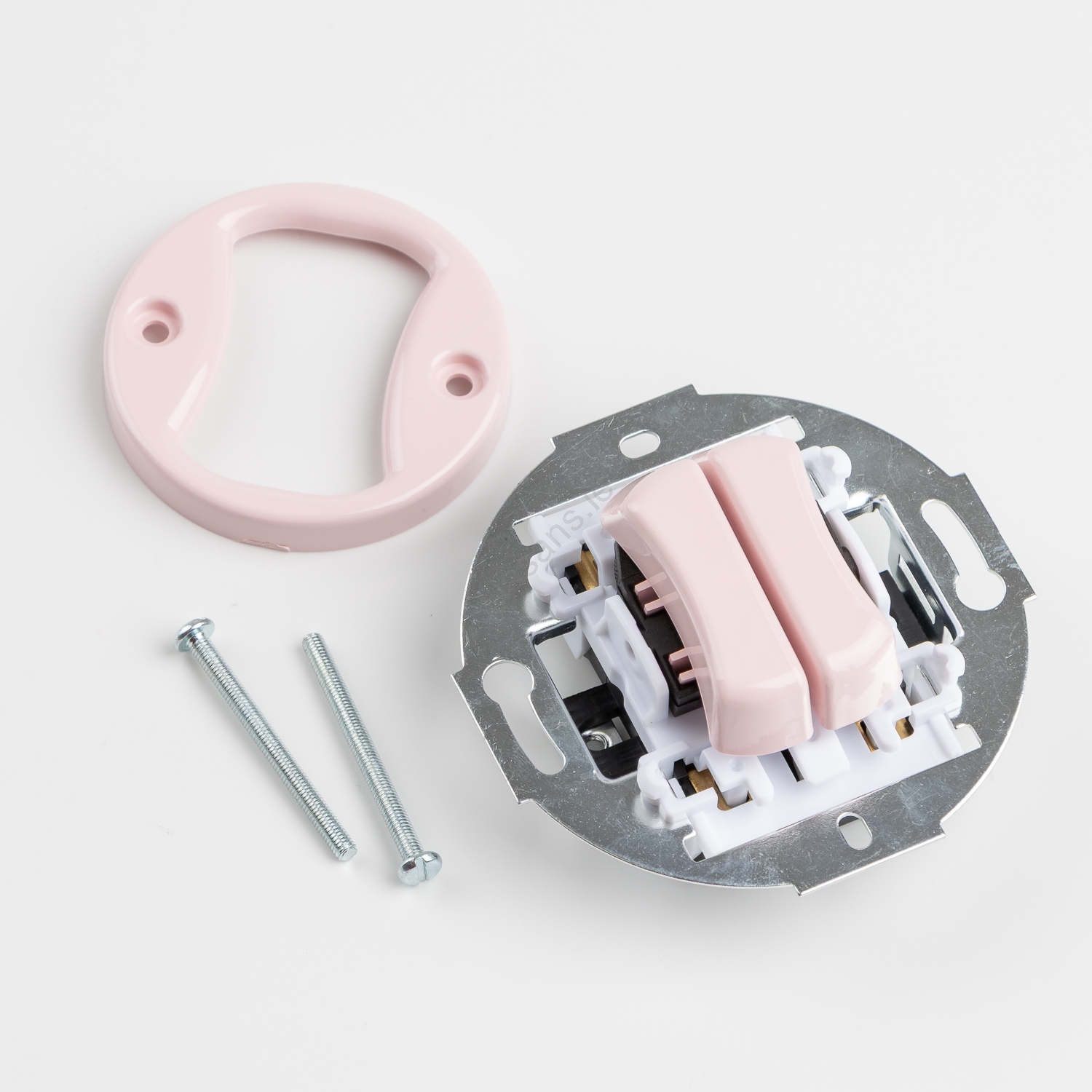

  • Frame is included in the package.
  • Made in the EU.

  Brand

  Reblig



  This product is listed in the following categories

  Brands, Electrical equipment, Reblig, Switches, Switches, dimmers and frames, Vintage switches and sockets

• Parameters

• Documents for download

• Ratings and reviews0

• Questions about the product0

Buy

Product code: RG0119M
