• Product description

  • Intermediate (cross) switch — for controlling corridors and staircases, enabling on/off operation from a third location.
  • For correct operation, must always be used together with series 6 switches.
  • Its retro design makes a striking first impression.

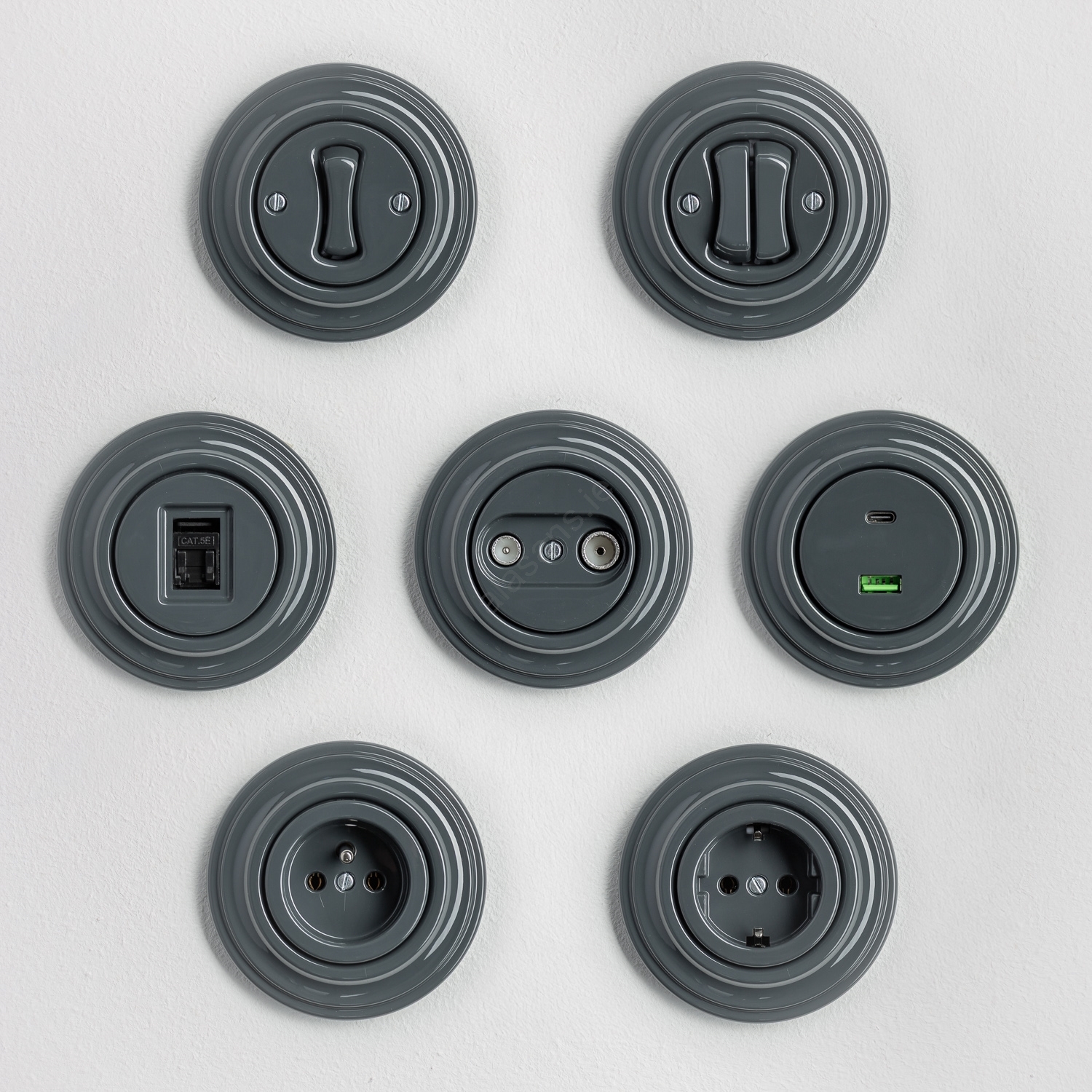

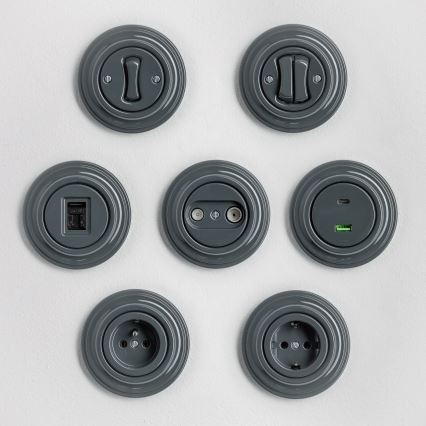

  • With rotatable frames you can easily assemble double, triple or multi-gang configurations.
  • You can combine sockets and switches or use a sequence of identical modules.
  • Choose an end frame with a one-sided trim that can be rotated to suit your needs, and a center frame to link elements on both sides — allowing you to build a continuous series with an unlimited number of modules.
  • Mount them horizontally or vertically, depending on your requirements.
  • Connection type: screw terminal.
  • Control type: rocker.
  • Mounting: flush-mounted into the wall — suitable for electrical installation boxes with 71 mm spacing (e.g., KP68 or KU68).
  • Material: heat-resistant plastic.
  • Rated current: 10 A.
  • Rated voltage: 230 V.
  • Frequency: 50 Hz.
  • IP rating: IP20.
  • Device width: 70.5 mm.
  • Device height: 70.5 mm.
  • Device depth: 30 mm.
  • Always use round electrical installation boxes only.
  • Also allow for round cut-outs in tiling.
  • Made in the EU.

  Brand

  Reblig



  This product is listed in the following categories

  Brands, Electrical equipment, Reblig, Switches, Switches, dimmers and frames, Vintage switches and sockets

• Parameters

• Documents for download

• Ratings and reviews0

• Questions about the product0

Buy

Product code: RG0043E
