• Product description

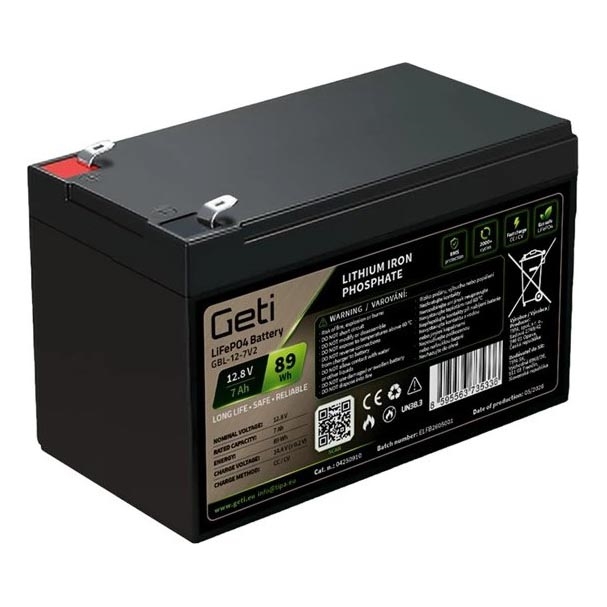

  • A LiFePO4 battery with a 7 Ah capacity is a compact, lightweight and powerful energy source designed for solar systems, caravans, boats, motorhomes, scooters and other applications that require frequent and deep discharging.
  • It is an excellent replacement for conventional lead‑acid, AGM or GEL batteries, offering significantly smaller dimensions, lower weight and a substantially longer service life exceeding 2000 cycles while maintaining the same capacity.
  • Safe operation and long service life are ensured by an integrated battery management system (BMS) that actively protects the cells from overcharge, excessive discharge and short circuits.
  • The battery features fast charging, no memory effect, low self‑discharge and the ability to be mounted in any orientation.
  • A robust enclosure with IP65 protection and Faston 6.3 mm connection terminals guarantees reliable use in both standard and more demanding operating environments.
  • Technical specifications:
  • Nominal voltage: 12.8 V.
  • Capacity and energy: 7 Ah / 89 Wh.
  • Charging voltage and mode: 14.4 V (+/- 0.2 V), CC/CV mode.
  • Maximum continuous charge / discharge current: 7 A / 7 A.
  • Peak discharge current: 10 A (for 5 s).
  • Load disconnect (under‑voltage): 10 V.
  • Service life: > 2000 cycles at 0.2C discharge (to 80 % of the new battery’s capacity).
  • Management and features: integrated BMS (no Bluetooth interface).
  • Self‑discharge: ≤ 2 % per month.
  • Temperature ranges: charging 0 °C to 45 °C / discharging -20 °C to 60 °C / storage -5 °C to 45 °C.
  • Connection options: max. 4S4P (series‑parallel).
  • Connection terminals and protection: Faston 6.3 mm, IP65 ingress protection.
