• Product description

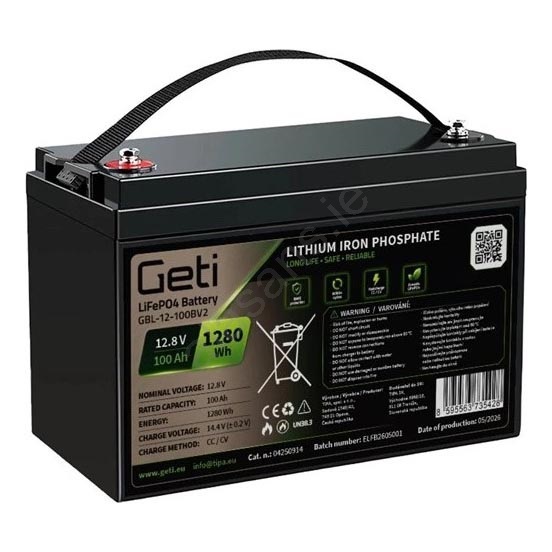

  • The LiFePO4 battery is a modern, lightweight and high-performance battery designed for solar systems, caravans, boats, motorhomes, scooters and other applications requiring frequent and deep discharging.
  • It represents the ideal replacement for conventional lead-acid, AGM or GEL batteries, offering significantly lower weight, smaller dimensions and a life span many times longer, reaching more than > 6000 cycles at 80% DOD.
  • The battery is equipped with premium A+ cells, whose internal connections are executed by high-precision laser welding to ensure exceptional mechanical strength and maximum electrical conductivity.
  • An integrated intelligent Battery Management System (BMS) ensures safe operation and long life by actively protecting the cells against overcharge, over-discharge, overload and short circuit.
  • A major advantage is the built-in Bluetooth module for convenient real-time monitoring of the battery's status and parameters.
  • The battery features high safety, fast charging without memory effect, low self-discharge and the ability to be installed in any orientation.
  • Durable housing with IP65 protection and robust M8 terminals reliably protects the battery even in demanding environments.
  • Technical specifications:
  • Nominal voltage: 12.8 V.
  • Capacity and energy: 100 Ah / 1280 Wh.
  • Charging voltage and mode: 14.4 V (+/- 0.2 V), CC/CV mode.
  • Recommended charging current: 20 A.
  • Maximum continuous charging / discharging current: 100 A / 100 A.
  • Peak discharge current: 200 A (for 5 s at 25 °C).
  • Load disconnect (under-discharge): 10 V.
  • Cycle life: > 6000 cycles at 80% DOD.
  • Management and communication: integrated JBD BMS, Bluetooth interface.
  • Self-discharge: ≤ 2 % per month (at 25 °C).
  • Temperature ranges: charging 0 °C to 45 °C / discharging -20 °C to 60 °C / storage -5 °C to 35 °C.
  • Connection options: max. 4S4P (series-parallel).
  • Connection terminals and protection: M8 threaded, protection rating IP65.
