• Product description

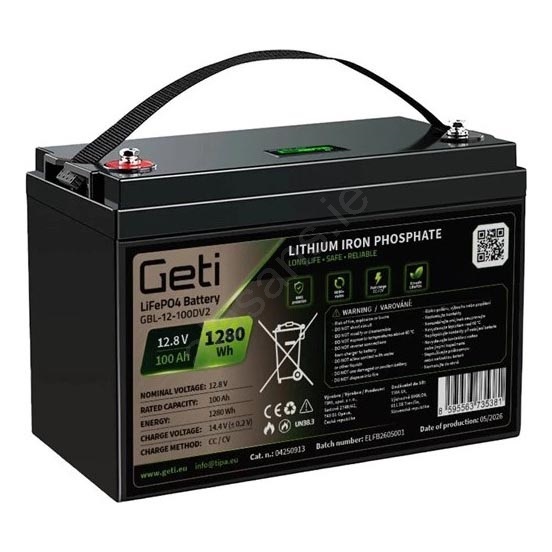

  • The LiFePO4 battery is a modern, lightweight and high-performance battery designed for solar systems, caravans, boats, motorhomes, scooters and other applications that require frequent and deep discharging.
  • It is an ideal replacement for traditional lead-acid, AGM or GEL batteries, offering significantly lower weight, smaller dimensions and a lifespan many times longer, exceeding > 6000 cycles at 80% DoD.
  • The battery is fitted with branded A+ grade cells whose internal connections are made by high-precision laser welding to ensure excellent mechanical strength and maximum electrical conductivity.
  • An integrated intelligent Battery Management System (BMS) ensures safe operation and long life by actively protecting the cells against overcharge, excessive discharge, overload and short circuit.
  • For instant status monitoring the battery is equipped with a practical display.
  • The unit features high safety, fast charging without memory effect, low self-discharge and the ability to be mounted in any orientation.
  • A durable housing with an IP20 protection rating and robust M8 terminals ensures reliable connections in normal operating environments.
  • Technical specifications:
  • Nominal voltage: 12.8 V.
  • Capacity and energy: 100 Ah / 1280 Wh.
  • Charging voltage and mode: 14.4 V (+/- 0.2 V), CC/CV mode.
  • Recommended charging current: 20 A.
  • Maximum continuous charge/discharge current: 100 A / 100 A.
  • Peak discharge current: 200 A (for 5 s).
  • Low-voltage cutoff (under-discharge): 10 V.
  • Lifespan: > 6000 cycles at 80% DoD.
  • Management and features: integrated JBD BMS, built-in display (no Bluetooth interface).
  • Self-discharge: ≤ 2 % per month (at 25 °C).
  • Temperature ranges: charging 0 °C to 45 °C / discharging -20 °C to 60 °C / storage -10 °C to 45 °C.
  • Connection options: max. 4S4P (series-parallel).
  • Connection terminals and protection: M8 thread, IP20 protection rating.
