• Product description

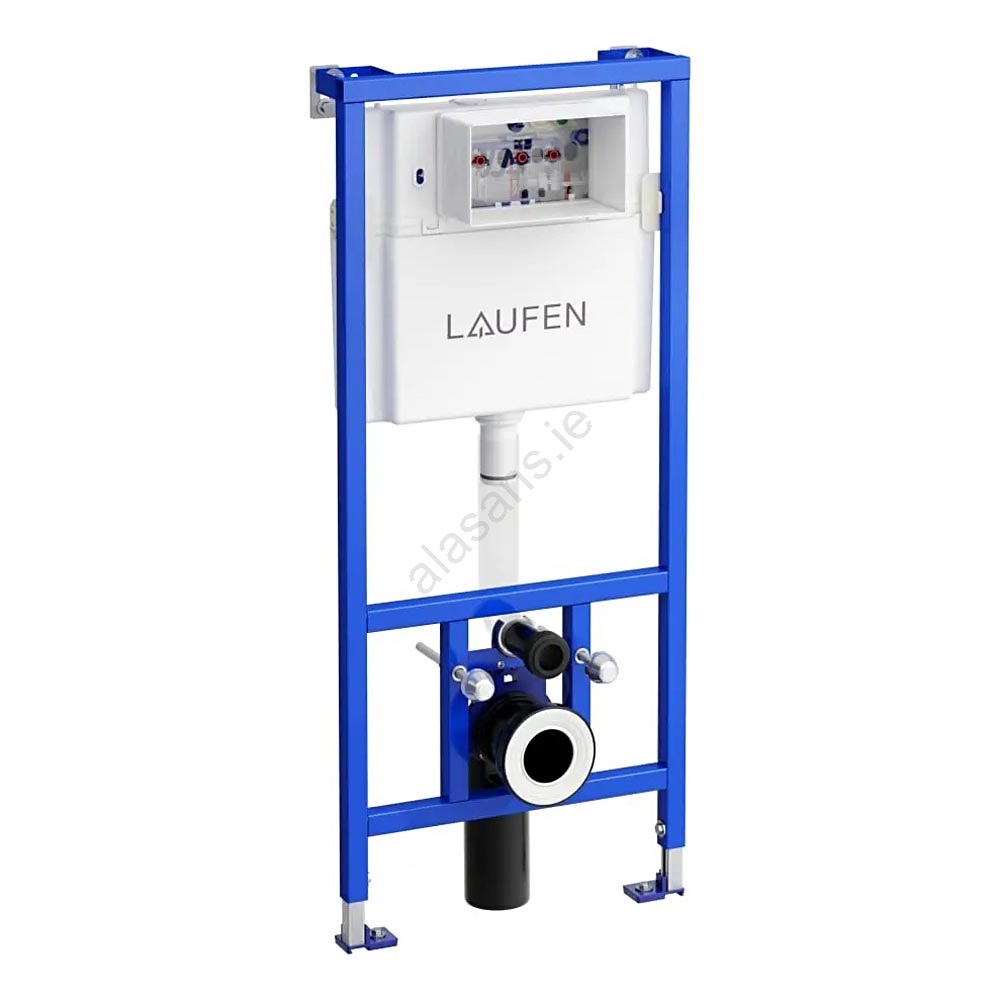

  • Concealed in-wall frame module for a lightweight partition for wall-hung toilets.
  • Insulated against water condensation.
  • Flush valve with silicone seal.
  • Front-mounted flush control.
  • Dual-flush operation.
  • The flush volumes can be set to 6/3, 4.5/3 L or 4/2 L.
  • Swiveling galvanized foot supports, height-adjustable 0-200 mm.
  • Support frame constructed from steel profiles.
  • Top or rear water supply, R 1/2"" brass.
  • Outlet: DN 90/110.
  • Operating pressure: 0.5-10 bar.
  • Maximum water temperature: 25 °C.

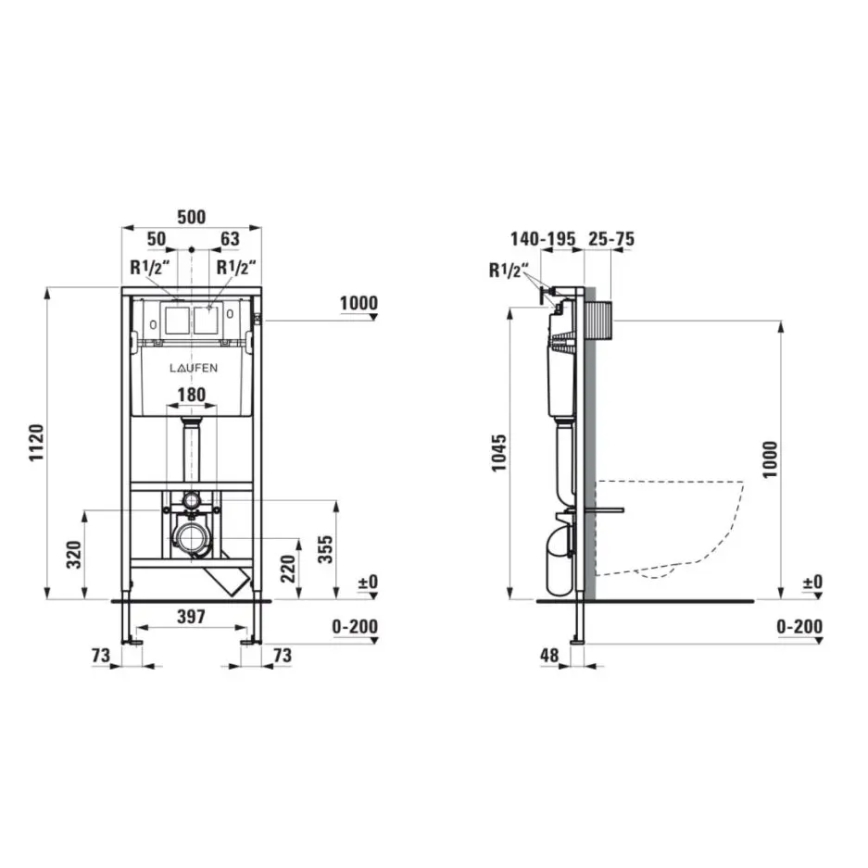

  • Installation depth: 140-195 mm.
  • Load capacity: 400 kg.
  • The flush plate is not included - must be purchased separately.

  Brand

  LAUFEN



  This product is listed in the following categories

  Bathroom, Brands, LAUFEN, Sanitary ware, Toilet and sanitary ware accessories, Toilet modules, Toilets and bidets

• Parameters

• Documents for download

• Ratings and reviews0

• Questions about the product0

• Information about manufacturer / EU responsible person

  GPSR (General Product Safety Regulation) is an EU regulation (EU) 2023/988 that sets rules for the safety of products placed on the EU market. The aim of this regulation is to ensure that consumers purchase only safe products and that all parties in the supply chain comply with strict quality and safety standards. GPSR applies to most consumer products and covers manufacturers, importers and distributors. It complements and clarifies the requirements of other directives and regulations, such as those for electronics, toys, medical devices or chemicals. This product complies with the requirements of the GPSR regulation and its manufacturer is responsible for its compliance with applicable standards. All information on safety, traceability and product responsibility is in accordance with this regulation.

Buy

Product code: LF0259
