• Product description

  • Cross (intermediate) switch = for controlling lighting in corridors and staircases, allowing on/off operation from a third location.
  • For correct operation, always use together with switches from series 6.

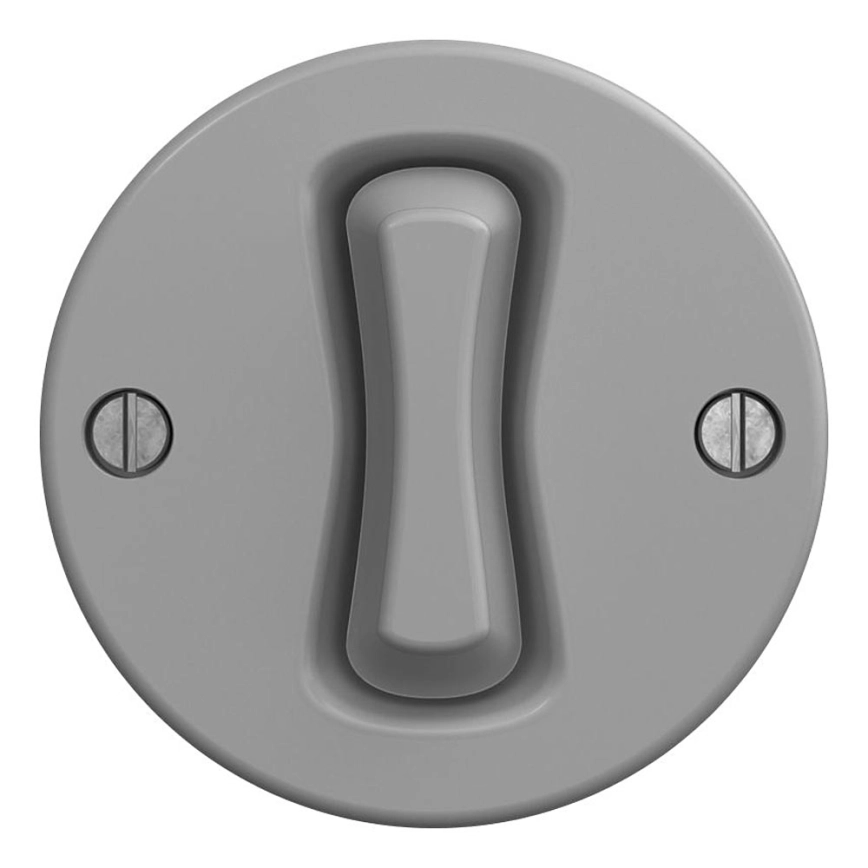

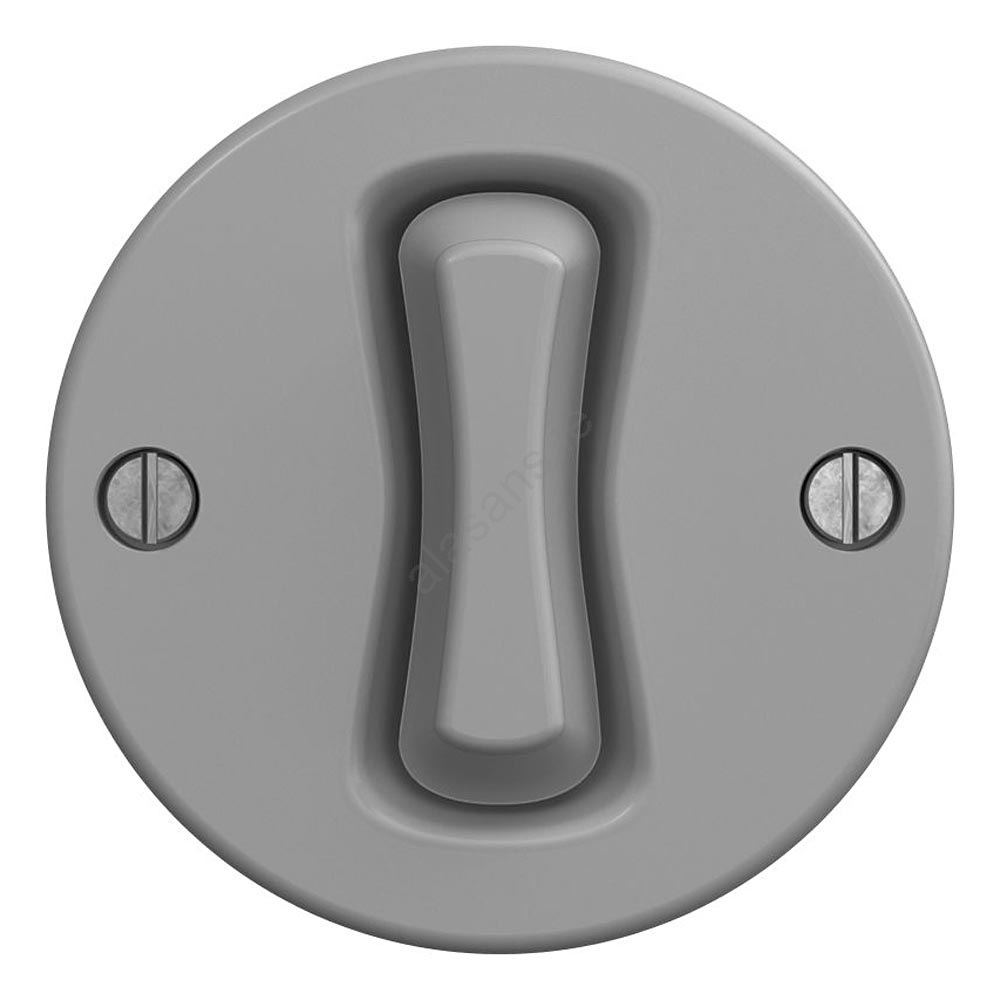

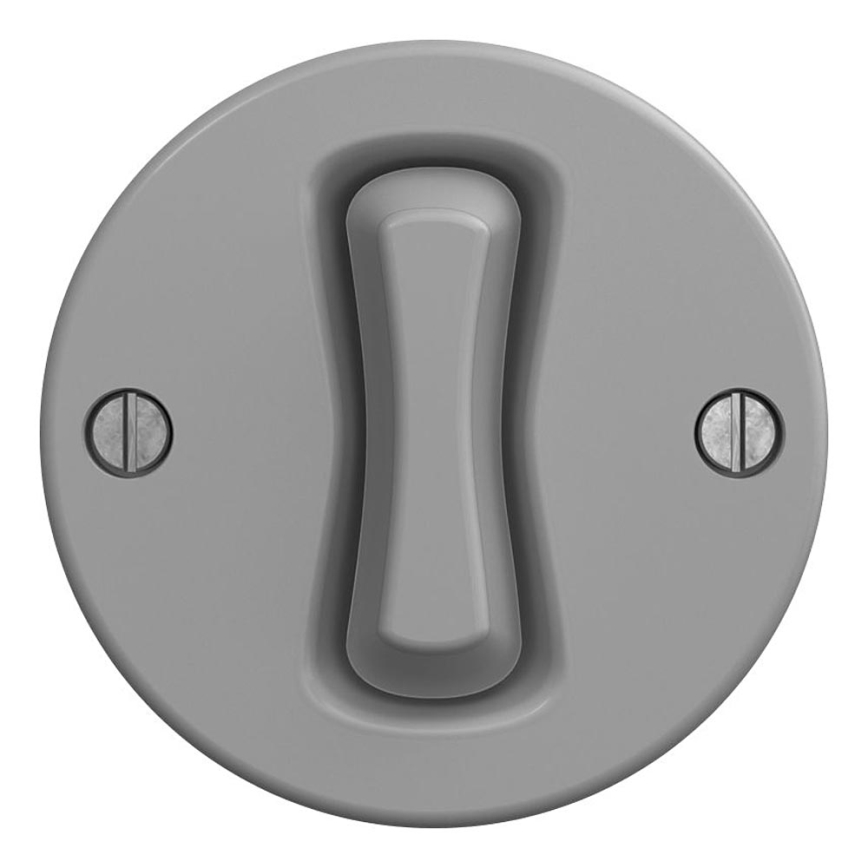

  • Round switch in grey.
  • Its retro design makes a striking first impression.

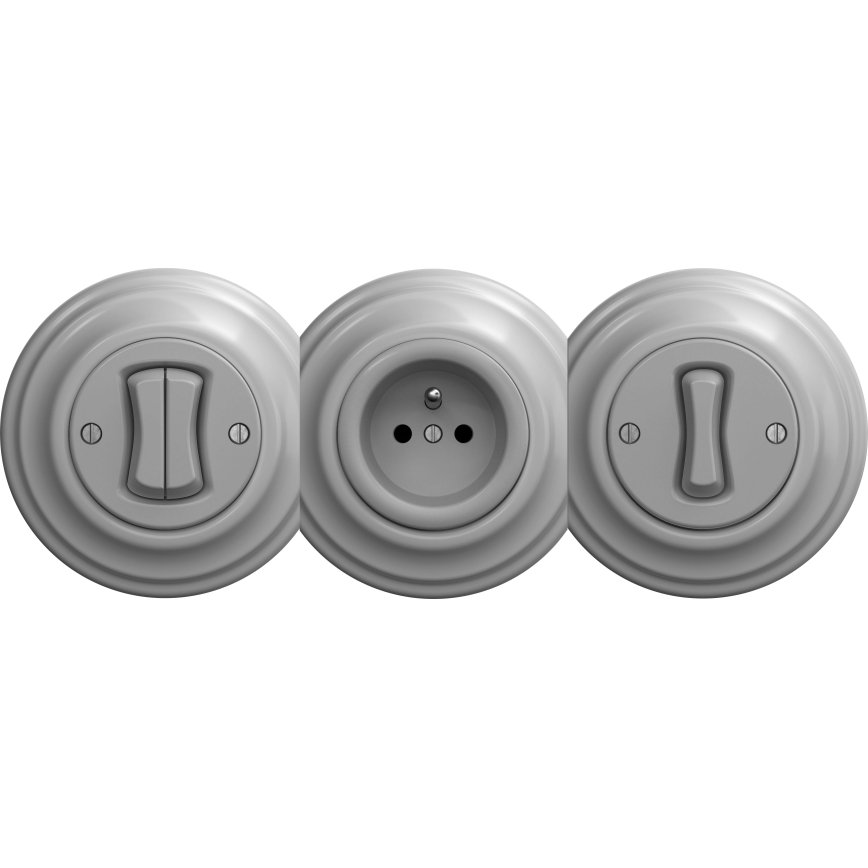

  • With rotatable frames you can easily create double, triple or multi-gang configurations.
  • Mix sockets and switches or build a row of identical units.
  • Choose an end frame with a one-sided trim that can be rotated as required, plus a middle frame to attach modules on both sides, allowing you to build a continuous series with unlimited elements.
  • Position them horizontally or vertically to suit your layout.
  • Connection type: screw terminal.
  • Control type: rocker.
  • Mounting method: flush wall mounting - suitable for electrical installation boxes with 71 mm spacing (e.g. KP68 or KU68).
  • Material type: heat-resistant plastic.
  • Rated current: 10 A.
  • Rated voltage: 230 V.
  • Frequency: 50 Hz.
  • Ingress protection (IP): IP20.
  • Device width: 70.5 mm.
  • Device height: 70.5 mm.
  • Device depth: 30 mm.
  • Always use round electrical installation boxes only.
  • Also allow for round cut-outs in tiles.
  • Frame not included.
  • Made in the Czech Republic.

  Brand

  Kliklap



  This product is listed in the following categories

  Brands, Electrical equipment, Electrical installation, Kliklap, Retro switches, Switches, Switches, dimmers and frames, Vintage switches and sockets

• Parameters

• Documents for download

• Ratings and reviews0

• Questions about the product0

Buy

Product code: KA0050
