• Product description

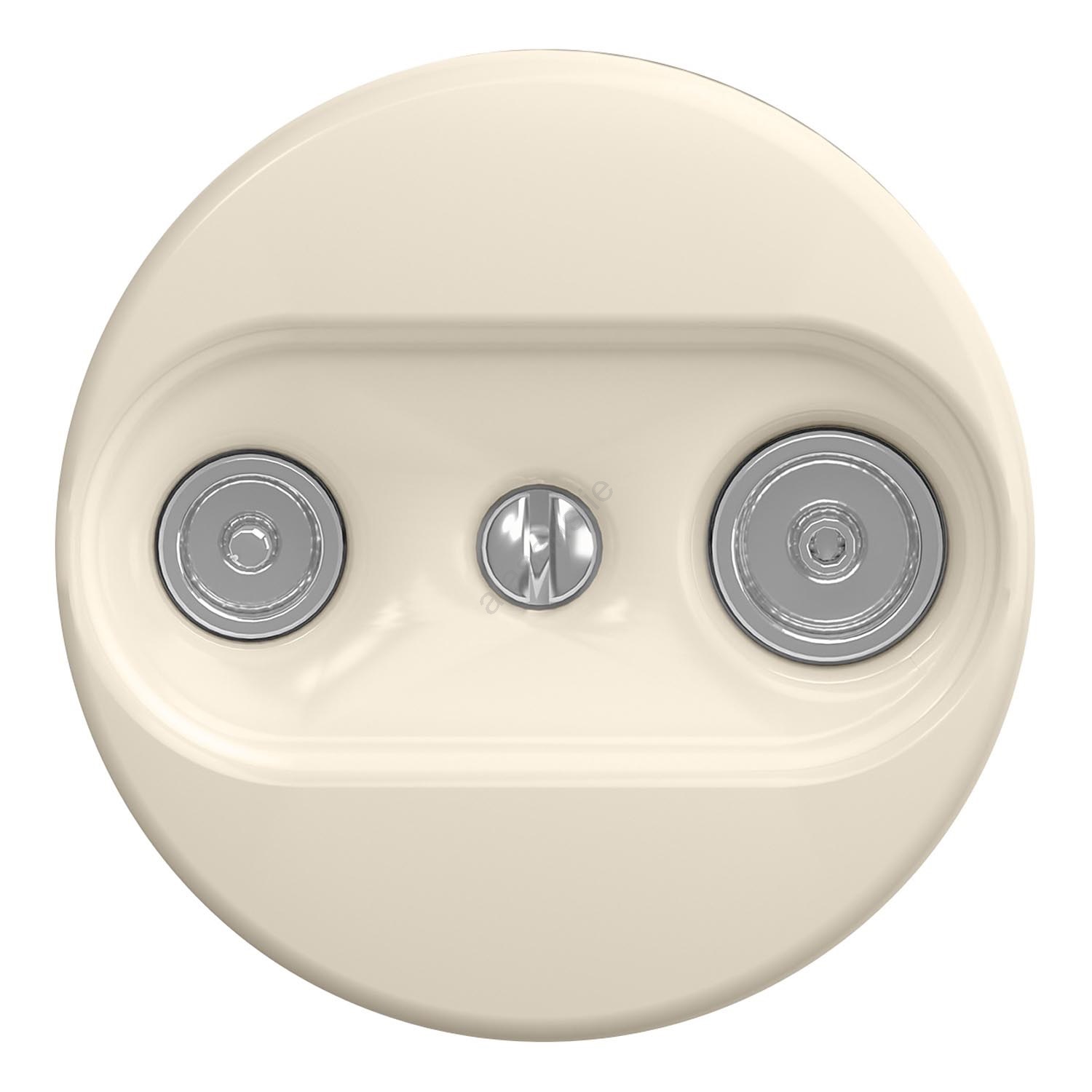

  • TV+R outlet (end unit).
  • Its retro design makes a striking first impression.
  • Use rotatable frames to easily assemble double, triple, or multiple product configurations.
  • Combine sockets and switches or create a row of identical modules.
  • Select an end frame with a one-sided cut that can be rotated as needed, plus middle frames that connect on both sides to form a continuous series with no limit to the number of elements.
  • Install them horizontally or vertically according to your requirements.
  • Connection type: screw terminal.
  • Mounting method: flush wall mounting - suitable for electrical installation boxes with a 71 mm spacing (e.g., KP68 or KU68).
  • Material: heat-resistant plastic.
  • End attenuation: 3 dB.
  • Connector type: IEC.
  • Labeling: TV + R.
  • Device width: 70.5 mm.
  • Device height: 70.5 mm.
  • Device depth: 20 mm.
  • Always use round electrical installation boxes.
  • Also allow for round cut-outs in tiling.
  • Frame not included.
  • Made in the EU.

  Brand

  Kliklap
