• Product description

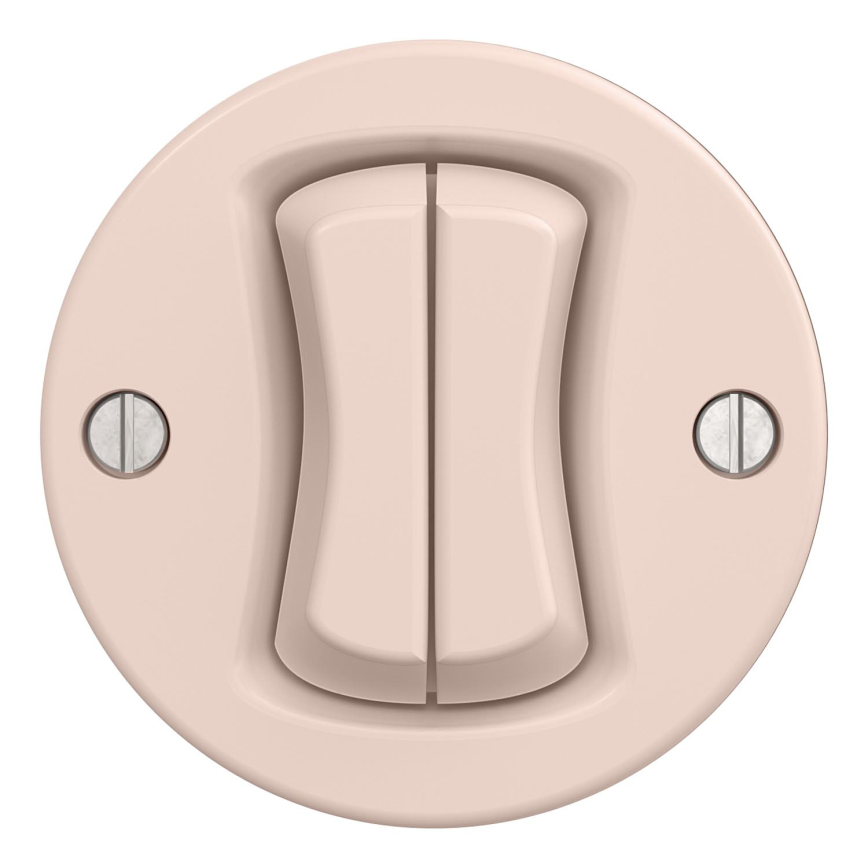

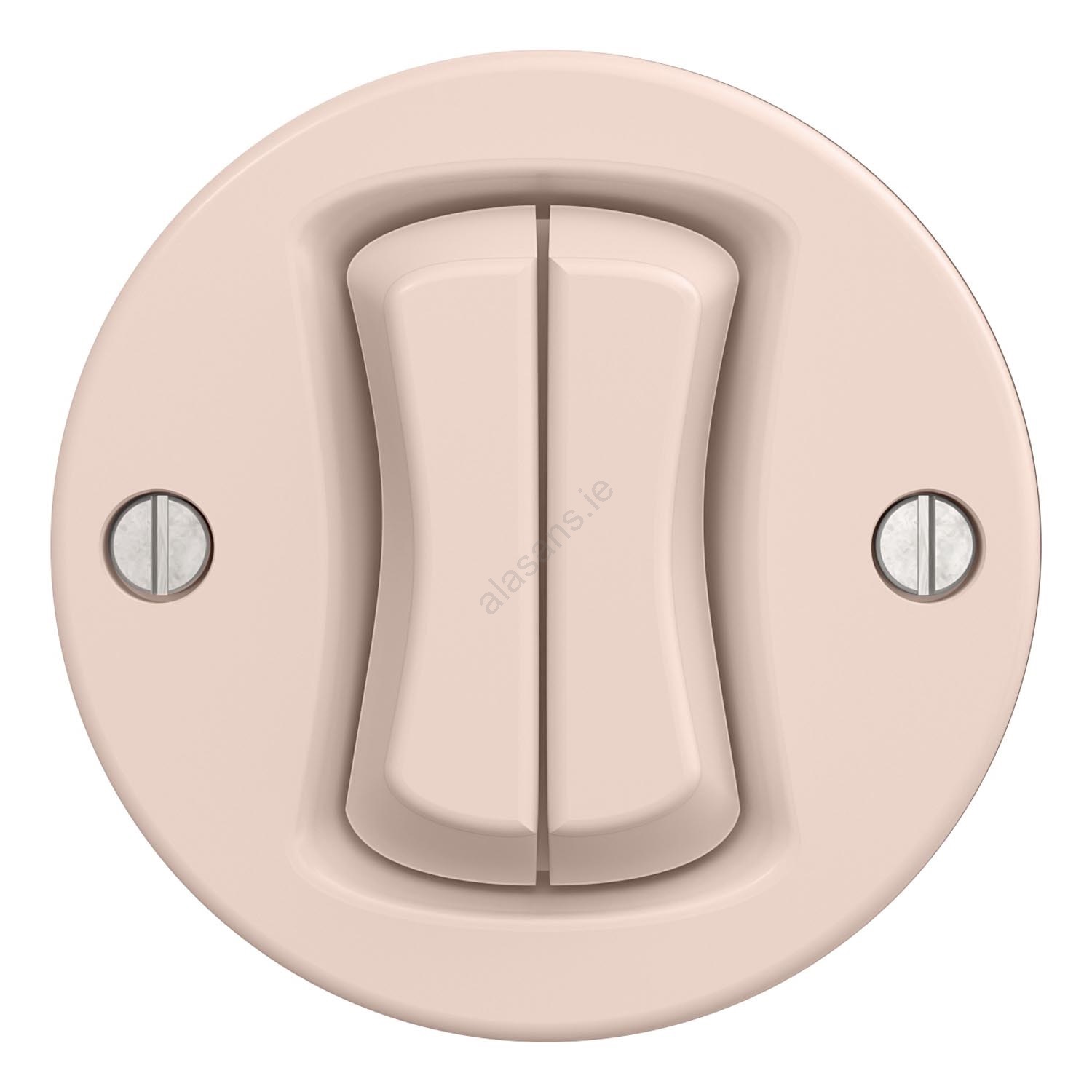

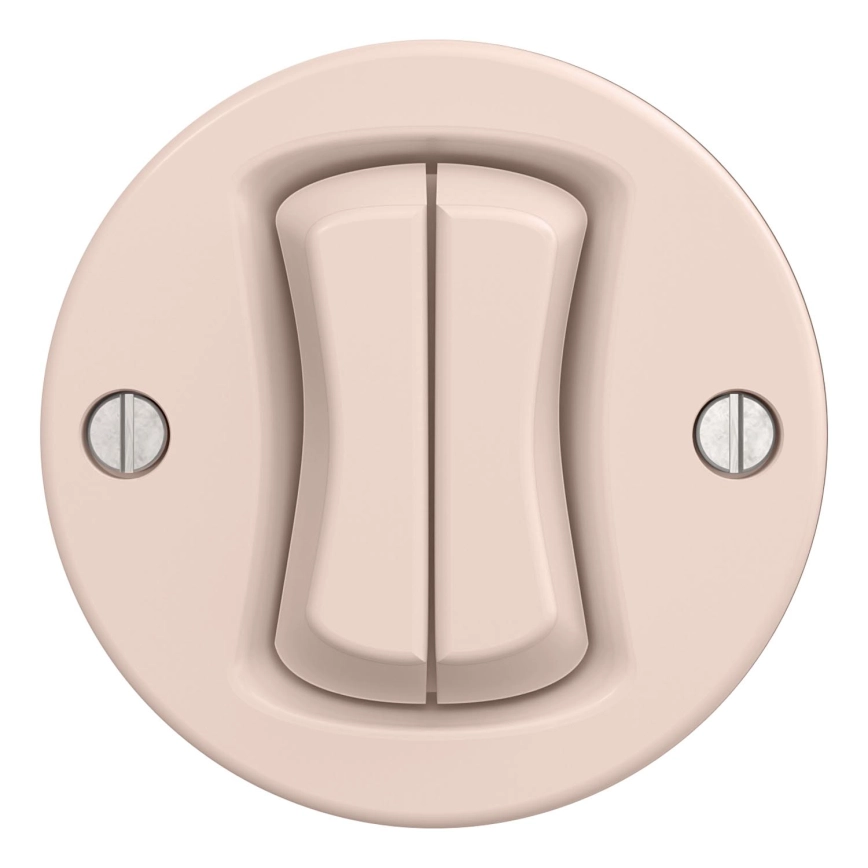

  • Double doorbell push-button.
  • Its retro design makes a striking first impression.

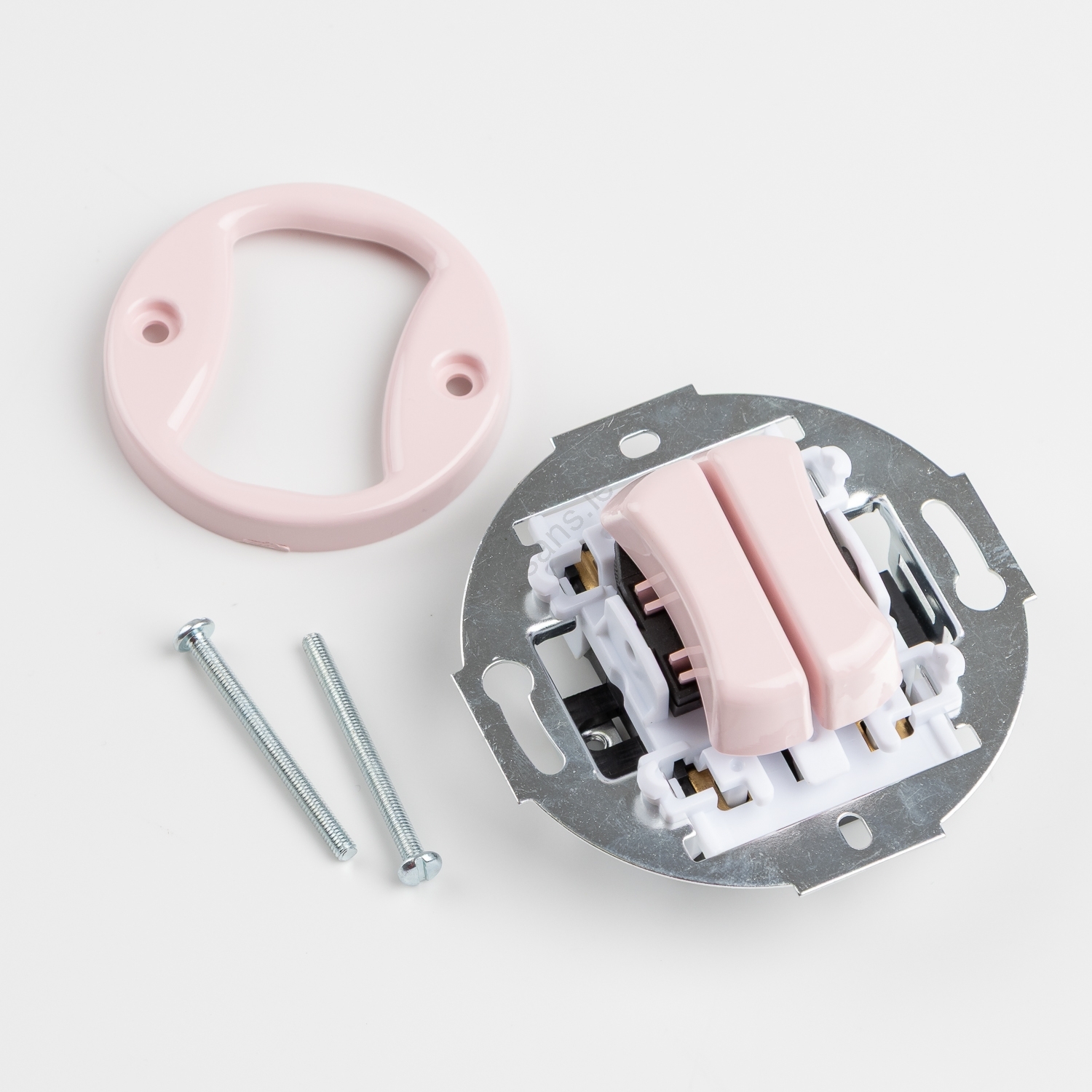

  • With rotatable frames you can easily assemble double, triple or multiple product configurations.
  • You can combine sockets and switches or use a series of identical modules.
  • Choose an end frame with a single-sided trim that can be rotated as needed, and a central frame to connect on both sides, creating a continuous series with an unlimited number of modules.
  • Install horizontally or vertically, according to your requirements.
  • Connection type: screw terminal.
  • Control type: rocker.
  • Mounting method: flush wall mounting - suitable for electrical installation boxes with 71 mm centers (e.g., KP68 or KU68).
  • Material type: heat-resistant plastic.
  • Rated current: 10 A.
  • Rated voltage: 230 V.
  • Frequency: 50 Hz.
  • Ingress protection (IP): IP20.
  • Device width: 70.5 mm.
  • Device height: 70.5 mm.
  • Device depth: 30 mm.
  • Always use only round electrical installation boxes.
  • Also allow for round cut-outs in wall tiling.
  • Frame not included.
  • Made in the EU.
