• Product description

  • Intermediate (cross/4‑way) switch – designed for controlling corridors and staircases, allowing on/off operation from a third location.
  • For correct operation, always use together with switches from series 6.

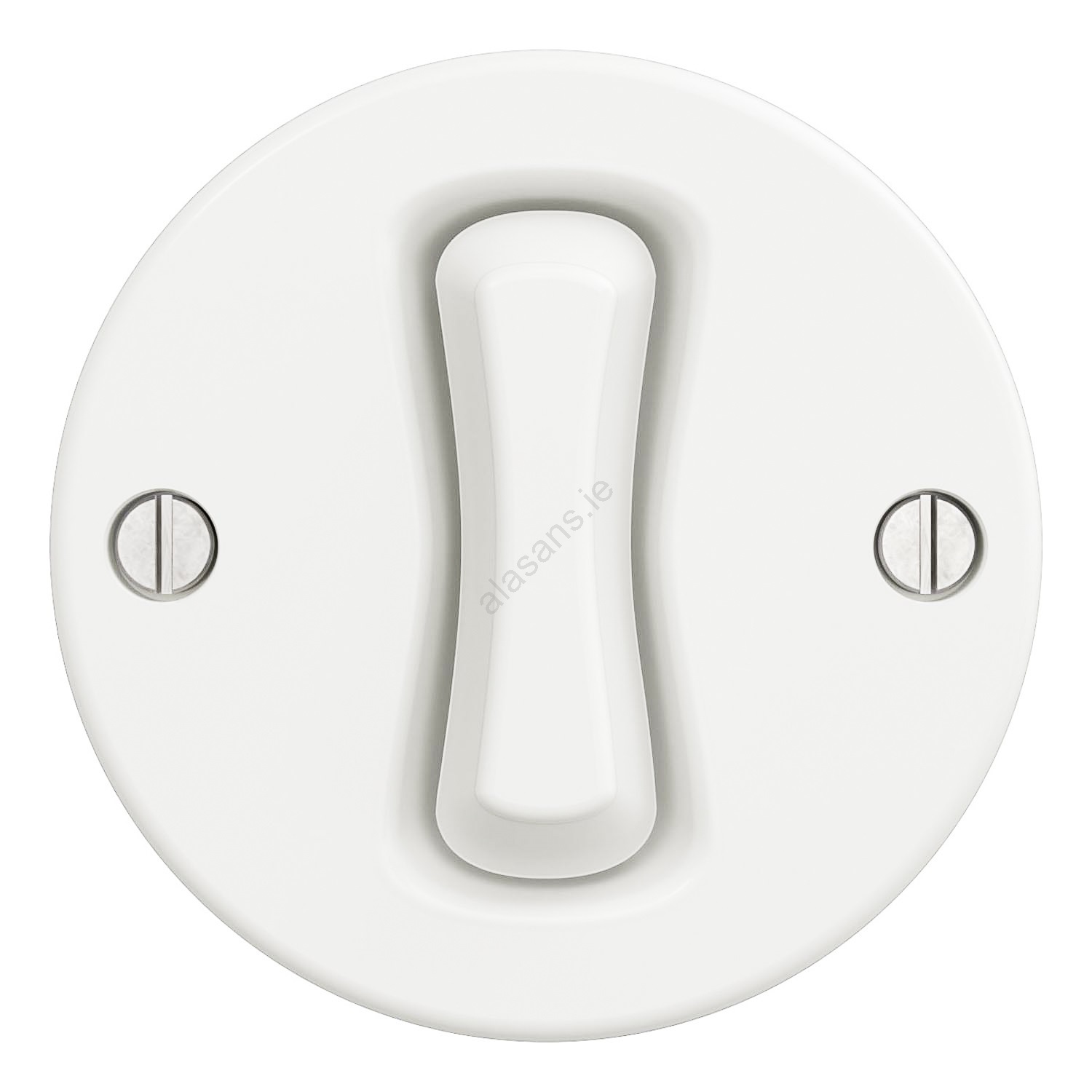

  • Round switch in ceramic white finish.
  • Its retro design catches the eye at first glance.

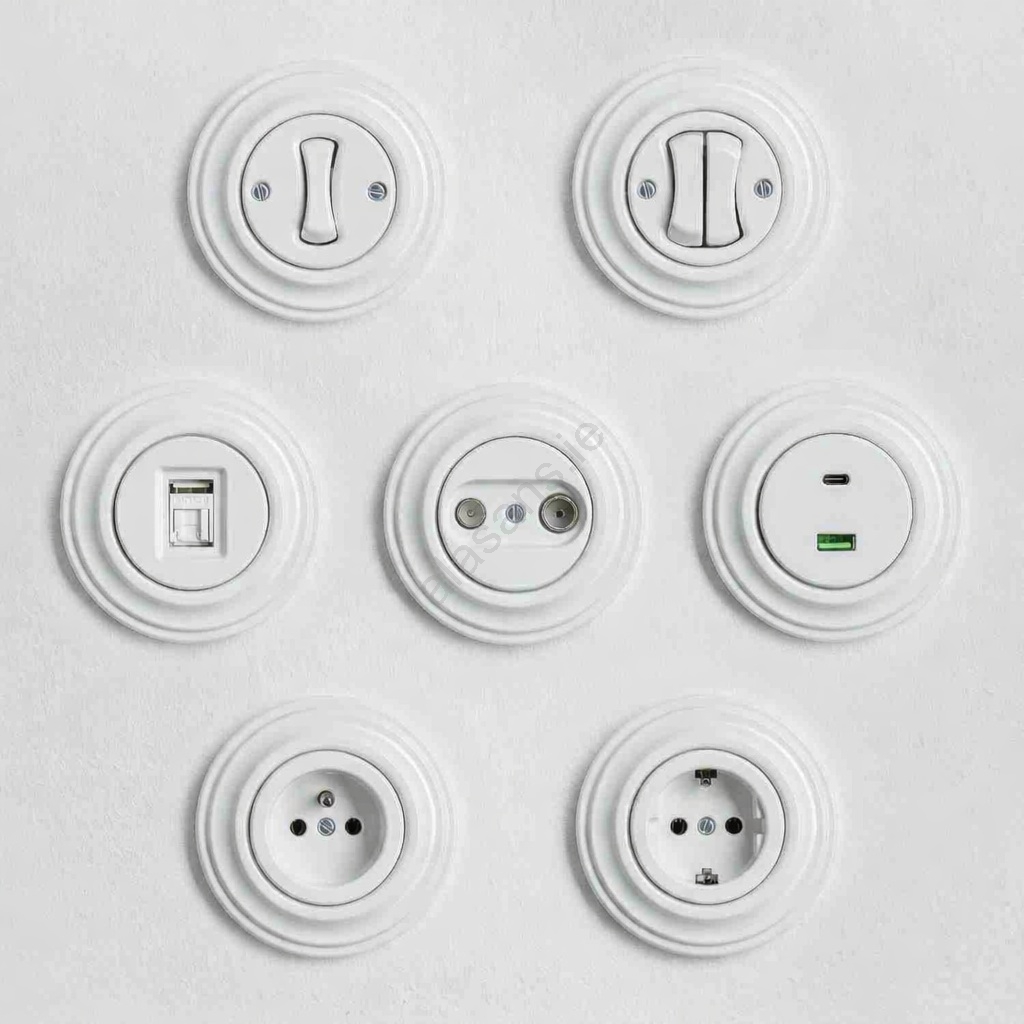

  • Use rotatable frames to easily create double, triple or multi‑gang product assemblies.
  • You can combine sockets and switches, or use a series of identical modules.
  • Select an end frame with a single‑sided trim that can be rotated as needed, and use middle frames that connect on both sides to build a continuous series with an unlimited number of elements.
  • Install horizontally or vertically according to your requirements.

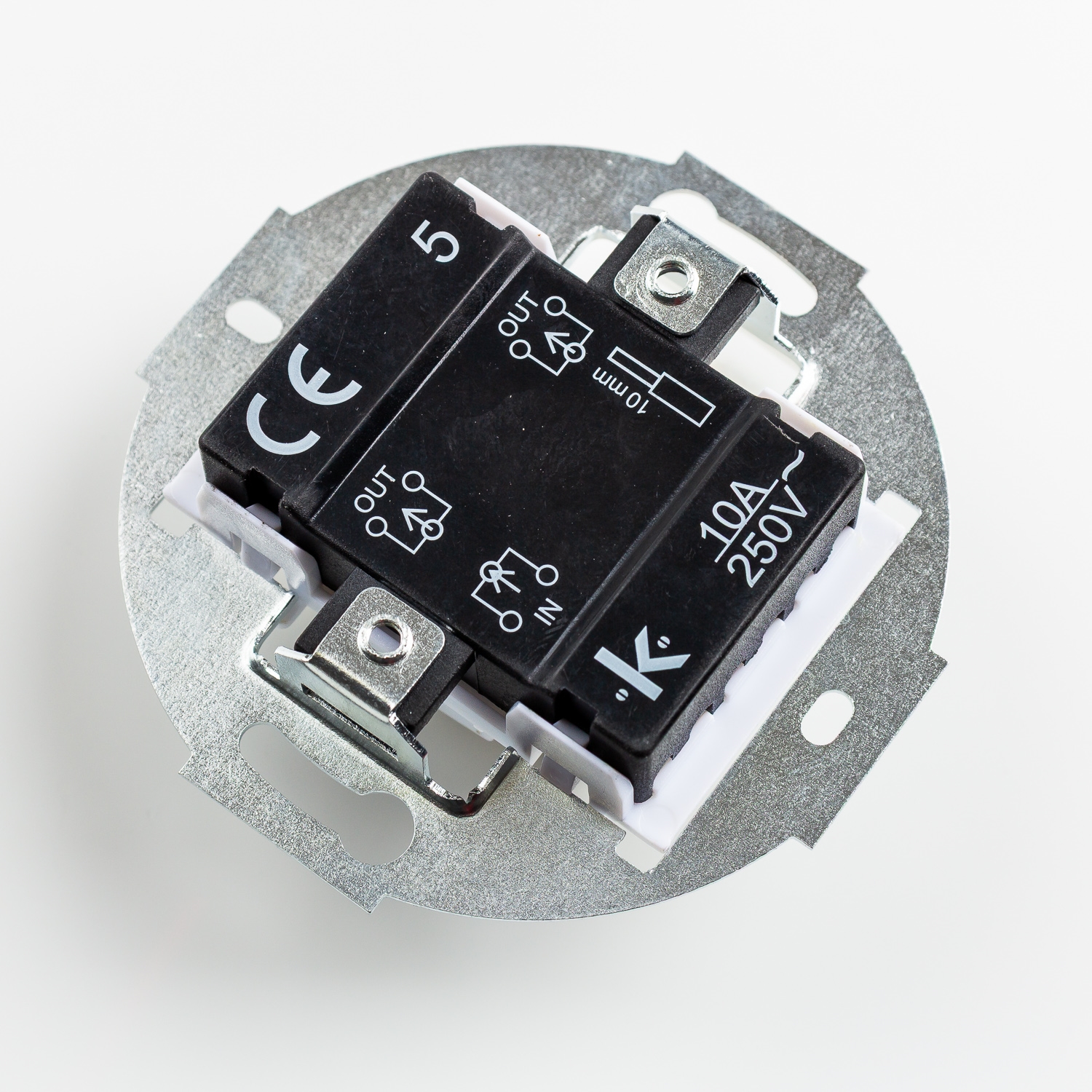

  • Connection type: screw terminal.
  • Control type: rocker.
  • Mounting method: flush wall installation – suitable for electrical installation boxes with 71 mm spacing (e.g. KP68 or KU68).
  • Material: heat‑resistant plastic.
  • Rated current: 10 A.
  • Rated voltage: 230 V.
  • Frequency: 50 Hz.
  • Ingress protection (IP): IP20.
  • Device width: 70.5 mm.
  • Device height: 70.5 mm.
  • Device depth: 30 mm.
  • Always use round electrical installation boxes only.
  • Allow for round cutouts in tiles.
  • Frame not included.
  • Made in the Czech Republic.

  Brand:

  Kliklap



  This product is listed in the following categories

  Brands, Electrical equipment, Electrical installation, Kliklap, Switches, dimmers and frames, Vintage switches and sockets

• Parameters

• Documents for download

• Ratings and reviews0

• Questions about the product0

Buy

Product code: KA0149
