• Product description

  • Intermediate switch = for controlling corridors and staircases, allowing on/off operation from a third location.
  • For correct operation, always use together with Series 6 switches.
  • Its retro design makes a striking first impression.
  • Rotatable frames let you easily create double, triple or multi-gang configurations.

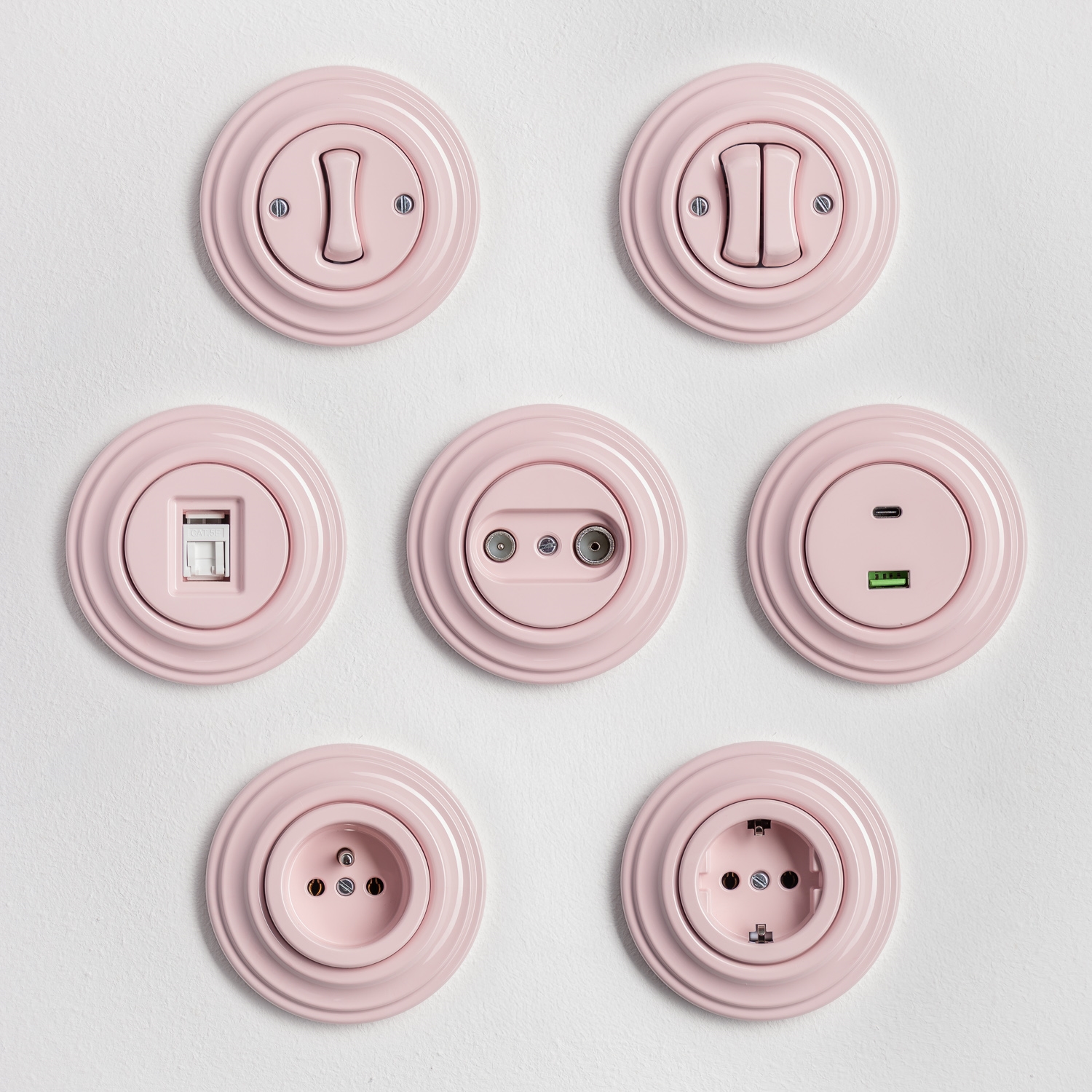

  • You can mix sockets and switches, or use a row of identical elements.
  • Select the end frame with a one-sided cut that can be rotated as needed, and the middle frame which connects on both sides to form a complete series with an unlimited number of elements.
  • Install them horizontally or vertically, according to your requirements.
  • Connection type: screw terminal.
  • Control type: rocker.
  • Mounting method: wall mounting - suitable for electrical installation boxes with 71 mm spacing (e.g. KP68 or KU68).
  • Material: heat-resistant plastic.
  • Rated current: 10 A.
  • Rated voltage: 230 V.
  • Frequency: 50 Hz.
  • Ingress protection (IP): IP20.
  • Device width: 70.5 mm.
  • Device height: 70.5 mm.
  • Device depth: 30 mm.
  • Always use only round electrical installation boxes.
  • Also allow for round cut-outs in tiles.
  • Made in the EU.

  Brand

  Kliklap



  This product is listed in the following categories

  Brands, Electrical equipment, Electrical installation, Kliklap, Retro switches, Switches, Switches, dimmers and frames, Vintage switches and sockets

• Parameters

• Documents for download

• Ratings and reviews0

• Questions about the product0

Buy

Product code: KA0119E
