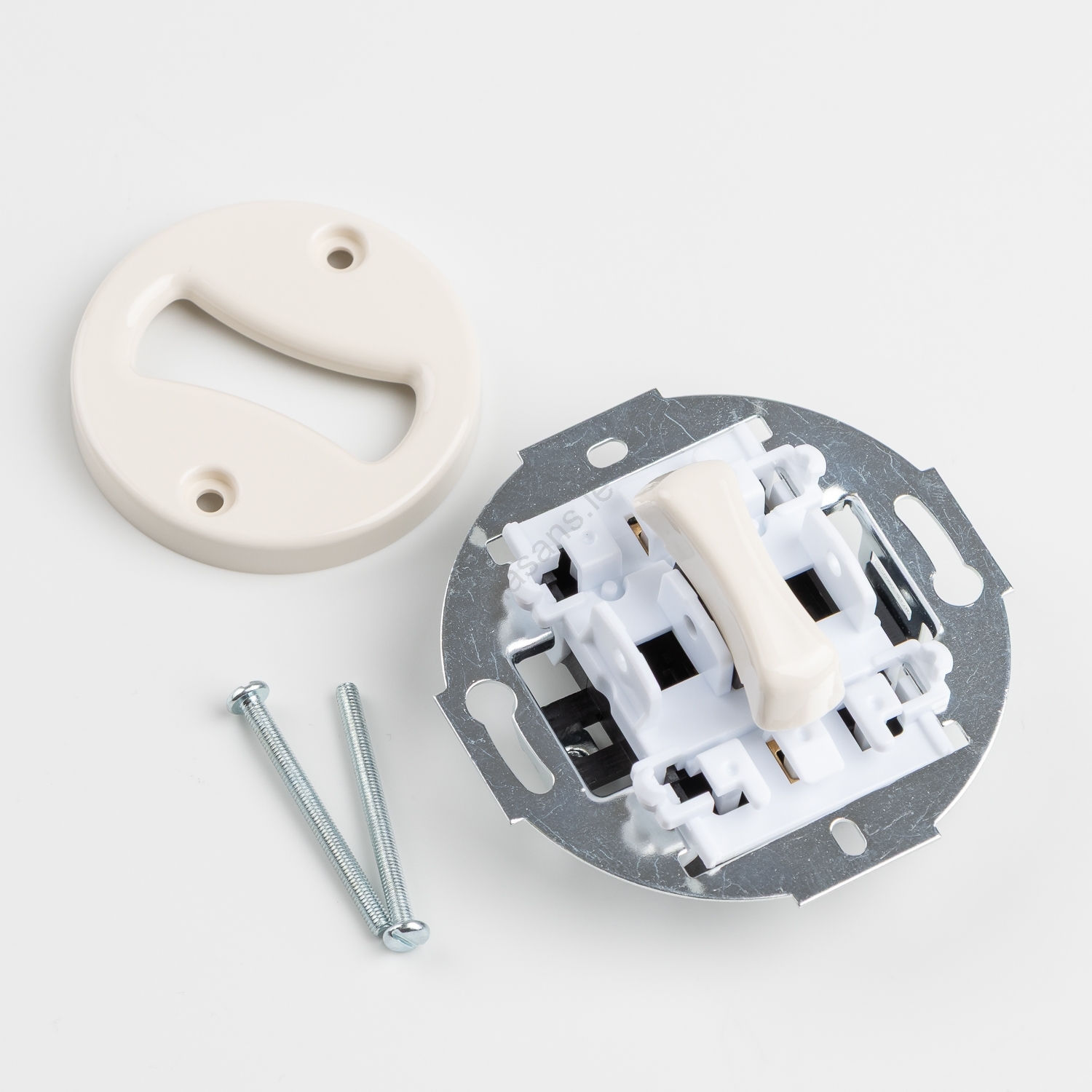

• Product description

  • Intermediate (4-way) switch = for controlling corridors and staircases with the option to turn lights on or off from a third location.
  • For proper operation, always use together with Series 6 switches.
  • Round switch in beige.
  • Its retro design makes an immediate impression.
  • Using rotatable frames, you can easily configure double, triple or multiple product combinations.
  • You can combine sockets and switches or use a row of identical modules.
  • Select an end frame with a one-sided trim that can be rotated as needed, then a middle frame to link on both sides and create a continuous series with an unlimited number of modules.
  • Install them horizontally or vertically, depending on your layout.

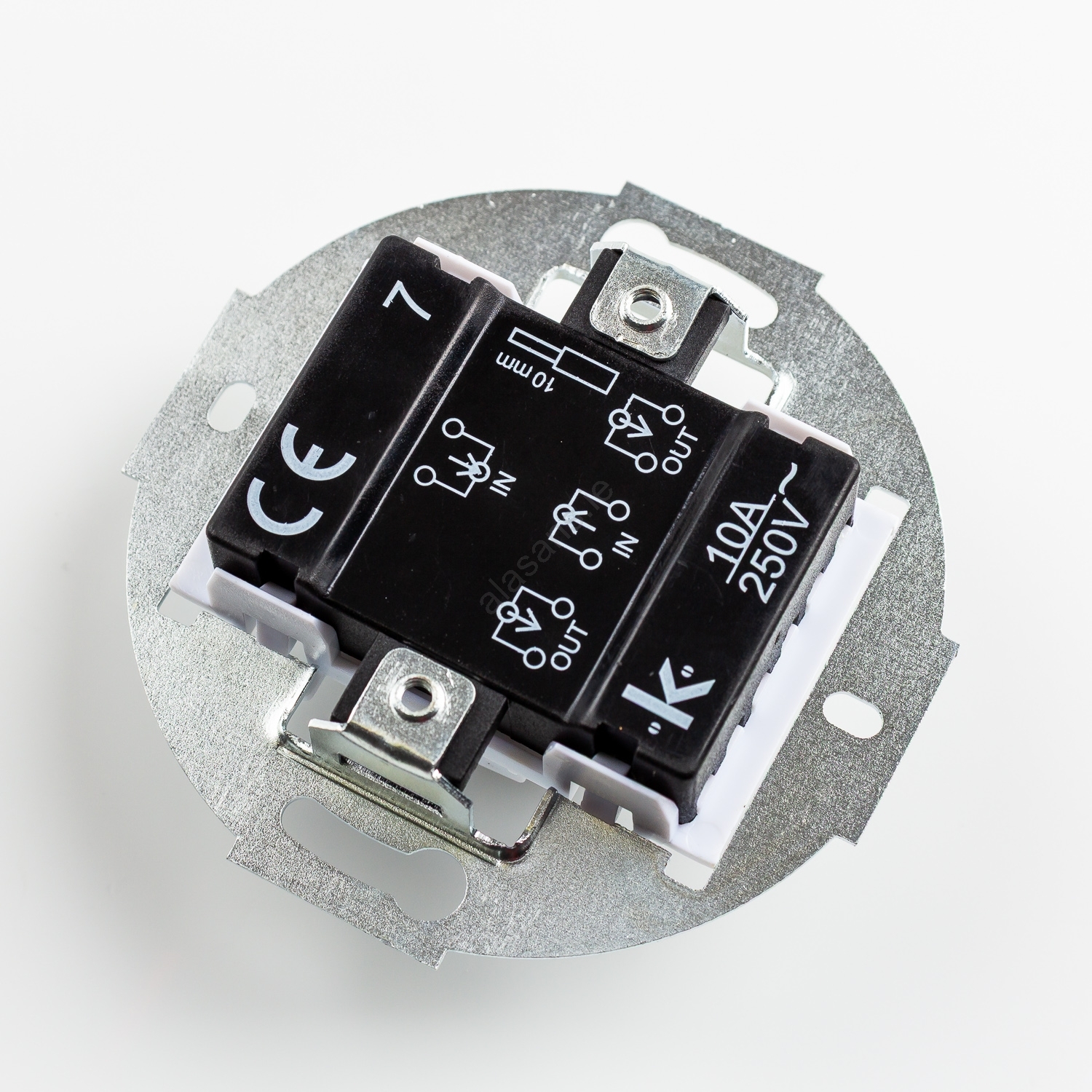

  • Connection type: screw terminal.
  • Control type: rocker.
  • Mounting method: flush wall mounting - suitable for electrical installation boxes with a spacing of 71 mm (e.g., KP68 or KU68).
  • Material: heat-resistant plastic.
  • Rated current: 10 A.
  • Rated voltage: 230 V.
  • Frequency: 50 Hz.
  • Ingress protection (IP): IP20.
  • Device width: 70.5 mm.
  • Device height: 70.5 mm.
  • Device depth: 30 mm.
  • Always use only round electrical installation boxes.
  • Also allow for round cut-outs in wall coverings.
  • Frame is not included.
  • Made in the EU.
