• Product description

  • If you connect your home's heating system via the Immax NEO Smart thermostat~you can conveniently use the Immax NEO PRO smart app to remotely check~monitor and control your home's temperature.
  • Automate heating~create scheduling programs (e.g. 5+2 / 6+1 / 7 days with up to 6 time slots per day) and optimize energy consumption.

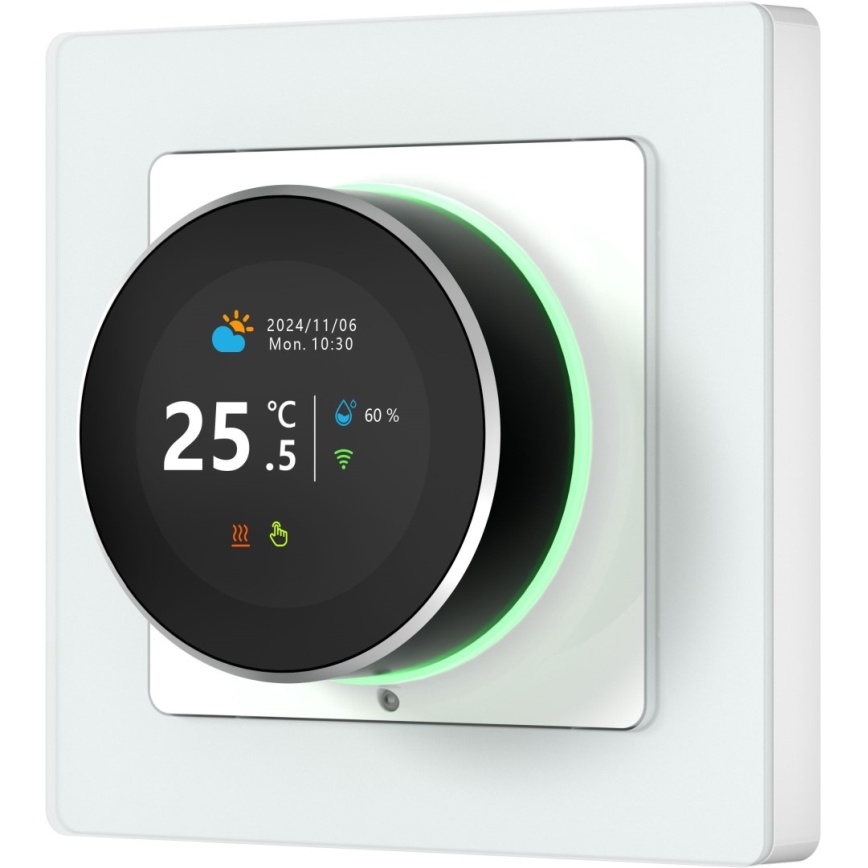

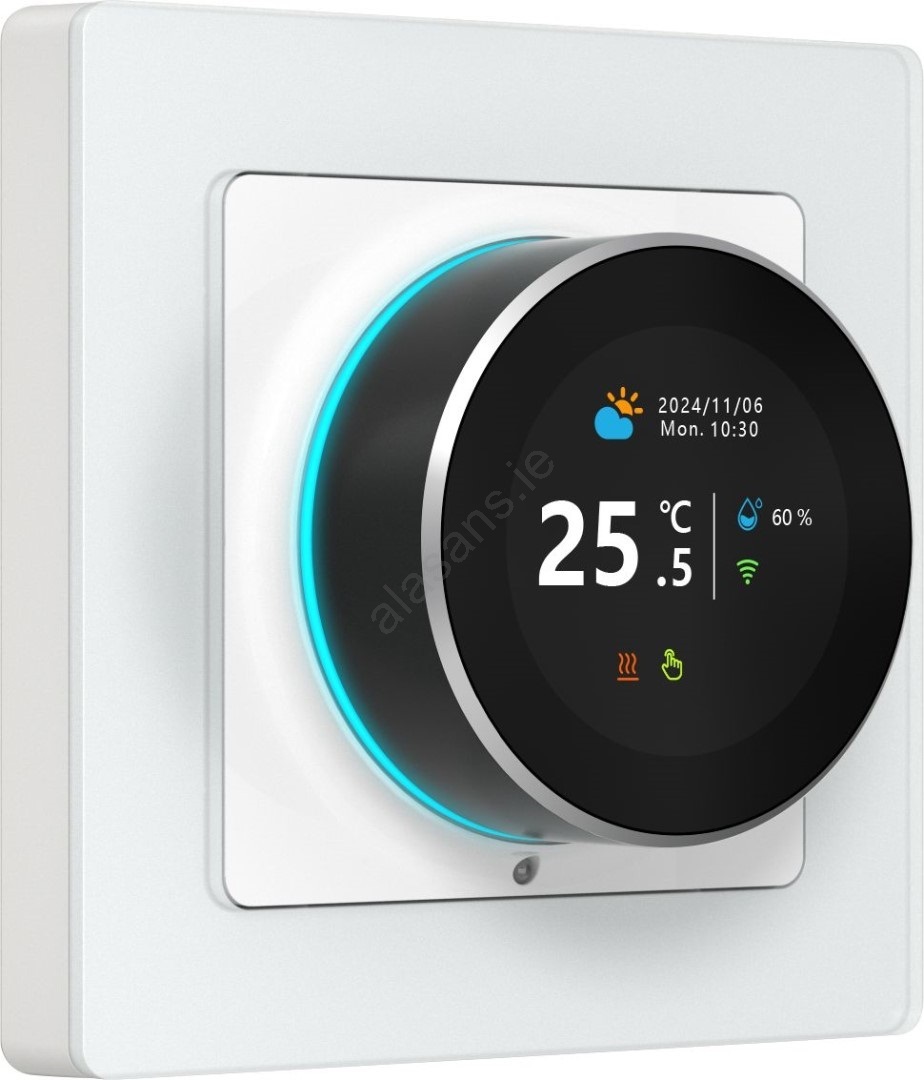

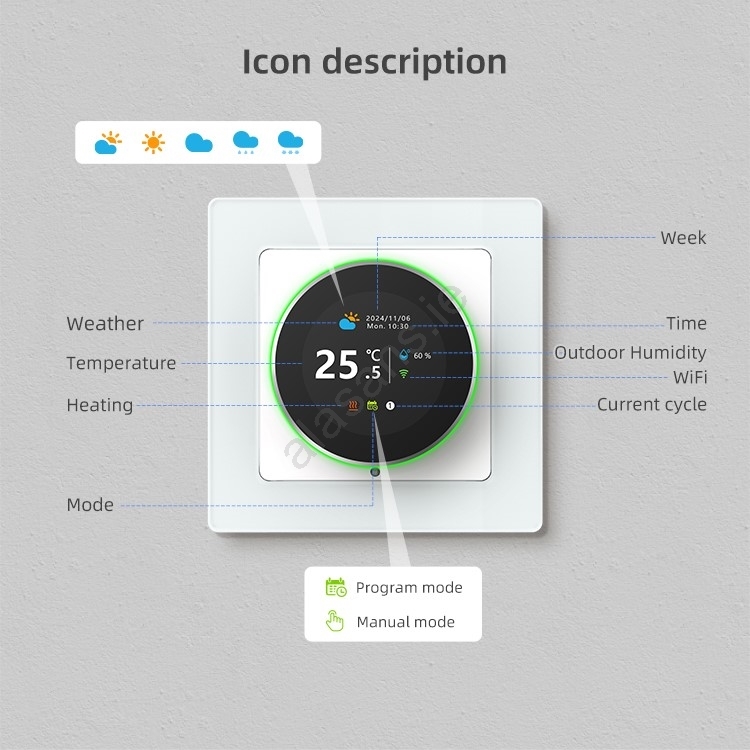

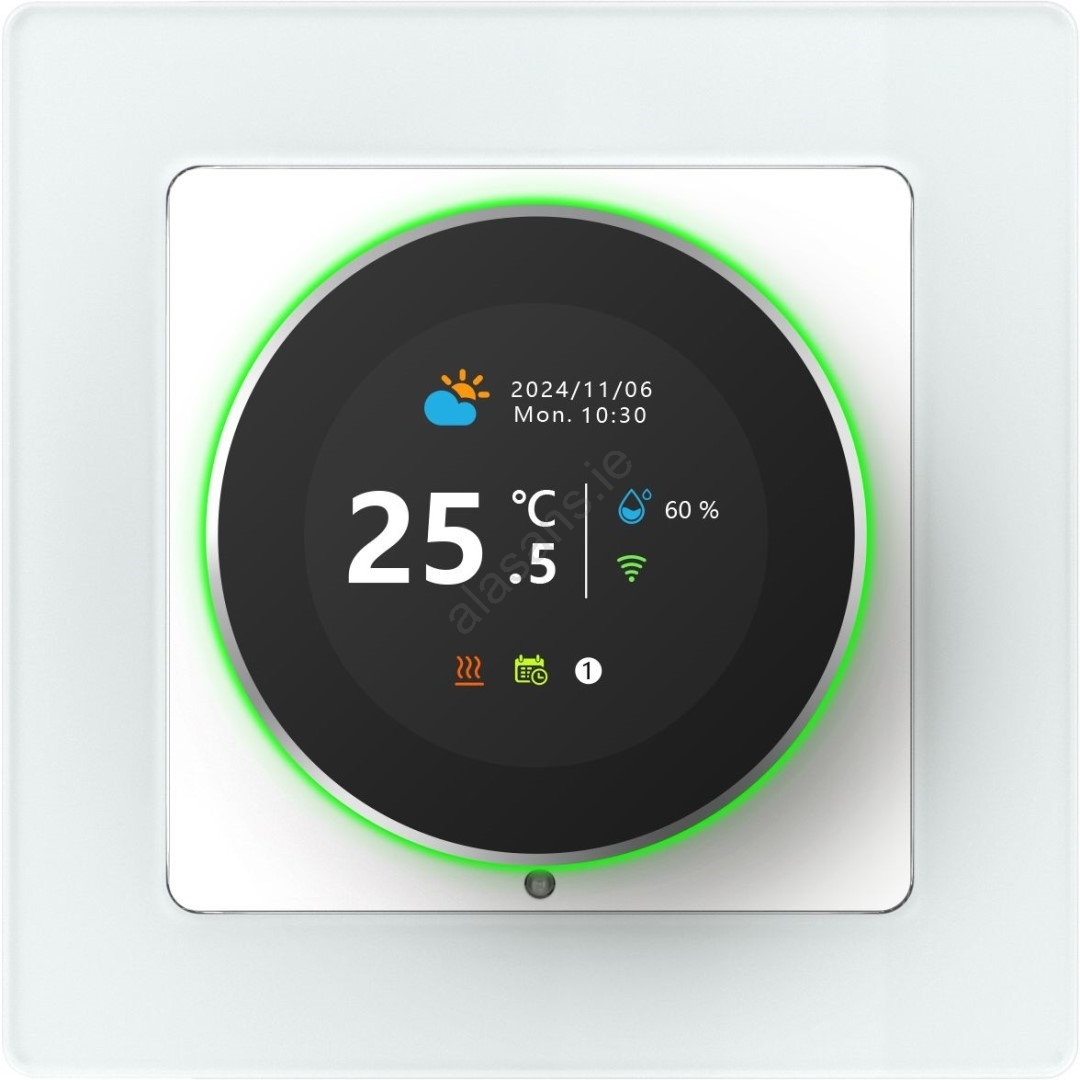

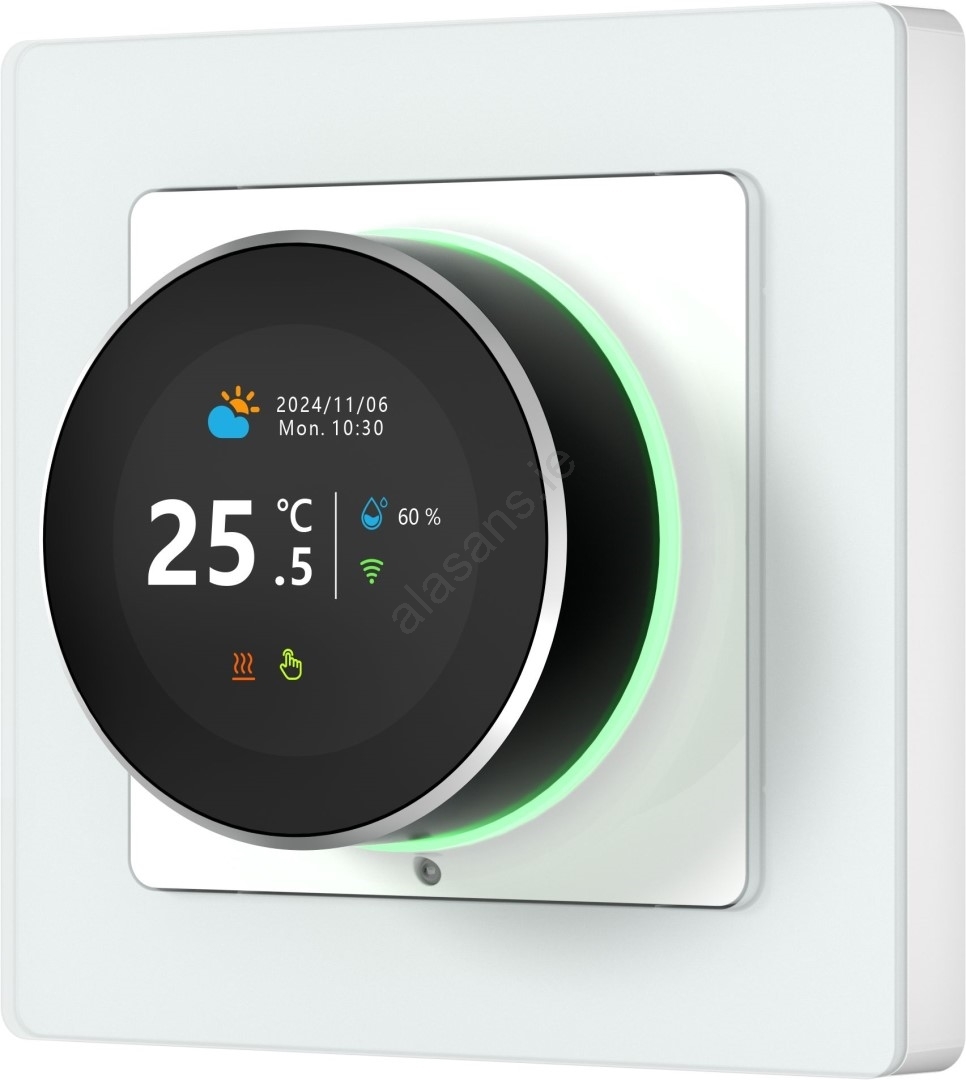

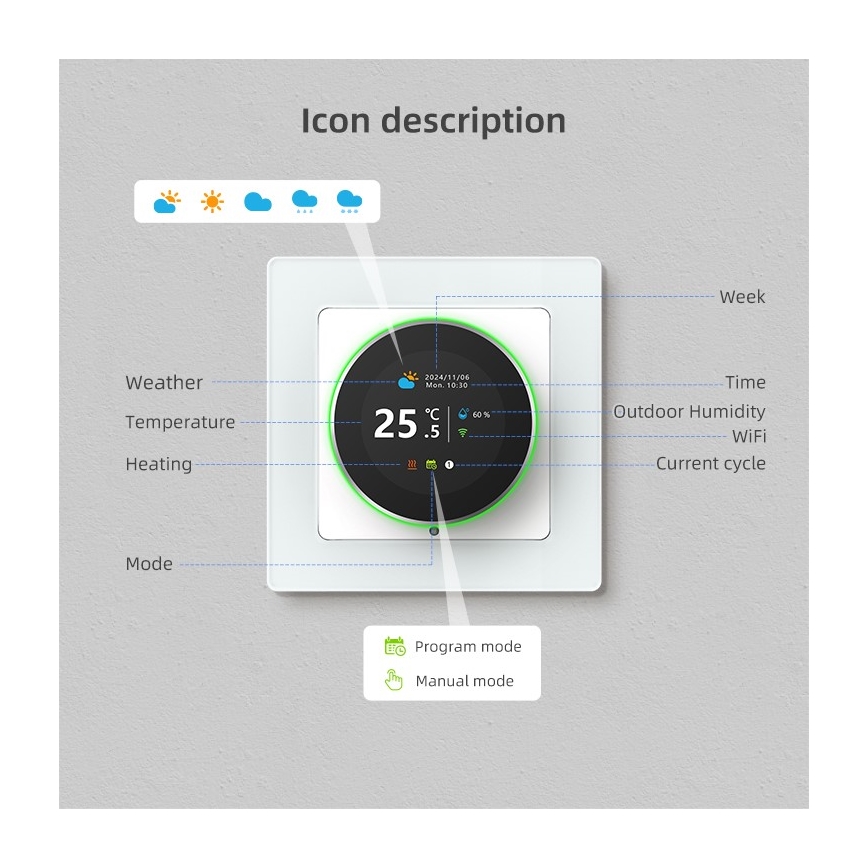

  • A reliable thermostat~that saves time and heating costs~equipped with an intuitive rotary knob~touch controls and a clear TFT display~showing current temperature~time and weather.

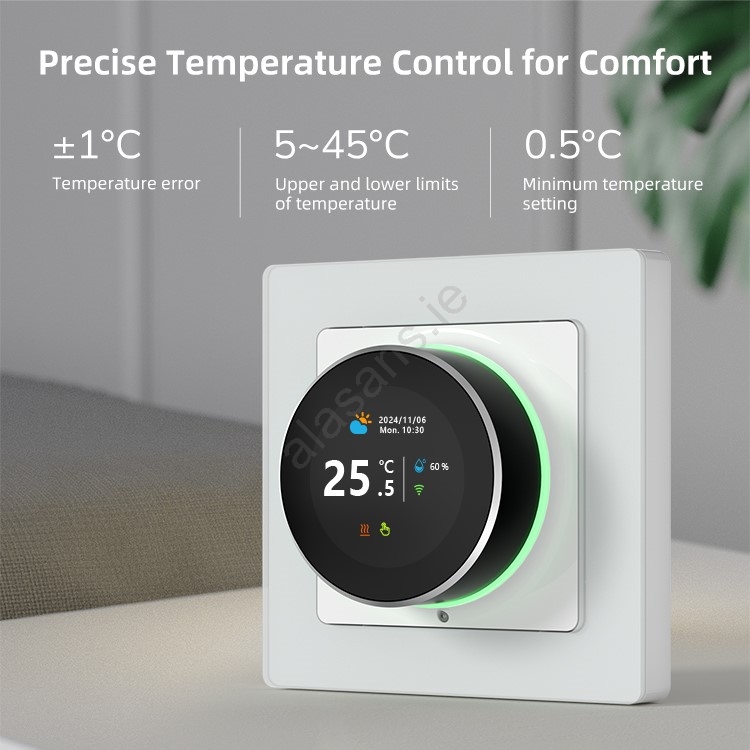

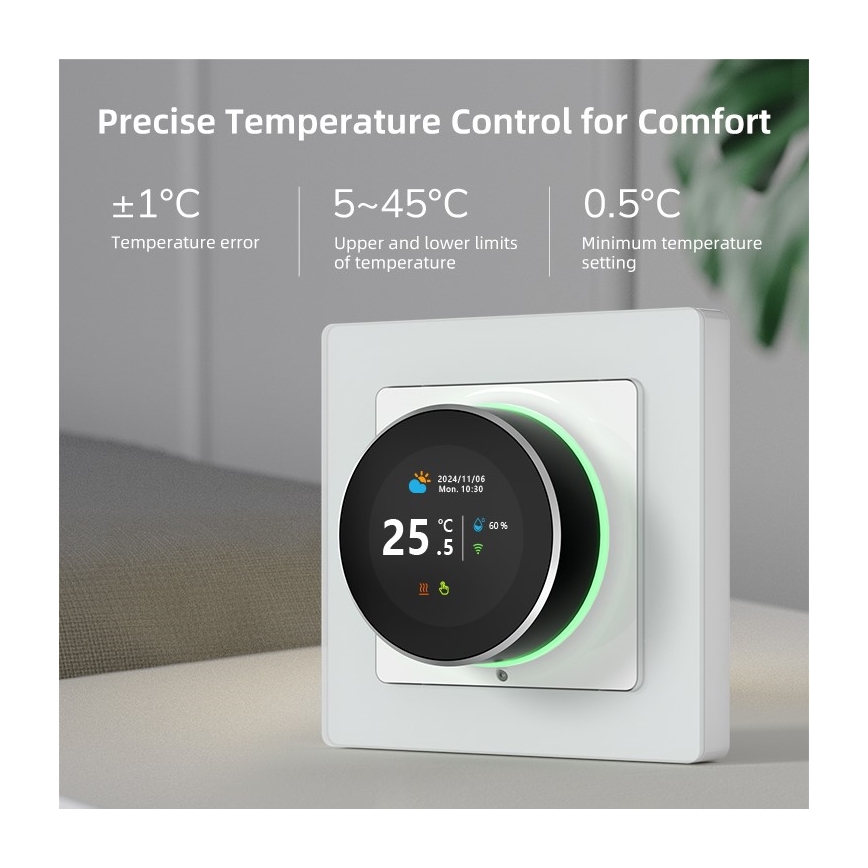

  • Allows smooth temperature adjustment from 5 °C to 45 °C with high measurement accuracy and a screen backlight brightness adjustment function.
  • The device uses the Tuya Zigbee platform~ensuring wide compatibility with smart home systems and the ability to integrate into various automation scenarios.
  • To connect to the app you need a Tuya smart Zigbee gateway (e.g. Immax NEO BRIDGE).
  • Instant access to heating settings – truly from anywhere in the world.

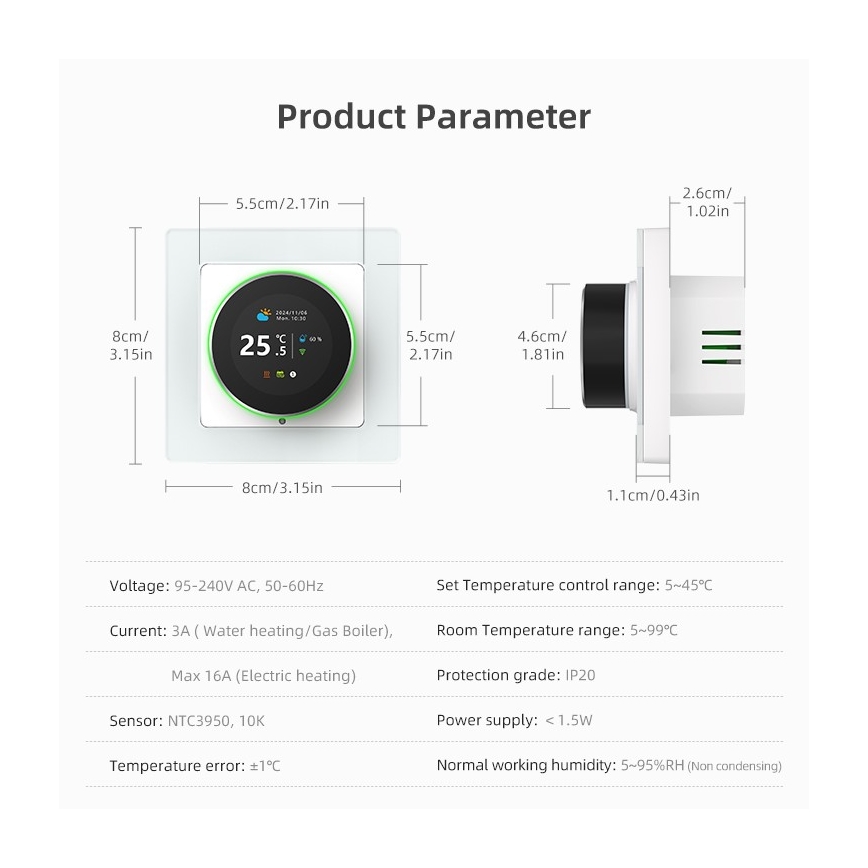

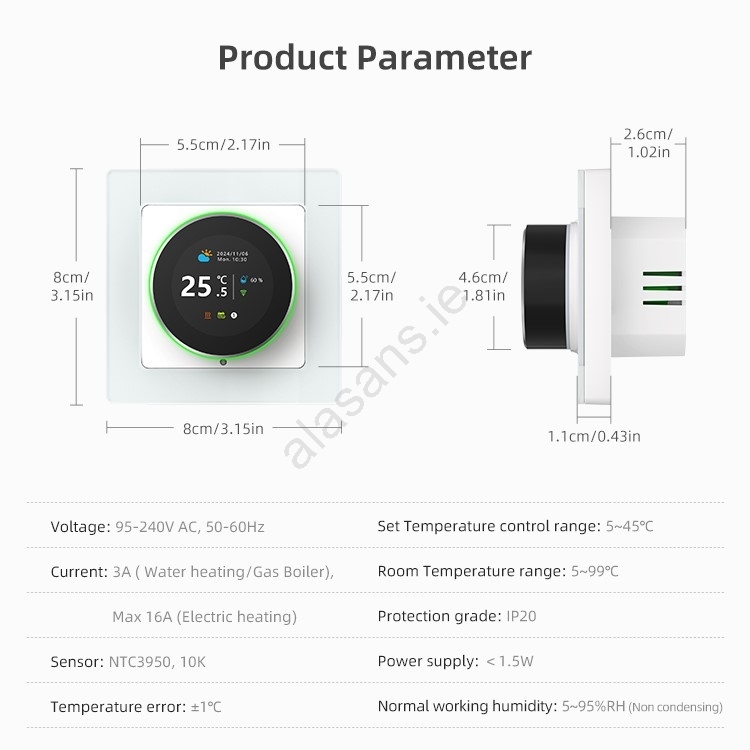

  • Technical specifications:
  • Rated operating voltage: AC 100-230V.

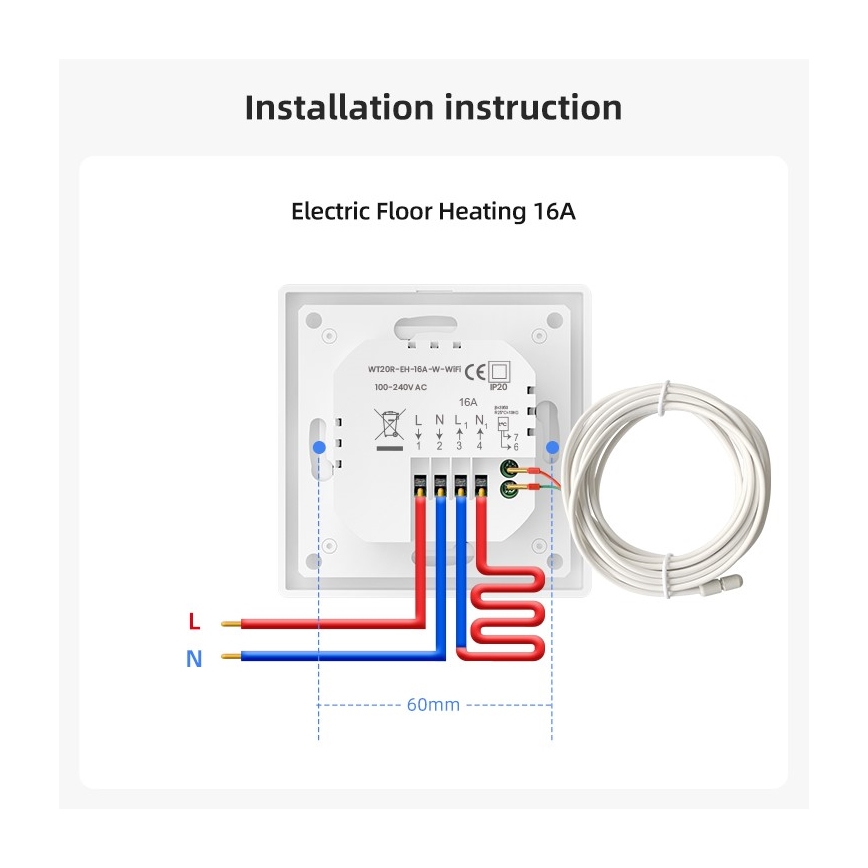

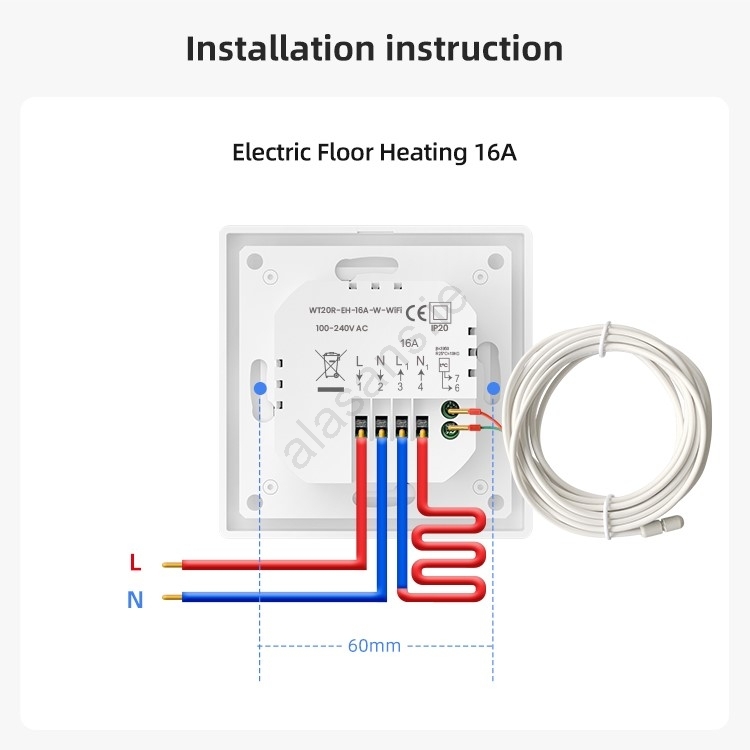

  • Maximum operating load: 16A (suitable for electric underfloor heating).
  • External temperature sensor: NTC~B=3380~R25=10KΩ±1% (length 3m).
  • Temperature setting range: 5°C - 45°C~in 0.5°C steps.
  • Measurement accuracy: ± 1°C.
  • Temperature offset: -9°C to 9°C.
  • Hysteresis: 1 - 5°C.
  • Temperature measurement range: +5°C to 99°C in 0.5°C increments.
  • Mains standby power (Pnet): 1.5W.
  • Zigbee repeater: YES.
  • Protocol: ZigBee 3.0.
  • Frequency: 2400MHz~2483.5MHz.
  • Maximum RF output power: ZigBee: 10dBm - max 19dBm.
  • Wireless range: 30 m line of sight~5 m in built-up areas.
  • Protection rating: IP20.
  • Functions in the app: Heating ON / OFF~Schedules~Countdown~Temperature correction~Child lock.
