• Product description

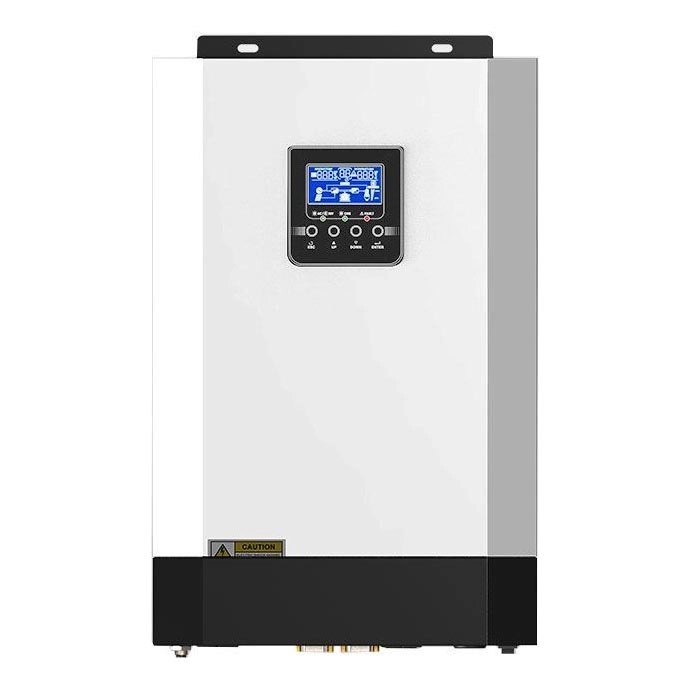

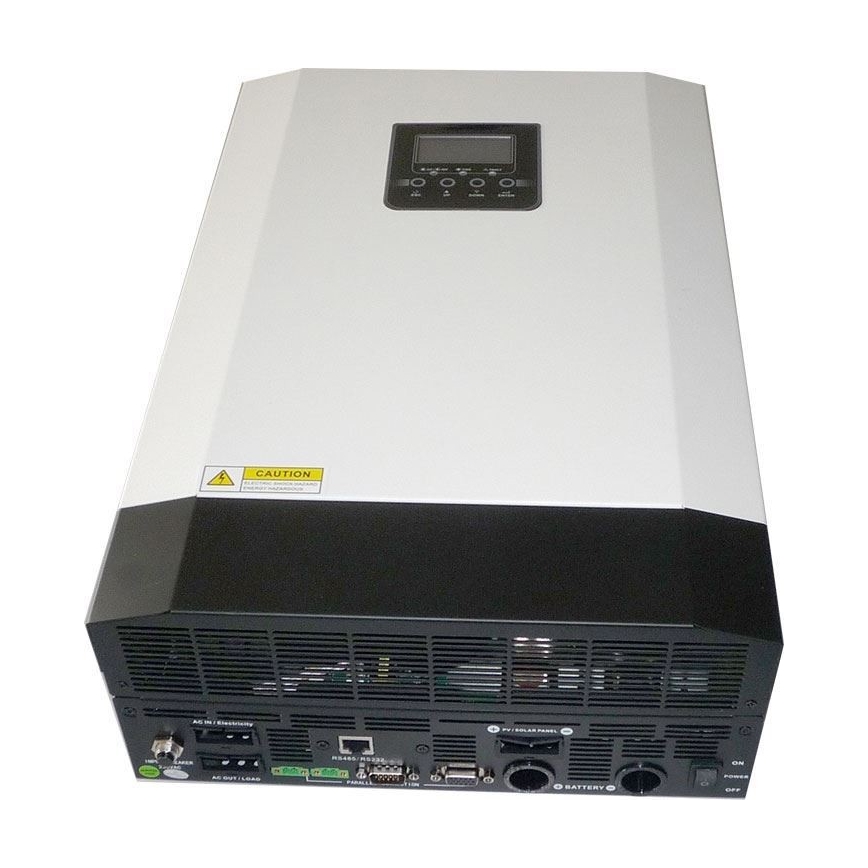

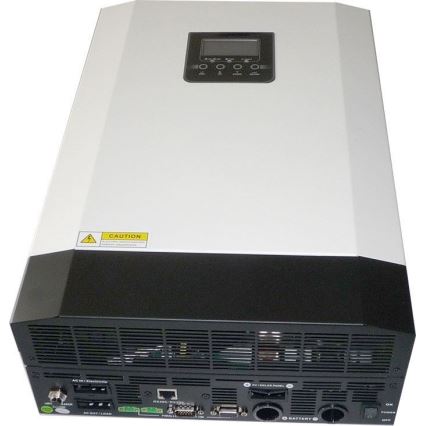

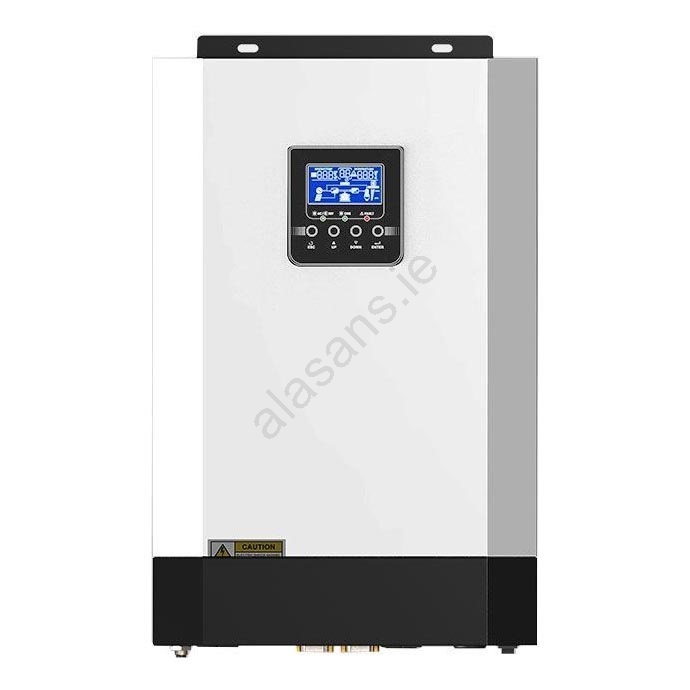

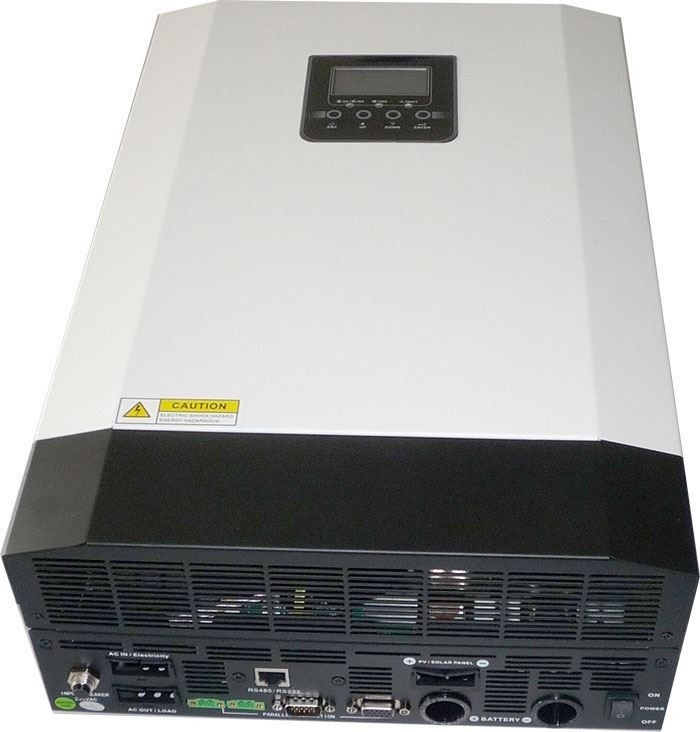

  • The device is a combination of a pure sine wave converter, UPS, and MPPT regulator for solar panels.
  • It is, therefore, a backup source with backup by a public network or generator, a battery charger, and an MPPT solar regulator, while the backup priority can also be set inversely, i.e. priority of the public network and backup from batteries or PV panels.
  • Main parameters of the device:
  • System voltage 48V.
  • Converter with a pure sine wave.
  • Battery charging current when operating from the mains 80A.
  • Adjustable AC or BAT priority.
  • Compatible with a generator or public network voltage, the converter phases with the AC input, allowing the use of three identical converters with monitoring relays to power three-phase systems.
  • Overload, short-circuit, and battery protection.
  • Automatic restart after overload.
  • Intelligent battery charger.
  • Applicable batteries: AGM lead acid, AGM GEL, liquid dielectric, LiFePO4.
  • For LiFePO4 it is necessary to set the necessary parameters in USE mode.
  • Only for experienced users.
  • Soft start for the gradual start-up of loads.
  • Stand-by consumption 10W.
  • Solar panels with max. no-load voltage 120-500V and max. current 20A (max 5500W).
  • Warning:
  • Parallel and three-phase connections are possible.
  • We recommend a minimum PV panel voltage of 160V.

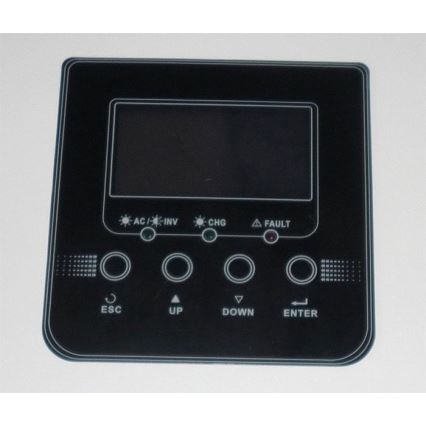

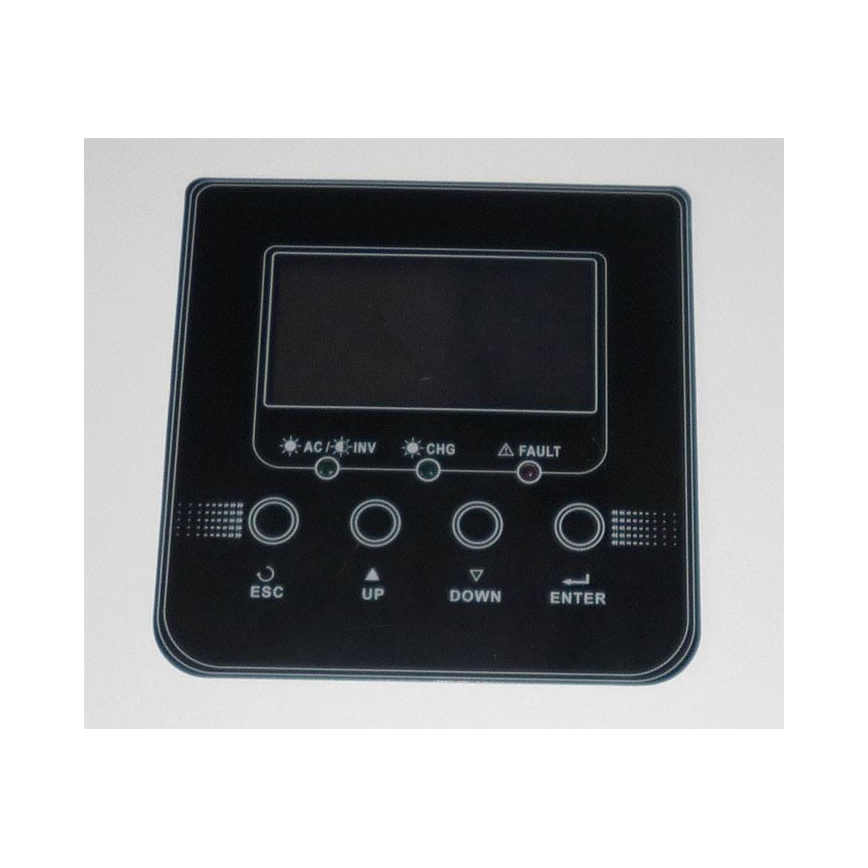

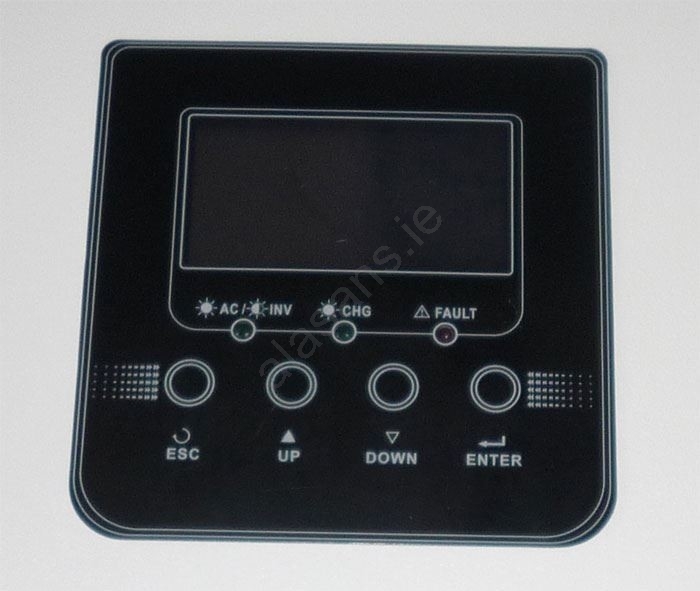

  • The values shown on the display are indicative only and are only relevant when the load is connected.
  • The converter is designed for use only in TN-S or TN-C-S networks, according to the currently valid standards.
  • When used in TN-C (two-wire, phase+working earth) networks, there is a risk of damage or incorrect operation of the device.
  • This equipment may only be installed by an authorized person (certificate from Decree No. 50/1978 Coll. and photovoltaic systems electrician (26-014-H)).
  • The incorrect setting of the converter can lead to damage.
  • Claims due to incorrect settings cannot be accepted.
  • A firmware update is required during installation.

  Please note that installation and dismantling of solar panels and solar accessories must be carried out by a qualified person.
