• Product description

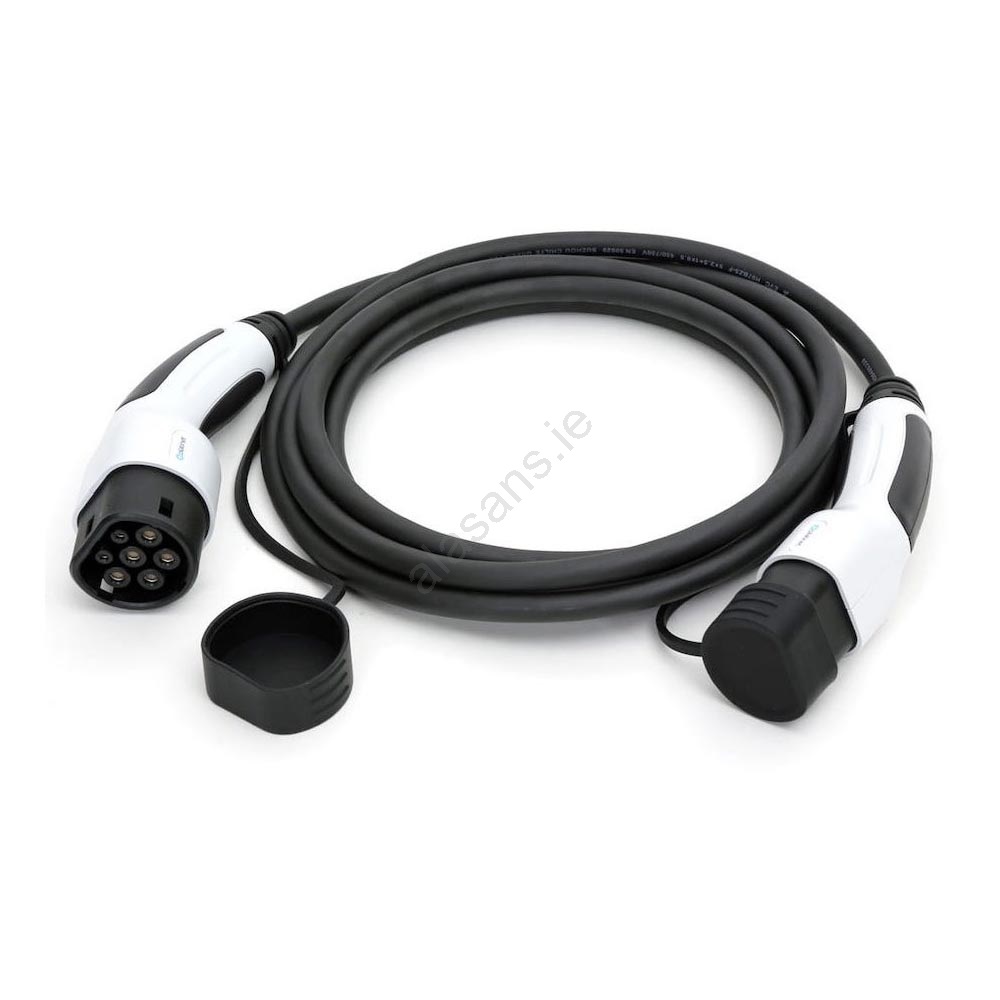

  • High-quality charging cable for type 2 electric vehicles.
  • With this 5m long cable, you will power your vehicle with 22kW.
  • The cables are made of lightweight, flexible and durable plastic.
  • It is resistant to low and high temperatures.

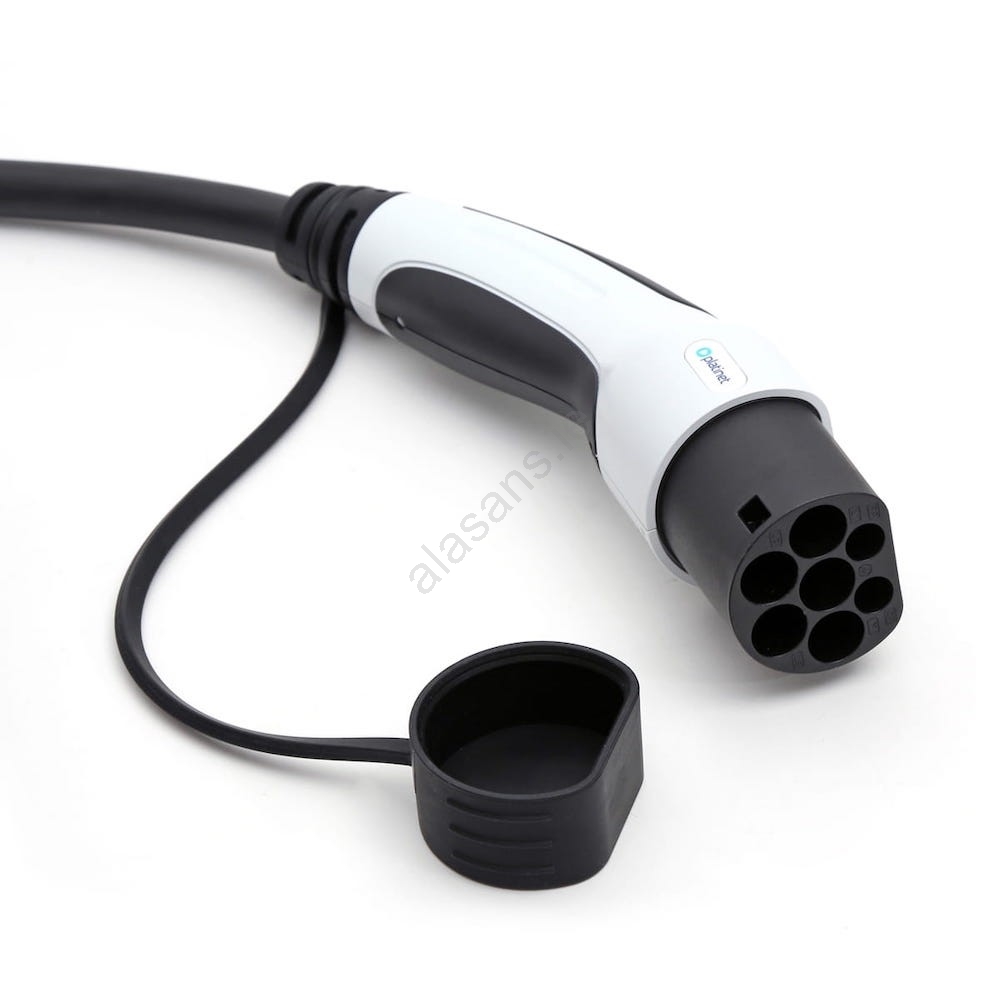

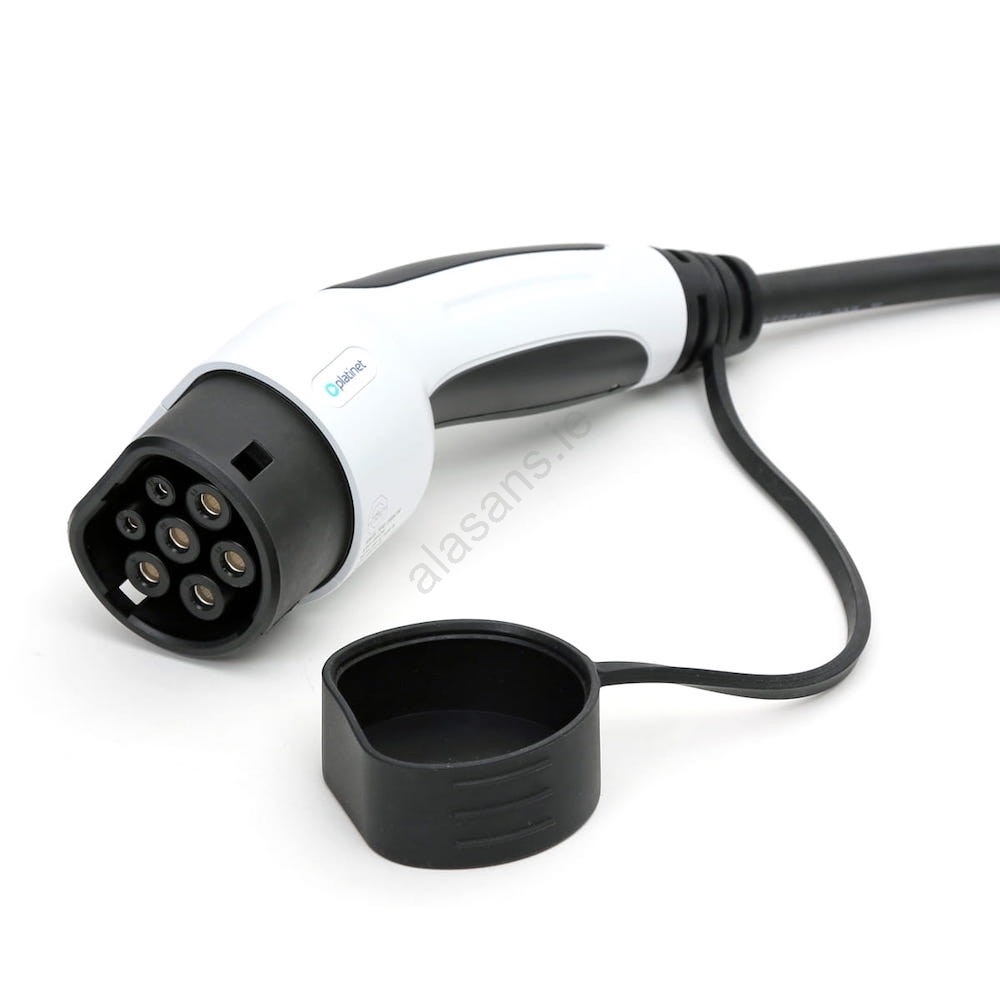

  • The high-quality plugs are made by one-piece casting technology from very durable plastic.
  • Phase / rated current: 3-phase / 32A.
  • Rated voltage / power: 480V / 22kW.
  • Cable dimensions: 5x6,0 mm² + 2x0,5 mm².
  • Total diameter: 16.5 +/- 0.4 mm.
  • Protection class: IP54.
  • Fire resistance class: 94 V-0.
  • Insulation resistance: > 1000M ohm (DC 500V).
  • End temperature rise: <50K.
  • Maximum voltage endurance: 2000V.
  • Contact resistance: max. 0.5 m.
  • Clamping force: > 45N <80N.
  • Operating temperature: -35°C to +50°C.
  • Length: 5 m.
