• Product description

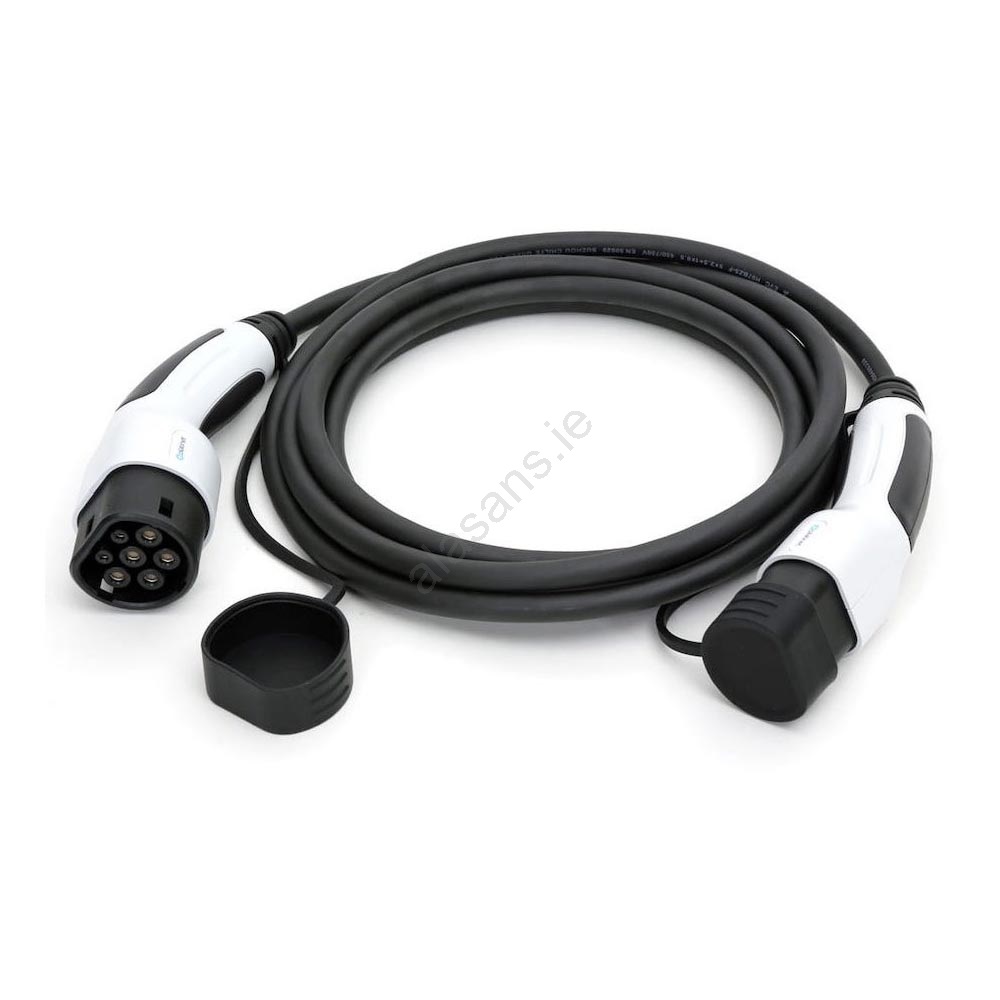

  • High-quality Type 2 charging cable for electric vehicles.
  • With this 5-meter cable you can charge your vehicle at up to 11 kW.
  • The cable is made from lightweight, flexible and durable plastic.
  • It is resistant to both low and high temperatures.

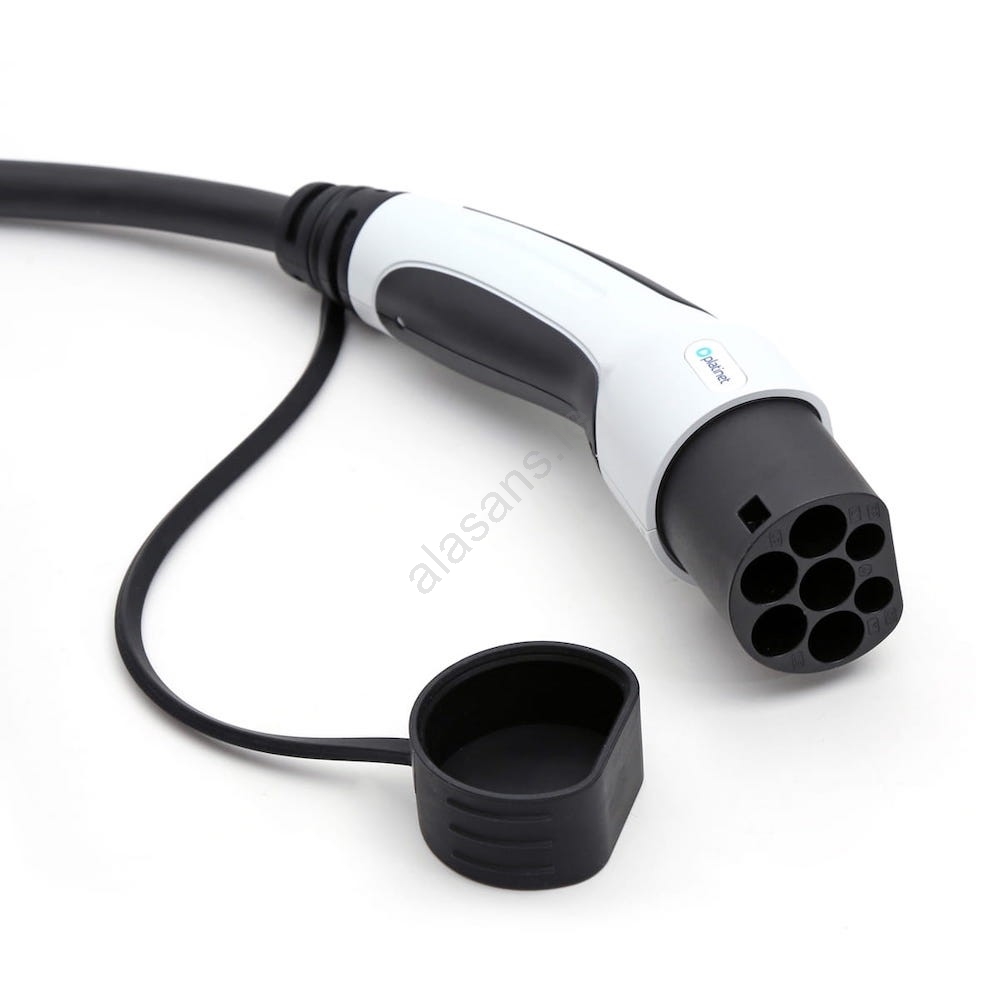

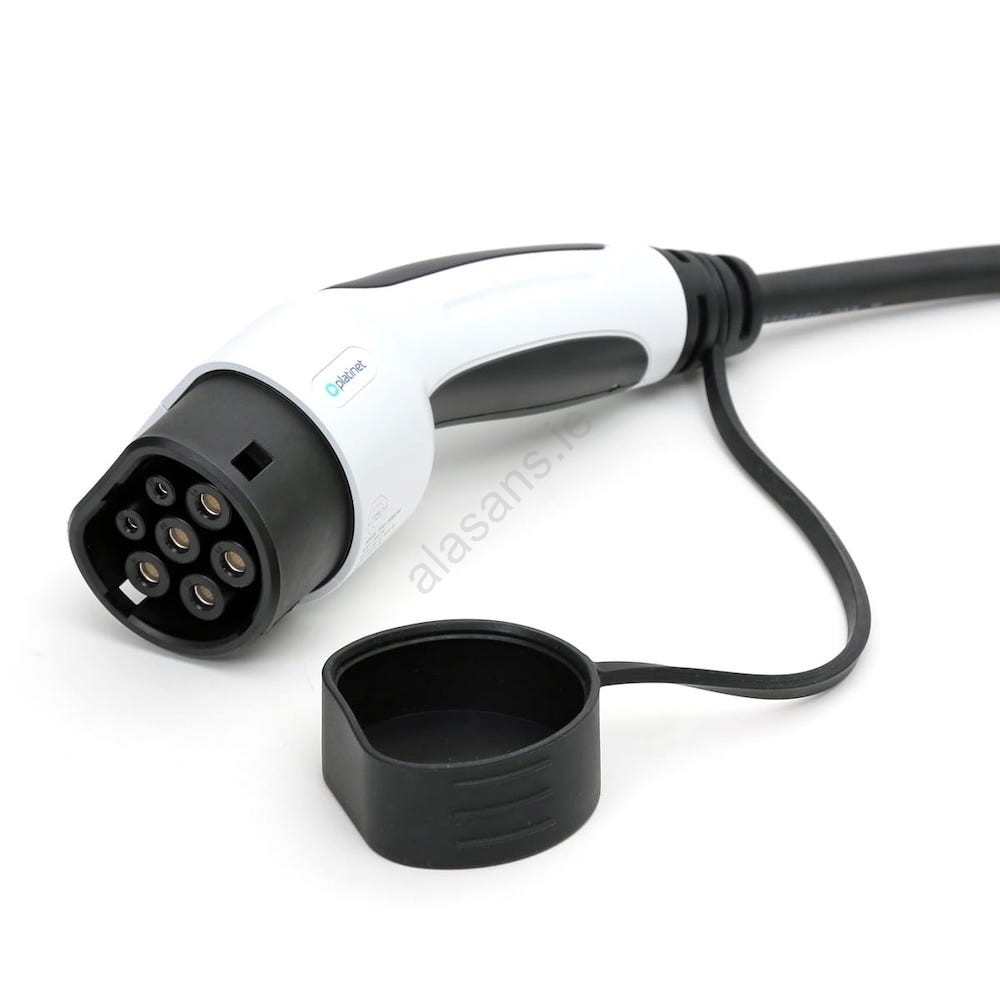

  • High-quality connectors are manufactured by one-piece molding technology from highly durable plastic.
  • Phase / nominal current: 3-phase / 16 A.
  • Rated voltage / power: 480 V / 11 kW.
  • Cable dimensions: 5x2.5 mm² + 2x0.5 mm².
  • Overall diameter: 13.5 +/- 0.4 mm.
  • Protection rating: IP54.
  • Flammability rating: 94 V-0.
  • Insulation resistance: > 1000M ohm (DC 500V).
  • End temperature rise: <50K.
  • Maximum withstand voltage: 2000 V.
  • Contact resistance: max. 0.5 m.
  • Coupling clamping force: > 45N <80N.
  • Operating temperature: -35 °C to + 50 °C.
  • Length: 5 m.
