• Product description

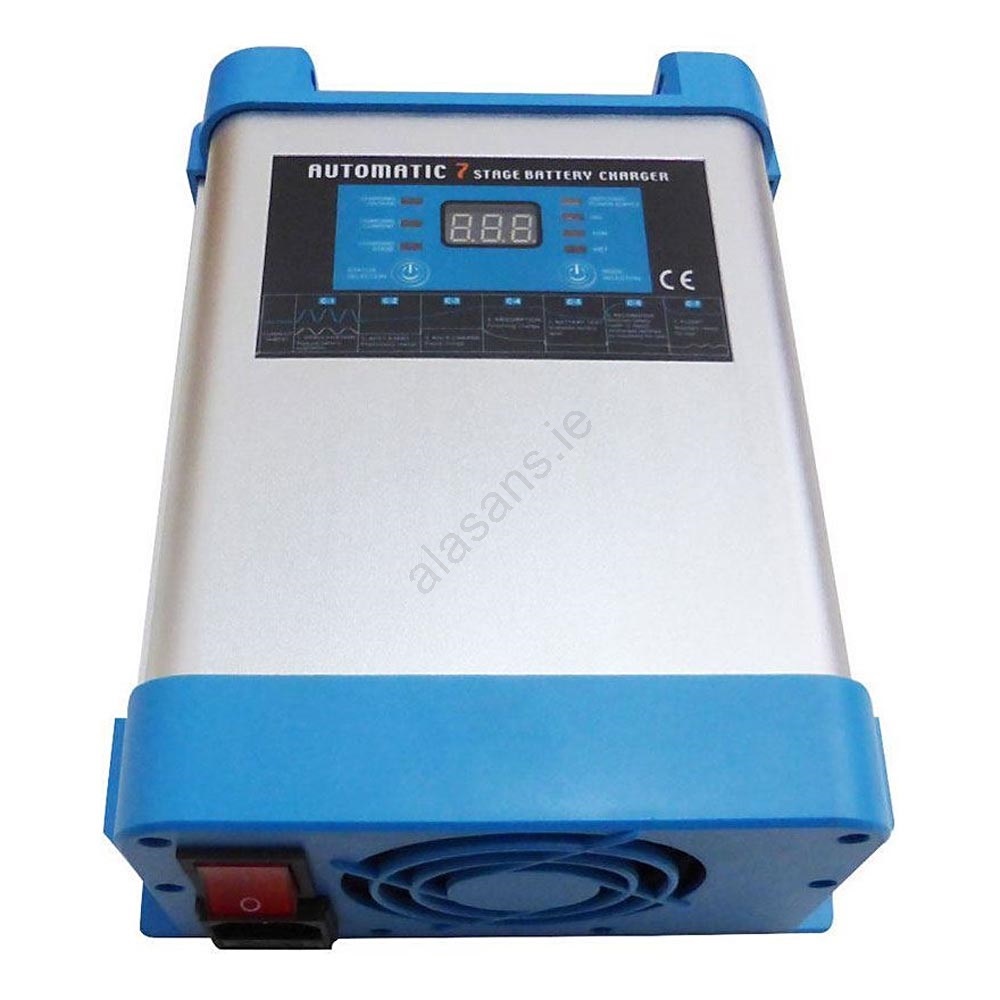

  • Intelligent automatic lead-acid battery charger with seven-stage automatic charging, also designed for permanent connection to the battery being charged.
  • Suitable for backup power, caravans, island PV systems, etc.
  • Designed for 12V 60-200Ah liquid dielectric, AGM, and AGM GEL (optional) lead acid starter and traction batteries.

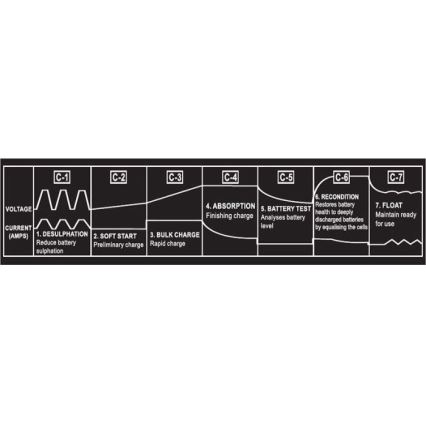

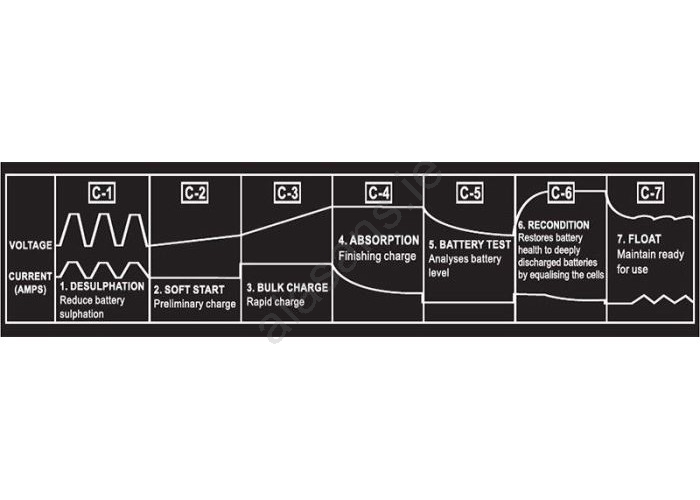

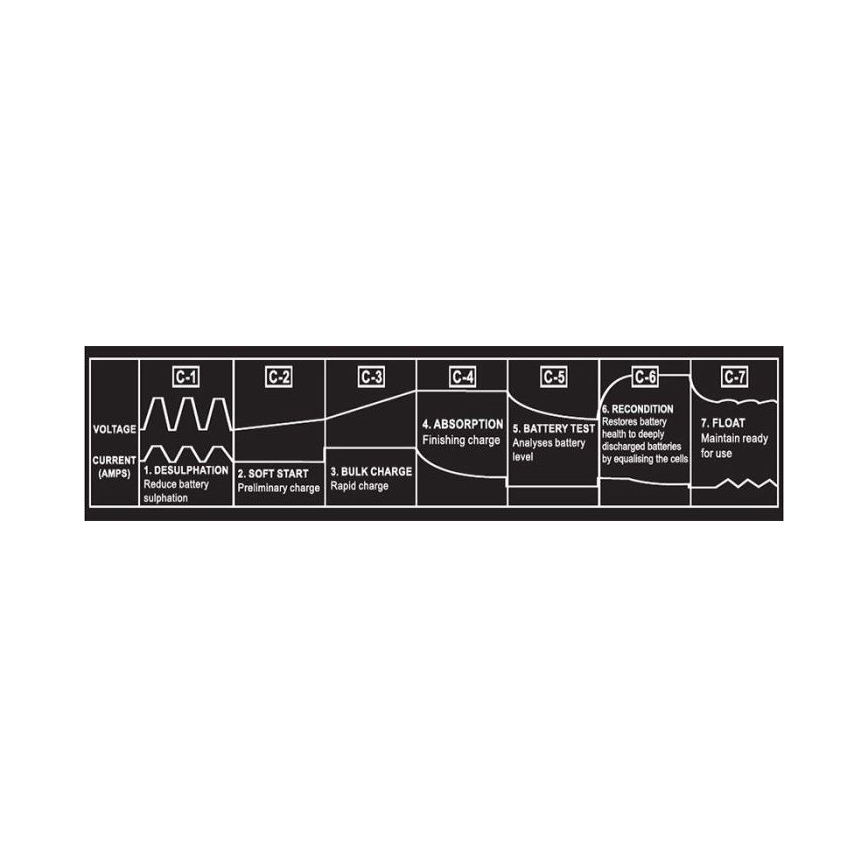

  • Charging phase:
  • C-1 Desulfation: Pulse charging. This phase starts automatically when the battery voltage is below 11V and precedes the standard charging cycle.
  • C-2 Soft start: Phases of gradually increasing charging current up to a maximum of 40A.
  • C-3 Constant current charging: The key phase of the charging cycle. Constant current charging until the terminal voltage reaches 14.2 to 14.8V (selectable in three stages).
  • C-4 Absorption Charging: Charging at a constant voltage of 14.2 to 14.8V as the charging current gradually decreases.
  • C-5 Battery Test: During the 90 sec. test, the battery is discharged while the terminal voltage is measured. If the test is successful, the last, maintenance stage automatically follows. If the test is unsuccessful and the terminal voltage drops rapidly during the test, stage 6 follows.
  • C-6 Reconditioning Charge: In the reconditioning mode, the battery is charged for 4 hours at a reduced constant current.
  • C-7 Maintenance Mode: Maintain battery terminal voltage of 13.2-13.8V (selectable in three stages).
  • Specifications:
  • 190-265V supply voltage.
  • Max. charging current 40A.
  • For lead-acid starting and traction batteries 12V 80-300Ah, AGM and AGM GEL.
  • Temperature compensation of charging current by the included temperature sensor.

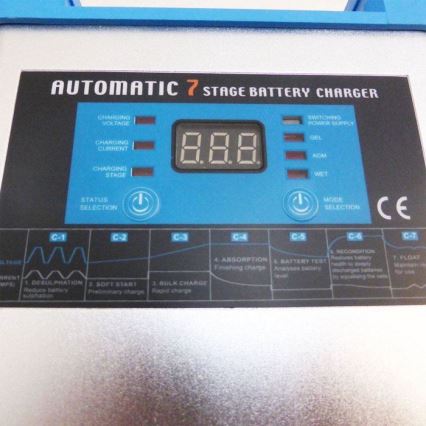

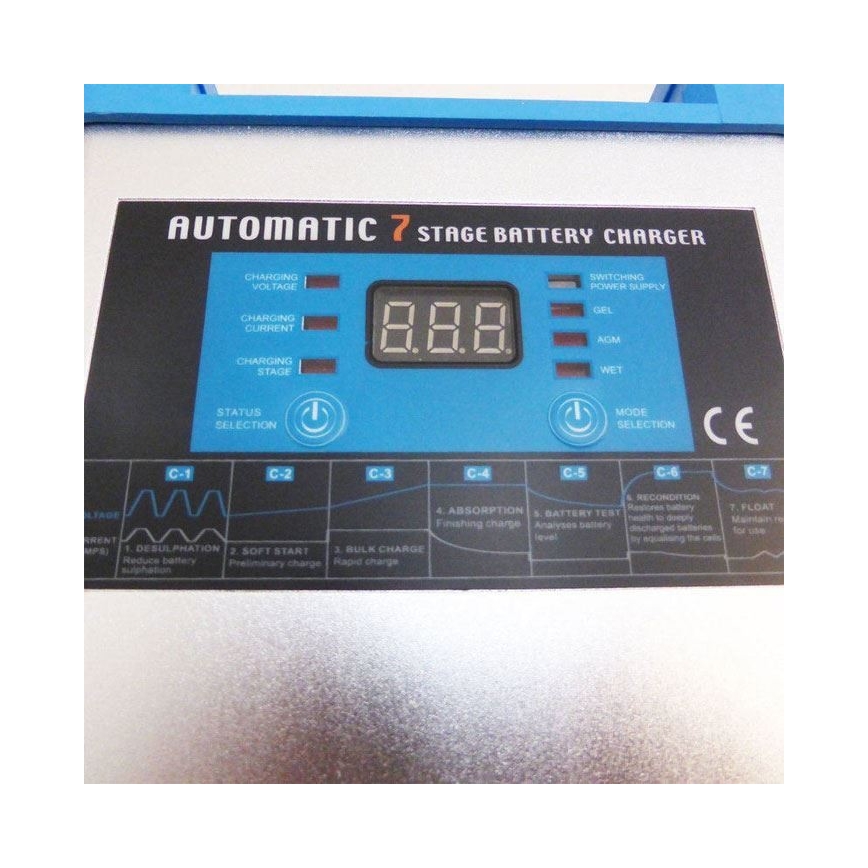

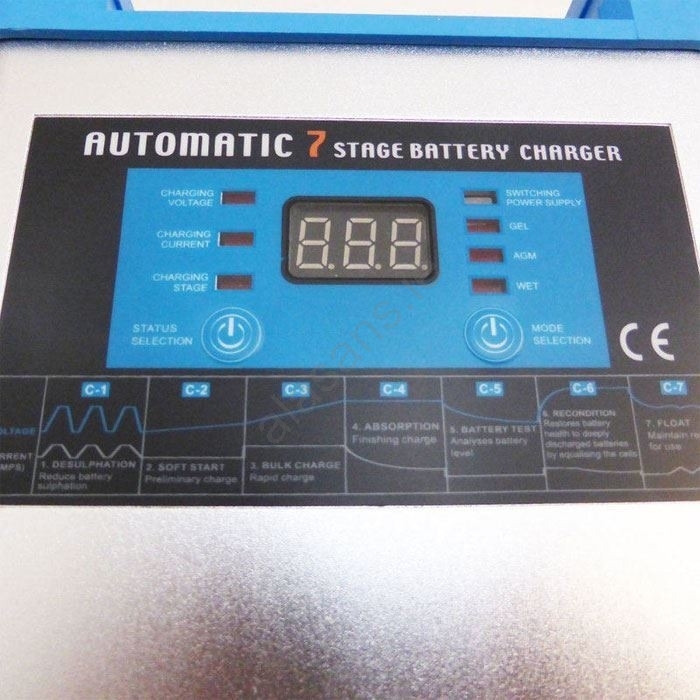

  • LED display with indication of charging status, charging current and voltage, and charge level.
  • Efficiency: 88%.
  • Operating temperature 0 - 40 °C.
  • Dimensions 176 x 175 x 95 mm.
  • Supply includes power and charging cables.
