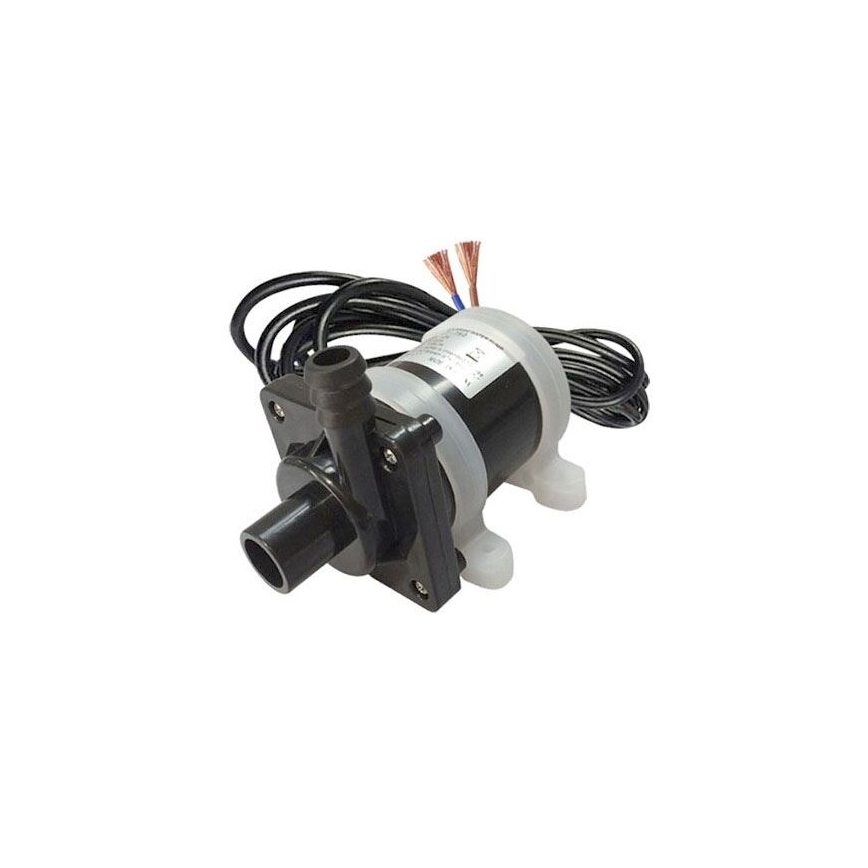

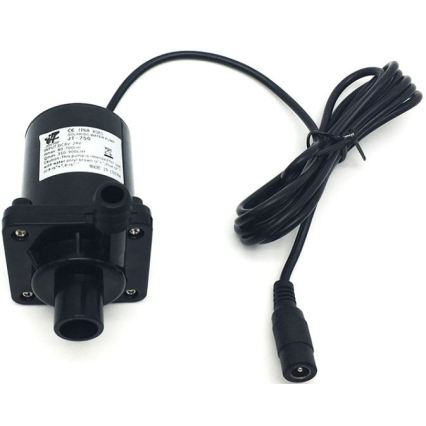

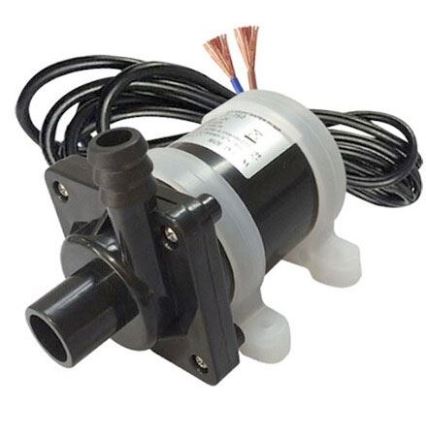

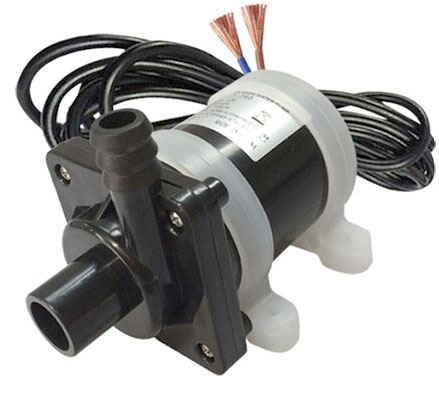

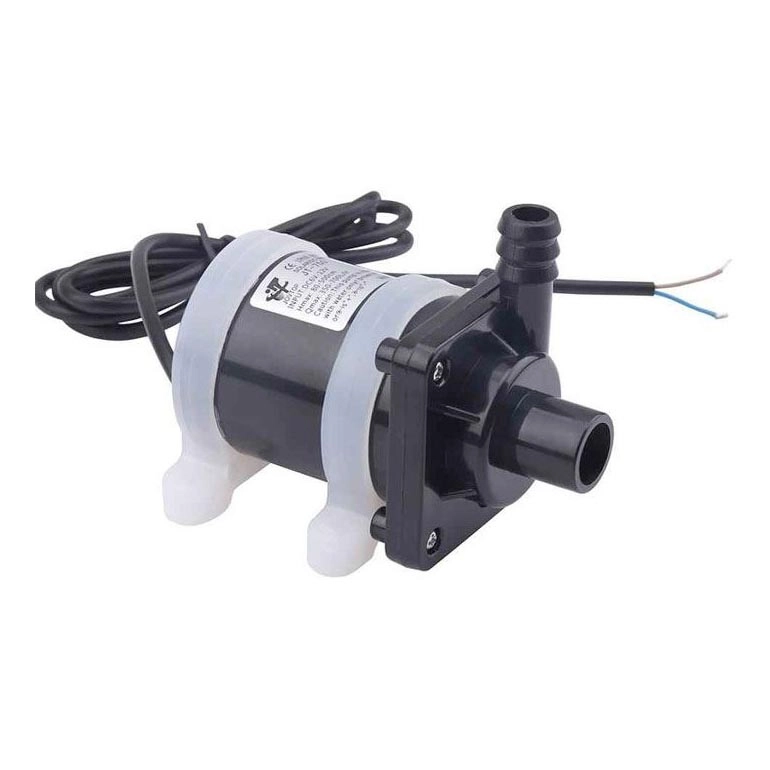

• Product description

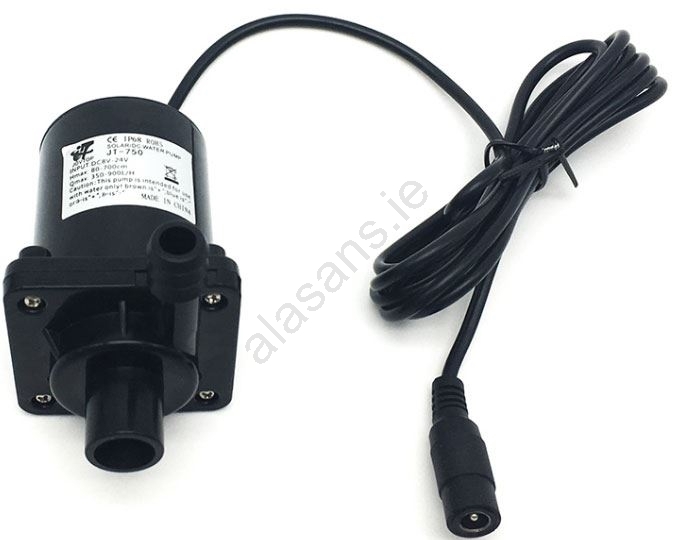

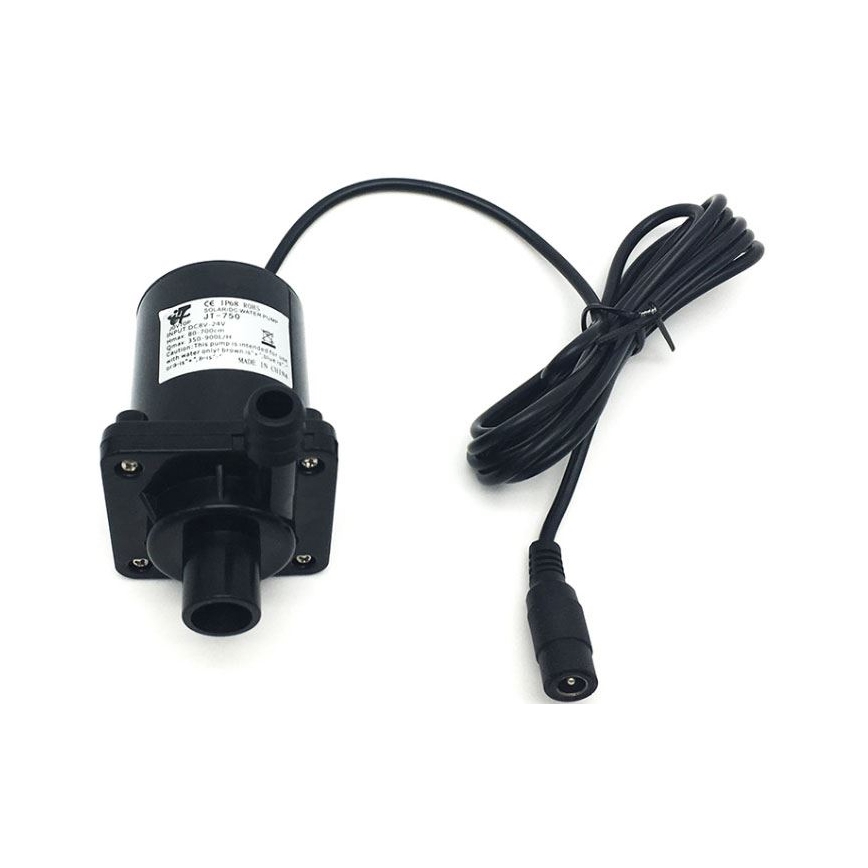

  • The pump operates across a wide voltage range of 6-12VDC and is therefore suitable for direct connection to a 6V solar panel, which can generate up to 7.5V open-circuit.
  • Primary use is as a solar water pump for garden ponds and similar applications.
  • Specifications:
  • Operating voltage: 6-12VDC.
  • No-load current at 6VDC: 240 mA.
  • Current draw under load (6VDC): 400 mA.
  • No-load current at 12VDC: 300 mA.
  • Current draw under load (12VDC): 500 mA.
  • Max. water flow: 350 L/h (6V), 700 L/h (12V).
  • Maximum head: 5 m - flow decreases at higher head.
  • Maximum fluid temperature: 60°C.
  • Motor type: brushless, rated for continuous operation.
  • Lead length: 1 m.

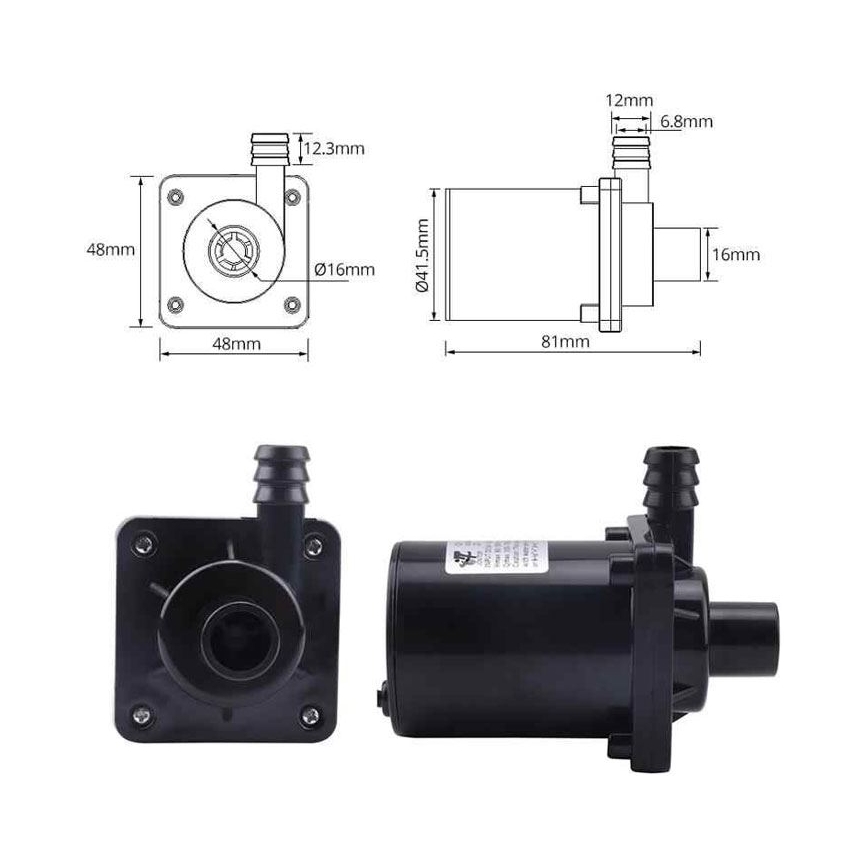

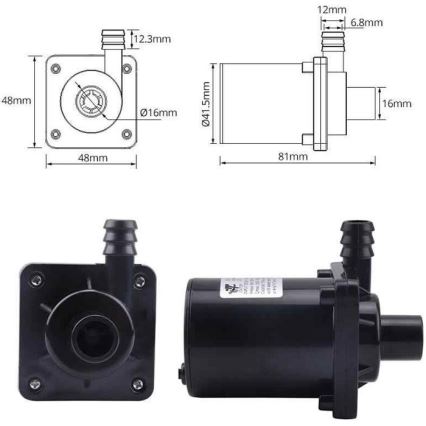

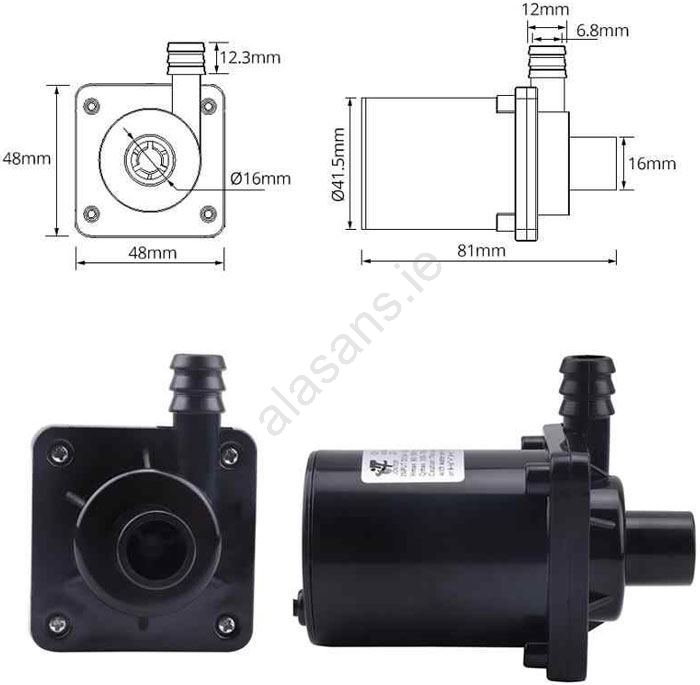

  • Suction port diameter: 16 mm.
  • Discharge port diameter: 12 mm.
  • Removable silicone pads for secure mounting.
  • Warning: The pump can operate submerged, or it must be installed below the liquid level being pumped; it is not self-priming.
